Current Tools 513 Quick Start Manual

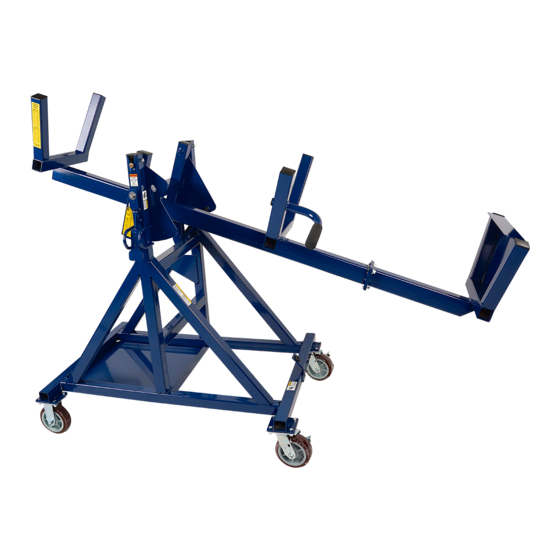

Model 513 Elevator Conduit Cart
Tilt Assist
Handle
Read and understand this material
before operating the Elevator
Conduit Cart. Failure to understand
how to safely operate this cart may
result in injury or property damage.
CURRENT TOOLS • P. O. BOX 17026 • GREENVILLE, SC 29606
800.230.5421 or 864.721-4230 • FAX 864.721.4232 • www.currenttools.com
Bed Release
Paddle
Figure A
(Cart shown with bed
in raised position)
Figure B
(Cart shown with bed
in lowered position)
This manual is free of charge. All personnel
who operate the Elevator Conduit Cart should
have a copy of this manual and read and
understand its contents. To request a copy, call,
write to the address below, or visit our website.
Bed
Dimensions — Unloaded with bed
in raised position
height
width
length
weight
Dimensions — Unloaded with bed
in lowered position
height
width
length
weight
Uprights
Conduit
Support
Plate
62"
32"
81"
200 lbs.
69"
32"
69"
200 lbs.
