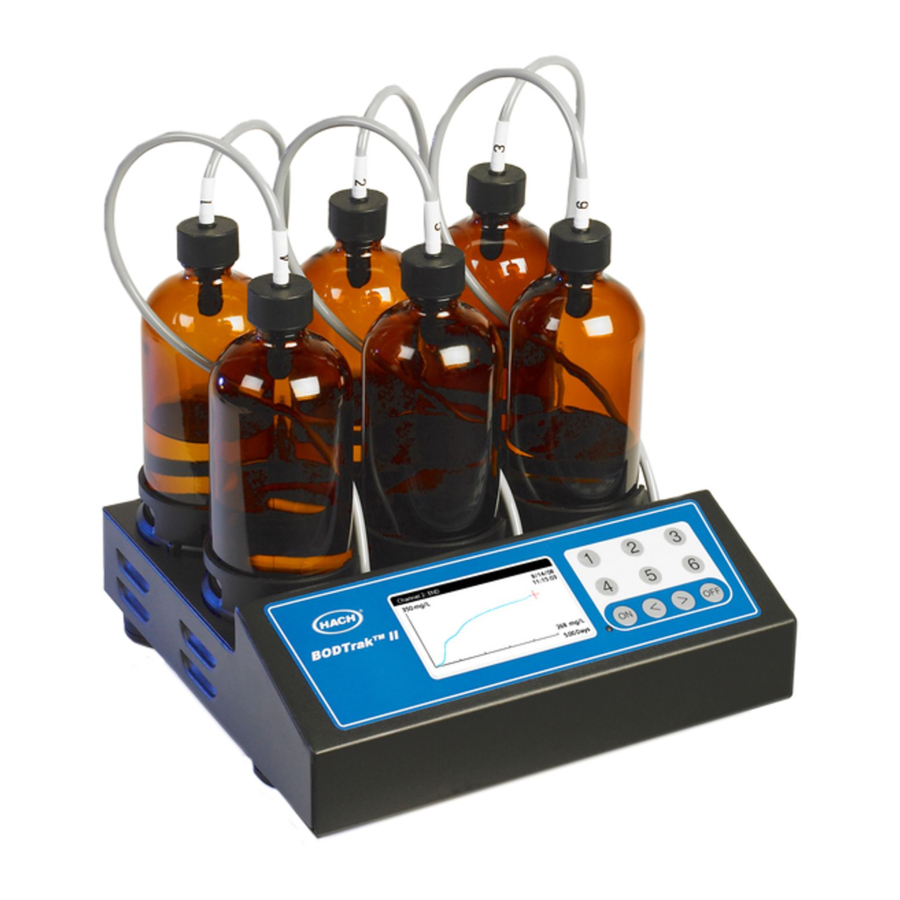

Hach BODTrak II Basic User Manual
Hide thumbs
Also See for BODTrak II:
- User manual (46 pages) ,
- Basic user manual (168 pages) ,
- User manual (24 pages)
Related Manuals for Hach BODTrak II
Summary of Contents for Hach BODTrak II
-
Page 1: Number Of Analysts

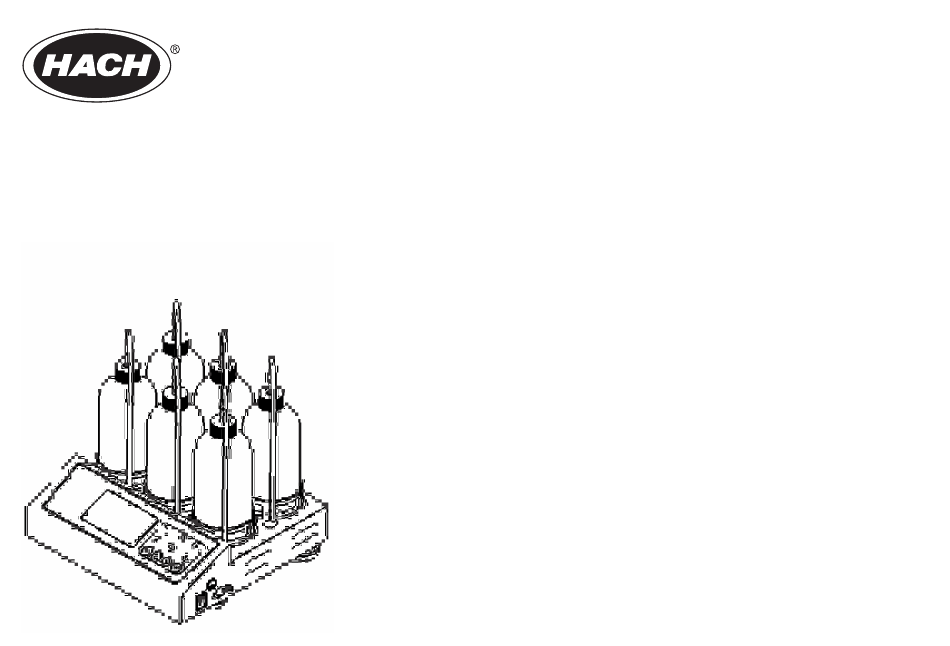

DOC022.97.80363 BODTrak II 02/2013, Edition 1 Basic User Manual Manuel d'utilisation de base Manual básico del usuario... -
Page 2: Pollution Degree
English ........................................3 Français ......................................14 Español .......................................26... -
Page 3: Table Of Contents
• Standard: 150 mg/L each of glucose and glutamic acid Table 1 General Specifications • Number of samples: 44 • Number of analysts: 1 Specification Details • Number of BodTrak II instruments: 6 Operating 5 to 40 ºC (41 to 104 ºF) temperature Results: Altitude limit 2000 m (6500 ft) •... - Page 4 Safety information Precautionary labels N O T I C E Read all labels and tags attached to the instrument. Personal injury or damage to the instrument could occur if not observed. A symbol on the The manufacturer is not responsible for any damages due to misapplication or instrument is referenced in the manual with a precautionary statement.
-
Page 5: Installation
• Power supply, auto-switching between 115 V and 230 V 5. Try combinations of the above. • Seal cups (6x) • BODTrak II amber sample bottles (6x) Product overview • BODTrak II magnetic stir bars (6x) • Spatula scoop... -
Page 6: User Interface
Note: The use of the specified cable or an equivalent shielded cable is necessary Figure 1 External connections to meet radio frequency emissions requirements. Bottle connections Each bottle position/channel has the applicable tube numbered with a plastic sleeve. The bottle positions are numbered 1 through 6 with number 1 in the back left corner of the chassis. -
Page 7: Standard Operation
Channel selection keys OFF key Push the related channel selection key to show data for one of the six When a test is in DELAY or RUN modes, push and hold OFF to bottles. The channel selection keys are also used in the instrument setup manually end the test. - Page 8 Figure 3 shows typical curves through a 10 day test period. For incorrect Download test results curves, refer to Figure 4 on page 10. To transfer test results to a PC: Figure 3 Typical curves 1. Select PROGRAMS>ACCESSORIES>COMMUNICATIONS>HYPERTERM INAL. 2. In the Connection Description window, type in a name for the connection and select an icon to represent the connection.
-
Page 9: Maintenance
360 equal distance points are shown. Each The BODTrak II is compatible with the Citizen PD-24 printer, which is line ends with a carriage return and a line feed. The end of the data... -
Page 10: Troubleshooting
C A U T I O N Figure 4 Incorrect curves Chemical exposure hazard. Obey laboratory safety procedures and wear all of the personal protective equipment appropriate to the chemicals that are handled. Refer to the current material safety data sheets (MSDS) for safety protocols. - Page 11 Hach Nitrification Inhibitor. Dispense the inhibitor powder into an empty Bottle, BODTrak II, amber 714421 sample bottle and then add the sample. With the Hach Dispenser cap, dispense 6 shots (approximately 0.48 grams) into the empty bottle. Refer Power cord, 18/3 SVT 7.5 ft, 10A,125 VAC...
- Page 12 1000 mL 127053 Seal cup 2959500 Voluette ampule standard for BOD, 3000 mg/L for manometric, 10- 1486610 Spatula scoop 1225700 mL/ampule Stir bar, magnetic, BODTrak II 2959400 Accessories Required reagents Description Quantity Item number Description Quantity Item number Ampule breaker kit for voluette ampules...
- Page 13 Accessories (continued) Description Quantity Item number ® Pipet, Tensette , 0.1 to 1.0 mL 1970001 Pipet, Tensette, 1 to 10 mL 1970010 Pipet tips, 0.1 to 1.0 mL 2185696 Pipet tips, 0.1 to 1.0 mL 1000 2185628 Pipet tips, 1 to 10 mL 2199796 Pipet tips, 1 to 10 mL 2199725...
