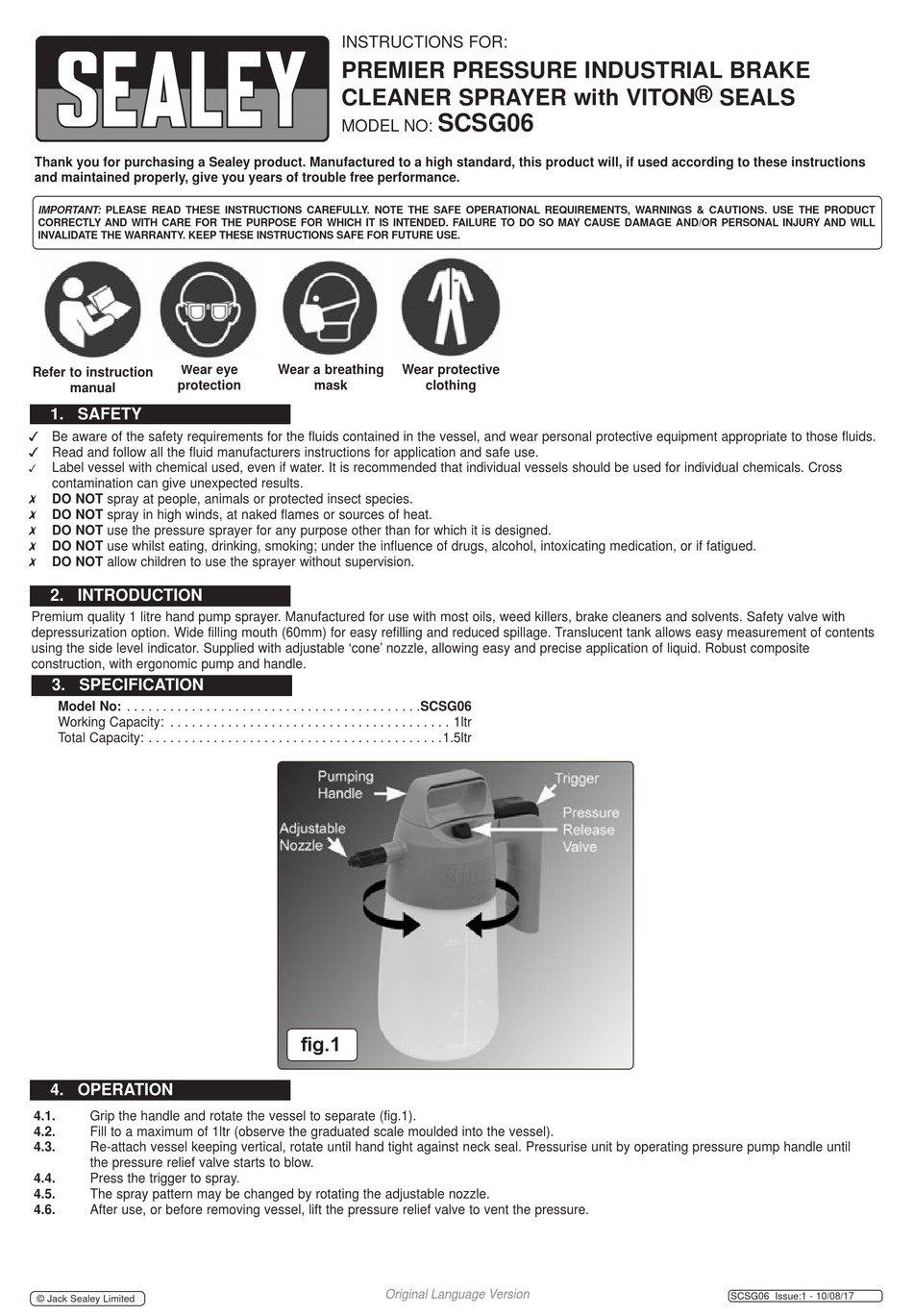

Sealey SCSG06 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions
and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Wear eye
Refer to instruction
protection
manual
1. SAFETY
 Be aware of the safety requirements for the fluids contained in the vessel, and wear personal protective equipment appropriate to those fluids.
 Read and follow all the fluid manufacturers instructions for application and safe use.
Label vessel with chemical used, even if water. It is recommended that individual vessels should be used for individual chemicals. Cross

contamination can give unexpected results.
 DO NOT spray at people, animals or protected insect species.
 DO NOT spray in high winds, at naked flames or sources of heat.
 DO NOT use the pressure sprayer for any purpose other than for which it is designed.
 DO NOT use whilst eating, drinking, smoking; under the influence of drugs, alcohol, intoxicating medication, or if fatigued.
 DO NOT allow children to use the sprayer without supervision.
2. INTRODUCTION
Premium quality 1 litre hand pump sprayer. Manufactured for use with most oils, weed killers, brake cleaners and solvents. Safety valve with
depressurization option. Wide filling mouth (60mm) for easy refilling and reduced spillage. Translucent tank allows easy measurement of contents
using the side level indicator. Supplied with adjustable 'cone' nozzle, allowing easy and precise application of liquid. Robust composite
construction, with ergonomic pump and handle.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SCSG06
Working Capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1ltr
Total Capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5ltr
4. OPERATION
4.1. Grip the handle and rotate the vessel to separate (fig.1).
4.2. Fill to a maximum of 1ltr (observe the graduated scale moulded into the vessel).
4.3. Re-attach vessel keeping vertical, rotate until hand tight against neck seal. Pressurise unit by operating pressure pump handle until
the pressure relief valve starts to blow.
4.4. Press the trigger to spray.
4.5. The spray pattern may be changed by rotating the adjustable nozzle.
4.6. After use, or before removing vessel, lift the pressure relief valve to vent the pressure.
© Jack Sealey Limited
INSTRUCTIONS FOR:
PREMIER PRESSURE INDUSTRIAL BRAKE
CLEANER SPRAYER with VITON ® SEALS
SCSG06
MODEL NO:
Wear a breathing Wear protective
mask clothing
fig.1
Original Language Version
SCSG06 Issue:1 - 10/08/17
