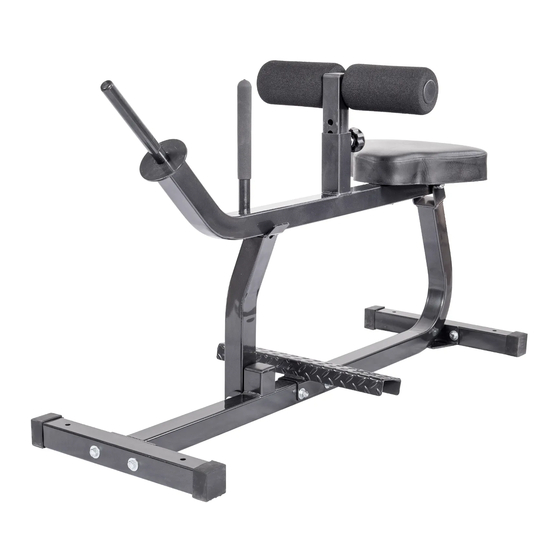

NORTEHERN LIGHTS SEATED CALF MACHINE
NORTEHERN LIGHTS SEATED CALF MACHINE
NLCALFS
OVERALL DIMENSIONS: 51.5"L X 18.25"W X 31"H
17 NOVEMBER 2015
ASSEMBLY INSTRUCTIONS
Keep This For Warranty
NLCALFS
LOT:
1-866-420-4560
Northern Lights Fitness
Products Inc.
MADE IN CANADA
Specification
Weight=51.1 lbs
Packed in 1 Box
:48.5"x18"x6"
Box 1
:3.03 ft³
Advertisement
Table of Contents
Related Manuals for Northern Lights Fitness NLCALFS
Summary of Contents for Northern Lights Fitness NLCALFS
- Page 1 NORTEHERN LIGHTS SEATED CALF MACHINE ASSEMBLY INSTRUCTIONS Keep This For Warranty NLCALFS LOT: 1-866-420-4560 Northern Lights Fitness Products Inc. MADE IN CANADA Specification NORTEHERN LIGHTS SEATED CALF MACHINE Weight=51.1 lbs Packed in 1 Box NLCALFS :48.5"x18"x6" OVERALL DIMENSIONS: 51.5"L X 18.25"W X 31"H Box 1 :3.03 ft³...
- Page 2 Parts List Item Item Part QTY. Part QTY. Adjust. Knee Holddown Bolt 3/8" x 3" Seat Support Bolt 3/8" x 3-1/4" Locknut 3/8" Base Washer 3/8" Foot Plate Safety Spotter Bolt 1/2" x 3-1/4" Locknut 1/2" Stabilizer Seat WARNING: To reduce the risk of personal injury or damage. We recommend bolting your equipment in place.
- Page 3 7 PLACES 16 PLACES 1. Bolt the two Stabilizers (6) to the Base (3) using the bolting shown. 2. Bolt the Foot Plate (4) the Base (3) using the bolting shown. 3. Bolt the Safety Spotter (5) to the Base (3) using bolting shown. 4.
- Page 4 WARRANTY Garantie à Vie Limitée du Fabricant Manufacturer’s Limited Lifetime Warranty Northern Lights Fitness Products Inc. offre à ses Northern Lights Fitness Products Inc. offers its clients une garantie à vie contre toutes soudures customers a lifetime warranty against broken casées et contre tout défaut de matériau et de...
