  • Page 1 INSTALLATION AND SERVICE PROGRAMMING This manual is for skilled service personnel only „99 N°30 - 21053 CASTELLANZA (VA) - ITALY DAMIAN S. . - V AGAZZI DEL Rev. M - 01 Vers. Software 1.1a or follow.
  • Page 2 Serie "LXS9" Rev. M - 01 Pagina A - 25...

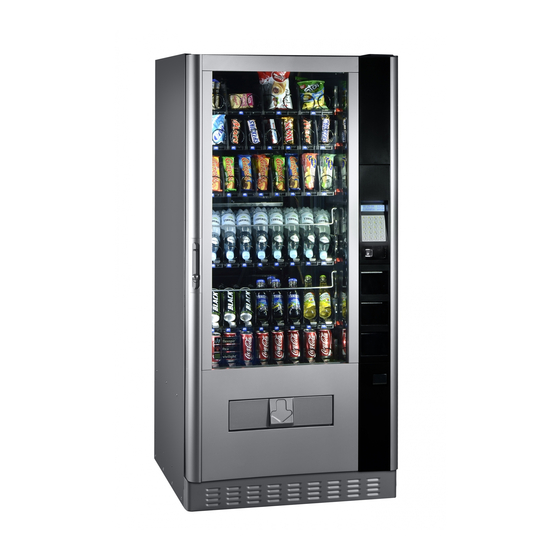

  • Page 3 MARKING PLATE SAFETY SWITCH The intended use for LXS9 series LUCE X SNAC automatic spiral vending machines consists of automatically distributing solid products or products in solid package; pre- packaged foods (snacks, bottled drinks, etc.) and non-food items. For food products, make sure that the package is whole and that the products are in a good state of preservation in conformity with the current applicable regulations concerning the preservation of sold products.

  • Page 4: Legend Of Symbols Used

    Serie "LXS9" These models are manufactured in variations “-A” without refrigeration unit and “-S” with Super refrigeration unit with the characteristics shown in the following table: Characteristics Variation LXS9B/x/xx-A LXS9P/x/xx-S Power supply Voltage 220-230V 50Hz Frequency Rated power 160 W 490 W 260 W 650 W...

  • Page 5: Warnings & Cautions

    Serie "LXS9" ARNINGS AUTIONS The appliance should be be started up by skilled service personnel ONLY. All operations described in this manual, especially all maintenance operations concerning the electrical part, should be carried out by skilled technical service personnel ONLY. The vending machine is equipped with a safety switch that allows powering up all electrical parts only when the door is closed.

  • Page 6: Installation

    Serie "LXS9" NSTALLATION Install the vending machine in covered and protected places where it is not exposed to inclement weather and cannot be rained on or sprinkled with jets of water. MIN 8 CM MIN 40 IGURE ± 2° Place the vending machine in the point where it is to be installed, making sure that the minimum distances shown in Figure 3 are guaranteed.

  • Page 7: Power Supply

    If it should become necessary to replace the vending machine‟s power cord, the H05VV-F replacement cord, which is in conformity with standard CENELEC EN 60 335-1, is available from Damian; the replacement should ONLY be carried out by skilled service personnel.
  • Page 8 Serie "LXS9" NSTALLATION OF PAYMENT SYSTEMS The payment system installation and removal operations must be carried out with the power supply switched off, moving the main switch to the “OFF” position. - MDB PAYMENT SYSTEMS Connect the payment system to the CPU card (2) being careful to connect the cable on the proper MDB connector on the CPU card (See Figure 5).

  • Page 9: Circuit Boards

    Serie "LXS9" IRCUIT BOARDS SLIDING PANEL PRODUCT DOOR KEYBOARD connector EXECUTIVE connector ( 2 ) DISPLAY connector FTCA connector MDB connector ( 4 ) ( 10) ( 17 ) ( 9 ) ( 3) ( 12 ) ( 7 ) ( 15) ( 8 ) ( 14 )
  • Page 10 Serie "LXS9" VERTEMPERATURE CONTROL LXS9P/ ONLY MODELS In order to guarantee the preservation of the products for sale, the vending machine controls that the internal temperature does not exceed a given threshold, called safety temperature, for a period longer than the overtemperature time; The overtemperature control function is managed through 3 parameters: (A) Safety temperature (B) Overtemperature time (Set).
  • Page 11 Serie "LXS9" NSWERS TO PROBLEMS THAT MIGHT ARISE RROR MESSAGES THAT APPEAR ON THE DISPLAY The following table shows the OFF messages that appear on the display when the vending machine is out of order. See Figure 5 for the numerical references in parentheses. - Press key “1”...
  • Page 12 Serie "LXS9" Message Message text Problem description / solution code OFF L10… FTCA vending sensor error – These error messages may appear when the vending machine is turned on or right before a sale. (Chk cable, Chang) – FTCA bars not connected OFF L10a FTCA sensors OFF - Check the condition of the wiring and of the connections of the FTCA bars (3)
  • Page 13 Serie "LXS9" Message Message text Problem description / solution code OFF L13… Sliding anti-theft panel errors. These error messages concern failures of the sliding anti-theft panel (10) closing/opening system. (S.D. Mot. Fault) - Sliding panel motor short-circuited OFF L13a Sliding Panel - Check the operation of the sliding panel motor (11) and the relative wiring;...
  • Page 14 Serie "LXS9" Message Message text Problem description / solution code OFF L21… CLP1 POT (16) circuit board errors. These error messages concern failures of the vending machine‟s power circuit board located in the electrical box (9). OFF L21a CLP1 POT Error (Chk cable, Chang) - CLP1 power board (in the electrical box) error - Turn the vending machine off and then on again;...
  • Page 15 Serie "LXS9" “Motor xx Max 3 Selec Err.” (R)*: The motor has been put out of order after three consecutive sales of the same motor without detecting that the product has dropped (See “FTCA Parameters” chapter). Check that the spiral is hooked correctly to the motor. Check the operation of the product drop control sensors (See “Diagnostics”...
  • Page 16 Serie "LXS9" “S ” HEN MAKING A SELECTION ELECTION X X OUT OF ORDER IS INDICATED If some selections are out of order, indicated by the “Selection x-x out of order” message, this indicates the presence of a problem relative to the motor. For a detailed analysis of the type of error that generated the out of order condition, use the “Diagnostic”...
  • Page 17 Serie "LXS9" ISASSEMBLY AND REASSEMBLY OF THE REFRIGERATION UNIT Before carrying out any operation on the refrigeration unit and, in particular, before checking any electrical part, move the main switch to the “OFF” position (See Figure 7). On the LXS9 automatic spiral vending machines it is possible, with simple operations, to remove and perform maintenance on the refrigeration unit, extracting it from the front of the vending machine.
  • Page 18 Serie "LXS9" USES MAIN SWITCH Figure 7 Press to cancel motors “OUT OF ORDER” Press to enter into programming The vending machine is equipped with fuses mounted as shown in the following table: OSITION NSCRIPTION PROTECTED CHECK WHEN CIRCUITS 5x20 T6.3 Refrigeration The vending machine does not ( 6.3 A delayed 250...

  • Page 19: Routine Maintenance And Lubrication

    Serie "LXS9" OUTINE MAINTENANCE AND LUBRICATION During the maintenance and lubrication operations, do not perform any operation other than those indicated. See Figure 5 for the references in parentheses. Symbol Periodicity Check Lubricate - Correct operation of the door safety switch ...
  • Page 20 Serie "LXS9" () HECK OF PRODUCT DOOR MICROSWITCHES AND MAGNETS Product removal door (4) operation can be checked by performing the door closing and opening test (see: programm.-> diagnostics ->Product door test). If necessary, it is possible to remove the magnet covering panel on the lower internal part of the door to inspect the microswitches (6) that lock the product door (4) and the closing magnets (5), in particular to check the condition of the levers of the microswitches and that the magnets can move freely.

  • Page 21: Environmental Protection

    If you wish to get dispose of this product, please contact the local authorities for information on the correct disposal method. ARRANTY Damian S.r.l. provides a warranty for its own products that is in conformity with the specific national laws. The warranty begins on the date shown on the sales document.
  • Page 22 Serie "LXS9" Page 21 Rev. M - 01...

  • Page 23: Programming Sheet

    PROGRAMMING SHEET This attachment is an integral part of the manual and must remain with it „99 N°30 - 21053 CASTELLANZA (VA) - ITALY DAMIAN S. . - V AGAZZI DEL Rev. M - 01 Vers. Software 1.1a or follow.

  • Page 24: Programming Method

    Serie "LXS9" PROGRAMMING METHOD Enter (P) Programming key PS2 key O ENTER INTO PROGRAMMING Open the vending machine, power it up using the special key on the safety switch and press the pushbutton (P) found on the CPU card of the vending machine (see the above figure) for about 2 seconds; avoid reclosing the vending machine so as not to damage the safety switch.

  • Page 25: General Parameters

    Serie "LXS9" DEFAULT VALUE USED AUTOMATICALLY BY A NEW OR REINITIALISED CARD GENERAL PARAMETERS > ESSAGE LANGUAGE To establish the language of the messages that appear on the display. [ Default: Italian ] Programming General param. Language Current value > PERATING MODE To set the vending machine operating mode.
  • Page 26 Serie "LXS9" » CTIVATION DELAY (Visible and programmable only with Vivilight Kit installed) This parameter allows setting the time in minutes that must elapse, without anyone using the vending machine, before the Save Mode function is activated (attenuation of the intensity of the LED lamps). Settable values: 0 ÷...

  • Page 27: Decimal Point

    Serie "LXS9" > EFRIGERATOR PERATION (Visualisation only, programmable by reinitialising the card) To visualise the operating mode of the refrigeration unit. Programming [ Default: Self-learned ] General param. Refrig.operation Current value The three possible operating modes, programmable by reinitialising the card, are: - Food &...
  • Page 28 Serie "LXS9" > Allows to read the internal parameter software 'code mode'. [ Read only ] Programming General param. Code Mode Current value > ISUALISATION OF THE VERSIONS INSTALLED To visualise the software versions installed. Programming General param. Software vers. ->->->...
  • Page 29 Serie "LXS9" D) This message appears on the display: Self-learning FTCA sensors:XXX If the product drop sensors (FTCA) are installed on the vending machine, XXX = ON If the product drop sensors (FTCA) are not installed on the vending machine, XXX = OFF press F to confirm E) After a short time, the sliding panel will perform a cycle of opening and closing, if appears “OFF L13b SD Motor Disconnected”, it is necessary to turn on the door open switch and press any button to check...
  • Page 30 Serie "LXS9" G) This message appears on the display: Code Mode *> Self-learning of the internal parameter software 'code mode' : press F to confirm. H) Once the last parameter has been confirmed, the self-learning procedure ends and the vending machine returns to the programming menu.
  • Page 31 Serie "LXS9" Press the F key to select the value “VVVVV” of the price line to be varied. Enter the new value, pressing the numbers on the keyboard, confirm the price by pressing the F key again. Note: if the entered value is not an exact multiple of the “Min. coin values” parameter (see further ahead), it will automatically be rounded off and the new value will have to be reconfirmed with the F key.
  • Page 32 Serie "LXS9" EXECUTIVE PAYMENT SYSTEM PARAMETERS (Visible and programmable only with „Operating mode = Executive‟) > ALUE OF EACH STEP OR OIN SCALING FACTOR The value of the coins and the selling prices are always expressed as multiples of a base coin of minimum value.
  • Page 33 Serie "LXS9" » OMPULSORY SALE (Visible and programmable only if „MDB coin return‟ payment system installed) If Enabled, the MDB payment system does not give change before a sale, to prevent it from being used as a coin changer. Settable values: „Disabled‟ (OFF), „Enabled‟ (ON). [ Default: Disabled ] Programming MDB parameter...
  • Page 34 Serie "LXS9" » OKENS PRESENT (Visible and programmable only if „MDB coin return‟ payment system that foresees the “Token” function is installed) To read the number of tokens present in the MDB payment system tubes, and to enable or disable recognition of these tokens: Programming MDB parameter...
  • Page 35 Serie "LXS9" > ASHLESS If one or more cashless payment systems are installed in the vending machine, it is possible to select the price bracket to be associated with these systems. » .1 ( ASHLESS N PRICE BRACKET ASSOCIATION (Visible and programmable only if a „Cashless payment system‟ is installed) If a cashless payment system is installed in the vending machine, it allows selecting the price bracket to be associated with this system.
  • Page 36 Serie "LXS9" > IGHT ODE INTERNAL TEMPERATURE SETTING (Visible and programmable only with Vivilight Kit installed and “Refrigerator operation” other than “Food & Snack”) This parameter allows setting the internal temperature of the vending machine when the Night Mode function is activated. Settable values: 0 ÷ 50°C. The refrigerator temperature raising function is deactivated during the Night-Mode period if the parameter is set to „0‟...
  • Page 37 Serie "LXS9" EVA-DTS PARAMETERS > (EVA-DTS): ASSWORD CODE RESET To reset the “Security” and “Passcode” codes foreseen by the DDCMP protocol (EVA-DTS) to prevent anyone from being able to access and download the data relative to the vending machine proceeds using an IRDA handheld device.
  • Page 38 Serie "LXS9" » OUNTER OF NUMBER OF SALES PER LINE SALES PRICE To read the total (absolute and partial since the last reset) number of sales for each product price line. Programming Audit data Num.Sales Lines ->->-> Price N. : P xxxxx T xxxxx >...
  • Page 39 Serie "LXS9" Where “xxxxxx” is the detected error. See the “Installation and service” manual, "Problems and relative solutions” chapter, “Motor anomaly messages” section for the list of anomalies and relative solutions. It is important to keep in mind that even possible out of orders that are automatically reset (R) by turning the vending machine on and off are also listed in this menu (see “Motor anomaly messages"...
  • Page 40 Serie "LXS9" If errors should be detected during the check, the check itself stops and the following message appears: Error xxxxxx Where “xxxxxx” is the detected error. See the “Installation and service” manual, "Problems and relative solutions” chapter, “Motor anomaly messages” section for the list of anomalies and relative solutions. From these error conditions it is possible to make the check sequence continue by pressing the F key, or end it with the A key.
  • Page 41 Serie "LXS9" > LIDING PANEL TEST Select this item to perform the sliding anti-theft panel operation test. Programming Diagnostics Anti-tft p. test ->->->-> O C ADC Ttot TAp X Y zzz zzzz zzz When the following message appears on the display: O C ADC Ttot TAp X Y zzz zzzz zzz Parameter O ...
  • Page 42 Serie "LXS9" Parameter CL X = 1 “Push” product door closed. X = 0 “Push” product door open. Parameter LK Y = 1 “Push” product door locked (i.e. the microswitches located on the magnets indicate they are raised). Y = 0 “Push” product door unlocked. Press the A key to exit the submenu.
  • Page 43 Serie "LXS9" Summary table: (*) Memorandum to be filled out after the programming under way Adjusted Default Menu Parameter Meaning Min-Max to (*) General Param’s Language Message language Italian General Param’s Operating mode Operating mode General Param’s DDD DD/mm hh:mm Clock setting DateTime Dsp Enabled -...
  • Page 44 Serie "LXS9" (*) Memorandum to be filled out after the programming in progress Parameter Meaning Min-Max Adjusted Menu Default to (*) Coin nn vvvvv MDB parameters Coins present In tubes xxx yyy Token: n MDB parameters Tokens present In tubes xxx yyy Bill nn vvvvv MDB parameters Banknotes present...
  • Page 45 Serie "LXS9" EC D ECLARATION OF ONFORMITY Damian S.r.l. Declaration not valid Via Ragazzi del „99 n°30 without the 21053 Castellanza identification plate Varese Italy Tel. +39 0331 322020 Fax +39 0331 322030 Dichiara che la macchina descritta nella targhetta di identificazione è conforme alle disposizioni...

  • Page 46: General Warranty Conditions

    Damian S.r.l. is not responsible for possible injuries and damage to persons or objects caused directly or indirectly by the lack of observance of the instructions given in this manual and of any other information transmitted by the manufacturer to the customer, concerning, above all, the warnings/cautions relative to installation, use and maintenance of the device.
