Little Giant F Series Instruction Sheet

Franklin Electric Co., Inc.
Oklahoma City, OK
www.lg-outdoor.com
customerservice@lgpc.com
INTRODUCTION
EN
This instruction sheet provides you with the information required
to safely own and operate your Little Giant product. Retain these
instructions for future reference.
The Little Giant product you have purchased is of the highest
quality workmanship and material, and has been engineered
to give you long and reliable service. Little Giant products are
carefully tested, inspected, and packaged to ensure safe delivery
and operation. Please examine your item(s) carefully to ensure
that no damage occurred during shipment. If damage has
occurred, please contact the place of purchase. They will assist
you in replacement or repair, if required.
READ THESE INSTRUCTIONS
ATTEMPTING TO INSTALL,
YOUR LITTLE GIANT PRODUCT. KNOW THE PRODUCT'S
APPLICATION, LIMITATIONS, AND POTENTIAL HAZARDS.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL
SAFETY INFORMATION. FAILURE TO COMPLY WITH THESE
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/
OR PROPERTY DAMAGE!
DESCRIPTION
The F series Flexiflow Pumps provide circulating, oxygenated
water to features such as ponds, fountains, displays, waterfalls,
and filter systems.
SAFETY GUIDELINES
WARNING: RISK OF ELECTRICAL SHOCK. PLEASE OBSERVE
THE FOLLOWING SAFETY GUIDELINES.
WARNING: This pump has not been investigated for use in
swimming pools.
This pump uses a grounding conductor and a grounding-type
attachment plug. To reduce the risk of electrical shock, connect
the pump only to a properly grounded, grounding-type receptacle.
Employ a qualified, licensed electrician to provide electrical power.
Check product label for proper voltage required. Do not connect
to voltage other than that shown.
• F SerieS PUMP
• SÉrie F POMPe
• Serie F BOMBA
CAREFULLY BEFORE
OPERATE, OR SERVICE
Min. 10 in. (25cm)

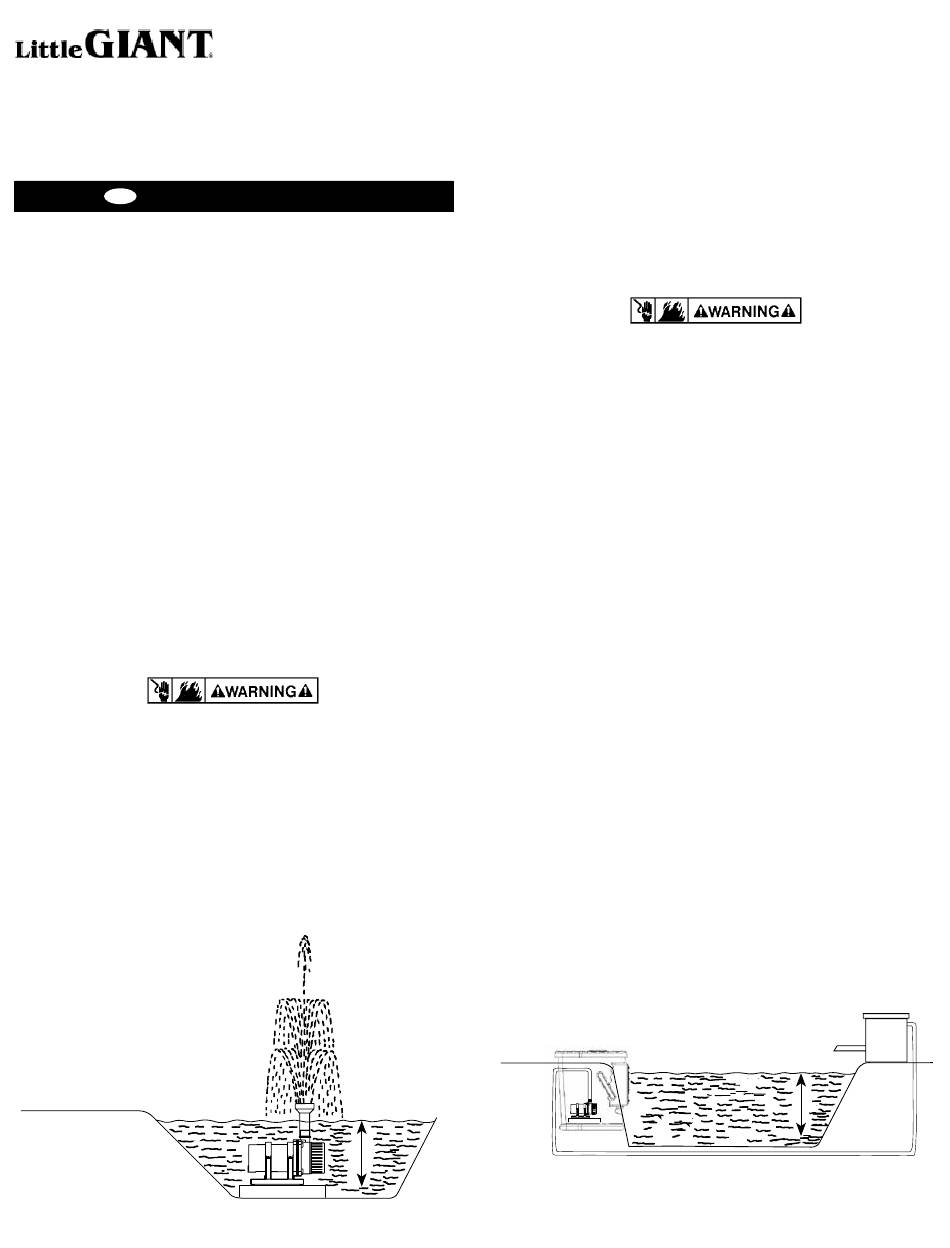

FIG. 1
To comply with the National Electric Code (NEC) and to reduce
the risk of electric shock, connect the pump only to an outlet
protected by a ground fault circuit interrupter (GFCI).
Check the power cord regularly to ensure that it is in good
condition, with no nicks or cuts.
Do not lift the pump by its power cord.
Do not let the pump freeze during colder temperatures. This can
cause cracking or distortion that will damage the pump. See the
MAINTENANCE section for storage instructions.
Do not operate the pump dry. This will cause the pump to
become extremely hot, causing burns if touched and/or damage
to the pump.
Do not use to pump water hotter than 95°F (35°C).
INSTALLATION AND OPERATION
WARNING: Ensure that the installation conforms with all local and
state electric codes.
NOTE: The pump has thermal overload protection. If it
becomes overheated it will shut off. See the Troubleshooting
section to restart.
In-Water (Submersible) Installation
Refer to Figure 1, Figure 2, and the following steps to configure
the pump for in-water (submersible) use:
1. Locate the electical connection box in a dry area at least 6-1/2
feet (2 meters) from the edge of the water.
2. Place the pump into the water on a flat surface, ensuring that
the pump is completely submersed and that the volute is filled
with water.
CAUTION: If the surface is dirt or sand, place the pump on a
flat object such as a brick or stone to prevent clogging. For
best results, place the pump into a skimmer.
CAUTION: Ensure that the water level does not go below
(25cm) 10 in. when pump is placed directly in pond.
3. Make all necessary intake and discharge connections.
4. Connect the pump to power.
5. Observe that the pump operates properly. Ensure that the
pump will not run dry; without a continuous supply of water
damage will result and void the warranty.
6. If reduced flow is required, restrict the discharge. Never restrict
the intake.
Min. 10 in. (25cm)
FIG. 2
1
