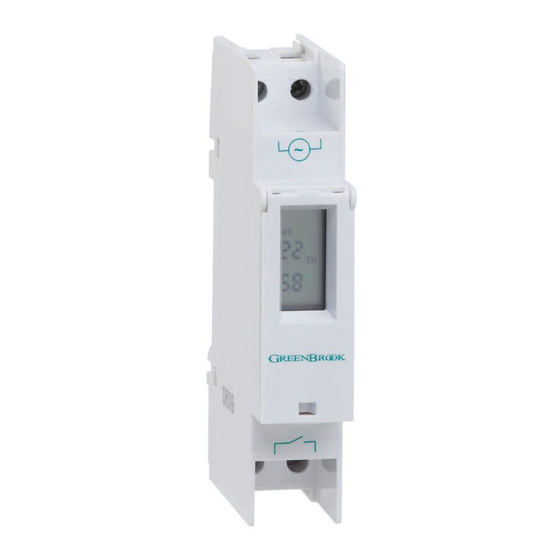

T80-C Instructions – Simplified

Setting current time and Day

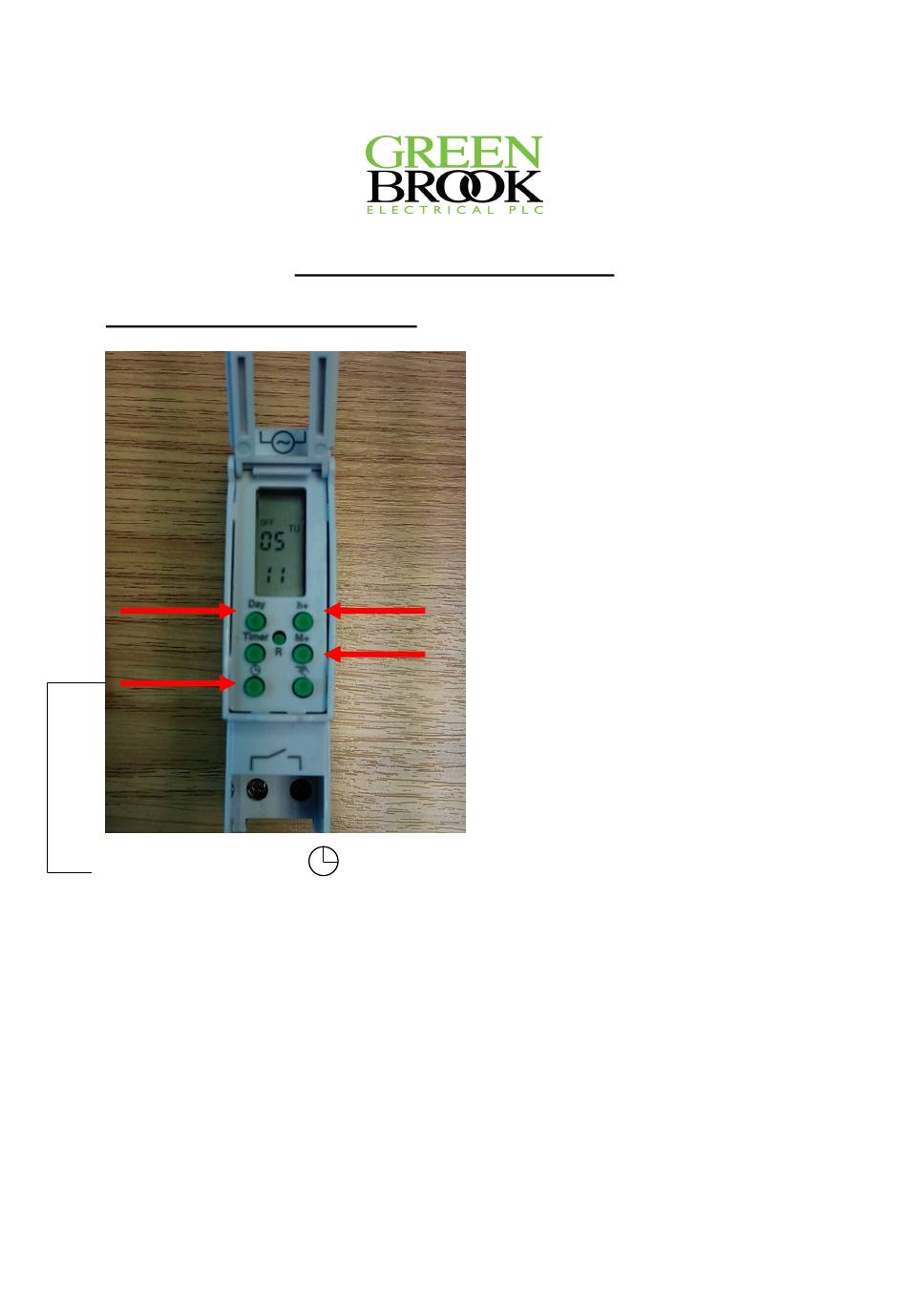

Press and hold down
Set current time by press 'h+' (Hours) & 'm+' (minutes)
Set current day by press 'Day'
IMPORTANT
This unit should be installed to current IEE wiring regulations if in doubt
consult a qualified electrician.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T80-C and is the answer not in the manual?

Questions and answers

Related Manuals for Green Brook T80-C

Summary of Contents for Green Brook T80-C

  • Page 1 T80-C Instructions – Simplified Setting current time and Day Press and hold down Set current time by press ‘h+’ (Hours) & ‘m+’ (minutes) Set current day by press ‘Day’ IMPORTANT This unit should be installed to current IEE wiring regulations if in doubt...
  • Page 2 Setting Switching Times (6 on/ offs available) Press ‘Timer’ button once Set ON time by press ‘h+’ (Hours) & ‘m+’ (minutes) Set DAY by pressing ‘Day’ Press ‘Timer’ button once Set OFF time by press ‘h+’ (Hours) & ‘m+’ (minutes) Set DAY by pressing ‘Day’...
  • Page 3 Note: To review your switching times press ‘Timer’ repeatedly To exit press Important Note: If you set an ‘ON time’ which is before the current time, the timer will not switch ON until it reaches that set ON time again. (next day) Example –...
  • Page 4 Volt Free Contact – There is no voltage on the relay contacts (between terminals 3 & 4). So you can switch any system up to 240V, 16A Resistive or 2A inductive. You need to supply your own signal voltage to terminal 3. The voltage that is present is whatever you supply.
