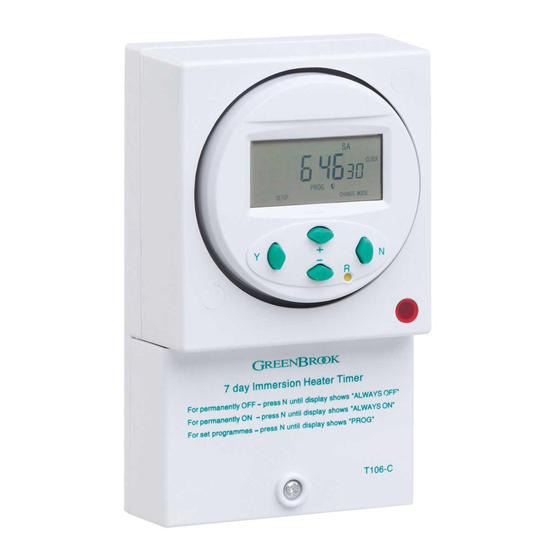

Simplified Operating Instructions –
T105-C / T108-C / T106-C / T17B-C
Button Operations
R - Reset (with pen or other pointed instrument).
Y - Enters function setup.
+/- Buttons to scroll through icons.
Y - To confirm.
N - To Exit.
YY - (Pressing 'Y' twice) - To enter program mode
DISPLAY DETAIL
DISPLAYS DAY OR DAY BLOCK
00:00
ALWAYS ON
AFFIRM
SETUP
THESE ICONS ARE VIEWABLE WHEN
BUTTONS 'Y' AND 'N' ARE BEING USED
4
OPTIONS – WHEN 'N' BUTTON
IS PRESSED
IMPORTANT
This unit should be installed to current IEE wiring regulations if In doubt
consult a qualified electrician.
PROG
SELECT ADJUST
SCROLL DOWN MENU APPEARS
WHEN 'Y' BUTTON IS PRESSED
00
PROG
CHANGE MODE
PROG
DOWN
CLOCK
SUMMER
RANDOM
ALWAYS OFF
EXIT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Green Brook T105-C
Summary of Contents for Green Brook T105-C
- Page 1 Simplified Operating Instructions – T105-C / T108-C / T106-C / T17B-C Button Operations R - Reset (with pen or other pointed instrument). Y - Enters function setup. +/- Buttons to scroll through icons. Y - To confirm. N - To Exit.
-
Page 2: Setting Current Time And Day
Setting current time and day STEP 1 Press the ‘R’ button using a pencil or similar pointed instrument to reset timer to its default settings. Pressing ‘R’ will delete all stored programmes. STEP 2 Press ‘Y’ button to enter function setup. (IF ANOTHER BUTTON IS NOT PRESSED WITHIN 10 SECONDS THE DISPLAY WILL REVERT TO THE NORMAL SCREEN) IMPORTANT... - Page 3 STEP 3 Use the + or – button to scroll to the clock icon (flashing). Then press the Y button to enter the current time setting mode (Hours flashing). Use the + or – button to adjust the hours. Press Y to confirm. Minutes will flash.
- Page 4 Simplified Operating Instructions – T105-C / T108-C / T106-C / T17B-C Programming the switching times There are 24 on/off programmes available. STEP 1 Press the ‘Y’ button Twice to enter the programming setting mode. (IF ANOTHER BUTTON IS NOT PRESSED WITHIN 10 SECONDS THE DISPLAY WILL REVERT TO THE NORMAL SCREEN) Note: Default is programme ‘01 ON’.
- Page 5 Day Blocks available– Monday to Sunday Monday to Friday Saturday to Sunday Monday to Saturday Monday + Wednesday + Friday Tuesday + Thursday + Saturday Monday + Tuesday + Wednesday Thursday + Friday + Saturday STEP 3 Press the + button, this will select the programme O1 OFF. Press ‘Y’ to confirm.
- Page 6 To cancel a programme once set 1. Press the ‘Y’ button Twice to enter the programming setting mode. 2. Using the + or – button scroll through to desired programme to cancel. 3. Programme number will flash (i.e ‘O1 ON’). 4.
- Page 7 Simplified Operating Instructions – T105-C / T108-C / T106-C / T17B-C Timer Countdown Function The Timer has a 100 hour countdown feature. i.e The timer can be set to any period from 1 minute to 100 hours and will countdown in the ON state and turn OFF at the end of the countdown period.
- Page 8 STEP 3 • Press the N button to start the countdown. (Output switched to ON during the countdown period) • Press the N button to pause the countdown. (Output switched to OFF) • To resume countdown simply press the N button. STEP 4 Press and hold the N button for more than 3 seconds to exit the countdown function.
- Page 9 Simplified Operating Instructions – T105-C / T108-C / T106-C / T17B-C Manual Override When in normal clock mode, pressing the ‘N’ Button will scroll through the following switching options: ALWAYS ON – Timer is permanently ON. • PROG (WITH CLEAR SYMBOL) – Timer is in programme ON mode. It will switch off at •...
- Page 10 Random setting The random setting allows the timer to switch ON and OFF with a random delay of between 2 and 32 minutes. This function will only operate if one or more programmes have been programmed into the timer. STEP 1 - Press the ‘Y’ button. STEP 2 - Use the + or - button to scroll through to ‘RANDOM’...
