Crestron FlipTop FT2A-UTK-CLOAK Series Quick Start

FT2A-UTK-CLOAK Series

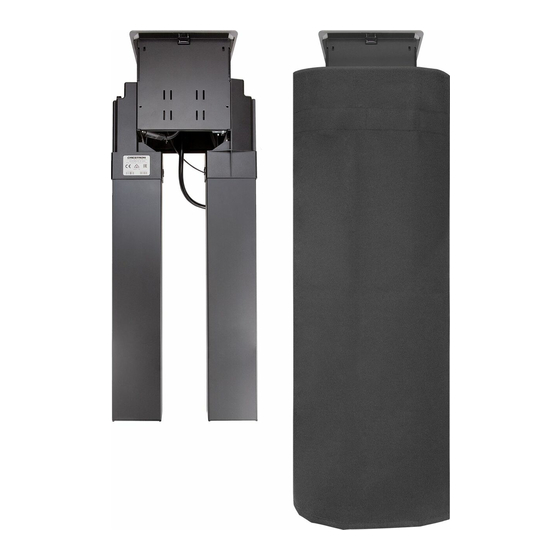

Under-Table Cloak for FT2 Series FlipTop™ Cable Management Solutions
The Crestron® FT2A‑UTK‑CLOAK, FT2A‑UTK‑CLOAK‑1T, FT2A‑UTK‑CLOAK‑WIDE, and FT2A‑UTK‑CLOAK‑WIDE‑1T are used to conceal
exposed cables and retractors in under‑table FT2 Series FlipTop™ applications.
The FT2A‑UTK‑CLOAK, FT2A‑UTK‑CLOAK‑WIDE, FT2A‑UTK‑CLOAK‑1T, and FT2A‑UTK‑CLOAK‑WIDE‑1T are functionally similar. For simplicity
within this guide, the term "cloak" is used except where noted.
The following information provides compatible FlipTop models and cable retractor types for each cloak.
Cloak Model Compatible FT2 Series Model
FT2A‑UTK‑CLOAK FT2‑202‑MECH, FT2‑202‑MECH‑AC, FT2‑202‑MECH‑ACUSB, FT2‑500‑MECH,
FT2‑500‑MECH‑AC, FT2‑500‑MECH‑ACUSB, FT2‑700‑MECH, FT2‑700‑MECH‑AC, FT2‑700‑
Conceals up to four gravity retractors.
MECH‑ACUSB, FT2‑1200‑MECH, FT2‑1200‑MECH‑AC, FT2‑1200‑MECH‑ACUSB
FT2A‑UTK‑CLOAK‑1T FT2‑202‑ELEC, FT2‑500‑ELEC, FT2‑700‑ELEC, FT2‑1200‑ELEC
Conceals up to four one‑touch retractors.
FT2A‑UTK‑CLOAK‑WIDE FT2‑1400‑MECH, FT2‑1400‑MECH‑AC, FT2‑1400‑MECH‑ACUSB
Conceals up to four gravity retractors.
FT2A‑UTK‑CLOAK‑WIDE‑1T FT2‑1400‑ELEC
Conceals up to four one‑touch retractors.
FT2A-UTK-CLOAK
Hook-and-loop
fastener strips (4)
*Inside

Check the Box

Item
FT2A-UTK-CLOAK, FT2A-UTK-CLOAK-1T, FT2A-UTK-CLOAK-WIDE, or FT2A-UTK-CLOAK-WIDE-1T
FT2A-UTK-CLOAK-WIDE-1T
Hook-and-loop
fastener strips (4)
>
*Inside
Qty
1

Attach the Cloak

Attach the cloak to the FlipTop assembly after the assembly has been installed in the table and the cable retractors and modules are installed
in the assembly.
NOTE: Do not fold the cloak. Once creases are made in the fabric, they cannot be removed.
1. Locate the four small strips of hook‑and‑loop fasteners and remove them from the cloak. These four strips shall be applied to the portion
of the FlipTop enclosure that sits beneath the table.
2. Determine the placement of each fastener strip on the FlipTop enclosure. The top of the power supply bracket may be used as a guideline
around the enclosure for fastener placement.
NOTE: A minimum of two strips of hook‑and‑loop fasteners must be used. If only two strips are needed for the installation, place a strip
on the front power supply bracket and on the rear of the of the enclosure. These strips are outlined in blue in the illustration.
Recommended hook-and-loop fastener placement
Power supply Hook-and-loop
bracket fastener strips (4)
3.
Remove the protective backing from the fastener strips, and press them firmly onto the FlipTop enclosure.
4. Align the inside of the cloak with the hook‑and‑loop fasteners to the fastener strips applied to the FlipTop enclosure.
5. Carefully wrap and press the cloak onto the fastener strips attached to the FlipTop enclosure.
6. To prevent tangling or cable movement obstruction, ensure that the cables are routed properly within the cloak.
Hook-and-loop
Power supply
fastener strip bracket
Hook-and-loop fastener strips
FlipTop enclosure
Power supply bracket
Cloak
