Summary of Contents for Logik L1PERCD20

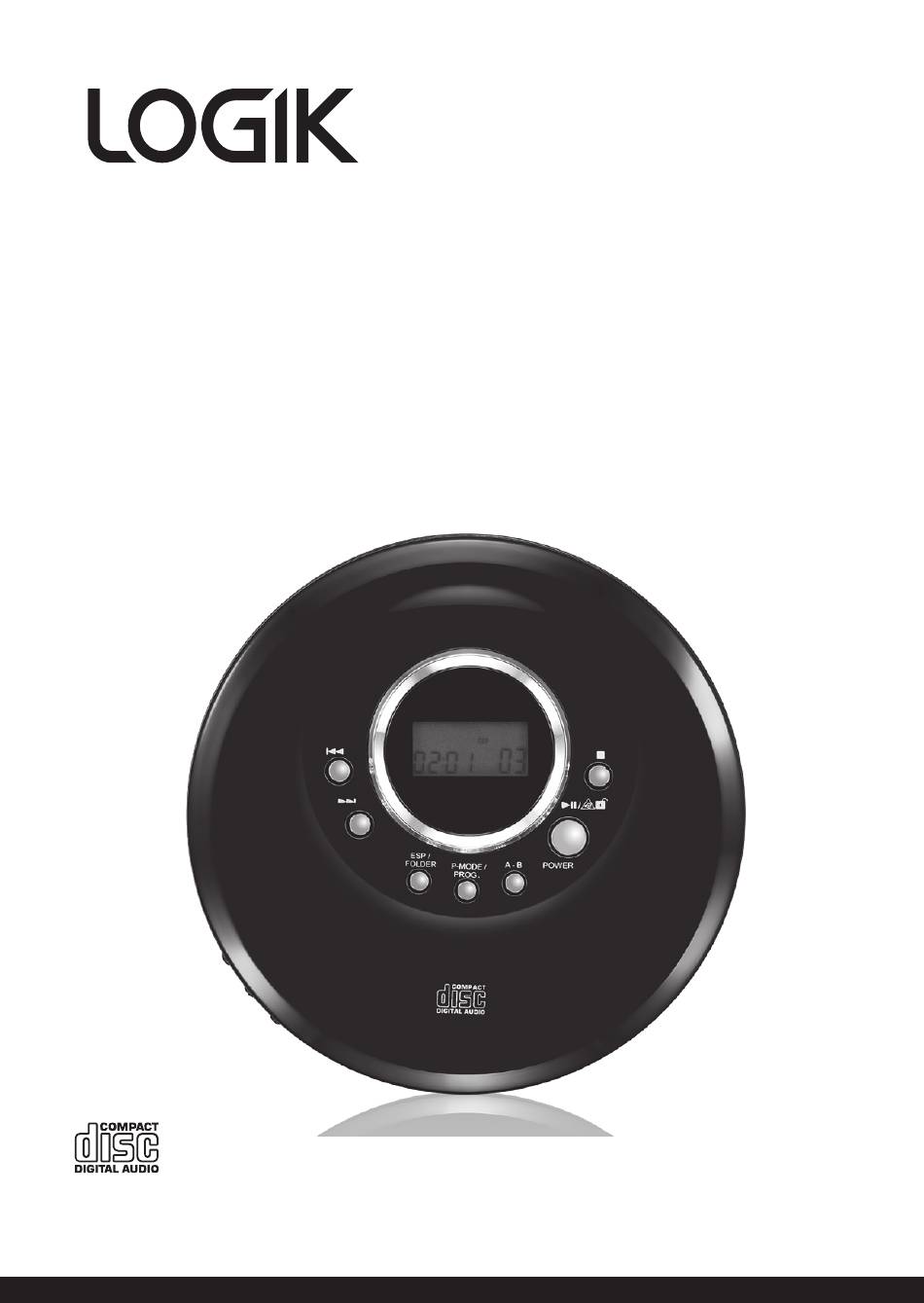

- Page 1 CD player Instruction Manual L1PERCD20...
- Page 2 L1PERCD20_IB_Final200410.indd 2 14/04/2020 11:12...
-
Page 3: Table Of Contents
Contents Safety Warnings ....................4 Unpacking ....................... 6 Product Overview ................... 7 Front View ........................... 7 Side View (Left and Right) ..................... 7 Top View ..........................8 Power Source ....................9 Battery Power ........................9 When to Replace the Batteries ..................9 Mains Power ........................10 Using Micro USB Cable ....................10 Connections .................... -
Page 4: Safety Warnings
Safety Warnings Moisture • Read all the instructions carefully before using the unit and keep • To reduce the risk of fire, electric them for future reference. shock or product damage, do not • Retain the manual. If you pass the expose this unit to rain, moisture, unit onto a third party make sure dripping or splashing. - Page 5 working performance of the unit, The lightning flash with and cause a distorted sound. arrowhead symbol, within an equilateral triangle, is intended Earphones to alert the user to the • Listening to loud sounds presence of uninsulated for prolonged periods of “dangerous voltage”...
-
Page 6: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 7: Product Overview
Product Overview Front view OPEN Open Switch Side View (Left and Right) PHONES Socket DC IN 4.5V Socket BBS Button Micro USB Port Press to switch on/off the Bass effect. VOLUME+/– Button L1PERCD20_IB_Final200410.indd 7 14/04/2020 11:12... -

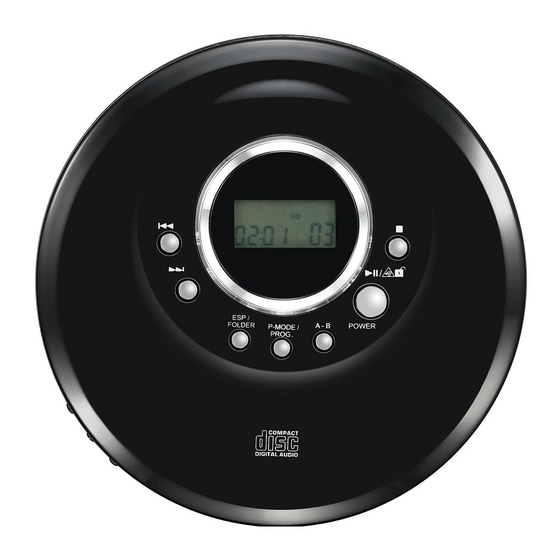

Page 8: Top View
Top View ESP / FOLDER Skip Forward/Backward / Folder+/– Button ESP / FOLDER Button P-MODE / PROG Button Display Stop Button / POWER / Play / Pause / Volume Unlock Button A-B Button L1PERCD20_IB_Final200410.indd 8 14/04/2020 11:12... -
Page 9: Power Source
Power Source Battery Power 1. Open the battery compartment cover at the bottom of the CD player. 2. Insert two alkaline batteries, size “AA”; install the battery correctly by following the polarity (+ and –) indications in the battery compartment. 3. -
Page 10: Mains Power
Mains Power Connect the DC IN socket of the unit to a mains socket with a mains adapter (not supplied) with a 4.5V 700mA output power. DC IN 4.5V Caution: • This product can only use the external power supply whose output is PS1 or PS2 (output power below 100W) approved according to safety standard EN62368. -
Page 11: Connections
Connections Connecting to a Sound System Component Connect an audio cable (not supplied) into the PHONES socket of your CD player and the other end into an audio device. ESP / FOLDER Listening with the Earphones Connect the earphones (supplied) to the PHONES socket of the CD Player. -
Page 12: Operation
Operation Inserting CD Open the CD door by sliding the Open Switch. Place the CD firmly on the central spindle and close the CD door. Playing CD Press the button to Play / Pause. Adjust the volume control by pressing VOLUME +/– button. To stop play, press the button. -
Page 13: Other Functions
Other Operation Folder function operation When the CD player plays MP3 disc, it will play 001-F01 (Track-Folder) by default. You can quickly to select the different folders and songs as followings: 1. Press the “ESP / Folder” button, and then press the button to enter your desired folder 2. -
Page 14: Repeat
Repeat Press P-MODE / PROG button repeatedly to select between REP 1, REP ALL, INTRO, RAND, and Normal mode. REP 1 (Repeat once) Repeat the current or selected track(s). REP DIR (Repeat Repeat the selected folder. folder) (Only available in MP3 CD) REP ALL (Repeat all) Repeat all tracks, regardless of folder. -
Page 15: Electronic Shock Protection
Electronic Shock Protection The unit incorporates an electronic anti-skip circuit to prevent interruption of the sound output when the unit is subjecting to shock, vibration or rolling during CD playback. The antis-shock system will automatically activate when a disc is playing, the ESP indicator will appear in display and flashing. -
Page 16: Maintenance
Maintenance Cleaning the Case • Wipe with a soft cloth. If the case is very dirty, moisten the cloth with a weak solution of non-caustic detergent and water, and us this to clean the case. Handling Discs • Do not touch the playback side of the disc. •... -
Page 17: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Problem Cause / Solution CD player does • Batteries are dead or low, replace batteries. not work. CD does not •... -
Page 18: Specifications
Specifications L1PERCD20 Model 2 × 1.5 V AA/UM-3/LR6 sized batteries Battery Input (not included) Adapter Input (Adapter not DC in 4.5 V 700 mA included) Micro USB Input 500 mA Dimensions (mm) Approx. 141 (W) x 29.5 (H) x 141 (D) mm Weight Approx. - Page 19 Notes for battery disposal The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste. For more information, please contact the local authority or your retailer where you purchased the product.
- Page 20 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite, Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-L1PERCD20-200410V1 L1PERCD20_IB_Final200410.indd 20 14/04/2020 11:12...
