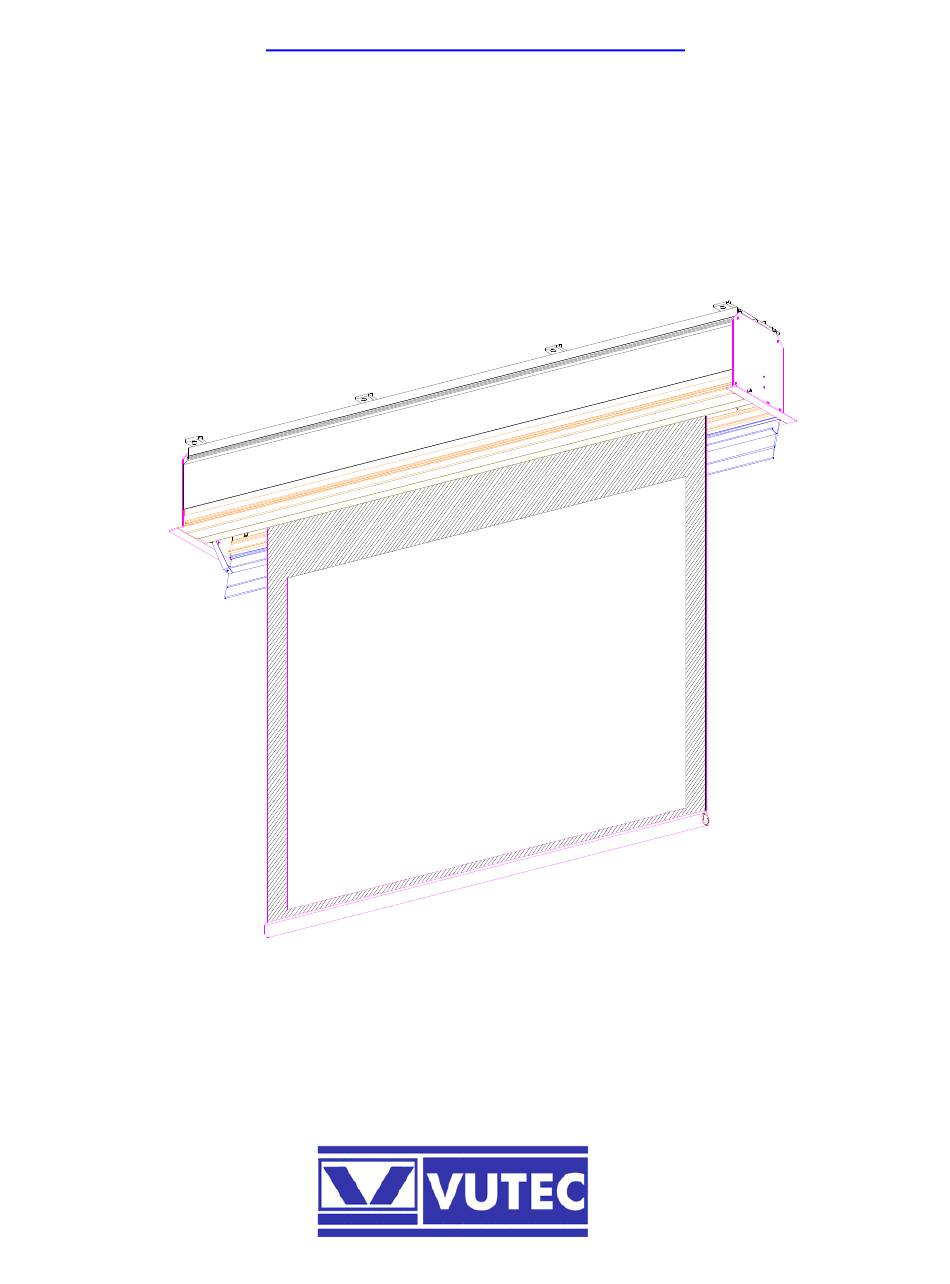

- Page 1 Installation Instructions Vision XTC2 FLUSH CEILING MOUNT SCREEN MOTORIZED DOOR 07/02/08 Rev. A INSTL-XTC2_MAIN_A VIDEO PROJECTION SCREENS...
-
Page 2: Important Safety Instructions
PRACTICE AND REVOCATION OF USE. DISCLAIMER Vutec Corporation intends to make this manual accurate and complete. However, Vutec makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation for use of this product. -
Page 3: Screen Type
VISION XTC2 FLUSH CEILING MOUNT WITH MOTORIZED DOOR SELF-SUPPORTED (shown) and TAB-TENSIONED screens Figure 1 SCREEN TYPE LENGTH DIM. A SELF-SUPPORTED VIEWING WIDTH + 15 1/2 7 3/4 TAB-TENSIONED VIEWING WIDTH + 22 1/2 11 1/4... -
Page 4: Housing Installation
HOUSING INSTALLATION Vision XTC2 is designed for flush ceiling mount. As shown in Figure 2a, Option 1 is the preferred mounting method which requires access space above the ceiling. The mounting brackets may be placed anywhere along the housing length as desired. However, it is best to evenly space them for uniform weight distribution. It is recommended the end mounting brackets should not be more than 4 inches from each end of housing. - Page 5 If the unit was shipped complete with the screen roller assembly installed; proceed to SCREEN ROLLER ASSEMBLY REMOVAL Section for instructions. CAUTION: BE SURE TO PLACE THE CONNECTING WIRES INSIDE BEFORE PROCEEDING WITH THE HOUSING INSTALLATION. Install the housing once the screen roller assembly is removed. Be sure the housing is level and plumb. Figure 2c Option 1 - Suspended Mounting Figure 3...
-
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS If the unit was shipped complete with the motor and roller assembly inside; then there is a 4-wire pigtail provided for a quick hook-up to operate the screen. Refer to Figure 4a or Figure 4b, make the required connections to the switch for operations. -
Page 7: First Operation
Electrical Connections 230 VAC The screen may also be operated by optional IR/RF remote control, optional 12VDC trigger relay, optional Low Voltage control or optional Home Automation control by AMX, Crestron, etc. Consult Vutec for further details. FIRST OPERATION CAUTION: THE FIRST CYCLE DOWN AND UP OF THE SCREEN MUST BE PERFORMED UNDER CONTROL OF AN ATTENDANT. - Page 8 Figure 5a Figure 5b UPPER LIMIT ADJUSTMENT The upper limit for the screen is approximately 2 inches inside the housing. Do not change the screen upper limit unless absolutely necessary. CAUTION: BE SURE THE MOTOR IS SHUT OFF WHEN THE MOTORIZED DOOR IS CLOSED. IF THE MOTOR STILL RUNNING (HUMMING) THEN THE DCL SWITCH MUST BE ADJUSTED TO SHUT OFF THE MOTOR.
- Page 9 MORE SCREEN DROP Send the screen down to the lower limit and it should stop automatically. Leave the control switch on. Turn the White hex socket in the + direction (see label on electrical cover plate) to make the screen come down more.
- Page 10 SCHEMATIC 120 VAC Installations 230 VAC Installations...
-
Page 11: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Door remains closed and screen will not a- Check breaker fuse. a- Replace blown fuse. come down. b- Check wall switch. Check wall switch connections. Motor does not hum. Bypassing wall switch as a test. c- Push button limit switches might be tripped.
