Vutec Elegante Installation Instructions

Frame Assembly

Place the screen frames on a flat and cleaned surface with the backside face up.
Referring to Figure 3, a pair of blank and tapped corner brackets is used to form the screen frame. Insert the brackets
in the channel of the frame. Install four set screws to each of the tapped corner brackets. Tighten the set screws to
expand the brackets and to grip the frames. Be sure the assembled frame is square. Make adjustments as necessary.
Unless mounting to wall studs; suitable wall anchors (not supplied) must be used to provide adequate support for the
screen.
Screen Shown Without

Installation

Do not install the screen fabric to the frame yet!
Determine a location on the wall for the screen.
Referring to Figures 1 and 2, install the two wall mount brackets onto the wall. Be sure they are level then tighten the
screws. Add a third bracket in the middle for screen width of 96 inches and larger.
Hang the screen frame. Locate and install a wall mount bracket to the bottom screen frame.
Note: The middle top and bottom brackets prevent large size frame from bowing like 'Hour Glass'.
INSTALLATION INSTRUCTIONS
Elegante Fixed Frame Wall Screen

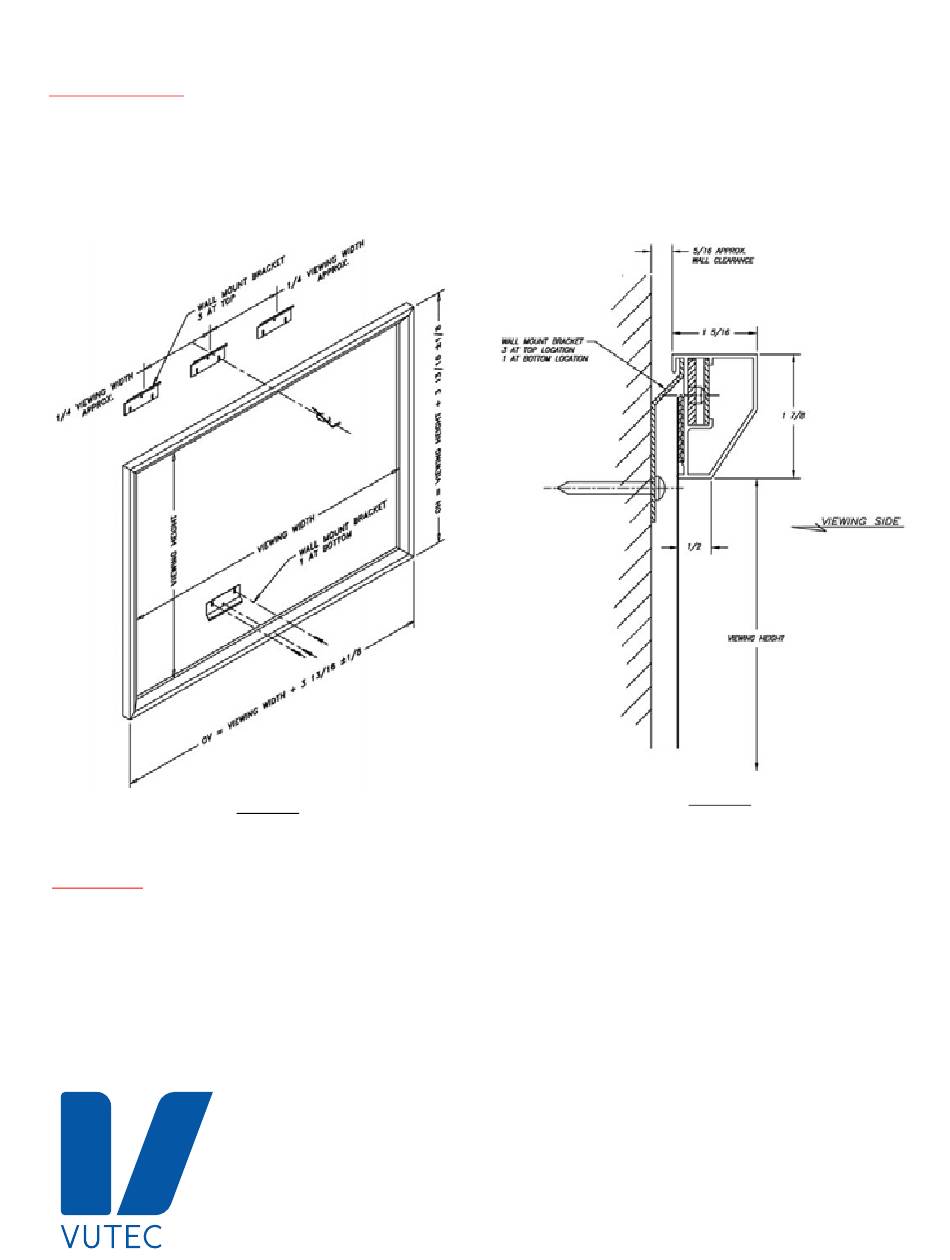

Figure 1
Fabric
Figure 2
Side View
Mounting
