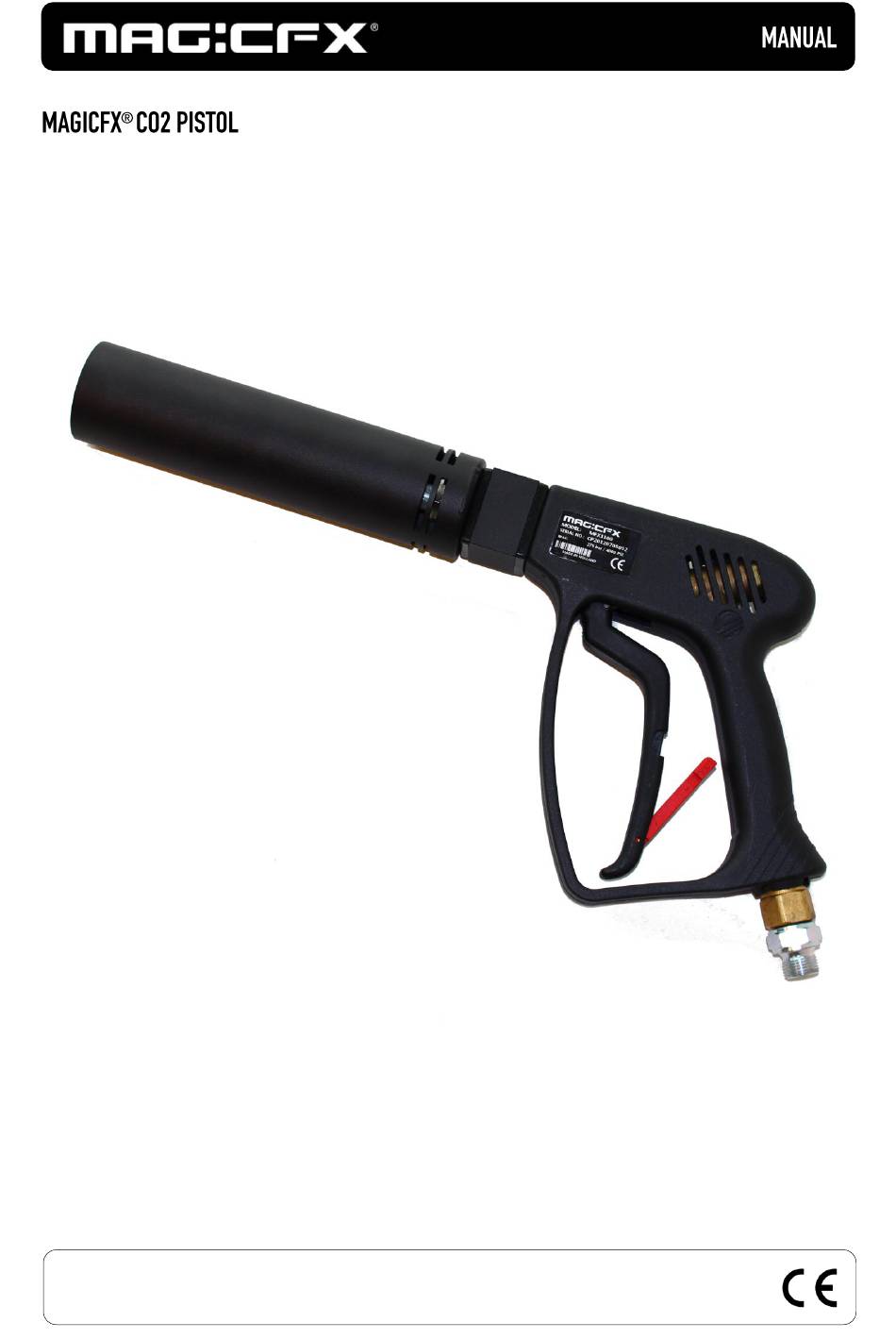

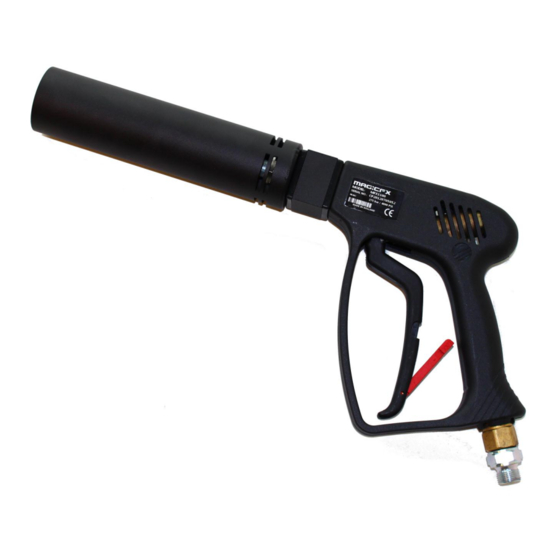

  • Page 1 PRODUCT CODE : MFX1100 VERSION : 1.0 DATE : 11.12.2012...

  • Page 2: Congratulations

    1995. All our products are made under the brand name MAGICFX® which by now has acquired a great reputation on account of its quality and reliability. All products are made in accordance with the European Machinery Directive. MAGIC FX manages the entire production process in-house, from the design stages and prototyping to production.

  • Page 3: Ce Marking

    Version 1.0 2. CE MARKING PLEASE NOTE: We presume that you, your employees and others who use or come into contact with the machine are familiar with how the machine must be dealt with. This includes the correct use, maintenance and repair of the machine as described in this user manual.

  • Page 4: Declaration Of Conformity

    User documentation MAGICFX® CO2 Pistol 3. DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY (according to Annex II.1.A of the Machinery Directive) Concerning the Machinery Directive. We; MAGIC FX B.V. Schouwrooij 27 5281 RE Boxtel The Netherlands State under personal responsibility: We are the manufacturer of the product: ®...

  • Page 5: Foreword

    Version 1.0 4. FOREWORD This manual describes the MAGICFX® CO2 Pistol. The information in this manual is important for the proper and safe functioning of the CO2 Pistol. If you are not familiar with the installation, operation, preventative maintenance etc. of the CO2 Pistol then please read this user manual carefully from beginning to end.

  • Page 6: Table Of Contents

    User documentation MAGICFX® CO2 Pistol CONTENT CONGRATULATIONS! ..................1 CE MARKING ....................2 DECLARATION OF CONFORMITY ..............3 FOREWORD ....................4 INTRODUCTION ....................6 DESCRIPTION AND APPLICATION OF THE CO2 PISTOL ..........6 NECESSARY ACCESSORIES ....................6 SAFETY ......................7 INTRODUCTION ........................

  • Page 7: Introduction

    Version 1.0 5. INTRODUCTION DESCRIPTION AND APPLICATION OF THE CO2 PISTOL The MAGIC FX CO2 Pistol is a high pressure pistol to which a CO2 bottle can be connected by means of a high pressure hose. With the CO2 Pistol one can blow smoke plumes of CO2 gas (carbon dioxide) into the air. This creates a special, surprising and spectacular effect.

  • Page 8: Safety

    User documentation MAGICFX® CO2 Pistol 6. SAFETY INTRODUCTION The CO2 Pistol has been designed and constructed in such a manner that it can be used safely. This applies to the use, the circumstances and the regulations as described in this documentation. Reading this documentation and following the instructions are therefore necessary for everyone who is authorised to work with the CO2 Pistol.

  • Page 9: Warnings

    Version 1.0 WARNINGS Warning texts have been attached to the CO2 Pistol. With regard to these the following rules apply: These texts may not be removed or damaged. The operator must regularly check if this is the case. The operator must ensure that the texts are and remain clearly visible and legible. DANGER WARNING: One must replace texts or signs if these are absent, damaged or illegible.

  • Page 10: Parts

    User documentation MAGICFX® CO2 Pistol 7. PARTS 1. Barrel 2. Blow handle 3. Safety catch 4. Input Page 9...

  • Page 11: Accessories

    NL-5281 RE BOXTEL The Netherlands T. +31(0)411 63 50 13 F. +31(0)411 63 50 12 W. http://www.magicfx.eu E. info@magicfx.eu 9. PREPARATIONS Unpack the CO2 Pistol. Dispose of the packaging material without harming the environment. Inspect the machine for any damage. If damage is noticed this must be reported to MAGIC FX.

  • Page 12: Installation

    The machine can be damaged if you do not follow the procedures carefully. DANGER WARNING: The MAGICFX® CO2 Pistol may only be installed by adults and authorised persons. DANGER WARNING: MAGIC FX is not liable for working with CO2 gas and CO2 bottles or for the correct use thereof.
  • Page 13 Version 1.0 Now attach the coupling of the CO2 hose to the coupling of the CO2 Pistol and secure this with an open-ended spanner. Connect the other end to a CO2 bottle(with dip pipe). Turning it by hand will suffice! You should only use a wrench if the coupling continues to leak.

  • Page 14: Usage

    The machine can be damaged, if you do not follow these procedures carefully. DANGER WARNING: The MAGICFX® CO2 Pistol may only be installed by adults and authorised persons. The CO2 Pistol may only be operated if all parts are completely and correctly installed/connected.

  • Page 15: Switching Off

    Version 1.0 12. SWITCHING OFF To switch off the CO2 Pistol, take the following steps: Close the valve of the gas bottle. Shoot the CO2 Pistol one more time to remove any remaining pressure from the hose. Unscrew the high pressure hose from the CO2 Pistol and from the CO2 bottle.

  • Page 16: Troubleshooting

    User documentation MAGICFX® CO2 Pistol 13. TROUBLESHOOTING The CO2 Pistol is leaking Check if the coupling of the gas hose is connected properly to the coupling of the CO2 Gun. If it is not entirely secured then press it firmly.
