OWNER'S MANUAL
ECCENTRIC CONE FLARING TOOLS
FT800FN,FT806A,FT806M Series
FEATURES
• Forms a burr-free 45° flare.
• Suitable for soft materials such as copper and aluminum.
• FT800FN designed specifically for R-410A systems
• Heat treated, black oxide finished steel flaring bars
• Precision machined yoke assembly incorporating a 3/8" sq. drive

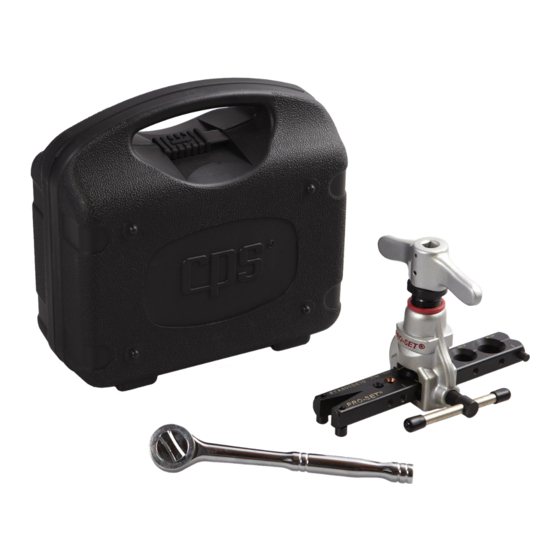

• Professional grade 3/8" sq. drive ratchet and carrying case included

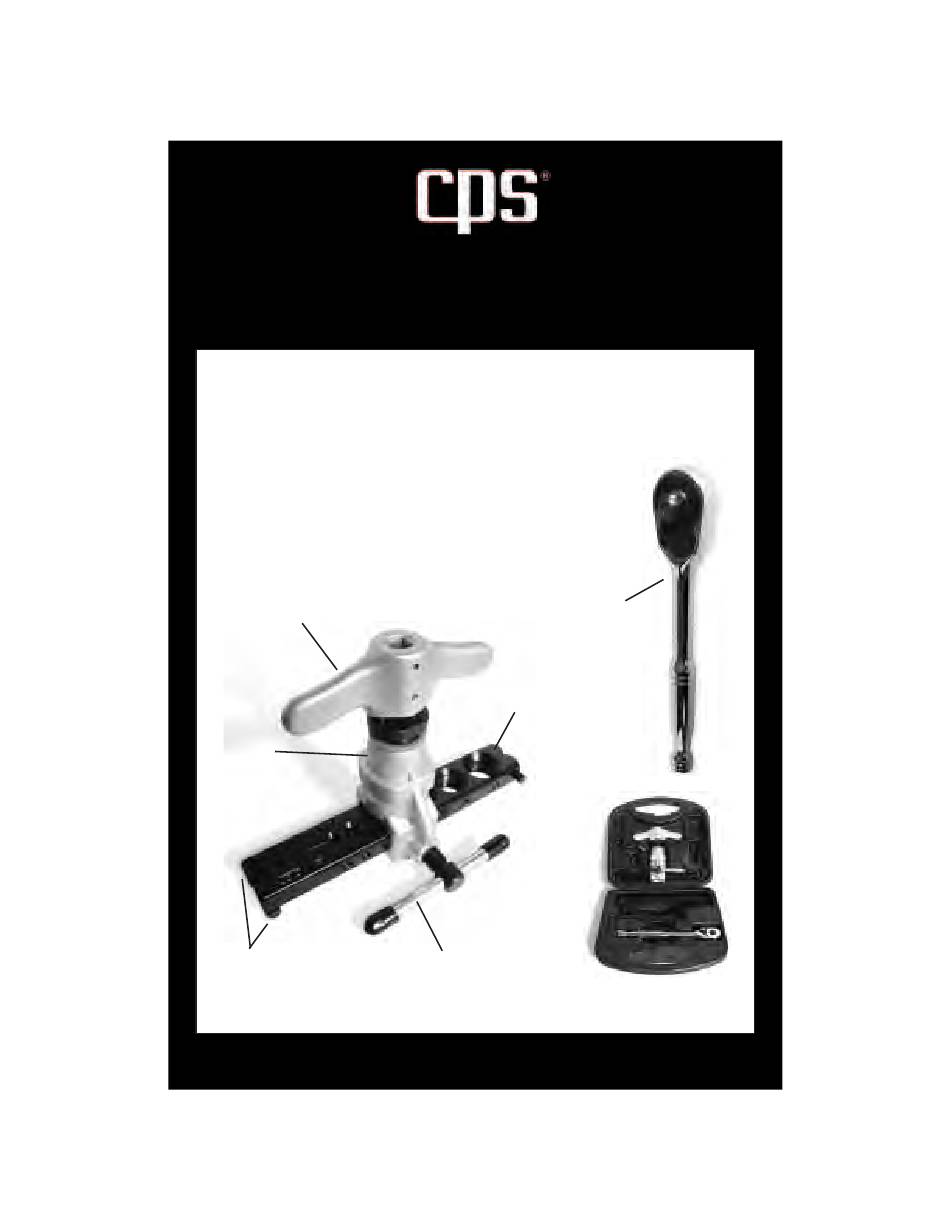

3/8" Drive Ratchet
Yoke Handle
Flaring Bar
Yoke
Stop Screw
Clamp Handle
Protective Carrying Case
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com
Advertisement
Related Manuals for CPS FT800FN Series
Summary of Contents for CPS FT800FN Series
- Page 1 OWNER’S MANUAL ECCENTRIC CONE FLARING TOOLS FT800FN,FT806A,FT806M Series FEATURES • Forms a burr-free 45° flare. • Suitable for soft materials such as copper and aluminum. • FT800FN designed specifically for R-410A systems • Heat treated, black oxide finished steel flaring bars •...
- Page 2 OPERATION INSTRUCTIONS ECCENTRIC TYPE FLARING TOOL Angle: 45° Uses: Suitable for soft copper tube, aluminum tube and other soft tubes, etc. 1) Turn both yoke and clamp handles counter-clockwise until yoke slides freely. Move yoke to far end of flaring bar up against the stop screws (Fig. 1). 2) Spread flaring bar and insert tube into hole that corresponds to tube diameter.
-
Page 3: Maintenance Instructions
MAINTENANCE INSTRUCTIONS 1. Keep 45° place of the circular cone clean away from copper dust after using (Fig. 7). 2. Apply lubricating grease to all threaded parts on the yoke. 3. Apply lubricated grease to the bearing located under the flaring cone mechanism. circular cone brush SPARE PARTS... -
Page 4: Manuel D'utilisation
MANUEL D’UTILISATION DUDGÉONNIÈRE CONIQUE, EXENTRIQUE FT800FN,FT806A,FT806M CARACTÉRISTIQUES • Forme un cone de 45° sans bavures • A utiliser sur de matières douces, comme le cuivre et l’aluminium • FT800N spécialement concu pour les systèmes au R-410A • Bloc de cones, metal anodisé, noir traité a haute température •... - Page 5 MODE D’ Emplois Dudgéonnière eccentrique Angle: 45° A utiliser qu’avec des matières douces comme l’aluminium et le cuivre 1) Tourner la manette de joug et le levier de tension en contre sens, jusqu’a ce que le joug glisse. Glisser le joug contre les écrous d’arrêt. (fig 1) 2) Ouvrez le mandarin et placer le tube dans le trou du diameter correspondent.
- Page 6 MAINTENANCE INSTRUCTIONS 1) Nettoyer le cone de 45° après usage. (fig.7). 2) La graisse peut être utilisée sur les filetages 3) Graisser aussi le roulement du cone cône circulaire brose PIÈCES DETACHES FTX800B410 R-410A bar: 3/16, 1/4, 5/16, 3/8, 1/2, 5/8 and 3/4 pouces FTX800BA Standard imperial bar: 3/16, 1/4, 5/16, 3/8, 1/2, 5/8 and 3/4 pouces FTX800BM...
