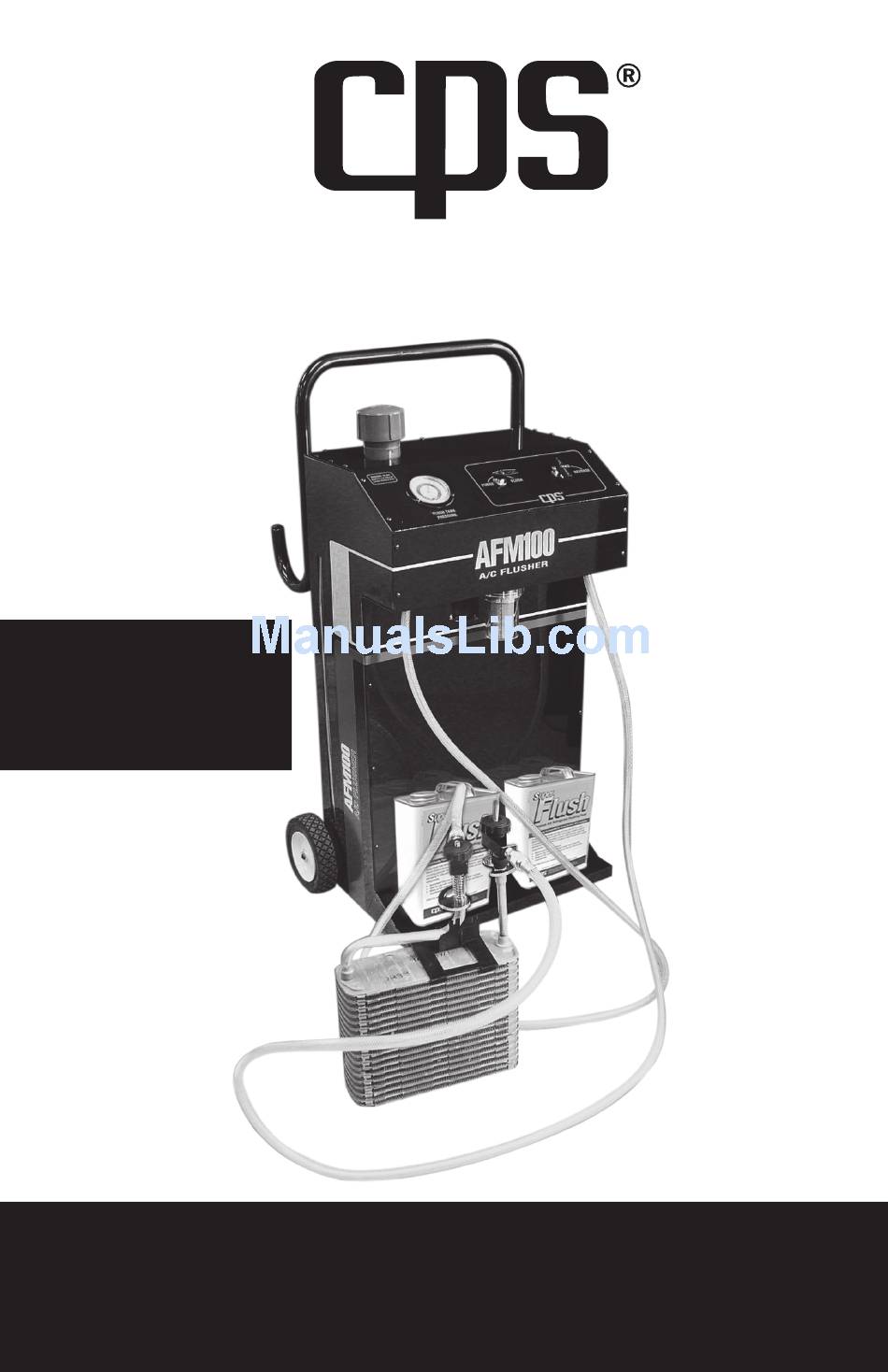

A/C SOLVENT FLUSH
(For use with CPS SUPER FLUSH SOLVENT)
TO BE OPERATED
BY QUALIFIED
PERSONNEL ONLY
OPERATION MANUAL

Advertisement

loading

Related Manuals for CPS afm100 series

Summary of Contents for CPS afm100 series

  • Page 1 A/C SOLVENT FLUSH (For use with CPS SUPER FLUSH SOLVENT) TO BE OPERATED BY QUALIFIED PERSONNEL ONLY OPERATION MANUAL...
  • Page 2 Heavy duty power coated sheet metal cabinet with 6" wheels Adaptors One set of universal clamps with 3/8" SAE Male fittings High Pressure 125 PSIG Relief Valve CPS Super Flush: AFMSF (One Gallon Can) AFMSFC Solvent (Case of 4 Gallon Cans)

  • Page 3: Introduction

    Thank you for purchasing the CPS PROSET AFM100 series A/C solvent flush unit ® CPS is dedicated to provide the most reliable equipment to meet all your mobile A/C service requirements. The AFM100 is designed for flushing individual or combinations of components of a mobile air conditioning system.

  • Page 4: General Safety Instructions

    CAUTION - keep solvent and solvent mist way from heat, sparks and flame. The solvent is combustible. Use only CPS solvent AFMSF with this unit. Using other types of solvent will void the warranty of this unit.

  • Page 5: Unit Layout

    UNIT LAYOUT Unit Guide: Flush valve Outlet Hose B ( to component out fitting ) Flush tank fill cap Clear bowl with cleanable filter Air supply inlet port and ball valve Storage shelf ( back side of unit not shown ) Collection tank drain valve Hose storage hooks ( back side of unit not shown )
  • Page 6 AIR SUPPLY valve and turn FLUSH VALVE to PURGE/OFF position. This will relieve the pressure in the Flush Tank. Remove the flush tank Fill Cap by hand only. Add amount of CPS solvent to be flushed through the A/C component. Maximum capacity of flush tank is 2.5 gallons.
  • Page 7 FLUSH VALVE to FLUSH position. The CPS solvent is now being pushed through the component. Monitor the Clear Bowl and both flush hoses. Once CPS solvent is present in both hoses and is seen moving through the bowl, turn the FLUSH VALVE to FLUSH HOLD position.

  • Page 8: Maintenance

    AFMXC Replacement universal clamp complete AFMXCS Replacement universal clamp rubber seal AFMXR Replacement Refill Cap THE FOLLOWING ARE PART NUMBERS FOR THE CPS SUPER FLUSH CPS Part Number Description AFMSF One gallon can of CPS Super Flush AFMSFC One case 4-One gallon cans of CPS Super Flush...
