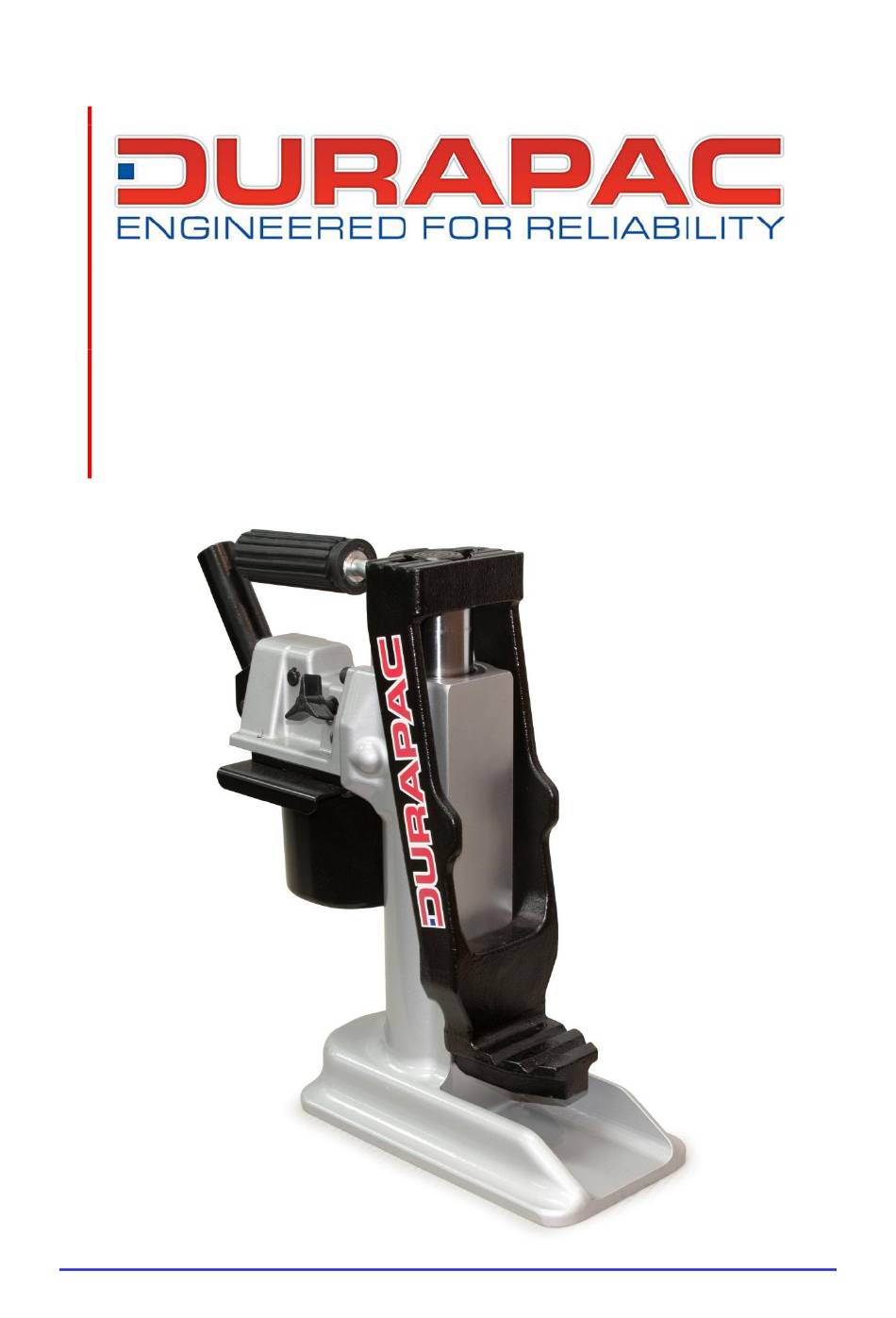

- Page 1 Instruction Manual Hydraulic Rail Jack Model – DRJ-10 ABSOLUTE EQUIPMENT PTY LTD – 2/186 Granite Street, GEEBUNG QLD 4034 – Australia sales@absoluteequipment.com.au – Phone: +61 7 3865 4006 – Fax: +61 7 3102 6288...
-
Page 2: Product Information

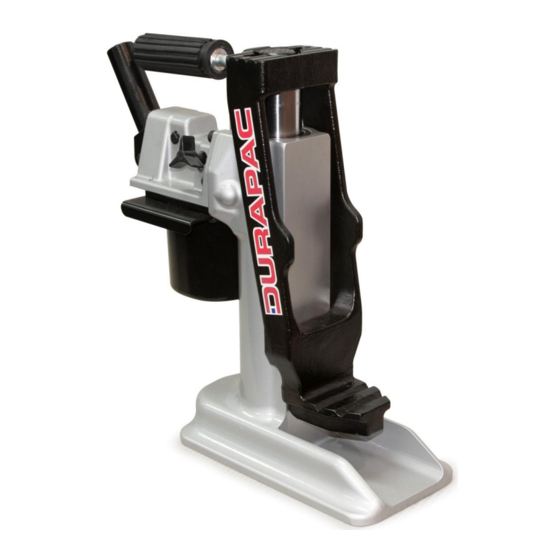

DURAPAC – Hydraulic Rail Jacks are engineered to meet Industrial Standards for Performance and Safety. The DRJ-10 rail jack is ideally suited to aligning, gauging and lifting of rail or sleepers. Utilising a forged aluminium upright base, this 10 ton capacity jack has been designed to be robust, light weight and reduce the risk of operator injury. - Page 3 Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Durapac authorised service centre in your area. To protect your warranty, use only high quality hydraulic oil DRJ-10 Rail Jack - V1.2 www.durapac.com...
- Page 4 Do NOT subject the jack and its components to shock loads Use only Durapac approved accessories and components FAILURE TO HEED THESE WARNINGS MAY RESULT IN PERSONAL INJURY AS WELL AS PROPERTY DAMAGE. DRJ-10 Rail Jack - V1.2 www.durapac.com...
-
Page 5: Installation
4.1 Familiarise yourself with the specifications and illustrations in this owner’s manual. Know your rail jack, its limitations and how it operates before attempting to use. Refer to the specification chart below or if in doubt, contact a Durapac representative. Model... -
Page 6: Adding Hydraulic Fluid
Equipment must only be serviced by a qualified hydraulic technician. For repair service, contact your local Durapac authorised service centre The greatest single cause of failure in hydraulic systems is dirt; keep the jack clean and well lubricated to prevent foreign matter from entering the system. If the jack has been exposed to rain, snow, sand or grit, it must be cleaned before and after each use. -
Page 7: Changing Hydraulic Fluid
When not in use, the jack should be stored with the piston and the pump rods both fully retracted. 6.5.2 Wipe thoroughly clean and store in a clean, dry environment. Avoid temperature extremes. DRJ-10 Rail Jack - V1.2 www.durapac.com Page 7 of 10... -
Page 8: Troubleshooting
Release valve is closed Open release valve retracts slowly Cylinder damaged internally Send to a Durapac authorised service centre for repair Reservoir too full Drain oil to correct level DRJ-10 Rail Jack - V1.2 www.durapac.com Page 8 of 10... -
Page 9: Parts Breakdown And List
ZAM1833 Washer* ZAM1803 21 Back-up ring* ZAM1834 10 Bolt* ZAM1824 22 O-ring* ZAM1835 11 Copper liner ZAM1825 23 Bolt ZAM1836 12 Load cap ZAM1117 24 Bolt ZAM1837 Repair kit ZAM1867 DRJ-10 Rail Jack - V1.2 www.durapac.com Page 9 of 10... - Page 10 30 Steel ball ZAM1273 Repair kit ZAM1868 Items marked with a * are contained within a standard Repair Kit. Serial, model and part numbers need to be quoted when ordering parts. DRJ-10 Rail Jack - V1.2 www.durapac.com Page 10 of 10...
