Mean Well LCM-40EO Instruction Manual

MEAN WELL EUROPE B.V.
Langs de Werf 8, 1185 XT Amstelveen
The Netherlands

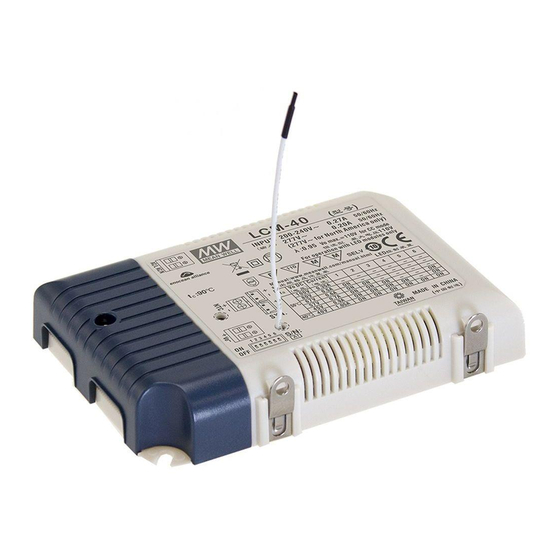

Instruction manual of LCM-40/60EO

Introduction

LCM-40/60EO is 40 or 60Watt LED driver with integration of EnOcean Module. The driver can be
controlled wirelessly. A batteryless switch (rocker) is the simplest solution to control the output light.
The manual will show how to link(pair) between LCM-40/60EO and switch(es).

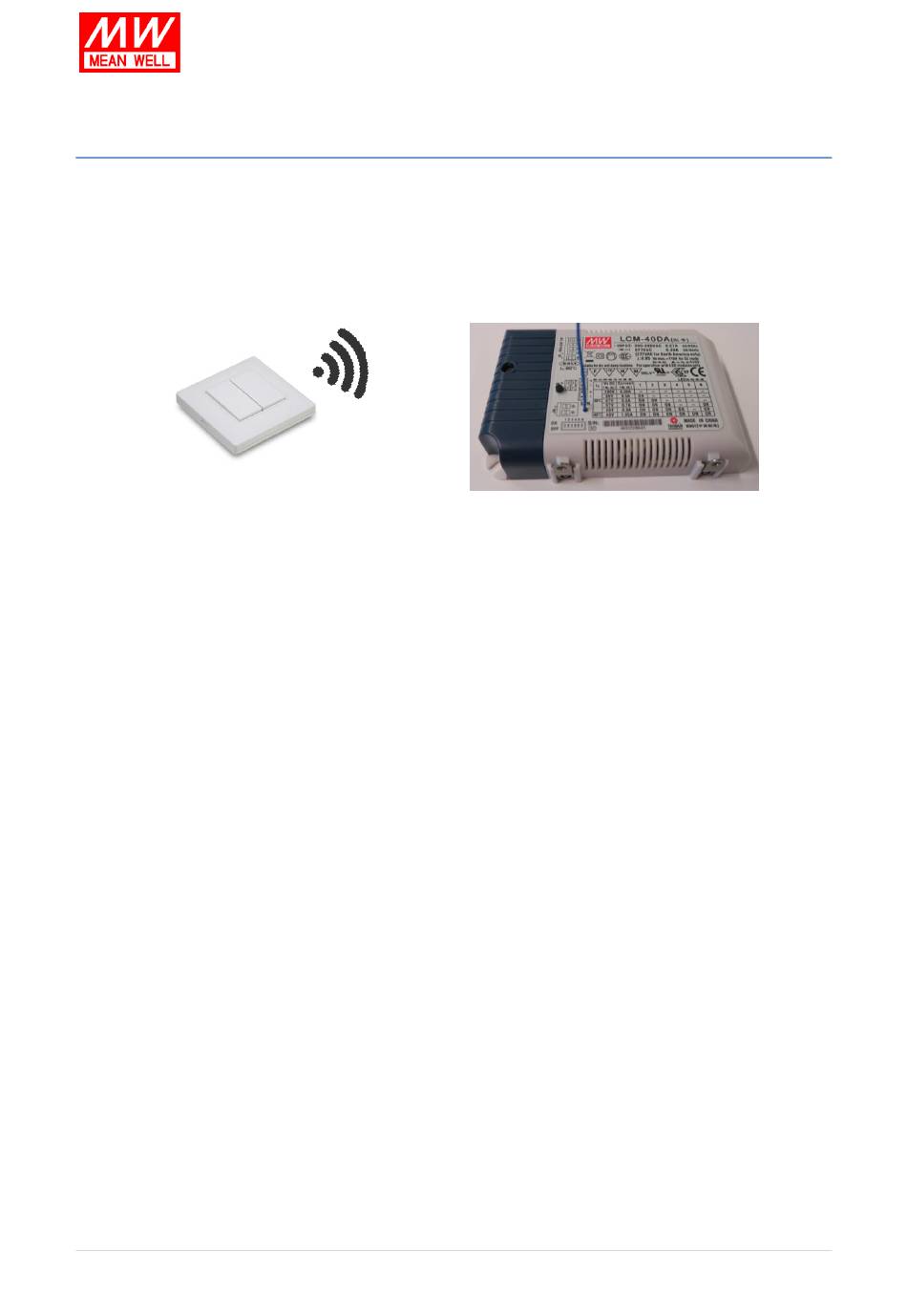

Figure 1. A batteryless rocker switch to turn ON/OFF and dim the LCM-40/60EO
There are two approaches for pairing:
1. Using the LRN button on the LCM-40/60EO
2. Using the NAVIGAN wireless software
Benefit to use NAVIGAN is more dimming parameters can be configured e.g. dimming speed
can be changed by user using the software.

Using physical button to link LCM

There is a physical button on the front surface of the LCM-40/60EO shown in the figure 2(a).
Shortly press (around 1 second) the button to enter linking (pairing) / unlinking mode. The LED lamp
connected at the output of LCM starts toggling between 10% and 90% indicating that linking mode is
active. Once activated, this mode stays temporary active to provide time to link or unlink multiple
switches. The mode will stop and back to normal mode after 30 seconds if no wireless telegram from
switch is received.
For the switch to be linked, click the "I" button (top button marked on the switch plastic or "I"
symbol on the back of the switch shown in Figure 2(b)) 3 times quickly. In case the output of LCM is
continuous 100% 4 seconds, it mean the switch is linked successfully. LCM-40/60EO is now ready to
accept new links on another switch.
In case a linked switch to be unlinked, please use the same action as described from the linking
method above.
