JL Audio MMR-40 Quick Start Manual

MMR-40
MediaMaster® NMEA 2000®
Network Controller
Product Description

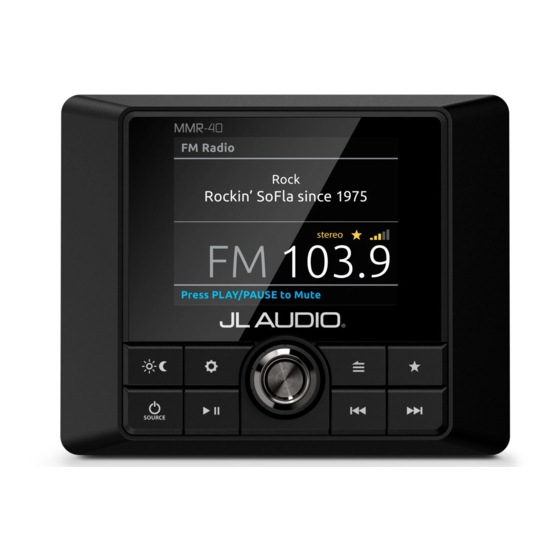

The MMR-40 is a NMEA 2000® network
controller designed to add full-function
auxiliary control to MediaMaster® source units.
Featuring a color LCD display and water-
resistant (IP66 rated) design, the MMR-40
connects directly to vessel networks using
applicable NMEA 2000® cables and connectors
(sold separately).
Note: The MMR-40 is not a stand-alone receiver and does
not function without a connected MediaMaster® source
unit. All remote control functionality of the MMR-40 is
solely derived from the host source unit. Functionality
of the MMR-40 requires connection to a NMEA 2000®
network or use of MMC-PN2K powered network cables
(sold separately).
What Is Included?
(1) MMR-40 Network Controller
(1) Mounting gasket
(1) Mounting template
(4) Mounting screws
(1) Protective sun cover
(1) User Manual
Safety Considerations
• While this product is designed to be water-
resistant, it should never be submerged
under water or subjected to high-pressure
water spray.
• Do not mount in areas of extreme heat.
• Ensure this product is securely installed so
that it does not come loose in the event
of a collision/sudden jolt or as a result or
repeated vibrations during normal operation.
• Check before drilling to make sure that you
will not be drilling into a fuel tank, gas/brake
line, wiring harness, or other vital system.
• Secure all wiring as needed, using cable
ties or wire clamps to protect them from
moving parts and sharp edges.
• Always follow proper safety procedures and
wear eye-protection at all times with a dust
mask and gloves when cutting.

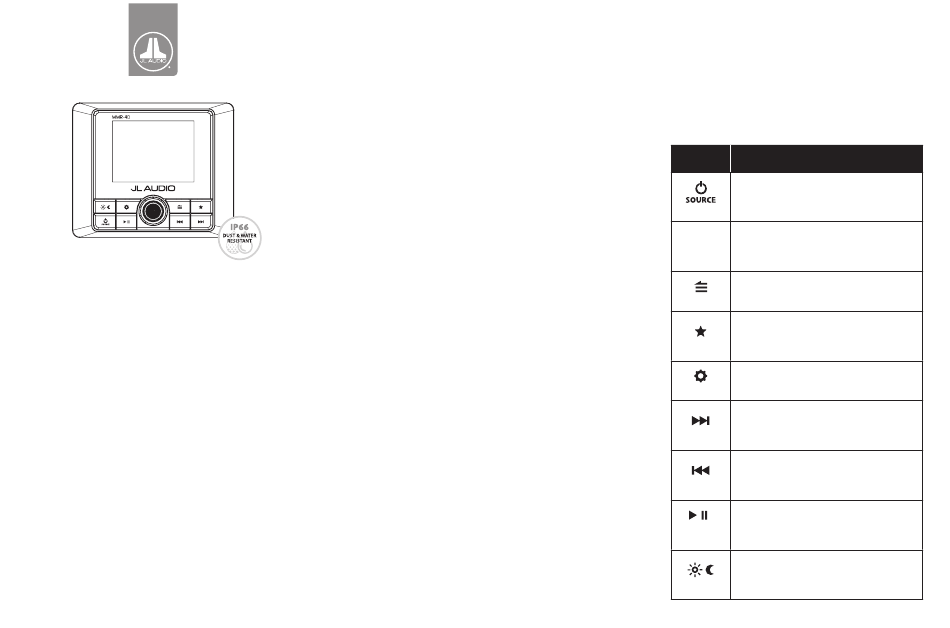

General Command Functions
Below is a list of general source unit functions
that are controlled by the MMR-40.
Note: The functionality of some commands will
vary depending on the specific MediaMaster®
source unit connected to the network.
Button /
General Source Unit Functions
Description
• Press to turn ON
• Press and hold to turn OFF
• Press to display the SOURCE: Select menu
Power/Source
VOL/SEL
• Rotate to adjust volume
• Rotate to scroll thru menu options
(Knob)
• Press to choose/enter (menu options)
Volume/Select
• Press to go back or return to the previous screen
• Press to access available menu options
Back/Menu
• Press and hold to store a channel/station as a preset
• Press to view your list of stored presets and to access
Favorites
the Favorites: Edit menu.
• Press to access the Tone, Balance & Crossover menu
• Press and hold to access the System Settings: Main Menu
Settings
• Press to tune in the next frequency/station/track
• Press and hold to seek to the next channel or
Forward
skip forward/fast-forward
• Press to tune in the previous frequency/station/track
• Press and hold to seek to the previous channel or
Backward
skip backward/fast-rewind
• Press to mute/unmute/pause/resume audio
Mute/Play/
• Press and hold to access available Play options
Pause
• Press to toggle between Day/Night display settings
of the MMR-40
• Press and hold to access the System Settings:
Day/Night
Display menu of the MMR-40
