Summary of Contents for RITE-HITE Dok-Commander
-

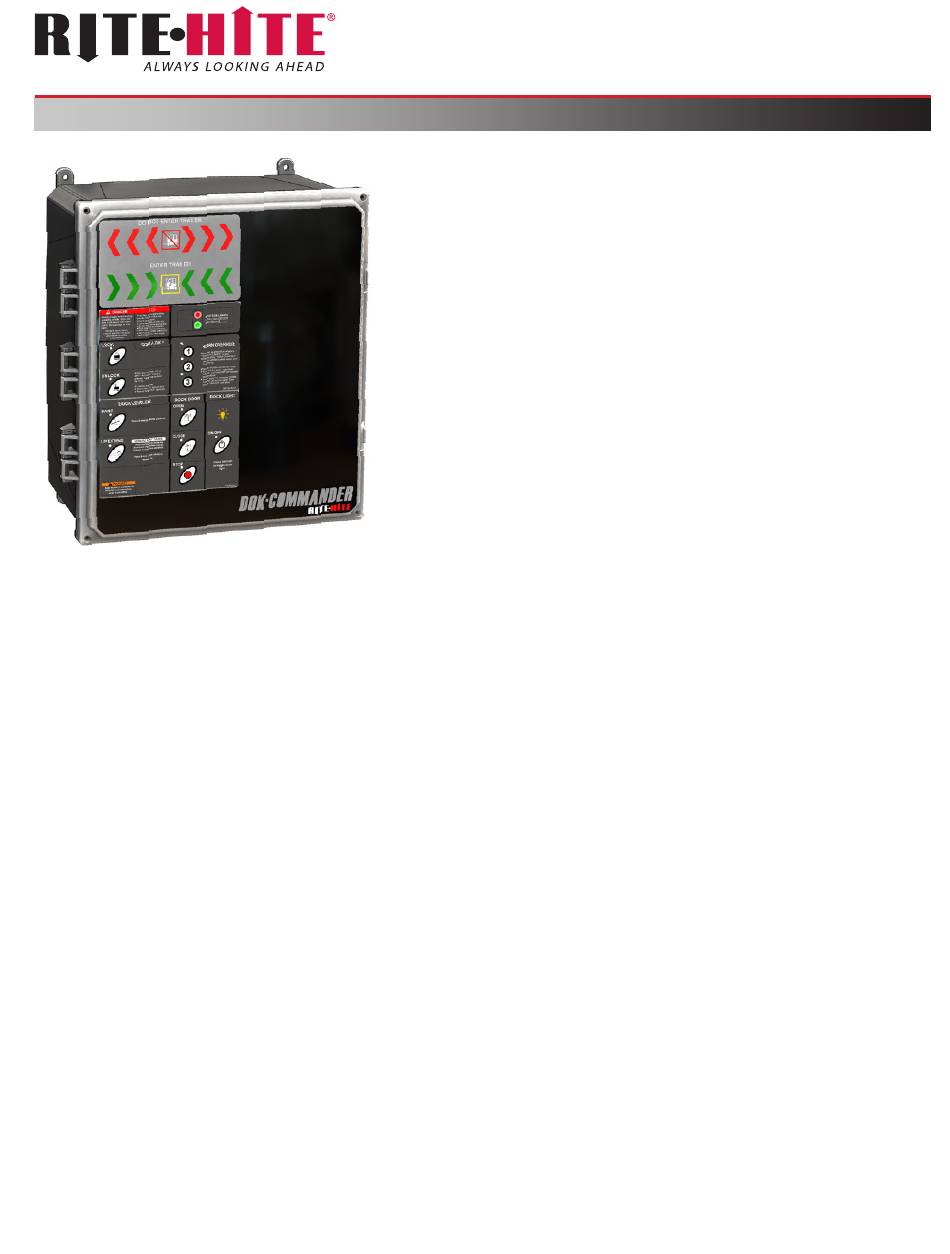

Page 1: Table Of Contents
PARTS Dok-Commander 30 Rite-Vu 35... -
Page 2: Notice To User
Operation of this equipment in a residential area Rite-Hite reserves the right to substitute and/or modify is likely to cause harmful interference in which case the user will be parts and drawings If separate prints are included with... - Page 3 Your local Rite-Hite representative offers owners the option of a Planned Maintenance Program (PMP) As part of this service, your local Rite-Hite representative will do all routine maintenance, lubrication, and adjustments 6 Dock equipment that is structurally damaged shall be removed from service, inspected by a manufacturer’s...
-
Page 4: Safety
Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual SAFETY Safety Identifications General DANGER DANGER Indicates a hazardous situation which, if not A qualified electrician should install the wiring in avoided, will result in death or serious injury. accordance with local electrical codes. Use lockout procedures to prevent death or severe personal injury. -
Page 5: Features
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual FEATURES A Control Box B Outside Lights C Inside Sign D Outside Sign Figure 1 Publication: AMEN00070 2020-01-30... -
Page 6: Installation
Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual INSTALLATION Cover screw torque is 10in-lbs [113 Nm] for all NOTE: DANGER applications Standard Applications When working with electrical or electronic 1 Install the control box on a wall adjacent to the controls, make sure that power source overhead door at approximately 48in –... -
Page 7: Electrical
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual ELECTRICAL 115V Schematic <Dok-Comm_115V_Schematic (1) 200121pdf> Publication: AMEN00070 2020-01-30... - Page 8 Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual ELECTRICAL 115V Schematic Continued <Dok-Comm_115V_Schematic (2) 200121pdf> Publication: AMEN00070 2020-01-30...
- Page 9 Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual ELECTRICAL 115V Schematic Continued <Dok-Comm_115V_Schematic (3)pdf> Publication: AMEN00070 2020-01-30...
-
Page 10: 230V Schematic
Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual ELECTRICAL 230V Schematic <Dok-Comm_230V_Schematic (1) 200121pdf> Publication: AMEN00070 2020-01-30... - Page 11 Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual ELECTRICAL 230V Schematic Continued <Dok-Comm_230V_Schematic (2) 200121pdf> Publication: AMEN00070 2020-01-30...
- Page 12 Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual ELECTRICAL 230V Schematic Continued <Dok-Comm_230V_Schematic (3)pdf> Publication: AMEN00070 2020-01-30...
-
Page 13: Phase Schematic
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual ELECTRICAL 3 Phase Schematic <Dok-Comm_3PH_Schematic (1) 200121pdf> Publication: AMEN00070 2020-01-30... - Page 14 Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual ELECTRICAL 3 Phase Schematic Continued <Dok-Comm_3PH_Schematic (2) 200121pdf> Publication: AMEN00070 2020-01-30...
- Page 15 Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual ELECTRICAL 3 Phase Schematic Continued <Dok-Comm_3PH_Schematic (3)pdf> Publication: AMEN00070 2020-01-30...
- Page 16 Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual ELECTRICAL 3 Phase Schematic Continued <Dok-Comm_3PH_Schematic (4)pdf> Publication: AMEN00070 2020-01-30...
-
Page 17: Wiring: Corner-Vu / Leveler-Vu
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual ELECTRICAL Wiring: Corner-Vu / Leveler-Vu <RIte-Vu Schematic 200121pdf> Figure 2 Publication: AMEN00070 2020-01-30... -
Page 18: Wiring: Pedestrian-Vu
Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual ELECTRICAL Wiring: Pedestrian-Vu Leveler Stored to Unlock Restraint <RIte-Vu Schematic 200121pdf> Figure 3 Publication: AMEN00070 2020-01-30... - Page 19 Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual ELECTRICAL Wiring: Pedestrian-Vu Continued Leveler Stored to Close Overhead Door <RIte-Vu Schematic 200121pdf> Figure 4 Publication: AMEN00070 2020-01-30...
-
Page 20: Wiring: Approach-Vu
Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual ELECTRICAL Wiring: Approach-Vu™ <Appr-Vu_Approach Vu for Manuals 170520pdf> Figure 5 Publication: AMEN00070 2020-01-30... -
Page 21: Wiring: Outside Light Box
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual ELECTRICAL Wiring: Outside Light Box Light Lamp Green Light Green Lamp #42 Wire − Any pin on J2 term − For Gen2 − OSPWR term Light Box for URC Cover − 42 term on SDL #40 Wire +12/VDC Red Light... -
Page 22: Wiring: Safe-T-Pit Sensor
RESET Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual ELECTRICAL Wiring: Safe-T-Pit Sensor DOK-COMMANDER (INTERLOCK - LEVELER STORED TO UNLOCK) DIP SWITCH SETTING Set dip switch #1 to DOWN position. N.O. 1 2 3 4 5 6 7 SPARE SOL1 N.C. J13-1 LD20 N.O. - Page 23 Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual ELECTRICAL DOK-COMMANDER (INTERLOCK - LEVELER STORED TO CLOSE OVERHEAD DOOR) Wiring: Safe-T-Pit Sensor Continued DIP SWITCH SETTING Set dip switch #1 to UP position. N.O. 1 2 3 4 5 6 7 SPARE SOL1 N.C.
-
Page 24: Operation
Owner’s Manual. 9 Truck may depart Contact your local Rite-Hite representative or Rite-Hite (U.S.) 800-456-0600 with any questions. Supply Chain Integrity Sequence Failure to follow these procedures could allow 1 Truck backs into loading dock... -
Page 25: Dok-Commander With Powered Dok-Lok Vehicle
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual OPERATION Dok-Commander with Powered Dok-Lok Vehicle Restraint To operate manual Dok-Lok restraints, reference respective owner's manual RESTRAINT DEFAULT STATUS CONTROL BOX: STATE INSIDE LIGHTS, SOUND OUTSIDE LIGHTS Restraint UNLOCKED/ STORED position. Hook is in STORED position... - Page 26 Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual OPERATION Dok-Commander with Powered Dok-Lok Vehicle Restraint Continued RESTRAINT DEFAULT STATUS CONTROL BOX: STATE INSIDE LIGHTS, SOUND OUTSIDE LIGHTS Restraint LOCKED When RIG is entrapped by hook, a LOCKED condition exists If during loading/unloading inside light...
- Page 27 Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual OPERATION Dok-Commander with Powered Dok-Lok Vehicle Restraint Continued RESTRAINT DEFAULT STATUS CONTROL BOX: STATE INSIDE LIGHTS, SOUND OUTSIDE LIGHTS FAULT State from LOCKING State Hook cannot entrap RIG – RIG could be located too far from...
-
Page 28: Maintenance
A Planned Maintenance Program (PMP), customized to your specific operation is available and recommended. For a PMP, contact your local Rite-Hite representative or Rite-Hite technical support at (US) 1-563-589-2722, (SA) +55 21 99616 4421, (EU) +49-5693 98700... -
Page 29: Troubleshooting
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual MAINTENANCE Troubleshooting Setting Horn Override Code Enter Hydraulic Fill Mode To create a new or replace a forgotten code: 1 Press and hold DIAGNOSTIC button inside control box until horn chirps (≈ 5 seconds). 1 Press and hold DIAGNOSTIC button until horn chirps (≈... -
Page 30: Dok-Commander
Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual PARTS Dok-Commander Left Side Right Side Bottom Publication: AMEN00070 2020-01-30... - Page 31 Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual PARTS Dok-Commander Continued <Dok-Comm_Enclosure_Assembly 2020-01-21pdf> Publication: AMEN00070 2020-01-30...
- Page 32 142126- (115 Volt Power) Terminal Label panel decal 146324 Power circuit board, All other restraints 142126- Enclosure with decals (consult Rite-Hite for 852xxx (230 Volt Power) specific part number) Micro Control Board with Program Options 141578- Enclosure Mounting Feet, Includes 4 Feet 147845 (Consult Rite‑Hite for specific part number)
- Page 33 Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual PARTS Dok-Commander Continued DESCRIPTION PART # DESCRIPTION PART # Emergency stop overlay decal 144824 2A fuse, CC, Dual element time delay (500VA 66019 transformer and 575V incoming power) Platform stop overlay decal 144825 25A fuse, CC, Dual element time delay (500VA...
- Page 34 Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual PARTS Dok-Commander Continued DESCRIPTION PART # Overhead door power component assembly, 146003 115V/1PH or 230V/1PH/50Hz Overhead door power component assembly, 146036 230V/1PH/60Hz Overhead door power component assembly, 146004 MWL lock actuator component assembly 146005...
-
Page 35: Rite-Vu
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual PARTS Rite-Vu 8,11 9,12 <RITE-VU_REPLACEPARTS_180712.PDF> DESCRIPTION PART # Pit Leveler and Vertical Leveler Corner-VU Box Assem N4 Left (Includes Cord) 145778 Corner-VU Primary Cord 144" Long (Cord Only) 145794 Corner-VU Box Assem N4 Right (Includes Cord) 145780 Corner-VU Cross Cord (Plug-In) 197"... -
Page 36: Junction Box Assembly
Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual PARTS Junction Box Assembly Mounting Brackets Corner-Vu DESCRIPTION PART # JB 4X4X2 N4 2HOLE(625DIA) HOLE(875DIA) 144705 RCPT FEM 22/3 6L 144702 CKTBD 3CONN LVLR-Vu 144700 CONN CKTBD 3COND LVLR-Vu 144701 Pedestrian-Vu DESCRIPTION PART # Mounting Bracket Assembly 146631 Formed Angle 125 x 125 x 105 x 238L... -
Page 37: Approach-Vu
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual PARTS Approach-Vu DESCRIPTION PART # APPROACH-VU LIGHT/HORN MODULE APPROACH-VU STANDALONE MOUNT 151902 APPROACH-VU LIGHT ASSY 2LED 150665 FLASHER APPROACH-VU HORN ASSY 12V BEEP 150687 PLUG 7L SCR 250-20X625 CAP FLAT SST 150717 APPROACH-VU CABLE ASSY 18/2 PVC 150795 RCPT 92L APPROACH-VU WARNING SIGN... -
Page 38: Lok-Vu
Dok‑Commander Rite‑Hite ® ® Installation/Service/Owner's Manual PARTS Lok-Vu <LOK-VU_PARTSLIST 181115.PDF> DESCRIPTION PART # WALL BRACKET Lok-Vu 149623 CAMERA WEATHERPROOF INP(12VDC) 149622 LENS(120DEG) WH IP68 JUNCTION BOX 4X4X2 N4 2HOLE(540DIA) 156252 CORD GRIP 11-25 CORD DOME BK 156649 25NPT BRACKET EXTENDED Lok-Vu 156240 SCREW #8-32X750 MACH PAN PHLP SST 148497... -
Page 39: Lok-Vu Control Box
Rite‑Hite Dok‑Commander ® ® Installation/Service/Owner's Manual PARTS Lok-Vu Control Box Front Cover <LOK-VU CB PARTS 181115.PDF> DESCRIPTION PART # DESCRIPTION PART # CONTROL BOX ASSEMBLY Lok-Vu POWER SUPPLY INPUT(100-264V) 156619 156614 STANDALONE OUTPUT(12V/125A) DECAL COV Lok-Vu STANDALONE 156290 DISPLAY 50" TFT W/CONTROL 149537 CIRCUIT BOARD PNL DRLD 10 X 8 Lok-Vu STANDALONE... -
Page 40: Warranty
Product claimed to be defective and shall, at Rite-Hite's option, either (x) grant Rite-Hite or its agent access to Owner's premises for the purpose of repairing or replacing the Product or (y)
Need help?
Do you have a question about the Dok-Commander and is the answer not in the manual?
Questions and answers
I have a corner view light that will not have red. I can turn power off turn it back on get a burn red for about 2 seconds and then goes out the green works when it's locked
The corner view (inside) light on the RITE-HITE Dok-Commander may not stay red after turning the power back on if the vehicle restraint is in the UNLOCKED/STORED position. In this state, the inside light is green and the outside light is red, indicating that loading or unloading is not permitted because the restraint is not locked.
