Summary of Contents for RITE-HITE i-COMM

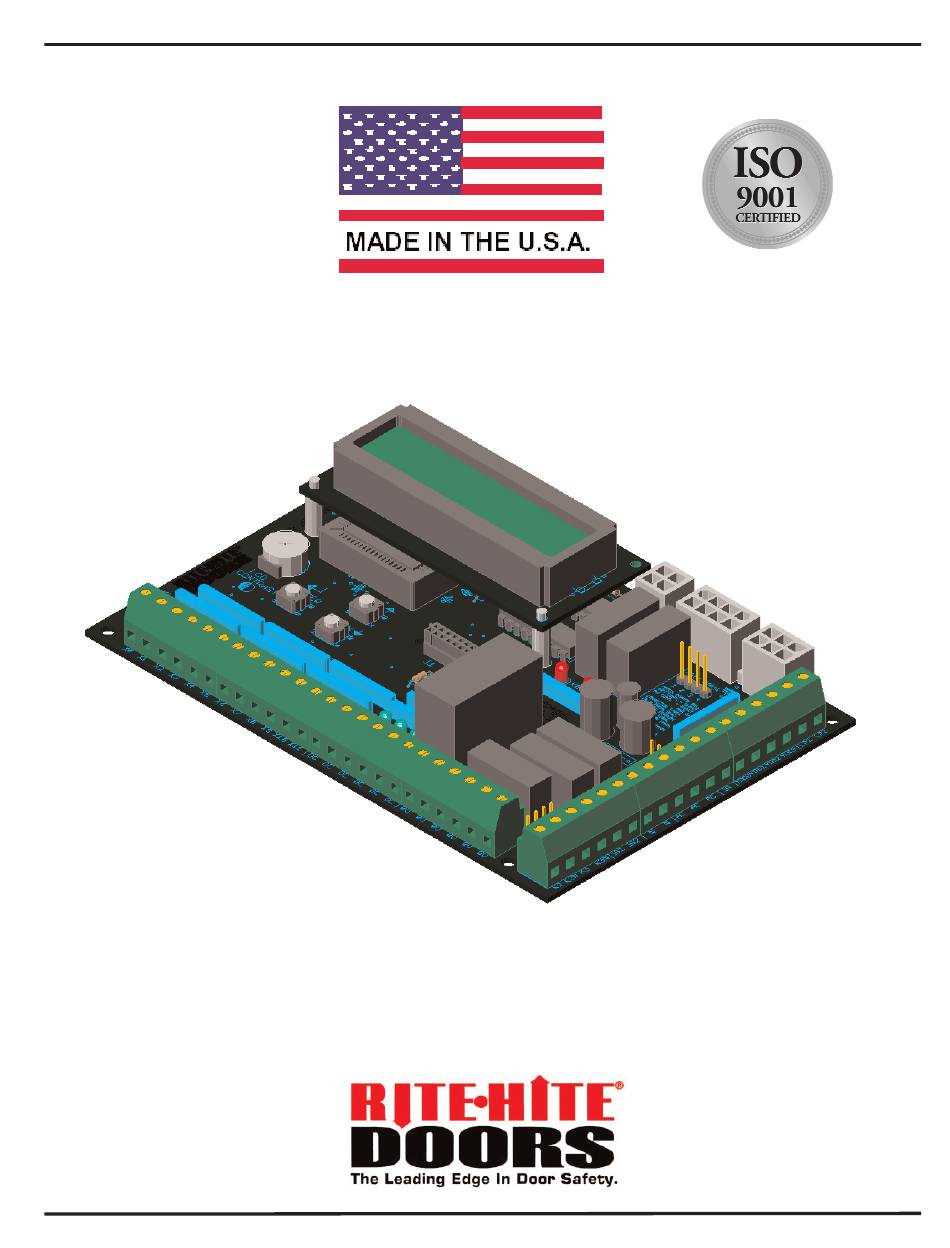

- Page 1 CONTROLLER i-COMM DIGITAL CONTROLLER INSTRUCTIONS Pub. No. RHSPI388 JANUARY 2006...
- Page 2 I M P O R TA N T ! ! ! Remove wires from the input and output terminals. When connecting i-COMM to other control systems, Remove the board by cutting the white plastic isolation relays (Dry Contacts) should be used.
- Page 3 CONTROLLER i-COMM DIGITAL CONTROLLER INSTRUCTIONS Pub. No. RHSPI388 JANUARY 2006...
- Page 4 CONTROLLER i-COMM DIGITAL CONTROLLER INSTRUCTIONS LCD DISPLAY MESSAGES: TOP DISPLAY BOTTOM DISPLAY REASON ACTION REQUIRED FAULT MESSAGES Door Faulted Normal Power Up Indicates Loss of Power Push Open/Reset* Watchdog Timer Indicates the boards watchdog timer has reset Service Required*...
- Page 5 EXT. PHOTOEYE UNUSED UNUSED CONNECTOR TABLE This table shows the function of each of the connectors on the i-COMM controller. The voltages listed for each pin PIN # assume that either the input or output is activated. FLASHING LAMP OUT...
- Page 6 "Reset/Jog Only" - Open/Reset button will only reset and jog the door. If pressed while door is traveling close, door will reverse to open. (If Reset Only is required without opening door please consult applications or Rite-Hite Door Technical Support) [All models] “I-Zone System"...
- Page 7 CONTROLLER i-COMM DIGITAL CONTROLLER INSTRUCTIONS DETAILED MENU LISTING: "Output Definition" Read-Write Use to change functions of outputs where allowed. YK2, YK3, YDC0, (see chart) (Note: Outputs which are not changeable will display "Not Adjustable") YDC1, YDC2, YDC3 Valid Values for Output Settings...
- Page 8 Adjusts Plug Stopping time on Protecdor and ProtecdorCL doors. (Valid Range = 0 - 100 milliseconds) [Protecdor and ProtecdorCL] "Copy to Loader" Read-Only Copies program in i-COMM to loader. Use up arrow to start copy process. Detailed instructions will accompany program loader. "Copy from Loader" Write-Only Copies program from loader to i-COMM.
