Summary of Contents for Kitchen and Home INDH-1802-120HX

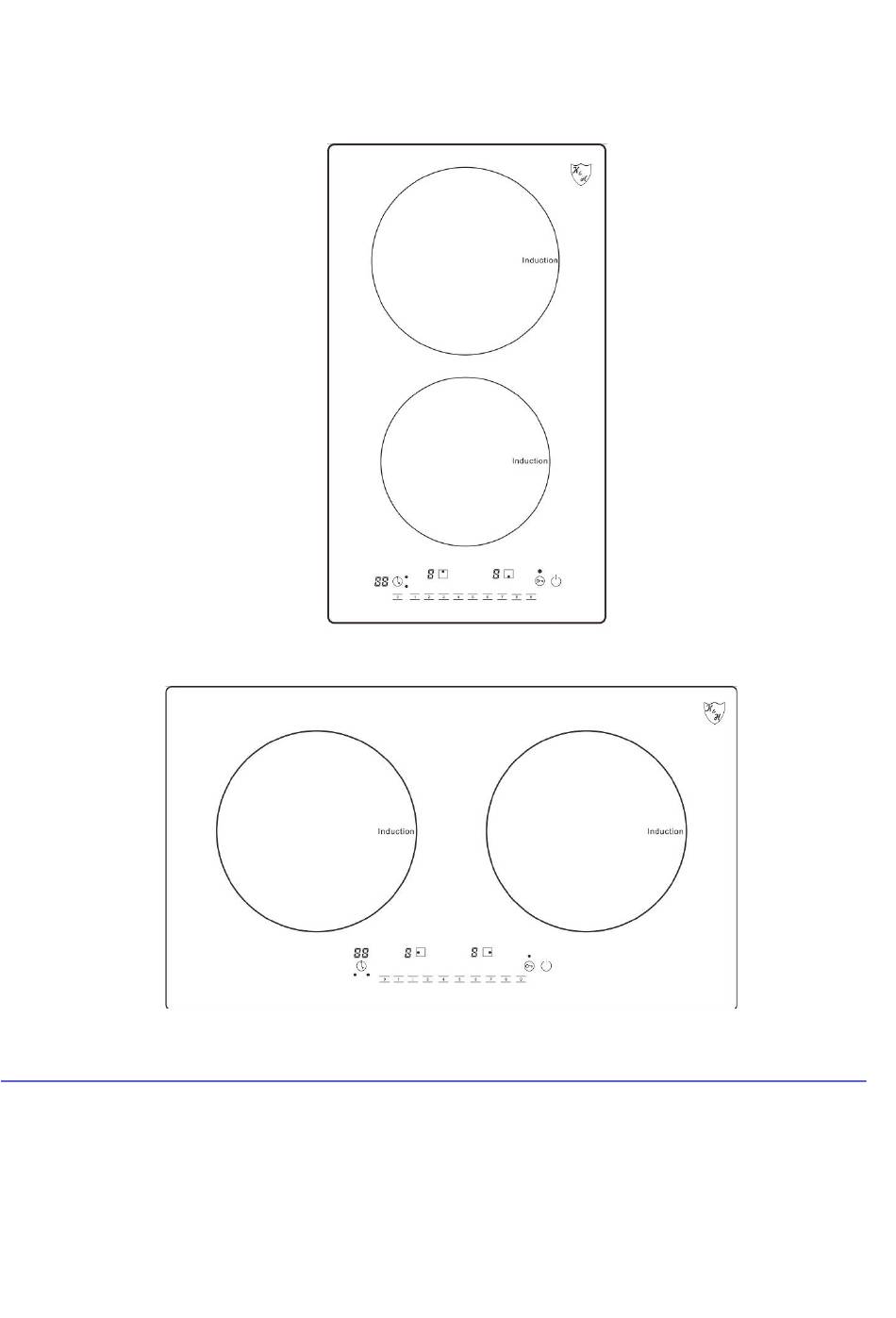

- Page 1 INSTALLATION INSTRUCTIONS&USER MANUAL Two burner Induction Cooker INDV-1802-120 Two burner Induction Cooker INDH-1802-120HX Note: Find E-copy of this Installation Manual and the User Instruction Manual in: www.kitchen-and-home.com...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and appliance itself provide important safety messages, to be read and always observed. This is the safety warning / caution symbol, showing potential risks to user. Ÿ Read all instructions. -
Page 3: Pre-Installation Checklist
G. Make sure the wall coverings, countertop and cabinets around the cooktop can withstand heat (up to 200°F) generated by the cooktop. H. This cooktop not intend to combination with other products. LABEL POSITION For model INDH-1802-120HX For model INDV-1802-120... - Page 4 B. DEPTH C.HEIGHT D.BOX WIDTH E.BOX DEPTH 11-3/5 (295) 20 (510) 2-1/3 (60) 10- 1/4 (260) 18-8/9 (480) INDV-1802-120 INDH-1802-120HX 23-5/8 (600) 13-1/3 (338) 2-1/3 (60) 22-2/3 (575) 12-2/5 (315) CUT OUT DIMENSSIONS F. WIDTH G. WIDTH H. HEIGHT Model...
- Page 5 2 (50.8) 1 (25.4) 2 (50.8) 16 (406.4) INDH-1802-120HX NOTE: All dimensions are in inches (mm). Letters F, G and H on this figure refer to chart on front page. * K = 30 inches (762mm) minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet;...
- Page 6 INSTALLATION INSTUCTIONS FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. 1) Read all instructions contained in these installation instructions before installing the cooktop. 2) This appliance is intended to be built-in to a cabinet structure only and is not intended for attachment to the building structure.
- Page 7 USER MANUAL Two burner induction cooker INDV-1802-120 Two burner induction cooker INDH-1802-120HX...
-
Page 8: Before Use
BEFORE USE IMPORTANT: The cooking zones will not switch on if pots are not the right size. Only use pots bearing the symbol “INDUCTION SYSTEM” (Figure below) or enameled pots. Place the pot on the required cooking zone before switching the Induction Cooker on. -
Page 9: Control Panel Layout
CONTROL PANEL LAYOUT Panel for model INDV-1802-120 Panel for model INDH-1802-120HX Power key Press the button, the cooking zone displays light up and appliance in standby mode. Press the same button anytime, the displays light off, all the cooking zones are deactivated. -
Page 10: Child Lock
Deactivation of cooking zones Select the cooking zone you wish to switch off. Press the corresponding button. Press the key “ ” to set the level to “0”. The cooking zone switches off and the residual heat indicator “H” lights up. Child lock This function locks the controls to prevent accidental switching on of the Induction Cooker. -
Page 11: Technical Information
The power of the cooking zones can be different in some small range. It changes with the material and dimensions of the cookware. TECHNICAL INFORMATION Model INDH-1802-120HX INDV-1802-120 Rating 120VAC, 60Hz, 1750W 120VAC, 60Hz, 1750W CLEANING Ÿ... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE Ÿ Read and follow the instructions given in the section “Instructions for use”. Ÿ Check that the electricity supply has not been shut off. Ÿ Dry the Induction Cooker thoroughly after cleaning it. Ÿ If, when the Induction Cooker is switched on, alphanumeric codes appear on the display, consult the following table for instructions.
