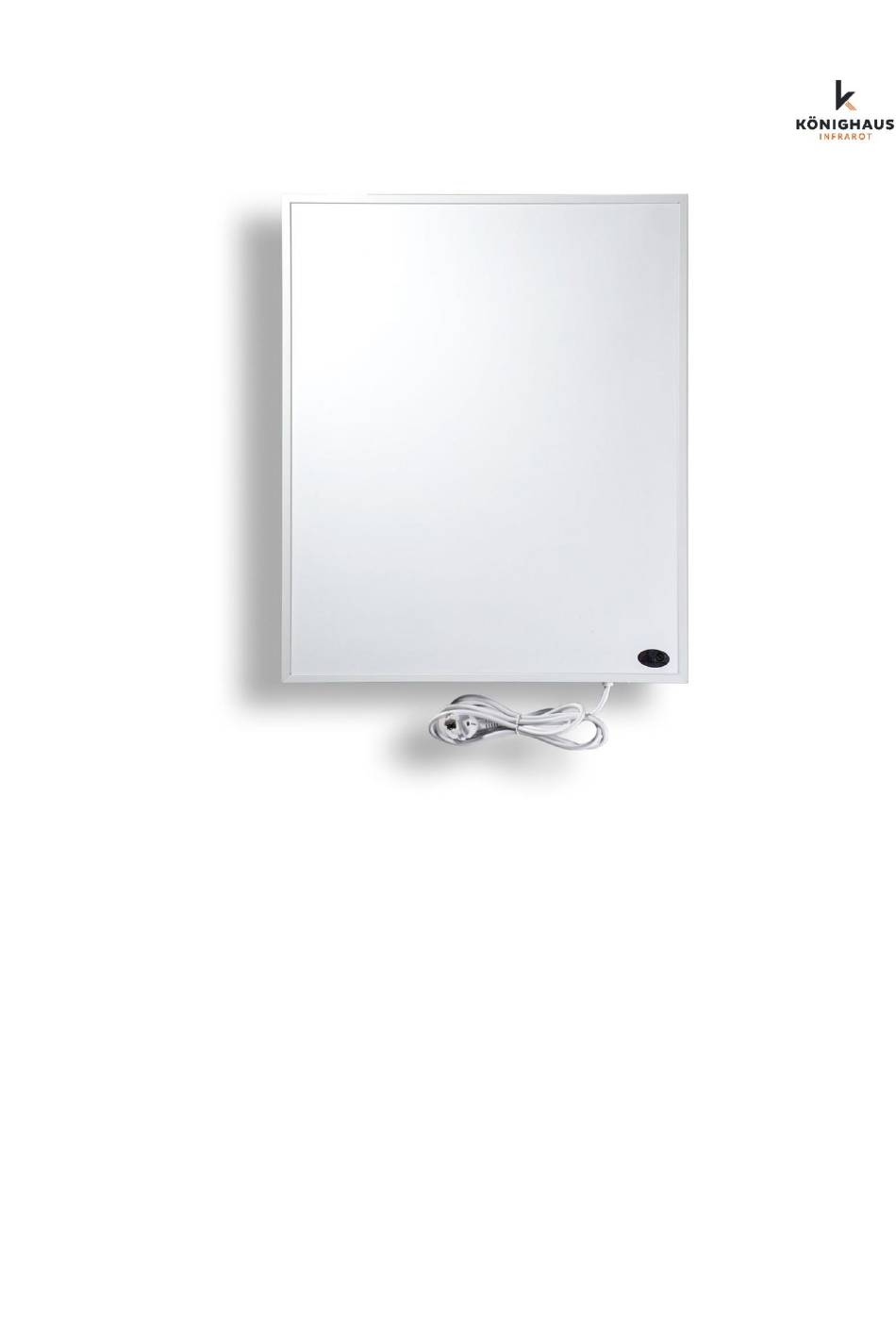

Könighaus GmbH
Albert-Einstein-Straße 1
D-46446 Emmerich am Rhein
Original Instruction Manual

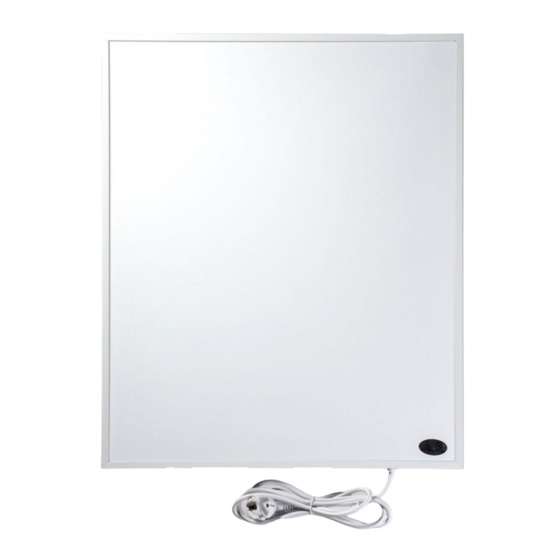

Far infrared heating
Model: Könighaus- E-, M-. P-, G, GS-series, mirror, arc
Important
This product is only suitable for well insulated rooms or for occasional use
suitable for use.
Read carefully before use
Keep for reference
Advertisement
Table of Contents
Related Manuals for Könighaus E Series
Summary of Contents for Könighaus E Series
- Page 1 Könighaus GmbH Albert-Einstein-Straße 1 D-46446 Emmerich am Rhein Original Instruction Manual Far infrared heating Model: Könighaus- E-, M-. P-, G, GS-series, mirror, arc Important This product is only suitable for well insulated rooms or for occasional use suitable for use. Read carefully before use Keep for reference...
- Page 2 Change Index Date Version Chapter Reason Responsibility 9.10.2015 V0.0 Updating Added series G and GS. 03.12.2015 V1.0 General infor- Address changed, Added IP pro- 03.08.2016 V 1.1 mation, tection class, Declaration of Con- Chapter 4.5 formity updated Chapter 8 Modifications in accordance with 06.09.2016 V1.2 the amended requirements with...
-
Page 3: Table Of Contents
Content Content Product Information ........... 4 Far Infrared Heaters ................4 Various mounting types ................5 1.2.1 Ceiling mount ..................5 1.2.2 Wall mount ....................5 1.2.3 Mobile operation with aluminium and wood feet ........5 1.2.4 Direct installation on the power circuit ............ 5 Reading references .......... -
Page 4: Product Information
Product Information Product Information Foreword Thank you for choosing a far infrared heating system from Könighaus Heizsysteme. Far infrared heaters are electric heaters and work with electricity. As a result, there is a certain risk potential. It is therefore important to read these operating instruc- tions carefully before starting up the heater. -
Page 5: Various Mounting Types
Product Information Various mounting types 1.2.1 Ceiling mount With the M series, ceiling mounting is possible. For safety reasons, this should only be carried out by a specialist. Please note but urgently follow the instructions for mounting. 1.2.2 Wall mount Far infrared heaters are the perfect auxiliary or main heating systems for residential areas. -
Page 6: Reading References
Reading references Reading references Abbreviations, synonyms, symbols abbreviation/ Significance synonym Electromagnetic compatibility Device Far infrared heating Significance Symbol Instructions for action Bulleted list Italic Name of a key, a button, a switch Safety-related information Symbol warns you of personal injury. These operating instructions contain safety-related information: ... - Page 7 Reading references SIGNAL WORD This warning text mentions the hazard. This warning text states the consequences. This instruction names the remedy. Risk level of Signal word Significance the hazard Death or serious injury will occur if the haz- DANGER High ard is not avoided.
-
Page 8: Legal Regulations
Legal Regulations Legal Regulations Disclaimers No warranty is given for damages caused by the following reasons: Unauthorized or improper use of the device. Failure to observe the instructions in this operating manual regarding transport, storage, installation, commissioning, operation, maintenance, servicing or other measures on the device. -
Page 9: Safety
Safety Safety Intended use The far infrared heaters are used to heat living spaces. The device heats objects and bodies in the wavelength range of 6 to 15 μm, which in turn give off the heat to the air in the room. The device can be mounted on the ceiling or wall in living rooms. -
Page 10: Technical Data
Safety Technical data The following technical information refers to the entire information heating systems of the Könighaus Heating System. Specific information about your equipment can be found on the identification plate on the back of your heating panel. Fre- IP pro- Tension Power Size... -
Page 11: Notes On Energy Consumption
Safety Notes on energy consumption The Ecodesign Directive (2009/25/EC) of the European Parliament regulates the re- quirements of energy-related products (ErP). Since 1.1.2018, infrared heaters must now also be labelled in accordance with Regulation 2015/1188/EU. In the following, the required data from the Regulation are presented: The following products were selected as references: ... - Page 12 Safety Minimum heat supply (Standard value) Maximum continuous heat supply max,c Auxiliary power consumption At normal heat supply 0,500 At minimum heat supply 0,000 In standby mode 0,000 Model identifier (s): E-1200 Sym- Waar Specifications bool heid Heat supply Normal heat supply Minimum heat supply (Standard value) Maximum continuous heat...
-
Page 13: Nameplate
Safety Nameplate Far Infrared Carbon Crystal Heating Panel Labelling on the machine Safety-related information in the form of pictograms and / or labels is attached to the device. They point out risks that: occur frequently and / or have serious consequences. -
Page 14: Safety Instructions
Safety Safety Instructions WARNING! This device is not equipped with a system for controlling the room temperature. The heater must not be used in small rooms inhabited by persons who cannot leave the room on their own, unless the following conditions are met because constant monitoring is guaranteed. - Page 15 Safety If the device is damaged, it must be disconnected from the power supply and repaired by a specialist. Never repair it yourself! The heater must not be used if the compartments are damaged. The device must not be used for continuous time or permanently without a thermostat.
-
Page 16: Mounting
Mounting Mounting You can see VIDEO TUTORIAL here: https://www.koenighaus-heizungsmotive.de/video-instructions.html Warning Please read all instructions before operating the device to prevent the risk of fire, electric shock or injury. Our far-infrared heaters may only be used with the original suspension provided and can be mounted. -
Page 17: Installation Of The Konighaus E-Series
Mounting behind the panel and prevent accumulation of heat. Screws with size of over 25 mm must be used for the purpose. Distance to the front: Our far-infrared heaters emit far-infrared radiation only at the front. Ensure that the minimum distance of approx. 50 cm to the front, 20 cm to the side and up and down is 20 cm. -
Page 18: Installation Of Konighaus P-, Dl-Series, Gsp 800 And Gsp-1000
Mounting Warning / Notice If the device is not installed properly, there are considerable dangers, such as dangers due to electric shock or fire. For this reason, operation of devices with- out a power plug must only be carried out by qualified specialists. Make sure that the plug never leads upwards but always aside or downwards! 5.1.2 Installation of Konighaus P-, DL-Series, GSP 800 and GSP-1000:... -
Page 19: Installation Of Konighaus M-, G-, Gs- And Sp-Series
Mounting Vertical suspension: 1) Take the gauge board included in the delivery and attach it to the desired place on the wall with the help of adhesive tape. Outline the apertures for boring and bore holes on the four places outlined for the dowels provided. 2) Take the four plastic bolt pins (C) included in the delivery and place them on the four screws (B) included in the delivery. -
Page 20: Positioning
Mounting 1) Bore four holes into the wall, corresponding to the fixing devices located from the rear side and after that insert the dowels included in the equipment into the holes, so that the same should be aligned with the surface of the wall. 2) After that the screws are bolted up into the holes so that they should slightly protrude out of the wall. - Page 21 Mounting 1) Place the freely standing supporting feet on the floor. Insert the heaters into the groove anticipated for the purpose. After that tighten the heater with the screws anticipated for the purpose. These supporting feet are appropriate only for the infrared heating panels Könighaus of series P-E-DL.
-
Page 22: Commissioning
Commissioning Commissioning Before commissioning, read Chapter 5 "Mounting'"'. Now connect the far infrared heater to a properly installed socket (observe the safety instructions described above). With the plugless far infrared heating sys- tems, a prior check for damage by a specialist company is required. ... -
Page 23: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance Cleaning Our infrared heaters do not require regular maintenance. If you notice any irregular- ities, please disconnect the power plug and immediately contact your specialist dealer from whom you purchased the infrared heater. To clean the unit, proceed as follows: ... -
Page 24: Troubleshooting
Troubleshooting Troubleshooting If the device is not heating, please check the following: Is the infrared heater connected to the power grid? Is the power switched off by an external switch? Is the fuse bad? Has the thermostat been set correctly? The desired temperature must be higher than the actual temperature. -
Page 25: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity Original Instruction manual Version V1.9 25 / 29 Könighaus- E-, M-. P-, G, GS-Series, mirror, arc... - Page 26 Declaration of Conformity Far Infrared Carbon- Crystal heat- EC - Declaration of Con- Könighaus ing device formity according to the Low Voltage Di- rective 2014/35/EU We herewith declare that due to its design and construction as well as the design we have placed on the market, the following far infrared carbon-crystal heating devices comply with relevant basic safety and health requirements of the EC-directives.
-
Page 27: Guarantee Provision Statement
Guarantee provision statement Guarantee provision statement Dear customers, We congratulate you for the purchase of a heater from Könighaus Company. In this manner, you acquired a product manufactured in conformity with the present level of the technologies. Our products are subject to strict control over the quality. If, contrary to expectations, this product is in a faulty condition, please, pay attention to our guarantee provision statement. - Page 28 Garantieverklaring Scope of the guarantee: This guarantee shall be valid for products of Könighaus, purchased by the first end users after 01.01.2013 (the date on the sale document shall be determinative). Kö- nighaus guarantees to the users that the products Könighaus are without defects in the materials, without production and structural defects.
- Page 29 Garantieverklaring The guarantee maintenance consists exclusively of the fact that in event of oc- curred functional irregularity within the framework of the guarantee period, Kö- nighaus Heizsysteme in its judgment shall be obligated to carry out the gratuitous for the first end user repair of the product or gratuitous replacement with a corre- sponding or similar or equivalent product of Könighaus.
