Könighaus GmbH
Ossenbruch 5
D-46446 Emmerich am Rhein
Original Instruction Manual
This product is only suitable for well insulated rooms or for occasional use

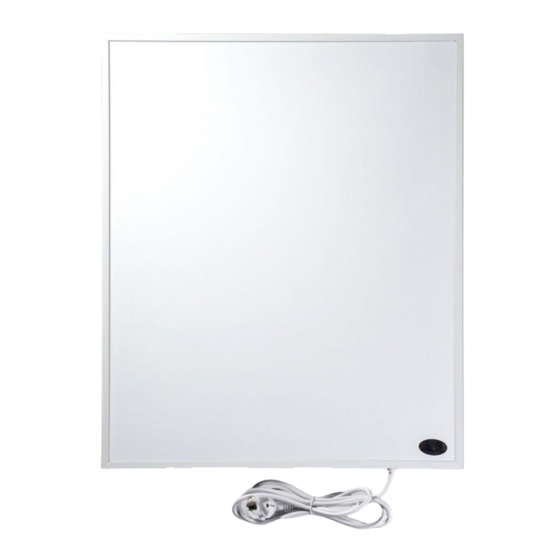

Far infrared heating
Model: Könighaus- E-, M-. P-, G and GS-Series
Important
suitable for use.
Read carefully before use
Keep for reference
KÖNIGHAUS
Heizsysteme
-
Advertisement
Table of Contents
Related Manuals for Könighaus E Series
Summary of Contents for Könighaus E Series

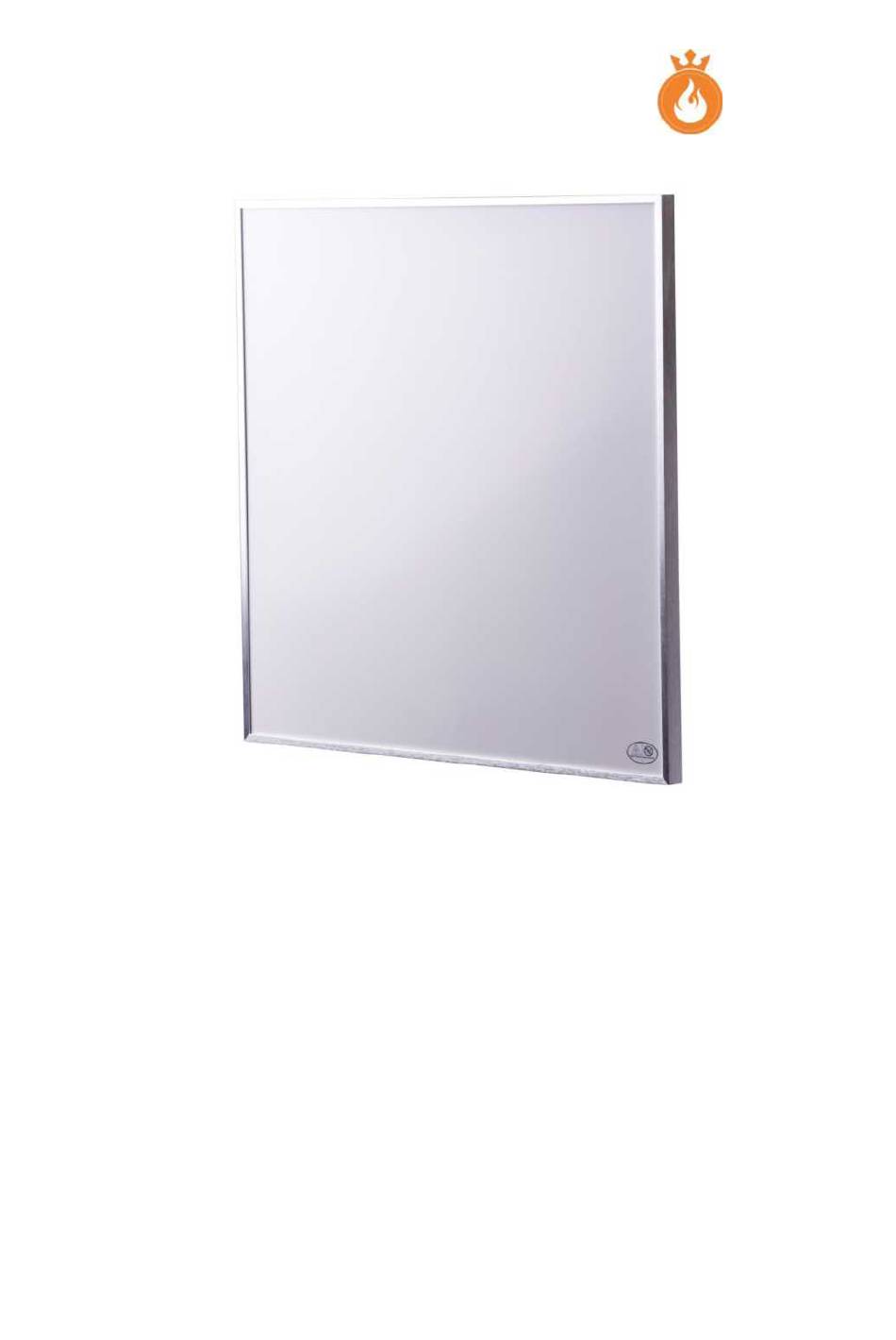

- Page 1 Könighaus GmbH KÖNIGHAUS Ossenbruch 5 Heizsysteme D-46446 Emmerich am Rhein Original Instruction Manual Far infrared heating Model: Könighaus- E-, M-. P-, G and GS-Series Important This product is only suitable for well insulated rooms or for occasional use suitable for use. Read carefully before use Keep for reference...
- Page 2 KÖNIGHAUS Heizsysteme Change Index Date Version Chapiter Reason Responsibility 9.10.2015 V0.0 New installation uttc Ingenieurgesellschaft mbH Friedrich-Heinrich-Allee 159 D-47475 Kamp-Lintfort E-Mail:uttc@uttc.deAuftrag 2015-1668 03.12.2015 V1.0 G- and GS-Series have uttc Ingenieurgesellschaft mbH Auftrag been added 2015-1668 03.08.2016 V 1.1 General, uttc Ingenieurgesellschaft mbH Auftrag Chapter 4.5, Address changed, IP 2015-1668...
-
Page 3: Table Of Contents
KÖNIGHAUS Heizsysteme Content © 2017 The distribution and duplication of these documents, exploitation and communication of their contents are not allowed, unless expressly permitted. Violations oblige to compensation. All rights reserved in the event of patent grant or utility model registration. - Page 4 KÖNIGHAUS Heizsysteme Content Declaration of Conformity Original Instruction Manual Version V1.4 4 / 26 Model: E-, M-, P-, G-, GS-Series...
-
Page 5: Product Information
KÖNIGHAUS Heizsysteme Product Information Product Information Foreword Thank you for choosing a far infrared heating system from Könighaus Heizsysteme. Far infrared heaters are electric heaters and work with electricity. As a result, there is a certain risk potential. It is therefore important to read these operating instructions carefully before starting up the heater. -
Page 6: Various Mounting Types
KÖNIGHAUS Heizsysteme Product Information Various mounting types 1.2.1 Ceiling mount With the M series, ceiling mounting is possible. For safety reasons, this should only be carried out by a specialist. Please note but urgently follow the instructions for mounting. Wall mount 1.2.2 Far infrared heaters are the perfect auxiliary or main heating systems for residential areas. -
Page 7: Reading References
KÖNIGHAUS Heizsysteme Notice Reading refrences Abbreviations, synonyms, symbols significance abbreviation/ synonym Electromagnetic compatibility Device far infrared heating Symbol significance Instructions for action • bulleted list Italic Name of a key, a button, a switch Safety-related information Symbol A. Warns you of personal injury. These operating instructions contain safety-related information: •... - Page 8 KÖNIGHAUS Heizsysteme Reading references SIGNAL WORD This warning text mentions the hazard. This warning text states the consequences. This instruction names the remedy. Risk level of the Signal word significance hazard Death or serious injury will occur if the hazard DANGER is not avoided.
-
Page 9: Legal Regulations
KÖNIGHAUS Heizsysteme Legal Regeulations Legal regulations Disclaimers No warranty is given for damages caused by the following reasons: • Unauthorized or improper use of the device. • Failure to observe the instructions in this operating manual regarding transport, storage, installation, commissioning, operation, maintenance, servicing or other measures on the device. -
Page 10: Safety
KÖNIGHAUS Heizsysteme Safety Safety Intended use The far infrared heaters are used to heat living spaces. The device heats objects and bodies in the wavelength range of 6 to 15 gm, which in turn give off the heat to the air in the room. The device can be mounted on the ceiling or wall in living rooms. -
Page 11: Technical Data
KÖNIGHAUS Heizsysteme Safety Technical data The following technical information refers to the entire information heating systems of the Könighaus Heating System. Specific information about your equipment can be found on the identification plate on the back of your heating panel. Type Tension Power... -
Page 12: Notes On Energy Consumption
KÖNIGHAUS - HEIZSYSTEME Safety Notes on energy consumption 4.2.1 Die The Ecodesign Directive (2009/25/EC) of the European Parliament regulates the requirements of energy-related products (ErP). Since 1.1.2018, infrared heaters must now also be labelled in accordance with Regulation 2015/1188/EU. In the following, the required data from the regulation are presented: The following products were selected as references: •... - Page 13 KÖNIGHAUS - HEIZSYSTEME Safety Model identifier(s): P-600 Specifications Value Symbol Unit Heat supply Normal heat supply Minimum heat supply (Standard value) Maximum continuous heat max,c supply Auxiliary power consumption At normal heat supply 0,500 At minimum heat supply 0,000 In standby mode 0,000 Model identifier (s): E-1200 Specifications...
-
Page 14: Name Plate
KÖNIGHAUS - HEIZSYSTEME Safety Name plate Far Infrared Carbon Crystal Heating Panel Könighaus □ M-Serie □ P-Serie □ G-Serie □ S-Serie □ E-Serie □ SP-Serie Power (± 5%) □ GS-Serie □ 300 W □ 360 W □450 W □600 W □... -
Page 15: Safety Instructions
KÖNIGHAUS - HEIZSYSTEME Safety Safety Instructions WARNING! This device is not equipped with a system for controlling the room temperature. The heater must not be used in small rooms inhabited by persons who cannot leave the room on their own, unless the following conditions are met because constant monitoring is guaranteed. - Page 16 KÖNIGHAUS - HEIZSYSTEME Safety • Do not use this heater near a bathtub, shower or swimming pool. • The device may only be put into operation after appropriate and proper installation. • If the device is damaged, this must be disconnected from the power supply and repaired by a specialist.
-
Page 17: Mounting
KÖNIGHAUS - HEIZSYSTEME Mounting Mounting Warning Please read all instructions before operating the device to prevent the risk of fire, electric shock or injury. Our far-infrared heaters may only be used with the original suspension provided and can be mounted. Warranty and liability for consequential damages are excluded for far-infrared heating systems used without original suspension. - Page 18 KÖNIGHAUS - HEIZSYSTEME Mounting • Distance to the front: Our far-infrared heaters emit far-infrared radiation only at the front. Ensure that the minimum distance of approx. 50 cm to the front, 20 cm to the side and up and down is 20 cm. •...
- Page 19 KÖNIGHAUS - HEIZSYSTEME Mounting 3) Align the brackets so that they are horizontal on the wall. 4) Place the wall-mounted panel in the holder. Make sure that the panel is firmly seated. Warning / Notice The E-Series is suitable for operation without mains plug. The installation may only be carried out by qualified specialists.
-
Page 20: Installation Of Könighaus E- And P-Series
KÖNIGHAUS - HEIZSYSTEME Mounting 5.1.2 Installation of Könighaus M- C- P- and G-Series • If the far-infrared heating system is connected to a fixed electrical supply, a disconnection device of overvoltage category Ill shall be provided for full disconnection. This connection work may only be carried out by a qualified specialist. -
Page 21: Installation Of Gs-Series
KÖNIGHAUS - HEIZSYSTEME Mounting Installation of GS-Series 5.1.3 Original Instruction Manual Version V1.4 21 / 26 Model: E-, M-, P-, G-, GS-Series... - Page 22 5.1.4 Installation of the new P-Series Always make sure that the plug never leads upwards, but always to the side or down! A VIDEO TUTORIAL can be found here: https://www.koenighaus-heizungsmotive.de/video-instructions.html Horizontal suspension: Step 1: Take the supplied template and attach it to the wall using the tesa tape and sketch the drill holes and drill holes for the provided dowels at the 4 points sketched out.
-
Page 23: Positioning
KÖNIGHAUS - HEIZSYSTEME Mounting Positioning Make sure that the far infrared heater is not obstructed by cabinets, sofa or other objects and can radiate freely inside the room. The most efficient heating output is obtained with horizontal wall mounting. If the far infrared heater is prevented from radiating effectively into the room, one speaks of a shadow effect. -
Page 24: Commisioning
KÖNIGHAUS - HEIZSYSTEME Commisioning commissioning Before commissioning, read Chapter 5 "Mounting"“. • Now connect the far infrared heater to a properly installed socket (observe the safety instructions described above). With the plugless far infrared heating systems, a prior check for damage by a specialist company is required. •... -
Page 25: Cleaning And Maintenance
KÖNIGHAUS - HEIZSYSTEME Cleaning and maintenance Cleaning and maintenance Cleaning Our infrared heaters do not require regular maintenance. If you notice any irregularities, please disconnect the power plug and immediately contact your specialist dealer from whom you purchased the infrared heater. To clean the unit, proceed as follows: •... -
Page 26: Troubleshooting
KÖNIGHAUS - HEIZSYSTEME Troubleshooting Troubleshooting If the device is not heating, please check the following: • Is the infrared heater connected to the power grid? • Is the power switched off by an external switch? • Is the fuse bad? •... - Page 27 KÖNIGHAUS - HEIZSYSTEME Declaration of Conformity Declaration of Conformity EC - Declaration of Conformity KONIGHAUS Far Infrared Carbon- according to the Low Voltage Directive Crystal heating device HEIZSYSTEME 2014/35/EU We herewith declare that due to its design and construction as well as the design we have placed on the market, the following far infrared carbon-crystal heating devices comply with relevant basic safety and health requirements of the EC-directives Label...
