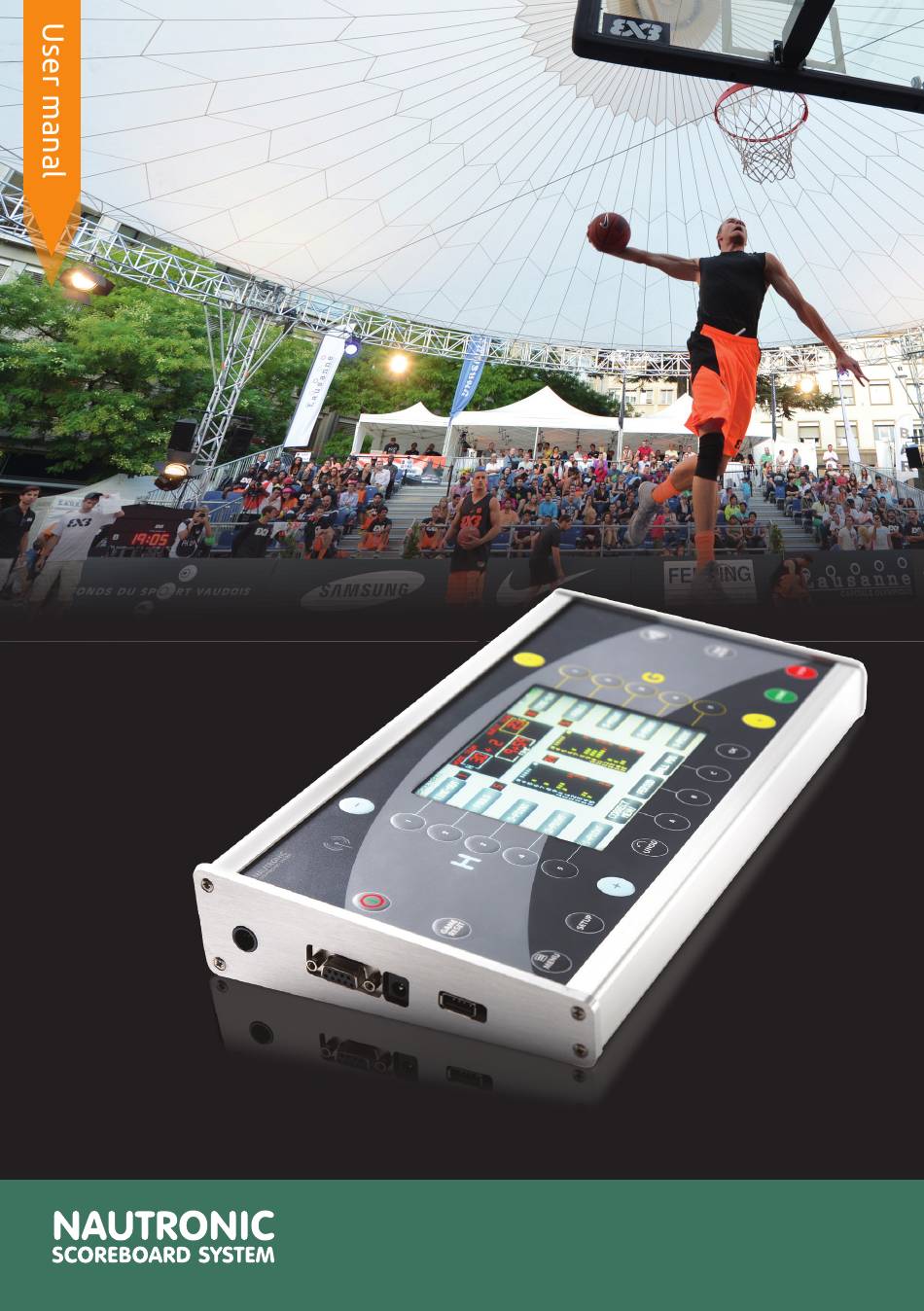

NAUCON-1000 User manual Take control … Learn about the NAUCON-1000 with this complete User manual Danmarksvej 1 DK-8660 Skanderborg Tel.: +45 8651 1166 www.nautronic.com scoreboards@nautronic.com NAUCON-1000 – USER MANUAL |...
Page 2
Subtract Home Score Subtract Guest Score Add Guest Score Add Home Score On/off Start Turn the NAUCON-1000 on and off. Game clock starts. When turning off the control panel you Stop must confirm by pressing ACCEPT on the touch screen.
TIEBREAK Multiple zones active MENU All zones disabled Zone 1-4 COLLISION – another NAUCON-1000 is transmitting in the same zone. *Change or disable zones. See more on page 7. *Note you might see the flashing collision warning even when all zones are turned off.
Start setting up your NAUCON-1000 When starting your NAUCON-1000 it will start up in a default sport. If setting up for the first time the NAUCON-1000 will start in basketball. To exit the sport press the MENU click button on the console and then press EXIT SPORT.
Page 6
Default is 1 minute. OFF. OFF: Hides yellow and red card buttons when player number selection is set to OFF. DEFAULT is off. | NAUCON-1000 – USER MANUAL...
Page 7
Default is OFF. LIST: Choose player number from a list. TYPE: Type player number. OFF: Scores and penalties are given to the whole team Periods Sets the number of periods in the match. Default is 2. NAUCON-1000 – USER MANUAL |...
Page 8
SUBTRACT SUBTRACT GAMES GAMES 1. 2. 3. 4. 5. GAMES GAMES PREVIOUS PREVIOUS SETS SETS SERVE SERVE SUBTRACT SUBTRACT CORRECT NEXT PREVIOUS POINT POINT TIEBREAK POINT POINT MENU Tennis, control screen Tennis, Correct menu activated NAUCON-1000 – USER MANUAL |...
