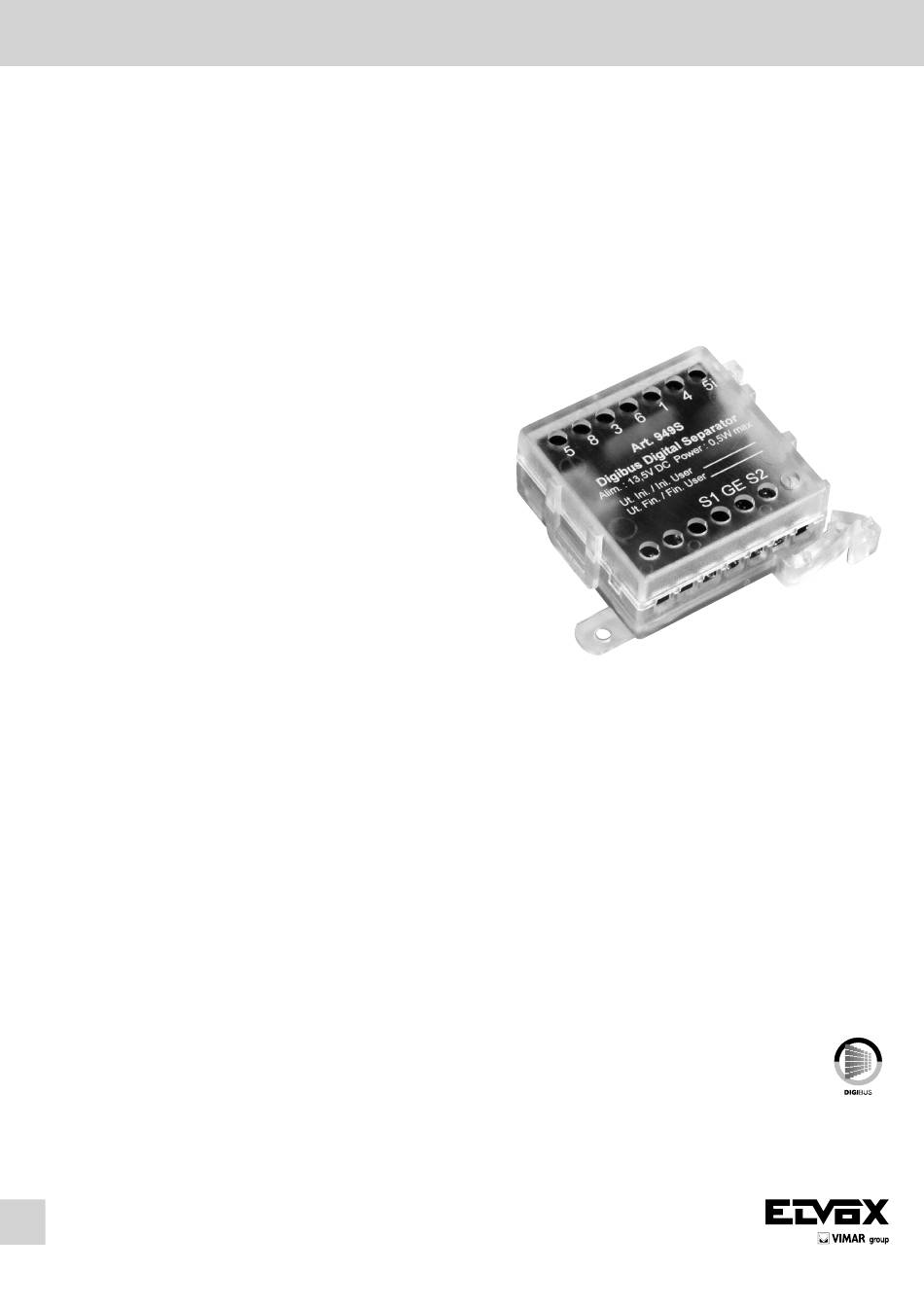

- Page 1 Manuale installatore - Installer guide Art. 949S Separatore Digibus a 4 e 8 cifre Digibus separator with 4 and 8 digits...
-
Page 2: Funzionamento
Il manuale istruzioni è scaricabile dal sito www.vimar.com DESCRIZIONE ART. 949S L’art. 949S è un accessorio separatore da utilizzarsi negli impianti DIGIBUS sia a 4 che ad 8 cifre per creare: • Una protezione elettrica sull’alimentazione . • Una separazione fisica per la linea digitale (i comandi vengono ritrasmessi) e la fonica (normalmente scollegata dal resto dell’impianto) tra un gruppo di citofoni/ videocitofoni ed il resto dell’impianto. Alimentazione: 13.5 VDC Potenza Max Assorbita: 0.5W Il separatore viene collegato nell’impianto tra la targa e il gruppo di citofono/videocitofoni da “proteggere”. -
Page 3: Procedura Di Programmazione
Tabella 4. Significato dei Led FUNZIONAMENTO DEI LED Evento LED 1 LED 2 Ricezione dato seriale da morsetto 1 e trasmissione su morsetto 6 Lampeggio Ricezione dato seriale da morsetto 6 e trasmissione su morsetto 1 Lampeggio Ricezione di una chiamata da Targa all’interno del range valido Acceso Fisso Acceso Fisso Ricezione Comando di Reset durante una conversazione valida Spegnimento Spegnimento... -
Page 4: Operation

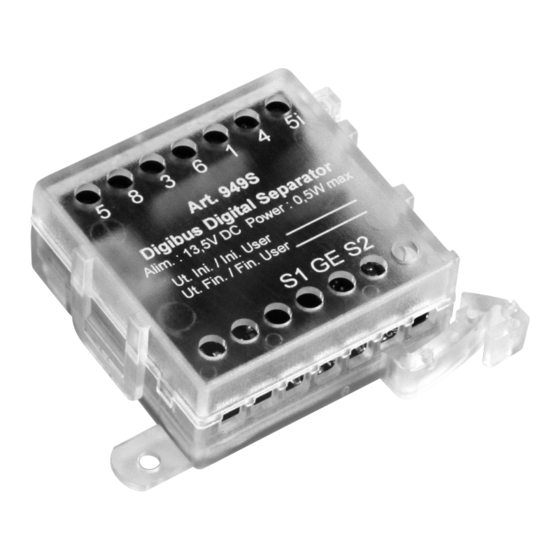

The instruction manual is downloadable from the site www.vimar.com DESCRIPTION ART. 949S Art. 949S is a separator accessory for use in DIGIBUS systems with both 4 and 8 digits to create: • An electric protection on the power supply. • A physical separation for the digital line (the commands are retransmitted) and the voice line (normally disconnected from the rest of the system) between one group of interphones/monitors and the rest of the system. Power supply: 13.5 VDC Max. Absorbed Power: 0.5W The separator is connected in the system between the entrance panel and the group of interphones/monitors to be “protected”. It is possible to install the sep- arator art. 949S either on the wall or on a DIN rail. (see Fig.1). This accessory is used only for internal devices with a decoder on board. Fig. 1 LED - 1... -
Page 5: Led Operation
Table 4. Meaning of the Led LED OPERATION Event LED 1 LED 2 Reception of serial value from terminal 1 and transmission on terminal 6 Flashing light Reception of serial value from terminal 6 and transmission on terminal 1 Flashing light Reception of a call from an entrance panel within the valid range Steady light Steady light Reception of Reset Command during a valid conversation GE Jumper (Current Generator) The digital line corresponding to terminal 1 has a current generator which supplies 25mA to allow the correct operation of the system. If there are several 949S devices or several devices of the Digibus series connected in parallel on the same digital line (terminal 1 - digital line to the (video)phones) only one of these must supply the necessary current. To stop current generation on the 949S, cut the jumper visible in the hole marked GE. PROGRAMMING PROCEDURE Programming the Initial and Final User Hold down button S1 for about 5 seconds until LED-2 flashes repeatedly, then release the button, press it again and hold it down until you enter programming mode (LED-2 lit with a steady light): at this point release the button and press the key for a pushbutton panel or, on a numerical panel, compose the code of the initial user (or from the programmer art.950C or use the PC with “Analizer” software with the interface 6952/A or press any button from an interphone with the number corresponding to the desired initial user); after the flashing of LED-2, press the key for a pushbutton panel or, on a numerical panel, compose the code of the initial user (or from the programmer art.950C or use the PC with “Analyzer” software with the interface 6952/A or press any button from an interphone with the number corresponding to the desired initial user); at this point LED-2 will switch off to confirm that programming has been completed. - Page 6 Schema Digibus con centralino Art. 945B, montanti con targhe audio e video Art. 8943 e Art. 8946, separatore Art. 949S, monitor e citofoni. Diagram of Digibus with switchboard Art. 945B, risers with audio and video panels Art. 8943 and type 8946, separator Art. 949S, monitors and interphones. Montante monitor B- Monitor Art. 6020+6204+6145, 6023+6204+6145 Monitor cable riser...
- Page 7 Schema Digibus con centralino Art. 945B, montanti con targhe audio e video Art. 8844 e Art. 8847/C, separatore Art. 949S, monitor e citofoni. Diagram of Digibus with switchboard Art. 945B, risers with audio and video panels Art. 8844 and Art. 8847/C, separator type 949S, monitors and interphones. Montante monitor 75ohm B- Monitor Art. 6020+6204+6145, 6023+6204+6145...
- Page 8 Vimar SpA: Viale Vicenza, 14 36063 Marostica VI - Italy Tel. +39 0424 488 600 - Fax (Italia) 0424 488 188 S6I.948.S00 03 1410 Fax (Export) 0424 488 709 VIMAR - Marostica - Italy www.vimar.com...
