AMI Entertainment Ion Fusion Removal/Installation Instructions

IMPORTANT NOTE: If you are replacing a PATA hard drive with a SATA hard drive,
Hard Drive Identification:
To determine whether your hard drive is quick-click or non-quick-click, look for a light gray adapter
between the hard drive adapter and the hard drive mounting bracket. See Figure 1. If there is such an
adapter, then you have a quick-click hard drive; if not, then your hard drive is non-quick-click. The PATA
hard drive with a clamp will simply have a clamp as shown in Figure 1. The SATA hard drive is also
shown in Figure 1. The SATA is easily identifable by the lack of a hard drive ribbon cable and adapter.
HARD DRIVE
ADAPTER
QUICK CLICK
ADAPTER
(a) quick-click hard drive
HARD DRIVE
ADAPTER
HARD DRIVE
ADAPTER CLAMP
(c) PATA hard drive with clamp
COPYRIGHT © 2009 AMI ENTERTAINMENT NETWORK, INC.
OBSERVE PRECAUTIONS FOR HANDLING ESD-SENSITIVE DEVICES
Removal/Installation of Major Assemblies -

Hard Drive Removal

please see "PATA to SATA Hard Drive Conversion".

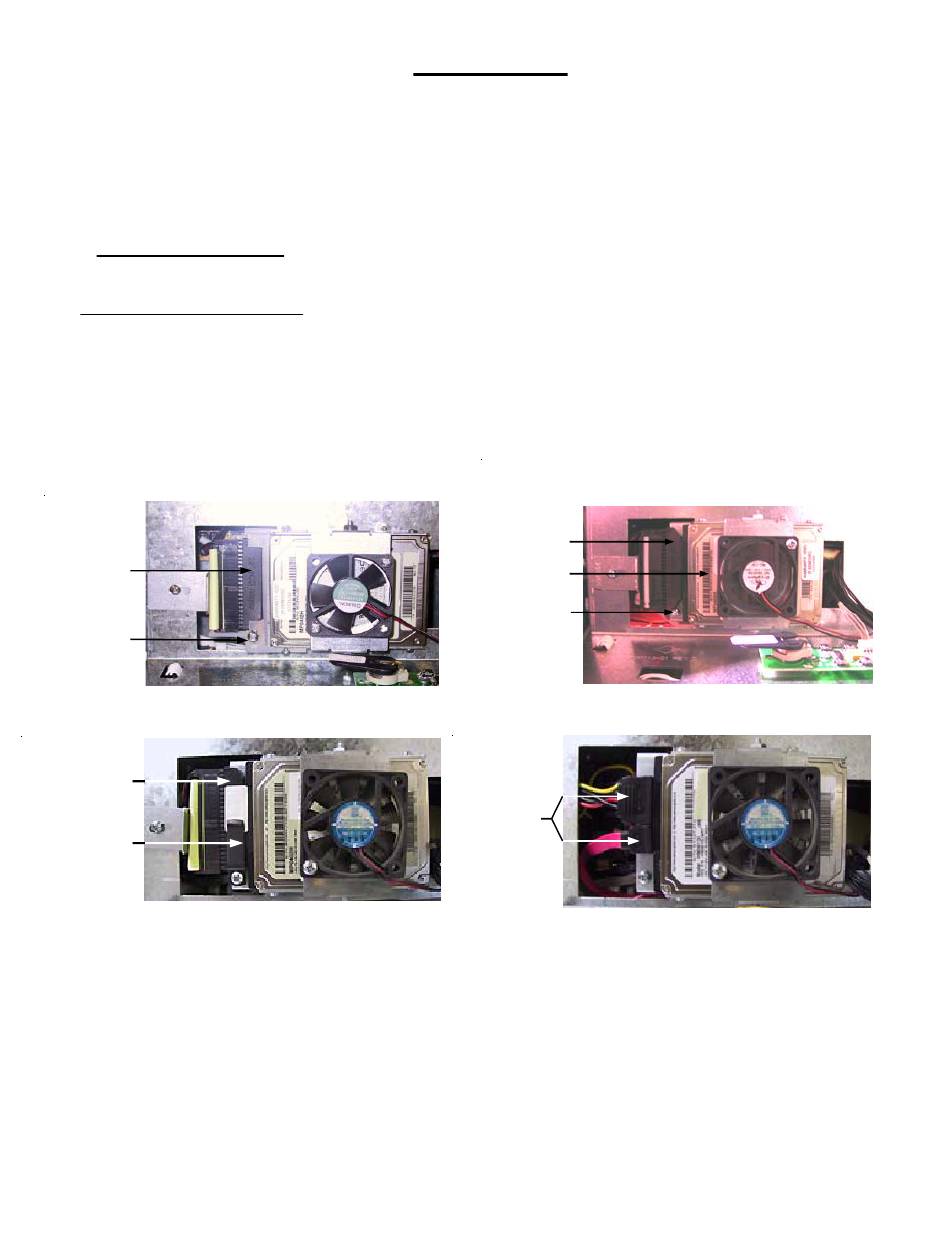

FIGURE 1 - HARD DRIVES
ATTENTION:
Ion Fusion
HARD DRIVE
RIBBON CABLE
HARD DRIVE
SCREW
SECURING
HARD DRIVE
MOUNTING
PLATE TO
ELECTRONICS
BOX COVER
HARD DRIVE
CABLES
(b) non-quick-click
(d) SATA
