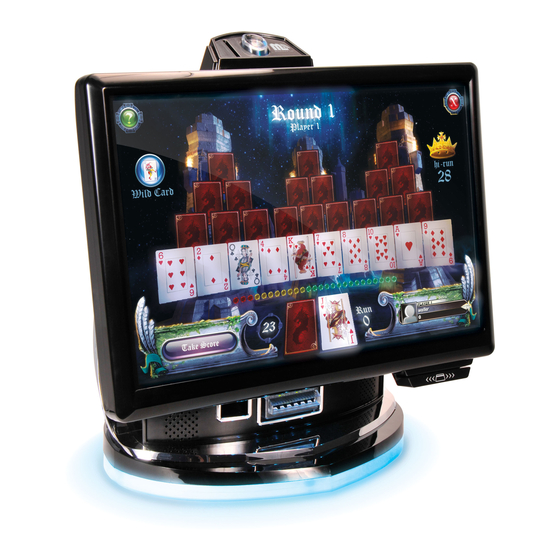

- Page 1 ML-1 Installation & Owner’s Manual FOR TECHNICAL ASSISTANCE: CONTACT YOUR LOCAL DISTRIBUTOR For a list of distributors, visit us on the Web at www.amientertainment.com PM0802-01 Rev A...
-
Page 3: Table Of Contents
Software License Agreements ... 41 © 2011 AMI Entertainment Network, Inc. ML-1 and Megatouch Live are registered trademarks of AMI. Reproduction of this manual, in any form or by any means, is strictly forbidden without the written permission of AMI. -
Page 4: Megatouch Live Requirements
Manage your ML-1 machines from anywhere at anytime by going to www.amioperator.com. Megatouch Live Requirements Your ML-1 requires a broadband Internet connection in order to function. Please be sure that the location has an active broadband Internet connection available. NOTE: Wireless connections support WEP, WPA, and WPA2 encryption. -
Page 5: Initial Setup
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Initial Setup After removing the game from the carton, connect the power cord to the back of the machine near the ON/OFF switch (see Figure 1). Plug the game into a standard, grounded AC outlet. Do not turn the game on at this point. - Page 6 COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. If an Internet connection has not been detected by your system, or you need to confi gure a router fi rst: You’ll be taken to the Confi gure Your Network screen (see Figure 2). Touch the appropriate connection option.
- Page 7 COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. 10. After your Internet connection has been established, you’ll be taken to the Log In screen where you’ll need to enter your AMI ID and password. AMI will provide these to you upon receipt of your Megatouch Live Operator Agreement. After entering your AMI ID and password, touch GO to continue.
-
Page 8: Game Description
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Game Description The ML-1 Countertop has one lock located on the back of the unit. To open the cabinet, unlock this lock and remove the rear door. All of the machine’s major components are located inside the cabinet. These components include the motherboard, I/O board, power supply, hard drive, coin mech, and bill acceptor. -
Page 9: Operator Setup
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Operator Setup To enter Operator Setup, unlock and remove the rear door and press the operator setup button (see Figure 1 for the location of the red operator setup button). When you enter Operator Setup, you’ll see the Home Page. -
Page 10: Navigating The Quick Access Panel
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Navigating the Quick Access Panel When you enter any section of the Quick Access Panel, you can still easily navigate to other sections by using the buttons on the left side of the screen. -
Page 11: Quick Access Panel-Confi Gure Network
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Quick Access Panel—Confi gure Network FIGURE 4 – CONFIGURE NETWORK OPTIONS SCREEN When you touch the CONFIGURE NETWORK button, you’ll be taken to a screen offering two options: CONFIGURE NETWORK and VIEW CONNECTION LOG (see Figure 4). -
Page 12: Quick Access Panel-Machine Settings
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Quick Access Panel—Machine Settings FIGURE 6 – MACHINE SETTINGS OPTIONS SCREEN From the Machine Settings section of the Quick Access Panel you can adjust the volume of the system, clear the local leaderboards, and view the machine log (which is a list of any system errors). -
Page 13: Quick Access Panel-Collection And Fees
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Quick Access Panel—Collection and Fees When you touch the COLLECTION AND FEES button on the Quick Access Panel, you’ll be taken to the section’s main screen (see Figure 7). FIGURE 7 – COLLECTION AND FEES MAIN SCREEN From this screen you can quickly view the total cash revenue, the total credit card revenue (if applicable), the fee deductions, and the balance to split. -
Page 14: Control Panel
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Control Panel FIGURE 8 – CONTROL PANEL MAIN SCREEN Inside the Control Panel you will fi nd all of the options that are available for your machine (except for those that are featured on the Quick Access Panel). An Internet connection is required to access the Control Panel. -
Page 15: Navigating The Control Panel
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. GAMES OVERVIEW • View Enabled Advanced Filters SETTINGS • Game Setup Wizard ○ Erotic Settings ○ Category Setup ○ Gameplay Settings • Gameplay Settings ○ Allow Game Continue ○ Allow Auto-Continue ○ Display Card Fanning ○... -
Page 16: Control Panel-Pricing And Costs
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Control Panel—Pricing and Costs FIGURE 9 – CONTROL PANEL PRICING AND COSTS OVERVIEW SCREEN When you fi rst enter the Pricing and Costs screens, you’ll see the Overview. This will give a brief description of what can be found in these screens, and it will also show you the credit value, token value, and how many awarded free games are on the system. -
Page 17: Quick Pricing Wizard
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Quick Pricing Wizard The Quick Pricing Wizard will walk you through all the pricing options on the system. To access the Quick Pricing Wizard, touch PRICING AND COSTS on the Control Panel, touch SETTINGS, and then touch RUN QUICK PRICING WIZARD. -
Page 18: Set Money-In Capacity
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Set Money-In Capacity FIGURE 11 – SET MONEY-IN CAPACITY SCREEN Use the drop-down menus to change the size settings for your coin box and/or your bill acceptor (if needed). These should be set according to your hardware. -
Page 19: Money-In Options
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Money-In Options FIGURE 13 – MONEY-IN OPTIONS SCREEN This screen is used to set how many credits are given for each purchase price, both for cash and credit card purchases (where applicable). The values on this screen will automatically be populated based on what is set on the Set Credit Value screen of the Quick Pricing Wizard (please see the “Set Credit Value”... -
Page 20: Set Individual Tier Costs
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Set Individual Tier Costs FIGURE 14 – SET INDIVIDUAL TIER COSTS SCREEN Pricing tiers give you the ability to set the pricing for an entire group of games in one easy step (instead of adjusting them individually). Use the plus and minus buttons to change the credit cost and the cost to continue for the top three pricing tiers, which are the tiers common to every Megatouch Live system. -
Page 21: Set Individual Game Costs
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Set Individual Game Costs FIGURE 15 – SET INDIVIDUAL GAME COSTS SCREEN On this screen you can view all the games on the system and place them in whatever pricing tier you wish. If you change the pricing tier for any game, the values under COST and CONTINUE will change to refl... -
Page 22: Credit Card Options
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Credit Card Options FIGURE 16 – CREDIT CARD OPTIONS SCREEN To access Credit Card Options, touch PRICING AND COSTS on the Control Panel, touch SETTINGS on the left side of the screen, and then touch CREDIT CARD OPTIONS. -
Page 23: Control Panel-Collection And Fees
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Control Panel—Collection and Fees FIGURE 18 – CONTROL PANEL COLLECTION AND FEES OVERVIEW SCREEN IMPORTANT: Collection information cannot be cleared from the CONTROL PAN- EL—Collection and Fees Screens. To clear and compete a collection, access the Collection and Fees section of the QUICK ACCESS PANEL. -
Page 24: Cash Settlement Setup
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Cash Settlement Setup In Cash Settlement Setup you can turn on/off the location’s ability to see the operator’s cut of the earnings. You can also set the location split percentage, view the revenue share and credit card fee percentages, and adjust the tax percentage and other fees. -
Page 25: Control Panel-Games
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Control Panel—Games FIGURE 21 – CONTROL PANEL GAMES OVERVIEW SCREEN When you fi rst enter the Games screens, you’ll see the Overview screen. This will give a brief description of what can be found in these screens, and it will also show you what (if any) advanced fi... -
Page 26: Game Setup Wizard
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Game Setup Wizard The Game Setup Wizard will walk you through all the game options on the system. This includes the enabling and confi guring of erotic content on the system, setting up the categories that the players will see on screen, and fi... -
Page 27: Category Setup
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Category Setup FIGURE 23 – CATEGORY SETUP SCREEN On this screen you can select which categories the player will be able to choose games from. A check in the box next to a category’s name indicates that it is active and players will see it on screen. -
Page 28: Gameplay Settings
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. so on. You can also drag and drop games between pages so that the games are laid out on screen exactly as you want them to be. Touch AUTO-FILL ALL GAMES to place every available game into a category. Touch CLEAR ALL to remove all games from a category. -
Page 29: Control Panel-Menu
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Control Panel—Menu FIGURE 27 – CONTROL PANEL MENU OVERVIEW SCREEN When you fi rst enter the Menu screens, you’ll see the Overview screen. This will give a brief description of what can be found in these screens. -
Page 30: Leaderboard Options
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Leaderboard Options FIGURE 29 – LEADERBOARD OPTIONS SCREEN On this screen you can choose to have the system automatically clear the local lead- erboards after a set amount of time. A check in the box next to “AUTO-CLEAR LOCAL LEADERBOARDS”... -
Page 31: Control Panel-Machine Settings
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Control Panel—Machine Settings FIGURE 30 – CONTROL PANEL MACHINE SETTINGS OVERVIEW SCREEN When you fi rst enter the Machine Settings screens, you’ll see the Overview screen. This will give a brief description of what can be found in these screens, and lists the location information associated with the machine. -
Page 32: Set Machine Location
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Set Machine Location FIGURE 32 – SET MACHINE LOCATION SCREEN Touch SET MACHINE LOCATION to change the location information associated with the machine. After touching this button, you can either use the drop-down menu to choose from any of your existing locations, or you can touch CREATE NEW LOCATION to enter information for a new location. -
Page 33: Megatouch Live Player Features
Players can use a credit card or any other unique swipe- able card with enough information on it for the system to recognize. The ML-1 comes with a pack of branded Megatouch Live player cards that can be given to players. Additional packs of 10 cards are available (part number: PM0803-01). -
Page 34: Moving Your Megatouch Ml-1 From One Location To Another
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Moving Your Megatouch ML-1 From One Location to Another It is recommended that you perform a collection on your ML-1 before moving it to a new location. For details on performing a collection, please see the “Quick Access Panel—... -
Page 35: Changing The Machine's Profi Le
(see Figure 34). When a new hard drive is detected on an ML-1, the system will recognize the new hard drive during boot up and prompt you to perform a factory restore. By continuing, you are beginning a factory restore on the machine. -
Page 36: General Care And Maintenance
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. General Care and Maintenance IMPORTANT: This game MUST only be serviced by qualifi ed service personnel. CAUTION: THERE ARE HIGH-VOLTAGE PARTS IN THIS GAME. BE CAREFUL WHEN SERVICING THE INSIDE OF THE GAME. THE GAME SHOULD ALWAYS BE UNPLUGGED BEFORE SERVICING. -
Page 37: Cleaning The Cabinet
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Cleaning the Cabinet The cabinet should be cleaned with a damp cloth and mild detergent. Always apply the cleaner to the cloth and not directly on the game. Liquids could enter the cabinet and damage electronics inside. -
Page 38: Ml-1 Countertop Diagrams
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. ML-1 Countertop Diagrams COIN MECH BILL ACCEPTOR CARD READER FIGURE 35 – FRONT VIEW OF THE ML-1 COUNTERTOP REAR LOCK 8 SCREWS SECURING MONITOR BEZEL (BOTH SIDES) POWER ETHERNET SWITCH COUPLER FIGURE 36 – REAR VIEW OF THE ML-1 COUNTERTOP ML-1 INSTALLATION AND OWNER’S MANUAL... - Page 39 COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. COIN MECH WIRELESS ADAPTER BILL ACCEPTOR USB PORT COIN BOX MOTHERBOARD FIGURE 37 – REAR VIEW OF AN OPEN ML-1 COUNTERTOP BOARD POWER SUPPLY HARD (NOT SHOWN) DRIVE METER FIGURE 38 – REAR VIEW OF AN OPEN ML-1 COUNTERTOP...
-
Page 40: Replacement Parts List
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. ML-1 Countertop Replacement Parts List REPLACEMENT COMPONENTS ML-1 COUNTERTOP PART NUMBER DESCRIPTION SA10091-02 MOTHERBOARD EC9791-03 MEI BILL ACCEPTOR, $1/2/5, 700 STACKER EC9786-01 COINCO BILL ACCEPTOR, $1/5/10/20, 700 STACKER EC9703-XX SMILEY BILL ACCEPTOR, 300 STACKER... -
Page 41: Connection Diagrams
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Connection Diagrams USB UPDATE CONNECTION WIRELESS DEVICE AND CREDIT CARD READER HARD DRIVE (SATA 2) POWER ON HARNESS AUDIO OUT TOP VIEW OF MOTHERBOARD ETHERNET POWER TOUCHSCREEN HDMI BOARD CONTROLLER TO LCD CONNECTOR SIDE VIEW OF MOTHERBOARD FIGURE 39 –... - Page 42 COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Connection Diagrams JP212 MECHANICAL BILL LIGHTSHOW MECH ACCEPTOR ELECTRONIC MECH JP211 LIGHTSHOW AUDIO OUT TO SPEAKERS POWER AUDIO IN FROM METER 1 MOTHERBOARD TO USB PORT ON MOTHERBOARD POWER FROM POWER SUPPLY SETUP POWER ON FIGURE 40 –...
-
Page 43: Video Machine Limited Warranty
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Video Machine Limited Warranty AMI Entertainment Network, Inc. warrants this video machine to be free from defects in material and workmanship for a period of three years from the date of purchase. The warranty covers all electrical components (except fuses and light bulbs). -
Page 44: Software License Agreements
COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. AMI Entertainment Network, Inc. Software License Agreement AMI Entertainment Network, Inc. (“Licensor”) is willing to license the enclosed software to you only if you accept all of the terms in this license agreement (“Agreement”). - Page 45 16. If you have any questions concerning this Agreement or wish to contact Licensor for any reason, please write: AMI Entertainment Network, Inc., 155 Rittenhouse Circle, Bristol, PA 19007, USA. PM0802-01 Rev A...
- Page 46 COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. Contrat de licence de logiciel de AMI Entertainment Network, Inc. AMI Entertainment Network, Inc. (ci-après le “Concédant”) est disposé à vous accorder la licence d’utilisation du logiciel ci-inclus, à condition que vous vous engagiez à respecter tous les termes, clauses et conditions du présent contrat de licence (Contrat).
- Page 47 également que tous litiges ou revendications relatives seront réglés par voie d’arbitrage par un tribunal de l’état de New York, aux Etats-Unis. 15. AMI Entertainment Network, Inc. se réserve le droit de transférer le présent Contrat à un tiers ainsi que ses droits et obligations ci-après.
- Page 48 COPYRIGHT © 2011 AMI ENTERTAINMENT NETWORK, INC. AMI Entertainment Network, Inc. Softwarelizenzabkommen AMI Entertainment Network, Inc. („Lizenzgeber”) ist nur dann bereit Ihnen eine Lizenz für die beiliegende Software zu erteilen, wenn Sie alle Bestimmungen dieses Lizenzabkommens (“Abkommen”) akzeptieren. Eigentumsvorbehalt der Software Das beiliegende Megatouch®-Produkt, welches das Megatouch Softwareprogramm...
- Page 49 Gerichten von New York im Staat New York liegen hinsichtlich aller Streitigkeiten, die diesen Vertrag betreffen, oder die durch Leistung oder Missbrauch der besagten Software entstehen. 15. AMI Entertainment Network, Inc. kann nach eigenem Ermessen dieses Abkommen oder jedes der darin enthaltenen Rechte und Pfl ichten an Dritte abtreten.
- Page 50 NOTES: ____________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ____________________________________________________________ ____________________________________________________________ ___________________________________________________________ ___________________________________________________________ ____________________________________________________________ ___________________________________________________________ __________________________________________________________ ___________________________________________________________ ___________________________________________________________ __________________________________________________________ __________________________________________________________...
- Page 52 à respecter les termes et conditions du contrat de licence d’utilisation du logiciel de AMI. Bitte beiliegendes Lizenzabkommen durchlesen. Das AMI Software Lizenzabkommen tritt in Kraft, sobald dieses Spiel verwendet wird. ML-1 INSTALLATION AND OWNER’S MANUAL PM0802-01 Rev A...
