SPT Dual Charge Port
By Superior Panel Technology
This manual provides information intended for use by persons who, in accordance with current
regulatory requirements, are qualified to install this equipment. If further information is required,
please contact:
INSTALLATION MANUAL AND
OPERATING INSTRUCTIONS
SPTUSBSCB and SPTUSBSCC

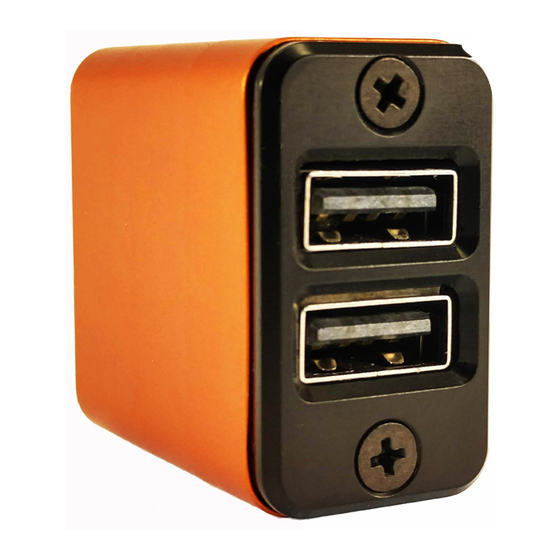

Dual USB Charging Port
FOREWORD
Superior Panel Technology
PO Box 1562 Chesterfield, VA 23832
Phone: 562-776-9494
© 2019 Superior Panel Technology
Advertisement
Table of Contents
Related Manuals for SPT SPTUSBSCB
Summary of Contents for SPT SPTUSBSCB

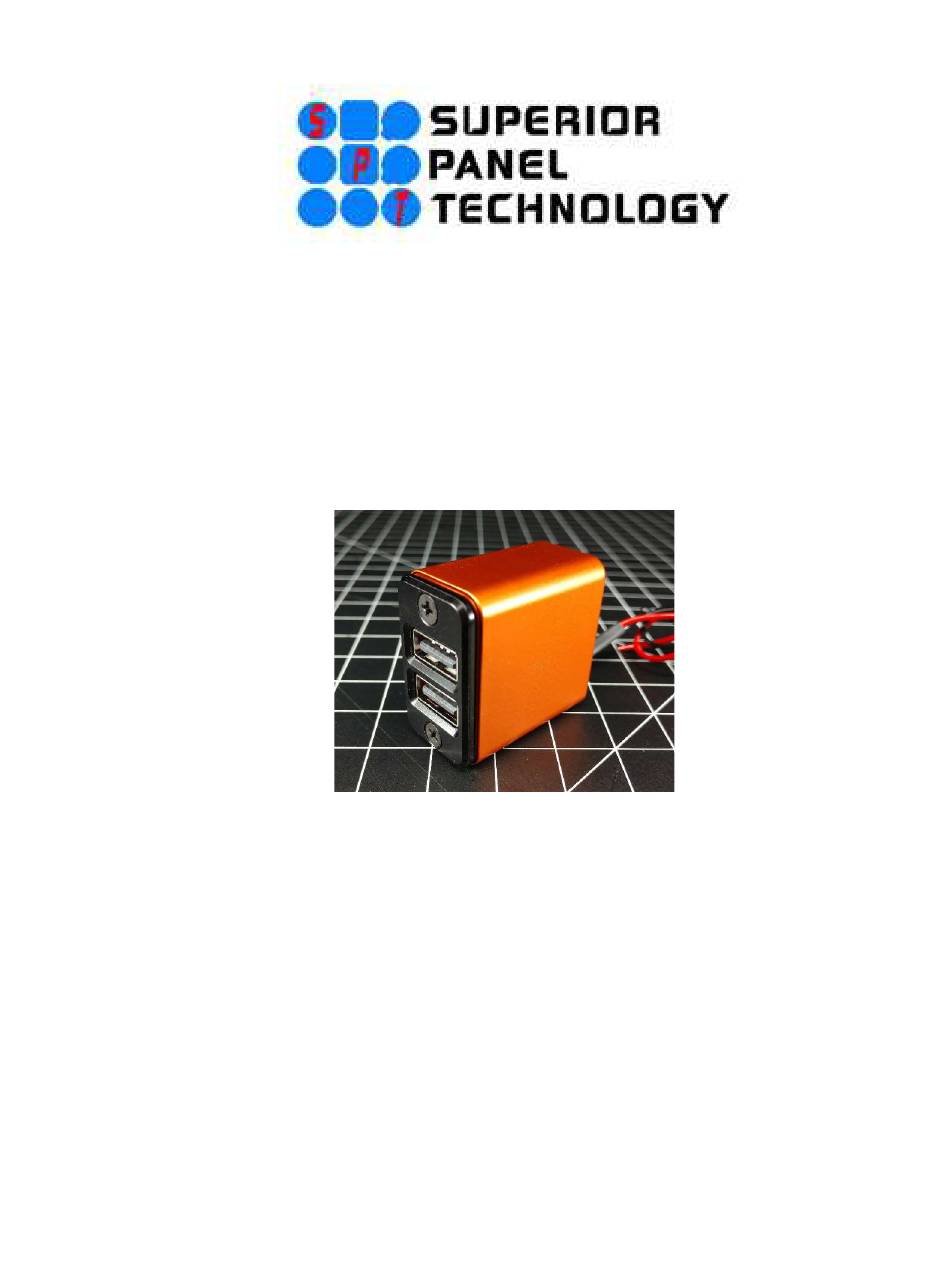

- Page 1 INSTALLATION MANUAL AND OPERATING INSTRUCTIONS SPTUSBSCB and SPTUSBSCC Dual USB Charging Port SPT Dual Charge Port By Superior Panel Technology FOREWORD This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment. If further information is required,...
- Page 2 REVISION HISTORY Rev. Date Approved Detail 06/25/19 Initial release. TABLE OF CONTENTS SECTION 1 GENERAL DESCRIPTION INTRODUCTION TECHNICAL SPECIFICATIONS 1.2.1 ELECTRICAL ATTRIBUTES 1.2.2 PHYSICAL ATTRIBUTES SECTION 2 PRE-INSTALLATION CONSIDERATIONS COOLING EQUIPMENT LOCATION ROUTING OF CABLES SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION UNPACKING AND INSPECTING CABLE HARNESS 3.3.1...
- Page 3 SECTION 1: GENERAL DESCRIPTION INTRODUCTION Both SPTUSBSCB and SPTUSBSCC units here on out will be referred to as the “SPTUSBSC”! They are the same exact unit with the exception of the color anodizing of the front face plate. The SPTUSBSC Dual USB Charging Port is an accessory that converts 14-28 volts of DC electrical input from the aircraft to standard 5V power to charge any electronic product that charges using a USB connector.
- Page 4 SECTION 2: PRE-INSTALLATION CONSIDERATIONS COOLING No external cooling is required. The unit will become warm when in use. This is normal and within operational parameters. No special mounting considerations are required; however, mounting to a metal surface can help dissipate any heat generated and extend the life of the product. EQUIPMENT LOCATION The SPTUSBSC Dual USB Charging Port can be mounted in any orientation and can be mounted in the cockpit or cabin.
- Page 5 SECTION 3: INSTALLATION PROCEDURES GENERAL INFORMATION This section contains interconnect diagrams, mounting dimensions and other information pertaining to the installation of the SPTUSBSC Dual USB Charging Port. After installation of cabling and before installation of the equipment, ensure that power and ground are applied to the proper wire. UNPACKING AND INSPECTING EQUIPMENT When unpacking this equipment, make a visual inspection for evidence of any damage that may have occurred during shipment.
- Page 6 3.3.2 WIRE ASSIGNMENT INFORMATION INPUT POWER: Red wire – Positive DC input +14 to +28 VDC power Black wire – Negative DC input / ground 3.3.3 HARNESS VERIFICATION WARNING: Failure to install aircraft power and ground wires in the proper wiring configuration will permanently damage the unit.
- Page 7 SECTION 4: OPERATION ELECTRICAL PERFORMANCE The SPTUSBSC Series Dual USB Charging Port converts an aircraft (DC) input voltage within the range specified to a 5V (DC) output. This output power is applied to each of the USB ports as an independent circuit.
