Riverstone V2 Manual The information contained in this manual is a general overview of the Firefly system and is subject to change at any time. Table of Contents Lyra Screen Navigation Home Electrical Electrical/AGS Lights 1013 Elroy Drive Middlebury, Indiana 46540...
Lyra Screen Navigation Tap any icon from the navigation bar to select the desired page. The currently selected page will always be listed in the top corner of the screen.

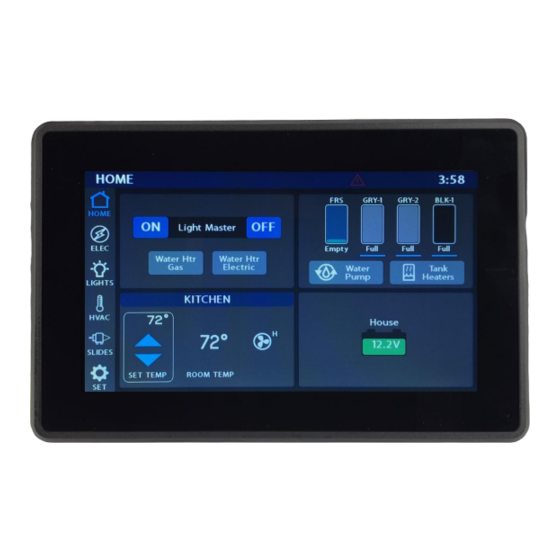

Home The Light Master controls all interior lights at once. When Light Master Off is pressed, it will remember which lights were on. Then, when Light Master On is pressed, it will only turn on the lights that are in memory.
Page 5
Fluid Tank Readings (TruTank): • Displays in 5 percent increments. • Below 10% will read “Empty” and the tank level will show Empty. • 90% and above will read “FULL.” and the tank shows accurate level. Individual tank graphics represent the percentage filled for holding tanks.
Page 6
Battery Level Indicator - This graphic will Generator Controls indicate the house battery voltage. It will Gen Start – Press and Hold Start for at least 1 display Green while above 12V and Red second to start the generator. while below 12V. Gen Stop –...
Electrical This screen will summarize the complete electrical system (DC, AC, and Generator). This system uses an AC Power Monitor Module to monitor Voltage and Amperage for the purposes of EMS (Energy Management System). EMS will ensure that power is available before allowing certain systems to run.
Page 8
Electrical/Auto Gen Start (AGS) Tap to Enable/Disable AGS. A Warning screen will require action to enable. Trigger Options – Automatically start the generator using specified voltage settings (Low Volts) or when A/C or Heat Pump start (HVAC). Select one or both triggers.
Lights This screen will control the lighting for the entire coach, including the exterior. Tap any button to turn the desired light On/Off. Lights with up/down arrows are dimmable. Press and hold these buttons to ramp the brightness up or down.
Climate Control Current zone temperature/mode/Fan speed. Use the Arrows to select your desired Set Temp. Cool – Tap to operate the air conditioning. The A/C will run until the current temp reaches your desired temp and then shut off. Heat Pump – Tap to operate the Heat Pump. The Heat Pump will run until the current temp reaches your desired temp and then shut off.
Slides/Awnings Press and Hold the EXT or RET buttons to extend or retract slides or awnings. Note: The Extend buttons will be turned off and locked while the truck plug is plugged in.
Settings Tap to enter the Vegatouch Mira connection screen. Tap to enter the Network Diagnostics page. Navigate to the Switch Panel Info page. Tap the temperature units display to switch between Fahrenheit and Celsius. Floorplan display. Tap the buttons to adjust screen brightness. When Auto Dimming is enabled, the screen will enter sleep mode after 60 seconds of inactivity.
Settings/Mobile App Vegatouch Mira is a wireless control module that easily connects to any Android or iOS device to give total control to many electrical, electronic and mechanical systems in your coach. Pair any device with the coach’s built-in interface to monitor and control many coach components. 1 7 6 4 0 1...
Settings/Network Diagnostics The fault trianlge will display anytime the system is experiencing a fault. Tapping the triangle will bring user to this screen for more fault information. Devices/Faults: This screen will show the status of the Lyra screen, the G12 Panel and the Aircons. It will also display any current faults the system is experiencing.
Page 15
G12: Select a channel tab to see the status of each G12 output. Active Output AirCons: The Aircons tab will display the operational status of each Aircon. Aircon Offline...
Settings/Switch Panel Info The color-coded Wireless Graphic and Signal Strength Value will identify the status of a wireless switch panel. • Green – Over 100 (Strong) • Yellow – 85-100 (Medium) • Red – Less than 85 (Weak) Red Wireless Graphic with a Zero reading – The switch is currently disconnected from the screen. It is likely that the battery inside your switch panel needs replaced.
Wireless Switch Pairing Red switch indicator with a zero reading – The switch is currently disconnected from the screen. It is likely that the battery inside your switch panel needs replaced. The wireless switch panel in your coach will illuminate a green LED whenever a button is pressed. If the LED on your switch panel does not illuminate when you press a button on your switch, you will need to replace the 2032 coin cell battery.
Floorplan Selection and Options Press and hold the floorplan box for 5 seconds to enter the Floorplan/Options selection screen. From here, you’ll be able to select the correct floorplan and any options that are specific to the coach.
Vegatouch Mira Module Notice: Make sure that Bluetooth is turned ON in your smart device settings before proceeding. Locate the Login Information: The login information can be found by clicking on the Mobile App button on the settings page of the touchscreen or from 1 7 6 4 0 1 the Mira module’s label.
Page 20
Notice: iOS Setup Tips Turn on Bluetooth to allow Vegatouch Mira to connect to Accessories. If you do not have Bluetooth turned ON in your iOS settings you will see this screen. Do not click OK, you must click SETTINGS. Your Bluetooth Settings page will now appear and you should turn Bluetooth ON.
Page 21
App Settings: Access the App Settings page by tapping the triangle (at the bottom of the screen) to expose the Settings button. Tap the gear to visit the settings page. Tap the Temperature Units selection to choose between Fahrenheit and Celsius. System Information and Mira Name.
Page 22
If instructed by Firefly, tap Enable Remote Help for advanced technical support. Once enabled, provide the Session ID to allow Firefly to remotely connect to your Mira app (internet connection required). To disable Remote Help, simply tap the Session ID number from the Home page of your Mira app.
SSP17 Switch Panels Your coach uses an SSP17 switch panel to control lighting and other functions. Lights that are dimmable will have Up/Down arrows next to the icon. Press and hold these buttons to ramp the brightness up and down. Each time that a button is pressed, the Operational LED will illuminate green to indicate that the command has been sent to the touchscreen.
G12 DC Panel Your G12 control panel is the power distribution center for the coach. This panel receives the signals sent from your switch panels and performs the actions that have been requested by activating and deactivating the required circuits. Every circuit controlled by the G12 is numbered and listed on a black label (load list) which is usually mounted next to the G12 panel.
Networking Your distribution panel and touchscreen are connected via your coach’s RV-C network. Each component will have a NET LED that is used to show network status. If a NET LED is displaying anything other than solid green and some of the panel’s functions are not working, please see the next page.
Network Status Indicators Every component of the Firefly system uses an LED to communicate network status. Use the key below to determine the network status of your hardware. Panel Network Status Indicator – Applies to any device with a network indicator: Fast flashing Green Light (4 times/sec) –...
Mira NET LED Status Key The NET LED on your Mira module can change color in different situations. Use the following key to determine the operational status of your module. Device has no power or has completely failed Device is attempting to make initial connection to Fast flashing green (4 times/sec) the CAN network and good files Device is operating correctly and has seen a CAN...
Page 29
Network Wiring Diagram Example Contact Firefly Integrations for current system diagrams. Email: Support@Fireflyint.com Phone: 574-825-4600...
