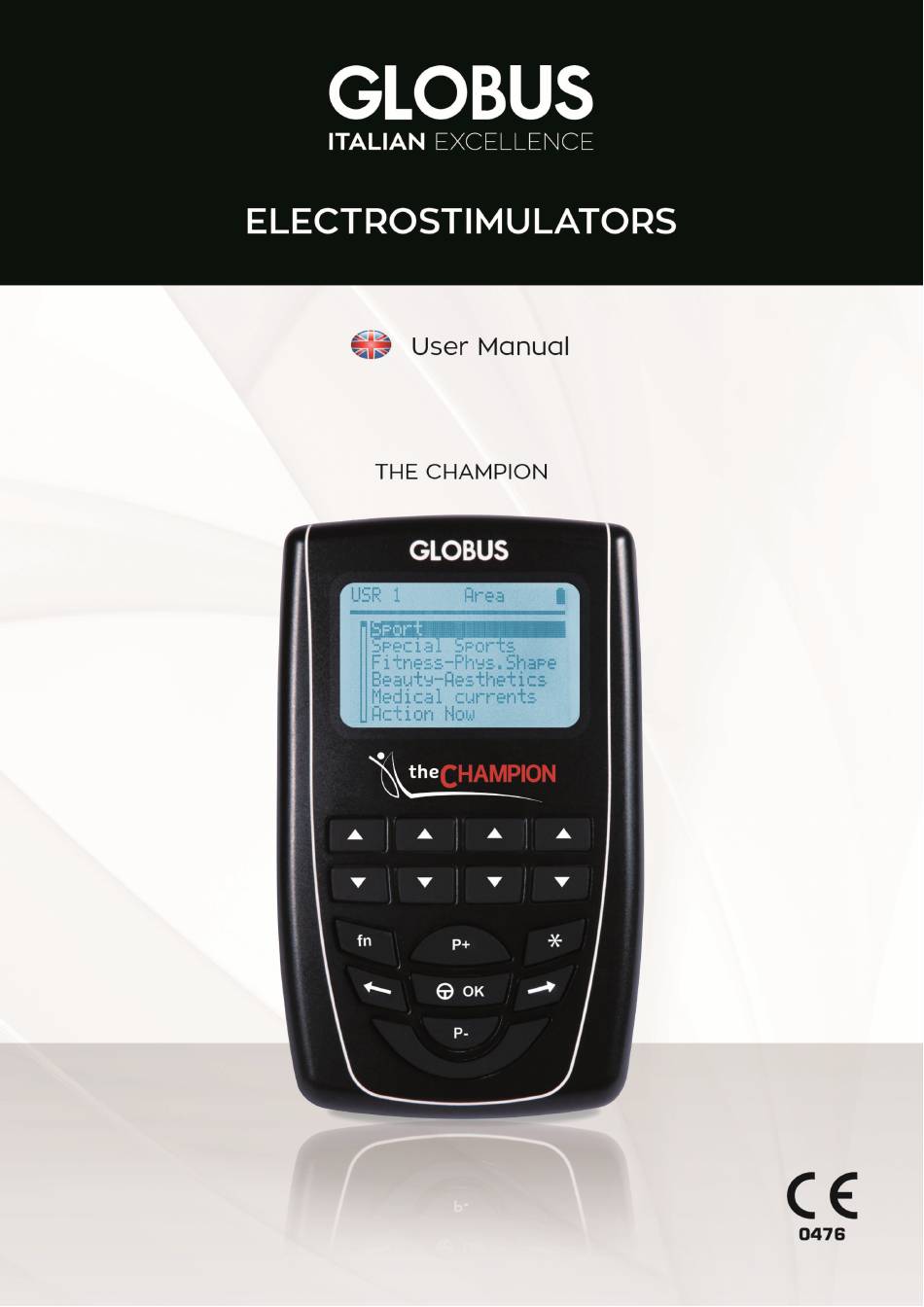

Globus Champion GL4 User Manual

Electro stimulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Globus Champion GL4

Summary of Contents for Globus Champion GL4

  • Page 2 Rev. 1 del 24.10.2017...
  • Page 3 DEAR CUSTOMER THANK YOU FOR CHOOSING A GLOBUS PRODUCT. WE REMAIN AT YOUR ENTIRE DISPOSAL FOR ANY ASSISTENCE OR ADVICE YOU MAY NEED The Champion The electrostimulators GL4 (The Champion) are manufactured and distributed DOMINO s.r.l. via Vittorio Veneto 52 31013 - Codognè...

  • Page 4: Table Of Contents

    Table of contents TECHNICAL FEATURES ............................. 6 Device ................................6 Use conditions ..............................6 Technical features of the currents......................6 EQUIPMENT ............................8 INTENDED USE ............................9 CONNECTIONS ........................... 10 How to connect the cables ........................10 Electrode application ..........................10 Battery: how to charge the batteries ......................
  • Page 5 INSTRUCTIONS FOR USE ..........................22 “Program List” menu............................. 22 “Last 10” menu............................... 24 “Favorites” menu............................25 “Treatments” menu............................26 “Programming” menu..........................26 ACTION PRINCIPLES............................30 Muscular electrostimulation ........................30 Tens................................ 33  Microcurrents............................34  Ionophoresis ............................34  PROGRAM LIST..............................35 WARRANTY ..............................

  • Page 6: Technical Features

    TECHNICAL FEATURES Device Size: 160x99x35.4 mm Weight: 404 g Case: in Food Grade ABS Protection level: IP 22 Storage and transportation temperature: from -10°C to 45°C Max. relative humidity: 30% - 75% The values indicate the limits allowed if the product or its accessories are not in the original package.
  • Page 7 Ionophoresis: Channels available: Channel 1 Constant current: Min. Intensity: 0 mA/1000 Ohm Max. Intensity: 10 mA/1000 Ohm step 0.1 mA/1000 Ohm Min. time: 1 minute Max. time: 99 minutes Charger Brand: model: DKT-088-0200-EU Input: 100-240V~ 50-60Hz 0, 2A Output: 8,8 Vd.c. 0.2A Polarity: Battery Battery pack:...

  • Page 8: Equipment

    EQUIPMENT The electrostimulator is supplied complete of cables and electrodes to use: therefore, while opening the package, it is necessary to check that the basic equipment is complete. If some elements should be missing, contact immediately the authorized retailer where you purchased the product. Control carefully the integrity of the device and its electrodes.

  • Page 9: Intended Use

    Accessories not included (available on charge) - Find Motor point pen - Kit of 8 elastic bands for legs and thighs - Kit of 4 elastic bands for thighs - Electrodes for ionophoresis - Face electrodes - Kit Y cables - Fast band - Fast pad - Anal and vaginal probes...

  • Page 10: Connections

    CONNECTIONS Cable connection outlets and power supply Attention: If the package, the cable or the connector of the charger show signs of wear or damage, replace it instantly. How to connect the cables To connect the cables to the device, plug them in the intended inlets in the upper part of the unit (see picture).

  • Page 11: Battery: How To Charge The Batteries

    Battery: how to charge the batteries The device is supplied with a set of rechargeable nickel-metal hydrate batteries (7.2V, 1.5Ah), which have high performance without storage effect. Recharge the batteries when the battery indicator on the display indicates ¼. To charge the batteries, turn off the electrostimulator and disconnect the electrodes, then connect the elctrostimulator to the charger provided by inserting the plug in the appropriate inlet (see picture above).

  • Page 12: Labelling And Symbols

    LABELLING AND SYMBOLS It refers to the manufacturer Warning This symbol on your device indicates that it complies with the directives on medical devices (93/42/CEE 47/2007CEE). The number of the notified unit is 0476. It indicates that this is a II class device. It indicates that this device has type BF parts.

  • Page 13: Device

    It refers to the humidity of the storage and transport environment where the device and its accessories are used. It indicates the output power of the device Output Power Input: it indicates the value of the mains voltage for the Input power supply unit Output:...
  • Page 14 Electrodes Indicates the dimensions of the product Indicates the quantity of electrodes contained in the package Indicates the product code It refers to product certifications and indicates that it complies with the Directive 2001/95/CE updated as 2014/357/UE. Indicates the storage temperature of the electrodes Clean and degrease the skin.

  • Page 15: Panel And Keyboard

    PANEL AND KEYBOARD Increase/Decrease intensity button button Function button P+ button Left/Back button Right/User button P- button ON/OFF/OK button NOTE: When the 3” message appears, it means that pressing the button for 3 seconds the function is activated. ON/OFF/OK Button To confirm the selection.

  • Page 16: Display And Interface

    Intensity button To increase/decrease the stimulation intensity of the corresponding channel. Display and interface Program name Time of the working phase Time indicators and of the rest phase Battery indicator Type of currents and indicator of the phase number and of the phase in progress Stimulation...

  • Page 17: Warnings And Contraindications

    WARNINGS AND CONTRAINDICATIONS Mandatory behavior For safety reasons, the device must be used in the prescribed manner and within the limits of use explained in this manual. The manufacturer declines any responsibility due to a different use from what it is indicated in this manual.

  • Page 18: Warnings During The Use

    While using the electrostimulator some warnings should be followed: - In case of damaged cables, they must be replaced with original parts and no longer used. - Use only Globus branded electrodes. - Pay particular attention when the current density for every electrode is above 2mA/cm2 (effective value).

  • Page 19: Side Effects

    - The treatment is a personalized medical prescription: do not borrow the stimulator to other persons. Side effects Isolated incidents of skin irritation may occur in subjects with high epidermal sensitiveness. In case of an allergic reaction to the electrode gel, suspend the treatment and contact a specialist.

  • Page 20: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Device - In case of damaged case, this should be replaced and no longer used. - In case of real or alleged malfunction, do not tamper with the device or try to repair it yourself. - Do not intervene on the device and do not open it. Only specialized and authorized centers can repair it.

  • Page 21: Accessories

    Furthermore, it is recommended to replace the battery pack after 3 months in which the device has not been used. After that period, batteries generally lose their ability to charge making the recharge dangerous. Accessories Use and storage of the electrodes and the cables. In case of wear of cables or electrodes, they must be replaced and no longer used.

  • Page 22: Instructions For Use

    INSTRUCTIONS FOR USE For a correct use of the device, the user should proceed as follows: - Connect the cables to the outlets on the unit. - Connect the electrodes to the connectors at the end of the cables. - Place the electrodes on the skin. Turning on Turn on the electrostimulator by pressing the ON/OFF/OK button for 3 seconds until hearing a sound alarm.
  • Page 23 Program selection Area selection: With the P+ and P- buttons of the keyboard, move the cursor on the desired area. Press OK to confirm. Press the left (Back) button to return to the previous screen. Program selection. Body part selection (when available) How to start a program Once you have selected a program, the following entries will appear: Start;...

  • Page 24: Last 10" Menu

    Visualization during a program execution While a treatment is executing, the display shows the program name (top), the indicator of the phase number and of the phase in progess, the remaining time of the phase in progress and the type of the wave used (EMS, TEN, MICROC…) For programs with intermittent stimulation, the working and the rest phase are graphically represented together with the time countdown.

  • Page 25: Favorites" Menu

    Automatic function (AUTO STIM) Available only for EMS and TENS currents The AUTO STIM function enables the user to execute a program automatically, i.e. without having to regulate the intensity. Intensity values are automatically set to the levels used during the last execution of the same program. The AUTO STIM function can be used only for programs listed among the "Last 10"...

  • Page 26: Treatments" Menu

    “Treatments” menu The “Treatments” menu (Stim lock) enables the user to lock the device in order to permit only the use of the programs that have been saved with the special function “Save in...” in the screen previous to the execution of the program. This function is especially thought for the rent of the unit to inexpert users and/or to patients that have to carry out only some special programs that have been chosen by the specialist.
  • Page 27 STEP 3. After setting the phase number of which the program is composed, different screens will appear where it is possible to select the desired parameters. Use P+ and P- to carry out the selection. The procedure executed until now is the same for every type of program you wish to create.
  • Page 28 NOTE: During the Mode 2+2 the following screen will appear: ½ Firming ¾ Toning massage SET INTENSITY The program on the left works on channels 1 and 2, while the program on the right works on channels 3 and 4. User Selection It permits to use the special menus ("Last 10", "Favorites") in a personalized manner.
  • Page 29 “Contrast” function  It permits to modify with the P+ and P- buttons the contrast level in the display. “Auto shut off time” function  It permits to set with the P+ and P- buttons, a period of time (in minutes) after which the device, if not used, automatically turns off.

  • Page 30: Action Principles

    ACTION PRINCIPLES Muscular electrostimulation Electrostimulation is a technique that, by means of electric pulses that act on the muscle's motor points (motoneuron), causes muscular contraction responses similar to voluntary contractions. Most of human body muscles belong to the striated or voluntary muscle category, with approximately 200 muscles on each side of the body (about 400 in all).
  • Page 31 the close relationship between the motoneuron (tonic or phasic) and the functional characteristics of the fibers it innervates and they have shown as a specific motor activity (particularly sports) can bring about a functional adaptation of fibers and a change in their metabolic characteristics. Motor unit type Contraction type Contraction frequency...
  • Page 32 From 10 mA to 20 mA Moderate Intermediate From 20 mA to 30 mA Above 30 mA Elevated At the maximum level of tolerance, but below the pain Maximum threshold In the descriptions of the treatments, the best levels of intensities are recommended. NOTE: The recommended levels of current are only indicative.

  • Page 33: Tens

    Tens  Transcutaneous Electrical Nerve Stimulation (TENS) is a selective stimulation of the large fibers of the peripheral nerves favoring the closing of the gate entrance for the pain pulses and increasing the release of endorphinic substances, reducing in this way the pain intensity. Therefore, with TENS we want to treat the severe and chronic pain due to the main musculoskeletal pains.

  • Page 34: Microcurrents

    Microcurrents  Compared with conventional electrostimulation, which uses electrical current in the milliampere (mA) range, microcurrent electrostimulation uses currents whose intensity is included between 10 and 500 µA (microamperes,i.e. an ampere millionth). Numerous studies showed that the currents in microamperes are the ones that increase the APT synthesis.

  • Page 35: Program List

    PROGRAM LIST Sport Program List Capillarization Decontracting Warm-up Pre-competition warm-up Active recovery Maximum strength Endurance strength Explosive strength Reactivity Post-competition recovery Hypertrophy Aerobic endurance TOTAL 53 NOTE: some programs are divided according to body areas. CE0476 does not refer to non-medical treatments. Special Sports program List SOCCER VOLLEYBALL...
  • Page 36 Fitness-Physical Shape Program List Firming Bio-Pulse firming Sculpting Bio-Pulse sculpting Toning Mass Building Body sculpting Definition Jogging Anaerobic fitness Aerobic fitness Cramp prevention TOTAL 58 NOTE: some programs are divided according to body areas. CE0476 does not refer to non-medical treatments. Beauthy-Aestethics Program List Drainage Bio-pulse drainage...
  • Page 37 Medical currents – Microcurrents Program List The following programs are medical Epicondylitis Scapulohumeral periarthritis Muscle restoration Contusion Edema Skin ulcer Sciatica Lumbago Brachial neuralgia Acute pain Articular pain Stiff neck Whiplash Cervical spondylosis Shoulder sprain Carpal tunnnel Knee sprain Osteoarthritis Ankle sprain Achilles tendon inflamation Patellar tendon inflammation...
  • Page 38 connected or are of the wrong type, it will not be possible to start the program. Check the connections and the cables. - The Microcurrents programs have prefixed intensity levels, therefore it is not necessary to set them. When a Microcurrent program is activated, the electrostimulator automatically brings the intensity to the correct level.
  • Page 39 Medical currents-Rehabilitation Program List The following programs are medical Quadriceps atrophy Recovery after ACL surgery Shoulder subluxation Total 3 Because of the presence of clinical programs, this product is a medical device. Therefore it is certified by the KIWA CERMET ITALIA S.P.A. Body n°. 0476 according to 93/42/CEE directive for medical devices. The certification covers clinical applications.
  • Page 40 Medical currents – Ionophoresis Program list The following programs are medical Ionophoresis TOTAL 1 The home user can use the ionophoresis treatments only after consulting the specialist who will prescribe the medications to use and give the indications for the type of currents to use.
  • Page 41 Action Now Program list Action Now programs are normal EMS programs, with the only difference that each single action will start only after pressing * button. The Action Now programs are particularly useful to link and synchronize the electric stimulation with a voluntary action.
  • Page 42 In aesthetic field, the 3S programs allow to create a real sequential drainage: the sequential contraction of the different muscular groups produces a deep pressure wave in the musculature involved that causes the interstitial fluid drainage and it favors the return of the venous blood to the heart. OPERATING MODE: The operation of these programs is exactly the same as any other EMS programs, with the only difference that a delay in contraction start between the channels will...
  • Page 43 GENERAL NOTES ON ELECTRODE PLACEMENT The correct electrode positioning and the correct choice of their size are critical aspects for the electrostimulation to be effective. To choose the size of the electrodes and as for their positioning it is necessary to refer to the images at the end of this manual.
  • Page 44 ELECTRODE PLACEMENT Biceps brachii muscle Triceps brachii muscle Flexor carpi muscle Extensor carpi muscle Deltoid muscle Pectoral muscle Pectoral muscle Trapezius muscle Trapezius muscle Rev. 1 del 24.10.2017...
  • Page 45 ELECTRODE PLACEMENT Latissimus dorsi muscle Latissimus dorsi muscle Infraspinatus muscle Lumbar muscles Lumbar/Dorsal muscles Abdominals Abdominals Abdominals Rectus abdominis muscle Rev. 1 del 24.10.2017...
  • Page 46 ELECTRODE PLACEMENT Gluteus Gluteus Biceps femoris muscle Adductors Rectus femoris muscle Quadriceps Gastrocnemius muscle Gastrocnemius muscle Tibialis anterior muscle Rev. 1 del 24.10.2017...
  • Page 47 ELECTRODE PLACEMENT FOR TENS TREATMENTS Shoulder pain Elbow pain Cervical pain Lumbar pain Lumbar pain Sciatica Knee pain Knee pain Knee pain Rev. 1 del 24.10.2017...
  • Page 48 ELECTRODE PLACEMENT FOR MICROCURRENT TREATMENTS Shoulder pain Cervical pain Elbow pain Lumbar pain Sciatica Hip pain Muscle pain (the Knee pain Ankle pain electrodes should be placed on the painful area Rev. 1 del 24.10.2017...

  • Page 49: Warranty

    NOTE: Before returning the device for repairs, we recommend to read carefully the user instructions contained in the manual and to visit Globus website. In case you need to return your product for assistance, contact your dealer or contact Globus Service.
  • Page 50 Frequently Asked Questions What kind of electrodes should be used for electrostimulation? Use self-adhesive electrodes, which are practical and improve the quality of stimulation. If used with care, they will last for 25-30 applications. The electrodes should be replaced when they have no longer a good connection with the skin. Where should the electrodes be placed? In the back of this manual, there is a comprehensive electrode placement guide (it is not necessary to respect the polarities indicated).
  • Page 51 How many sessions can I weekly perform? For physical training, consult the technical guide that is available on the Globus website. For fitness and aesthetics programs, the number of sessions depends on the type of treatment: 3-4 sessions per week on alternate days are suggested for toning;...
  • Page 52 TABELLA 1 TABLE 1 GUIDA E DICHIARAZIONE DEL COSTRUTTORE – EMISSIONI ELETTROMAGNETICHE – PER TUTTI GLI APPARECCHI ED I SISTEMI GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC EMISSIONS – FOR ALL EQUIPMENT AND SYSTEMS Il dispositivo THE CHAMPION è previsto per funzionare nell’ambiente elettromagnetico sotto specificato.
  • Page 53 TABELLA 2 TABLE 2 GUIDA E DICHIARAZIONE DEL COSTRUTTORE – IMMUNITÀ ELETTROMAGNETICA – PER TUTTI GLI APPARECCHI ED I SISTEMI GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY – FOR ALL EQUIPMENT AND SYSTEMS Il THE CHAMPION è previsto per funzionare nell’ambiente elettromagnetico sotto specificato. Il cliente o l’utilizzatore del THE CHAMPION deve garantire che esso viene usato in tale ambiente.
  • Page 54 Buchi di tensione, <5% U <5% U La qualità della tensione di rete brevi interruzioni e dovrebbe essere quella di un (>95% buco in_dip (>95% buco in_dip variazioni di tensione tipico ambiente commerciale o in U in U sulle linee di ospedaliero.
  • Page 55 TABELLA 4 TABLE 4 GUIDA E DICHIARAZIONE DEL COSTRUTTORE – IMMUNITÀ ELETTROMAGNETICA – PER GLI APPARECCHI ED I SISTEMI CHE NON SONO DI SOSTENTAMENTO DI FUNZIONI VITALI GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY – FOR EQUIPMENT AND SYSTEMS THAT ARE NOT LIFE-SUPPORTING Il THE CHAMPION è...
  • Page 56    da 80 MHz a 800 MHz   RF condotta 3 Veff_Vrms   Conducted RF 80 MHz to 800 MHz IEC 61000-4-6 da 150 kHz a 80    da 800 MHz a 2,5 GHz ...
  • Page 57 frequenza Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey , should be less than the compliance level in each frequency range Si può verificare interferenza in prossimità di apparecchi contrassegnati dal seguente simbolo: Interference may occur in the vicinity of equipment marked with the following symbol: Note_s:...
  • Page 58 minore di [V ] V/m Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [V ] V/m. TABELLA 6 TABLE 6 DISTANZE DI SEPARAZIONE RACCOMANDATE TRA APPARECCHI DI RADIOCOMUNICAZIONE PORTATILI E MOBILI E THE CHAMPION PER APPARECCHI O SISTEMI CHE NON SONO DI SOSTENTAMENTO DELLE FUNZIONI VITALI RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND THE THE CHAMPION FOR EQUIPMENT AND...
  • Page 59 Rev. 1 del 24.10.2017...
  • Page 60 Rev. 1 del 24.10.2017...
