Summary of Contents for Leader MIX Portable

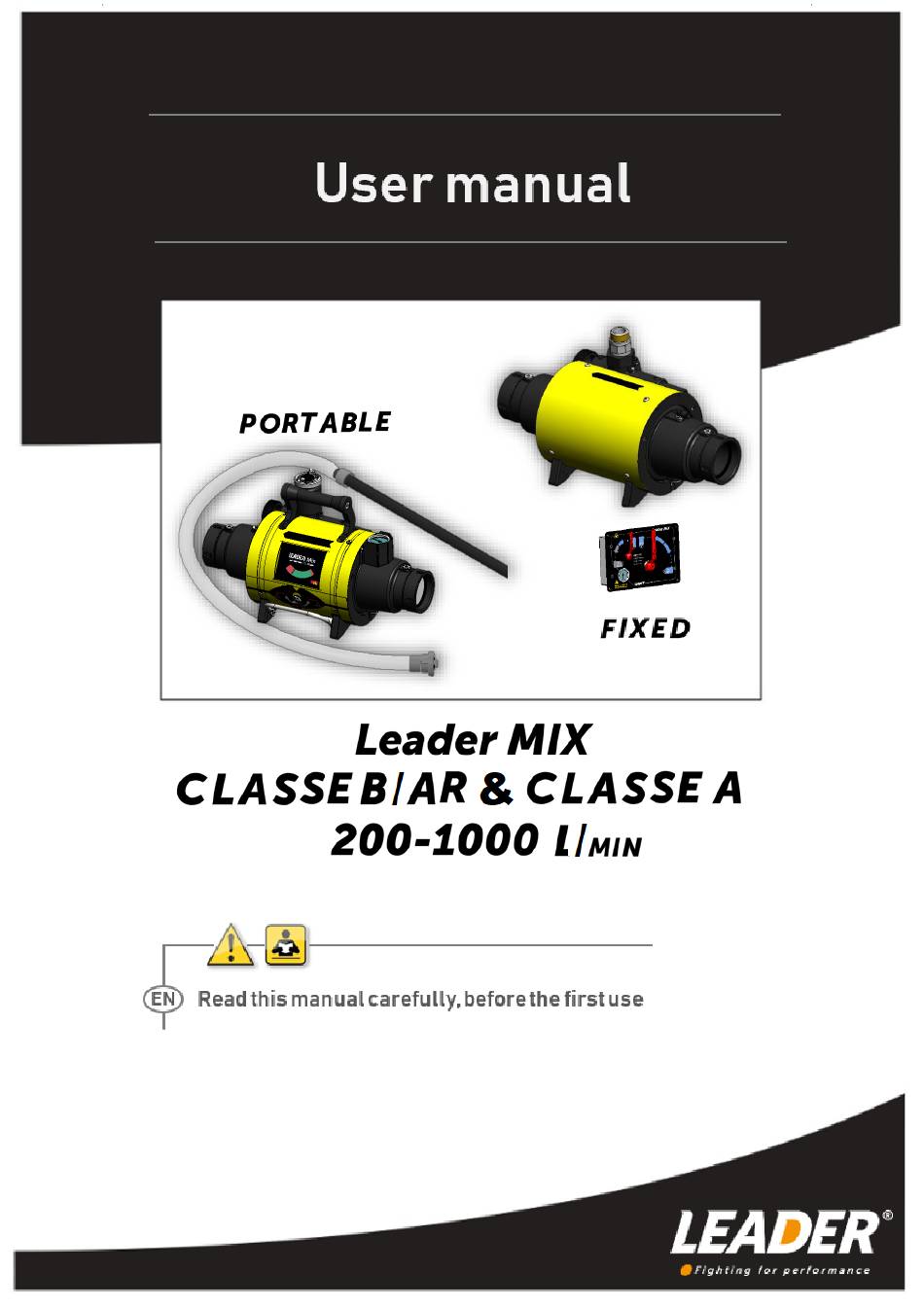

- Page 2 Reference product Reference Product Leader-MIX CLASSE B/AR & CLASSE A 200-1000 lpm 2.5’’ BSP F/F I40.90.110 Modèle Portable Leader-MIX CLASSE B/AR & CLASSE A 200-1000 lpm 2.5’’ BSP F/F I40.90.112 Modèle Fixe (Avec pupitre de commande à installer sur véhicule ou en installation fixe) Leader-MIX CLASSE B/AR &...
-
Page 3: Table Of Contents
1 INTRODUCTION 2 PRESENTATION 3 SAFETY INSTRUCTIONS 4 USAGE PRECAUTIONS 5 GENERAL FEATURES 6 COMMISSIONING INSTRUCTIONS 7 SETUP 7.1 Portable Model 7.2 Fixed Model 7.2.1 Body 7.2.2 Remote controle console 7.2.3 Typical example of a fixed installation 7.2.4 Use 8 MAINTENANCE OPERATIONS 8.1 Portable Model 8.2 Fixed Model 9 IDENTIFICATION... -
Page 4: Introduction

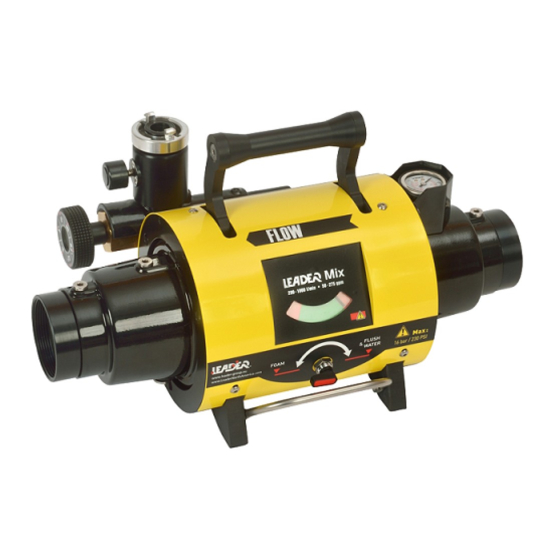

1 INTRODUCTION The Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) is a variable flow dosing system which can be used to inject foam concentrate into a pressurised water network. There is a remote console for the Fixed model. -
Page 5: Presentation
2 PRESENTATION The different actions are performed by moving the dials as follows: Injection selector: “Water“ or “Foam“ Injection selector Purge : “Flush“ or “Flow“ Dosing selector Purge button (Portable model only) Injection selector Turn Right/Left “Flush“ or “Flow“ Valve “Water“... -
Page 6: Safety Instructions
- Do not leave water inside the system if the temperature falls below 0°C (risk of freezing). 4 USAGE PRECAUTIONS Note: The Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) is a device used for injecting foam concentrate. Suction of any other product is strongly discouraged and invalidates the warranty if there are any problems. -
Page 7: General Features
5 GENERAL FEATURES Portable Model Fixed Model Remote console L (W) L (W) L (W) L (W) P (D) P (D) P (D) Weight: 14Kg +/-0.5Kg Weight: 1.5Kg +/-0.5Kg Weight: 12.5Kg +/-0.5Kg Weight: 3.5Kg +/-0.5Kg L: 250 Ø1’’ +/-5mm L: 486 H: 237 P: 274 +/-5mm L: 486 H: 220 P: 274 +/-5mm L: 300 H: 200 P: 119 +/-5mm W: 0.82 Ø1’’... -
Page 8: Commissioning Instructions
Ensure that each person responsible for the device/using this device has read the user instructions and safety guidelines. 7 SETUP 7.1 Portable Model 1) Place the Leader Mix CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) on the ground, ensuring that no stones, sand, debris or other objects are pushed inside. - Page 9 Minimum 5bars à 200 L /min (70psi to 50gpm), Maximum 16bars 1050 L /min (230psi to 280gpm). Suction indicator Pressure indicator 5) Connect the suction tube pipe to the Leader Mix CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) and place the pipe in the foam concentrate tank. Suction tube...
-
Page 10: Fixed Model
7.2 Fixed Model 7.2.1 Body The Leader Mix CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) will be mounted on the vehicle or fixed installation so the user is able to select the desired concentration on the dosing selector valve. - Page 11 Connection : ➢ Purge valves (responsibility of installer) - valves will need to be installed for “Female 1/4ˮ G” connections intended for rinsing and purging water input and output and foam concentrate rinsing, as well as for the “Male 1ˮ G” foam concentrate input. - Remove the water input/output caps using a hex wrench/6 mm (0.02ft) and foam concentrate rinsing using a hex wrench/5 mm (0.016ft) (fig 1), then mount the valves (fig 2) and ensure that they are sealed correctly.
-
Page 12: Remote Controle Console
Length to be determined by the installer. Connection: The length of hose will depend on the distance between Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) and control panel. To connect control panel to Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm), 8mm (0.026ft) 24 bars (350psi) pneumatic hose is recommended. -
Page 13: Typical Example Of A Fixed Installation
Pipe (Not supplied) Max height 1.5m (4.92ft) 8mm (0.026ft) pneumatic hose (not supplied) Purge Air comprimé Leader MIX Purge to the ground Remote controle console 7.2.4 Use 1) Select the desired dose by turning the dial to the desired percentage. Dosing selector... - Page 14 2) Open the foam concentrate input valve. Foam concentrate input valve (not supplied) 3) Use of the remote controle console (I) Injection mode + “Foam“ “Flow“ (II) Bypass mode + “Water“ “Flow“ (Stops injection and reduces pressure drops below 800 l / min (211.4gpm)) (III) “flush“...
-
Page 15: Maintenance Operations
8 MAINTENANCE OPERATIONS 8.1 Portable Model Always rinse and purge the device after use. 1) Remove the suction tube from the foam concentrate tank by holding the tube on the Leader MIX. Suction tube Foam concentrate 2) Position the injection selector to “FLUSH“ & “WATER“. -
Page 16: Fixed Model
4) Position the injection selector to “FOAM“. Selection on 5) Cut off the water supply and disconnect the Leader MIX from the water pipes. Drain any residual water inside the Leader MIX through the system inputs and outputs. Water input Water output 8.2 Fixed Model... -
Page 17: Identification
Keep the purge button held down when using (Portable Model) • Check that the network is pressurised. 11 SPARE PARTS To locate and identify the parts of your Leader MIX CLASS B / AR & CLASS A 200-1000 l / min (50-275 gpm), please contact us.. info@groupe-leader.fr... -
Page 18: Warranty
After reviewing the equipment: - If the defect is attributable to LEADER, it will repair it and assume the costs (excluding shipping and travelling fees), - If the defect is not attributable to LEADER, see the procedures laid down in the out-of-warranty Defect paragraph. - Page 20 Package leaflet code: Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min.ZN5.2.EN.0...
