Hella marine NaviLED Instruction Sheet

HOW TO.......
shroud from the light module.

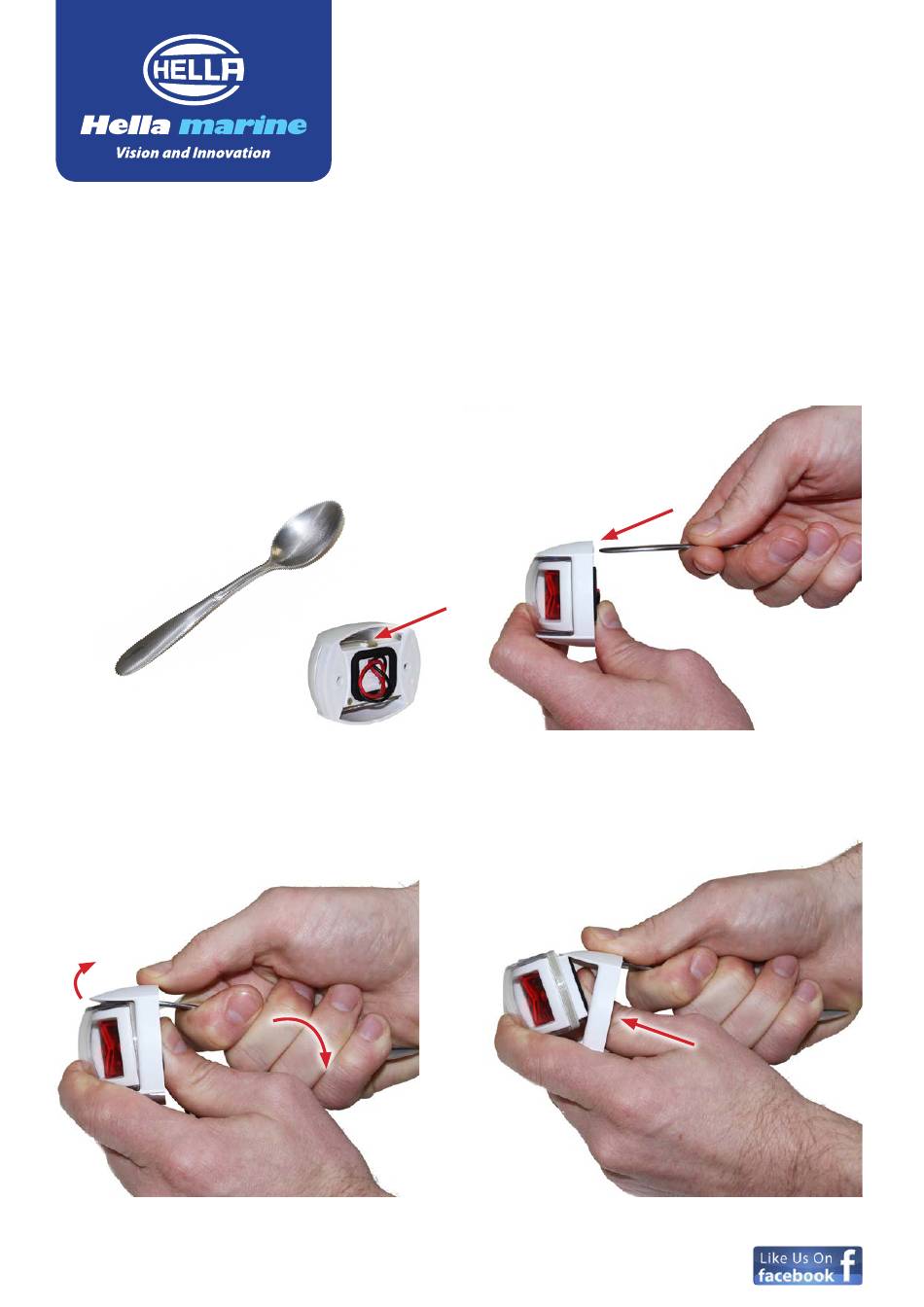

Step 1:
Find an object strong enough to use as
a lever, preferably with round edges so
in the unlikely event you should slip, the
object may not cut your skin.
We recommend a common tea spoon.
Step 3:
Use your top thumb to hold the shroud and
slowly lever the tool to raise the front top lip
of the shroud.
Raise lip
www.hellamarine.com
Separate a NaviLED® compact
Step 2:
Hold the lamp horizontally in one
hand. Using the other hand insert
the tool into the back of the lamp,
between the shroud and the light
module.
Insert here
Step 4:
While raising the top lip of the shroud press
the light module with your thumb. This will
push the light engine out and away from
the shroud.
Push
with thumb
