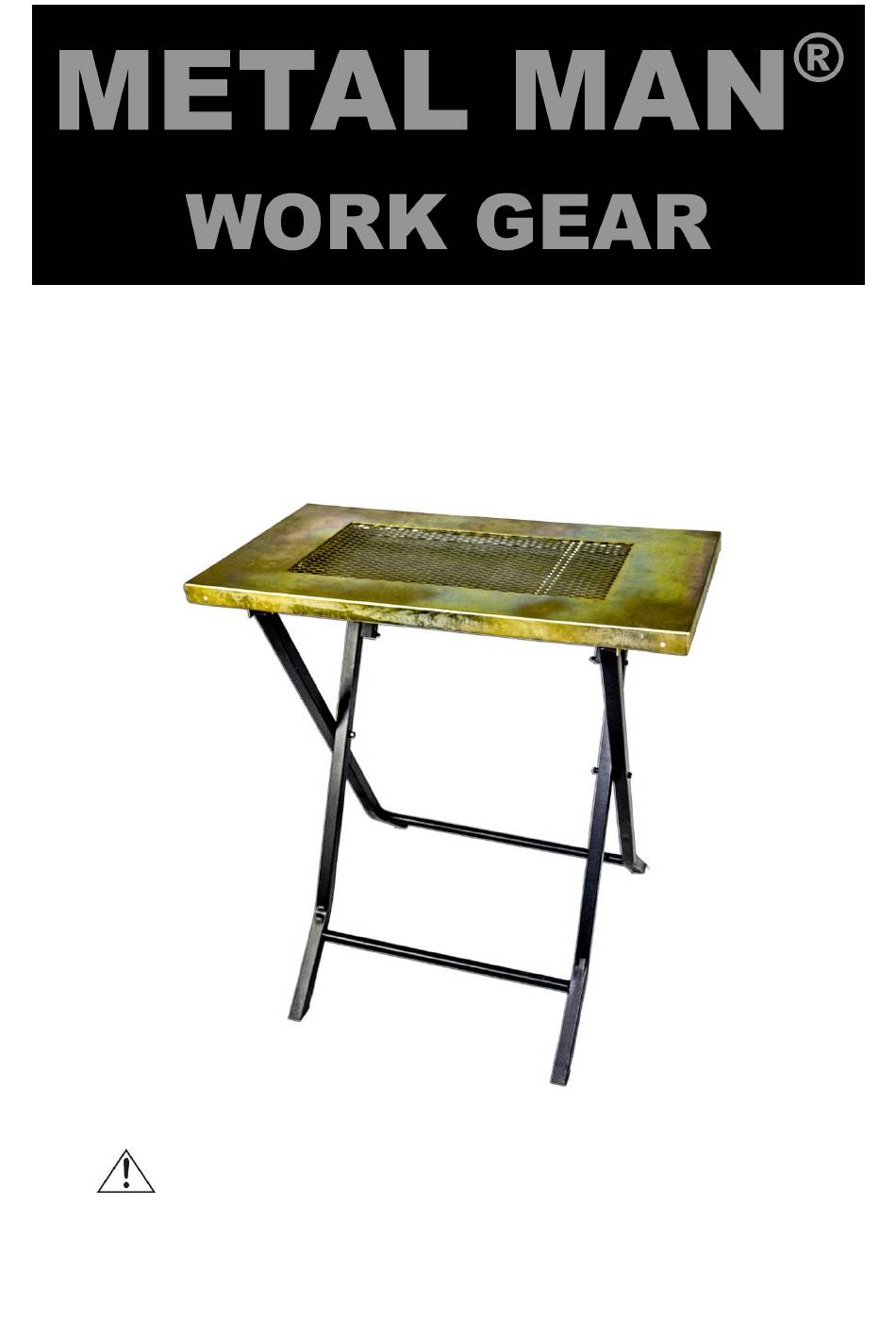

DELUXE FOLDING WELD TABLE
OWNER'S MANUAL
9/2018
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FWTD and is the answer not in the manual?

Questions and answers

Related Manuals for Metal Man FWTD

Summary of Contents for Metal Man FWTD

  • Page 1 DELUXE FOLDING WELD TABLE OWNER’S MANUAL 9/2018 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

  • Page 2: Warranty

    Limited to the warranty periods below, Metal Man Work Gear Co will repair or replace the item under warranty that fails due to defects in material and workmanship. Metal Man Work Gear must be notified within 30 days of the failure, so as to provide instructions on how to proceed with the repair of your welder and warranty claim processing.

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this Flux Core 125 until they have read this manual and have developed a thorough understanding of how the Flux Core 125 works.
  • Page 4 -Follow the instructions in this manual. -Keep welder in the off position when not in use. -Connect ground lead as close to the area being welded as possible to ensure a good ground. -Do not allow any body part to come in contact with the welding wire if you are in contact with the material being welded, ground or electrode from another welder.
  • Page 5 UV and IR Arc Rays The welding arc produces ultraviolet (UV) and infrared (IR) rays that can cause injury to your eyes and skin. Do not look at the welding arc without proper eye protection. -Always use a helmet that covers your full face from the neck to top of head and to the back of each ear.

  • Page 6: Specifications

    Electromagnetic Field -Electromagnetic fields can interfere with various electrical and electronic devices such as pacemakers. -Consult your doctor before using any electric arc welder or cutting device -Keep people with pacemakers away from your welding area when welding. -Do not wrap cable around your body while welding. -Wrap MIG gun and ground cable together whenever possible.

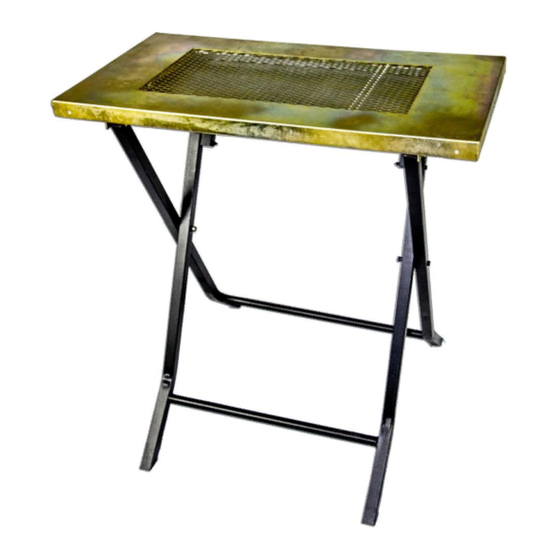

  • Page 7 DESCRIPTION The Metal Man Folding Weld Table provides a quick and easy work surface for welding projects. Designed to quickly and easily fold up, this weld table provides a flexible work surface and is easy to store. The work surface measures 36 inches wide and 20 inches deep. In the middle of the work surface is a heavy wire grate designed to allow debris to fall through to the removable collection tray below.
  • Page 8 ASSEMBLY Place the table work surface upside down on a stable surface. Take the longer of the two table legs and place on top of the table work surface to align with the wider set of pivot clips on the table work surface. Table leg ends should be pointing down.
  • Page 9 Align short table leg extension with the other set of pivot clips. Install the hardware through the hole in the pivot clip and the hole through the leg. Hand-tighten only, tighten only after table assembly is complete. Hex head bolt M6x45MM Thick Flat Washer 6 Lock Washer 6 Hex Head Lock Nut M6...
  • Page 10 Install the hardware through the mounting hole in the short table leg and the mounting hole through short table leg extension. Hand-tighten only, tighten only after table assembly is complete. Hex head bolt M8x75MM Nylon Flat Washer Lock Washer 8 Hex Head Lock Nut M8 Repeat for both sides.
  • Page 11 Install the hardware through the hole in both legs. Hand-tighten only, tighten only after table assembly is complete. Hex head bolt M8x75MM Nylon Flat Washer Lock Washer 8 Hex Head Lock Nut M8 Place the removable slag tray on a sturdy surface, with the flat side (bottom) up.
  • Page 12 Insert slag tray into the bottom of the table work surface. Go back through all hardware connections and securely tighten. Page of 14...

  • Page 13: Diagram & Parts List

    DIAGRAM & PARTS LIST Reference # Part# Description Qty. 105100167 TABLE WORK SURFACE 105100168 HEX HEAD BOLT M6 X 45MM 105100169 REMOVABLE SLAG DRAWER 105100031 HEX HEAD NUT M6 105100032 LOCK WASHER 6 105100033 FLAT WASHER 6 105100170 SLAG TRAY HANDLE 105100171 BOLT M6 X 12 MM 105100172...
  • Page 14 METAL MAN WORK GEAR COMPANY 1760 PROSPECT CT #120 APPLETON WI 54914 www.metalmangear.com Made in China Page of 14...
