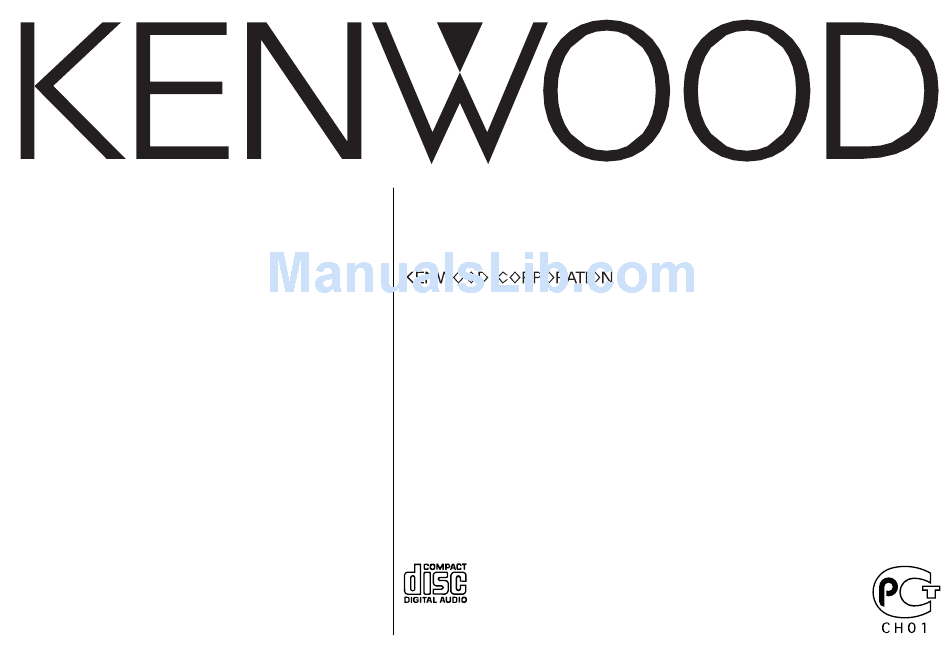

- Page 1 KDC-M6024G KDC-M6024 KDC-V6524 KDC-6024 KDC-5024 KDC-5024V KDC-507 KDC-5094R CD-RECEIVER INSTRUCTION MANUAL © B64-2519-00/01 (EF)
-
Page 2: Table Of Contents
Contents Safety precautions...3 About GSM Hands Free Unit ...5 About CDs...5 Notes on playing MP3 ...6 General features ...8 Power Selecting the Source Volume System Q Audio Control Speaker Setting Switching Display Auxiliary Input Display Setting Theft Deterrent Faceplate TEL Mute Non-fading Output Tuner features ...13 Tuning... -
Page 3: Safety Precautions
KENWOOD disc changers/ CD players released in 1998 or later can be connected to this unit. Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players. Note that any KENWOOD disc changers/ CD... - Page 4 Safety precautions NOTE • If you experience problems during installation, consult your Kenwood dealer. • If the unit does not seem to be working right, try pressing the reset button first. If that does not solve the problem, consult your Kenwood dealer.
-
Page 5: About Gsm Hands Free Unit
About GSM Hands Free Unit Function of the KDC-M6024G/M6024/V6524/6024 Refer to the instruction manual of GSM Hands Free Unit KCA-HF521 (optional accessory), when connected, for the operation method. The locations of the buttons to be pressed are shown below. SRC ¢ 4 MENU DISP About CDs... -
Page 6: Notes On Playing Mp3
Notes on playing MP3 This unit can play MP3(MPEG1, 2, 2.5 Audio Layer 3). Note, however, that the MP3 recording media and formats acceptable are limited. When writing MP3, pay attention to the following restrictions. Acceptable media The MP3 recording media acceptable to this unit are CD-ROM, CD-R, and CD-RW. - Page 7 MP3 playing order When selected for play, Folder Search, File Search, or for Folder Select, files and folders are accessed in the order in which they were written by the CD writer. Because of this, the order in which they are expected to be played may not match the order in which they are actually played.
-
Page 8: General Features
General features ¢ Release button AM/NF System Q/ KDC-M6024G/M6024/V6524/6024 KDC-5024/5024V/507/5094R Power Turning ON the Power Press the [SRC] button. When the power is ON, the <Security Code> (page 24) is displayed as "CODE ON" or "CODE OFF". Turning OFF the Power Press the [SRC] button for at least 1 second. -
Page 9: Volume
System Q You can recall the best sound setting preset for different types of music. Select the source to set Press the [SRC] button. Select the Sound type Press the [System Q] button. Each time the button is pressed the sound setting switches. Sound setting Display Flat... -
Page 10: Speaker Setting
General features Speaker Setting Fine-tuning so that the System Q value is optimal when setting the speaker type. Enter Standby Press the [SRC] button. Select the "ALL OFF" display. Enter Speaker Setting mode Press the [System Q] button. Select the Speaker type Press the [4] or [¢] button. -
Page 11: Auxiliary Input Display Setting
In MP3 source Information Display Song title & Artist name "TITLE" Album name & Artist name "ALBUM" Folder name "FOLDER NAME" File name "FILE NAME" Track number & Play time "P-Time" Disc name "DNPS" Clock In Auxiliary input source Information Auxiliary input name Clock If the Disc title, Track title, Song title &... -
Page 12: Theft Deterrent Faceplate
General features Theft Deterrent Faceplate The faceplate of the unit can be detached and taken with you, helping to deter theft. Removing the Faceplate Press the Release button. Drop open the faceplate. Drawing the faceplate to left side pull it to the front and remove it. -
Page 13: Non-Fading Output
Function of the KDC-M6024G/KDC-M6024/KDC-V6524/KDC-6024 Non-fading Output Turning the Non-fading output ON or OFF. Press the [NF] button for at least 1 second. Each time the button is pressed Non-fading output switches ON or OFF. When it’s ON, "NF ON" is displayed. Tuner features ¢... -
Page 14: Tuning
Tuner features Tuning Selecting the station. Select tuner source Press the [SRC] button. Select the "TUNER" display. Select the band Press the [FM] or [AM] button. Each time the [FM] button is pressed it switches between the FM1, FM2, and FM3 bands. KDC-5094R: Frequency range - FM1: 65.0 MHz —... -
Page 15: Preset Tuning
Preset Tuning Calling up the stations in the memory. Select the band Press the [FM] or [AM] button. Call up the station Press the desired [1] — [6] button. RDS features ¢ KDC-M6024G/M6024/V6524/6024 TI indicator PTY indicator KDC-5024/5024V/507/5094R TI indicator PTY indicator —... -
Page 16: Traffic Information
RDS features Traffic Information Switching to traffic information automatically when a traffic bulletin starts even when you aren't listening to the radio. Press the [TI] button. Each time the button is pressed the Traffic Information function turns ON or OFF. When it's ON, "TI"... -
Page 17: Pty (Program Type
Finance "Finance" Children's programs "Children" Social Affairs "Social" Religion "Religion" Phone In "Phone In" Travel "Travel" Leisure "Leisure" Jazz Music "Jazz" Country Music "Country" National Music "Nation M" Oldies Music "Oldies" Folk Music "Folk M" Documentary "Document" • Speech and Music include the Program type shown below. —... -
Page 18: Changing Language For Pty Function
RDS features Changing Language for PTY Function Selecting the Program Type display language. Enter PTY mode Refer to <PTY (Program Type)> (page 16). Enter Changing Language mode Press the [DISP] button. Select the language Press the [FM] or [AM] button. Each time the button is pressed the language switches as shown below. -
Page 19: Playing Cd & Mp3
Playing CD & MP3 When there is no disc inserted Drop open the faceplate Press the Release button. Insert a disc. Press the faceplate on the left side, and return it to its former position. • When the faceplate has been dropped open, it might interfere with the shift lever or something else. -
Page 20: Playing External Disc
CD/MP3/External disc control features Playing External Disc Playing discs set in the optional accessory disc player connected to this unit. Press the [SRC] button. Select the display for the disc player you want. Display examples: Display Disc player "CD" CD player "DISC CH"... -
Page 21: Scan Play
In MP3 source Repeat play Display File Repeat "File REP ON" Folder Repeat "FOLD REP ON" "Repeat OFF" Scan Play Playing the first part of each song on the disc or MP3 folder you are listening to and searching for the song you want to listen to. Start Scan Play Press the [SCAN] button. -
Page 22: Folder Select
CD/MP3/External disc control features Function of the KDC-M6024G/KDC-M6024 Folder Select (Function of MP3) Quickly selecting the folder you want to listen to. Enter Folder Select mode Press the [F.SEL] button. "F" is displayed. During Select mode the folder information is displayed as shown below. -
Page 23: Text/Title Scroll
• When operation stops for 10 seconds the name at that time is registered, and Name Set mode closes. • Media that you can attach names to - Internal CD player: 30 (KDC-M6024G/ M6024/ V6524/ 6024)/ 10 (KDC-5024/ 5024V /507/ 5094R) discs. - External CD changer/ player: Varies according to the CD changer/ player. -
Page 24: Security Code
Menu system Menu System Setting during operation beep sound etc. functions. The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation. Enter Menu mode Press the [MENU] button for at least 1 second. "MENU"... -
Page 25: Touch Sensor Tone
"APPROVED" is displayed. The unit can be used. If an incorrect code is input, "WAITING" is displayed, and the input prohibited time shown below is generated. After the input prohibited time lapses, "CODE" is displayed, and input can be done. Number of times Input prohibited time the incorrect code was input... -
Page 26: Selectable Illumination
Menu system Selectable Illumination Selecting the button illumination color as green or red. Display Setting "Button Red"/ "KEY RED" The illumination color is red. "Button Green"/ "KEY GRN" The illumination color is green. Switching Display Type Setting the Display type. Display Setting "Display C"/ "DISP C"... -
Page 27: Dimmer
Function of the KDC-M6024G/KDC-M6024/KDC-V6524/KDC-6024 Dimmer Dimming this unit's display automatically when the vehicle light switch is turned ON. Display Setting "Dimmer ON" The display dims. "Dimmer OFF" The display doesn't dim. Function of the KDC-M6024G/KDC-M6024/KDC-V6524/KDC-6024 Switching preout <In Standby mode> Switching the preout between the rear and non-fading. -
Page 28: Auto Memory Entry
Menu system Auto Memory Entry For the operation method refer to <Auto Memory Entry> (page 14). AF (Alternative Frequency) When poor reception is experienced, automatically switch to another frequency broadcasting the same program in the same RDS network with better reception. Display Setting "AF ON"... -
Page 29: Text Scroll
Text Scroll Setting the displayed text scroll. Display Setting "Scroll MANU"/ "SCL MANU" Doesn't scroll. "Scroll Auto"/ "SCL AUTO" Scrolls when the display changes. The text scrolled is shown below. • CD text • Folder name/ File name/ Song title/ Artist name/ Album name •... -
Page 30: Accessories
9. Press the reset button. 2CAUTION • If your car is not prepared for this special connection-system, ... Number of items consult your Kenwood dealer. • Only use antenna conversion adapters (ISO-JASO) when the antenna cord has an ISO plug..1 •... -
Page 31: Connecting Wires To Terminals
Connecting Wires to Terminals To Steering remote (KDC-5024/5024V/507 only) To External Display/ Steering remote (KDC-M6024G/M6024/V6524/6024 only) KENWOOD disc changer input Connector Function Guide Pin Numbers for Cable Colour Functions ISO Connectors External Power Connector A–4 Yellow Battery A–5 Blue/White Power Control A–6... -
Page 32: Connecting Wires To Terminals
Connecting Wires to Terminals 2WARNING Connecting the ISO Connector The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the proper connections to prevent damage to the unit. The default connection for the wiring harness is described in 1 below. If the ISO connector pins are set as described in 2 or 3, make the connection as illustrated. -
Page 33: Installation
Installation Installation Firewall or metal support Screw (M4X8) (commercially available) Metal mounting Self-tapping strap screw (commercially (commercially available) available) Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). Screwing the Faceplate on the Unit If you want to fasten the faceplate to the main unit so that it does not fall off. - Page 34 Installation Removing the hard rubber frame Engage the catch pins on the removal tool and remove the two locks on the upper level. Upper the frame and pull it forward as shown in the figure. Lock Accessory2 Removal tool When the upper level is removed, remove the lower two locations.
-
Page 35: Troubleshooting Guide
Troubleshooting Guide What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. General The power does not turn ON.01 The fuse has blown. - Page 36 Troubleshooting Guide Non-fading output, Non-fading Low Pass Filter and Non-fading setting can’t be done.28 The <Switching preout> (page 27) is set on Rear preout. Set it on Non-fading preout. The <Non-fading output> (page 13) is OFF.29 Turn it ON. Tuner source Radio reception is poor.39 The car antenna is not extended.
- Page 37 The messages shown below display your systems condition. Eject/ EJECT: No disc magazine has been loaded in the changer. The disc magazine is not completely Load the disc magazine properly. No CD in the unit. Insert the CD. No Disc/ NO DISC: No disc has been loaded in the disc Load a disc into the disc magazine.
-
Page 38: Specifications
Specifications Specifications subject to change without notice. FM tuner section Frequency range (50 kHz space) ...87.5 MHz – 108.0 MHz (KDC-5094R FM1; 30 kHz space) ...65 MHz – 74.0 MHz Usable sensitivity (S/N = 26dB) ...0.7 µV /75 Ω KDC-5094R FM1 ...1.4 µV /75 Ω Quieting Sensitivity (S/N = 46dB) ...1.6 µV /75 Ω...
