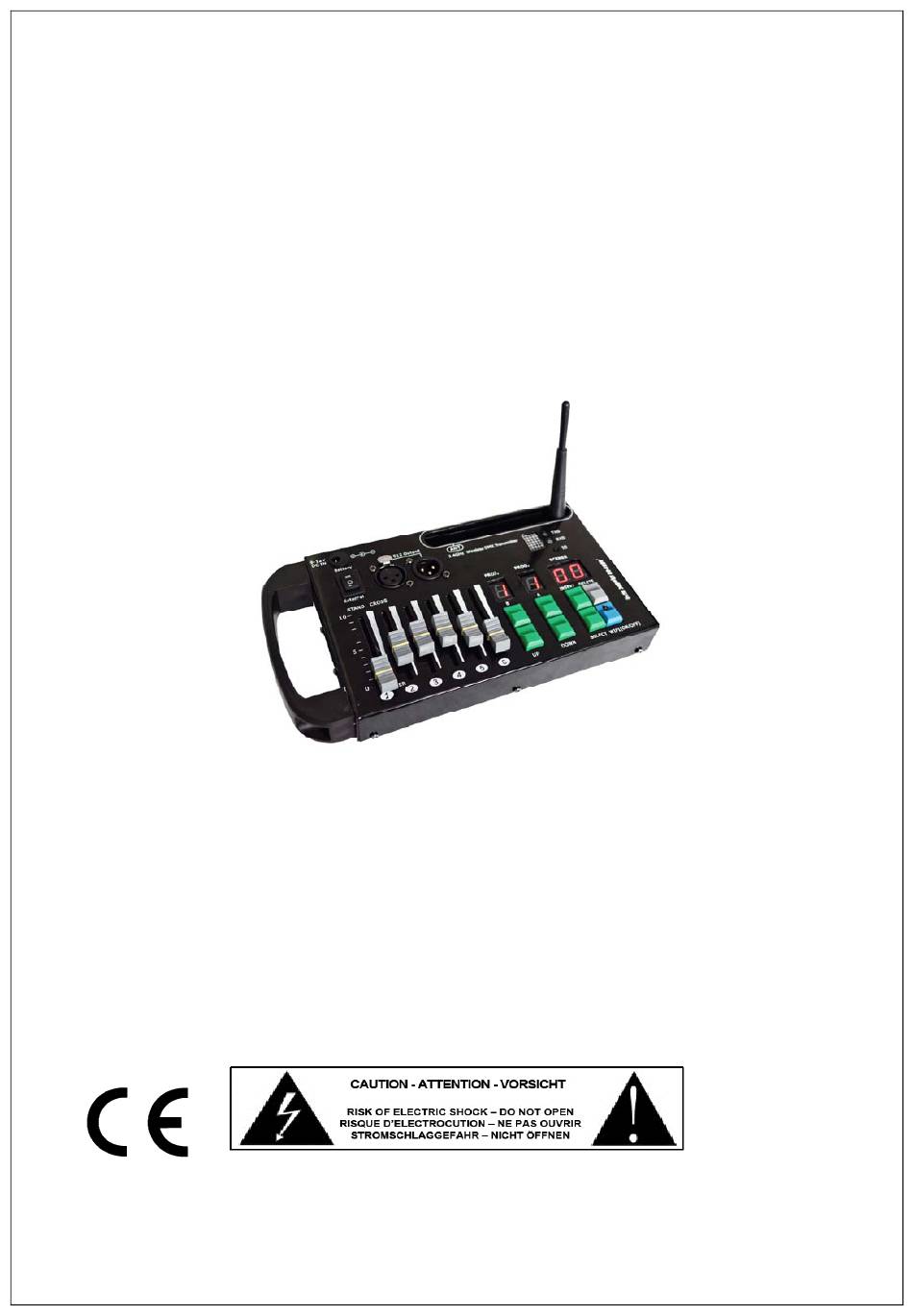

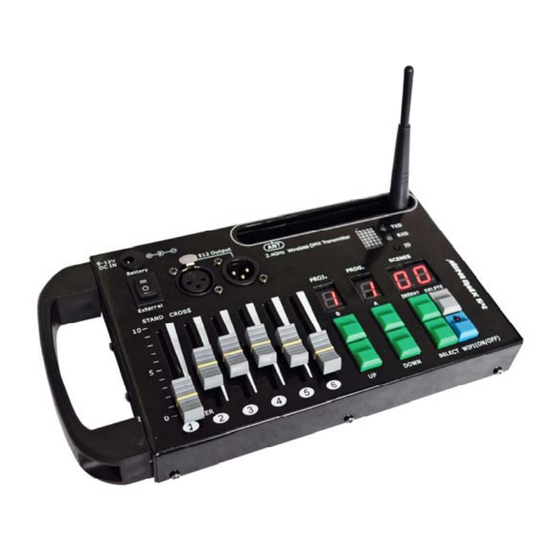

- Page 1 DMX CONTROLER W-DMX54 GB - INSTRUCTION MANUAL...
- Page 2 ENGLISH FEATURES * Standard DMX512 * Can control up to 9 smart lights of 6 channels each, making a total of 54 channels * System DMX Wireless 2.4 G ISM 126 * 6 faders in front for direct control * Inputs and outputs DMX in 3 pin XLR NOTE: A good knowledge of the DMX is recommended for maximum use of this console STATEMENT GENERAL Please read the operating instructions carefully to avoid all bad manipulation that could lead to a failure on the...
- Page 3 DESCRIPTION 1) INSERT BUTTON See operation later 2) SELECT BUTTON See operation later 3) BUTTON A See operation later 4) BUTTON B See operation later 5) UP BUTTON See operation later 6) BUTTON DOWN See operation later 7) DELETE BUTTON See operation later 8) SCENE DISPLAY This display tells you the number of the selected scene...
- Page 4 SCANNERS CANAUX DMX 7-12 13-18 19-24 25-30 31-36 37-42 43-48 49-54 12) SWITCH DMX WIRELESS This switch is used to enable or disable the wireless DMX function 13) DISPLAY DMX WIRELESS CHANNEL This display shows you the selected wireless DMX channel number 14) DMX WIRELESS ANTENNA Maximally extend the antenna for a greater scope of wireless DMX 15) DMX OUTPUTS...
- Page 5 Operating SYNCHRONIZATION MODE: Once the controller is switched on, a self-test is operate, which will allow to reset all functions. When the test is complete, you will get the following particulars on the displays: Depending on the type of devices connected to the DMX controller, you can synchronize one device to another. For example, you have several scenes from same type of projectors mounted in cascade and you want to create an effect of scanning (the speed of transition "cross"...
- Page 6 Then, adjust the different 6 faders to create your scene Once the scene is adjusted, double click on the "Insert" button, the scene is recorded. The "scenes" display changes to "01". Specifications Repeat for all the scenes you want (max 50 scenes by program) To exit the programming mode, press the A button for 3 seconds MODIFICATION OF A SCENE IN A PROGRAM: To access the programming mode, press the button «A»...
- Page 7 Specifications Power supply : DC 9, 300mA min. or battery 9V DMX output : XLR female / XLF male Wireless DMX : 2,4G ISM 126 Dimensions : 208x134x30mm Weight : Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. ...
