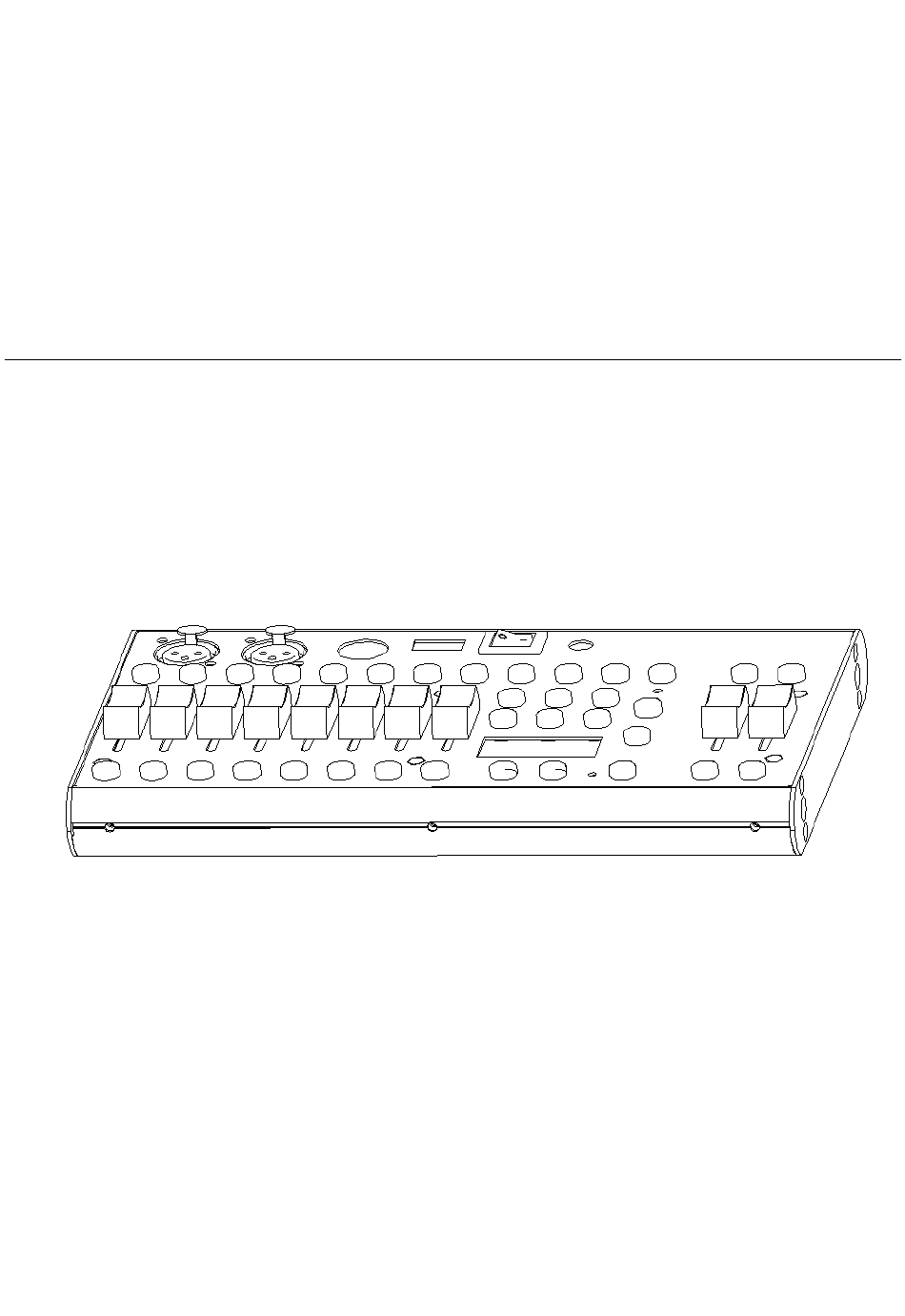

  • Page 1 DMX-192 192 Channel DMX Controller User Manual...

  • Page 2: Table Of Contents

    Contents Getting started 1.1 What is included………………………………………………………………………………………………………………………………………. 3 1.2 Unpacking instructions……………………………………………………………..………………………………………………………………. 3 1.3 Safety instructions............…………..………………………………………………………………. 3 Introduction 2.1 Features............…………..……………………………………………………………….…………… 3 2.2 General overview..........…………..……………………………………………………………….…………… 3 2.3 Product overview..........…………..……………………………………………………………….…………… 4 2.4 Common terms..........…………..……………………………………………………………….……………… 4 Operating instructions 3.1 Setup 3.1.1 Setting up the System.................…………………………………….……………… 5 3.1.2 Fixture Addressing................……………………………………….………………...

  • Page 3: Getting Started

    Getting started What is included DMX controller Power Cable User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.

  • Page 4: Product Overview

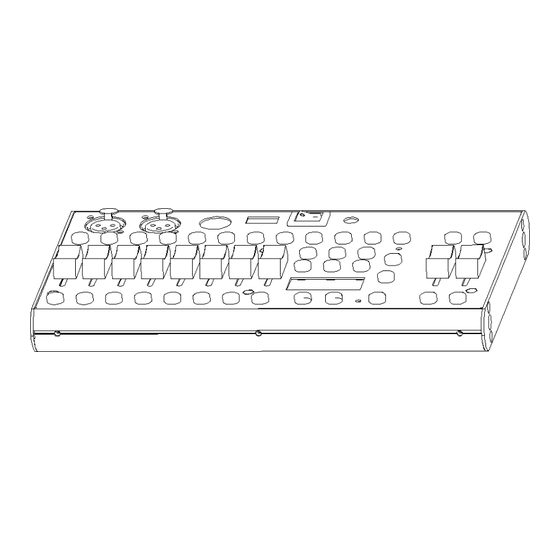

    On the surface you will find various programming tools such as 8 universal channel sliders and LED display indicators for easier navigation of controls and menu functions. Product Overview (front) Fixture Select Buttons Select lighting fixture Fixture Indicator LEDs Indicate current fixtures Scene Select Buttons Store and select scenes Channel Faders...

  • Page 5: Operating Instructions

    Programs are a bunch of scenes stacked one after another. It can be programmed as either a single scene or multiple scenes in sequence. Scenes are static snapshots of current channel values Faders are slider adjustment controls for various parameters Chases can also be called programs.

  • Page 6: Review Scene Or Chase

    The manual mode allows direct control of all fixtures. You are able to move them and change attributes by using the channel faders. Action 1. Select a FIXTURE button 2. Press the AUTO DEL button repeatedly until the MANUAL LED is lit. 3.

  • Page 7: Running A Program

    3.3.3 Running a Program Action: 1. Use BANK UP/DOWN buttons to change Program banks if necessary 2. Press the AUTO DEL button repeatedly until the AUTO LED turns on 3. Adjust the program speed via the SPEED fader and the loop rate via the FADE TIME fader. 4.

  • Page 8: Checking A Chase

    3.4.3 Checking a Chase Action: 1. Press and hold the PROGRAM button until the LED blinks 2. Select the desired CHASE button 3. Press the TAP/DISPLAY button to switch the display to step view 4. Use BANK UP/DOWN buttons to review each scene in the chase 3.4.4 Edit Chase (Copy Bank into Chase) Action: 1.

  • Page 9: Copy A Scene

    Action: 1. Press and hold the PROGRAM button until the LED blinks 2. Select the desired CHASE button 3. Press the TAP/DISPLAY button to switch the display to step view 4. Use BANK UP/DOWN buttons to navigate to the point at which to insert a Scene 5.

  • Page 10: Blackout

    Chases will be run in the order selected 5. You can adjust time between steps using the SPEED fader and duration of the step using the FADE TIME fader 3.6.3 Blackout Action: 1. Press the BLACKOUT button to set all DMX values temporarily to 0 APPENDIX 4.1 DMX Primer There are 512 channels in a DMX-512 connection.

  • Page 11: Dmx Dipswitch Quick Reference Chart

    4.3 DMX DIP Switch Quick Reference Chart...

  • Page 12: Technical Specifications

    4.4 Technical Specifications Power supply 90-260Vac Max Operating Temperature 45°C DMX output 3-pin XLRF MIDI input 180° 5-pin DIN Data Pinout Pin 1 (GND), Pin 2 (-), Pin 3 (+) Protocol DMX512 USITT Weight 1.1kg Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.
