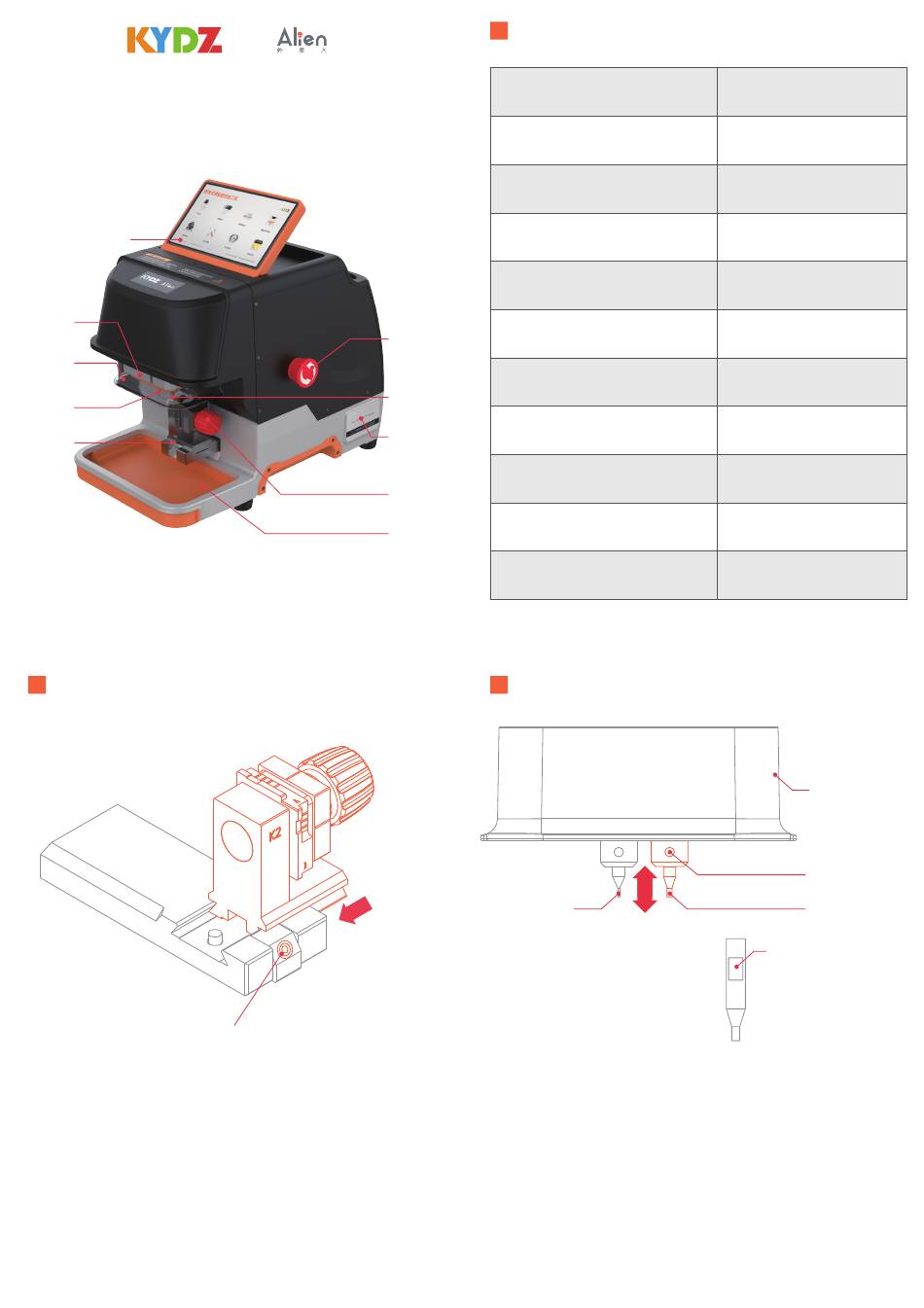

Alien KYDZ-306 Quick Installation Manual

Portable key cutting machine
Quick installation guide
7-inch capacitive
touch screen
Led light
Protection
cover
Probe
Fixture
Wuxi Keyoung Electronic Technology Co., Ltd
Fixture installation
Fixture installation steps:
1.Loosen the dovetail groove locking screw with the hexagon
wrench;
2. The fixture is pushed into the dovetail groove track from the
right side to the positioning position;
3.Lock the dovetail groove locking screw.
Emergency
stop button
Milling cutter
Identification
window
Tightening
handle
Crumb tray
Dovetail groove locking screw
Equipment Specifications
Adapter voltage
Maximum power consumption
Package size
Machine size
LED screen resolution
Lithium battery capacity
Spindle speed
Working temperature
Humidity
Net weight
Gross weight
Milling cutter installation
probe
Installation steps of milling cutter:
1.Lift up the protective cover, let the protective cover stay on the
top and leak out the screw hole position;
2.Install the milling cutter into the mounting hole, and align the flat
position of the milling cutter with the screw hole position;
3.Tighten the set screw of milling cutter with hexagon wrench;
4.If you want to remove the milling cutter, loosen the fastening
screw and take out the milling cutter downward;
The installation and disassembly steps of the probe are the same
as those of the milling cutter.
Input:100-240VAC
Output:26VDC
150W
490×320×430 mm
251×421×318 mm
1024×600
55.5Wh
12000rpm
-5~+40℃
10~90%
17KG
20KG
Protective cover
Screw hole
Milling cutter
Flat position
