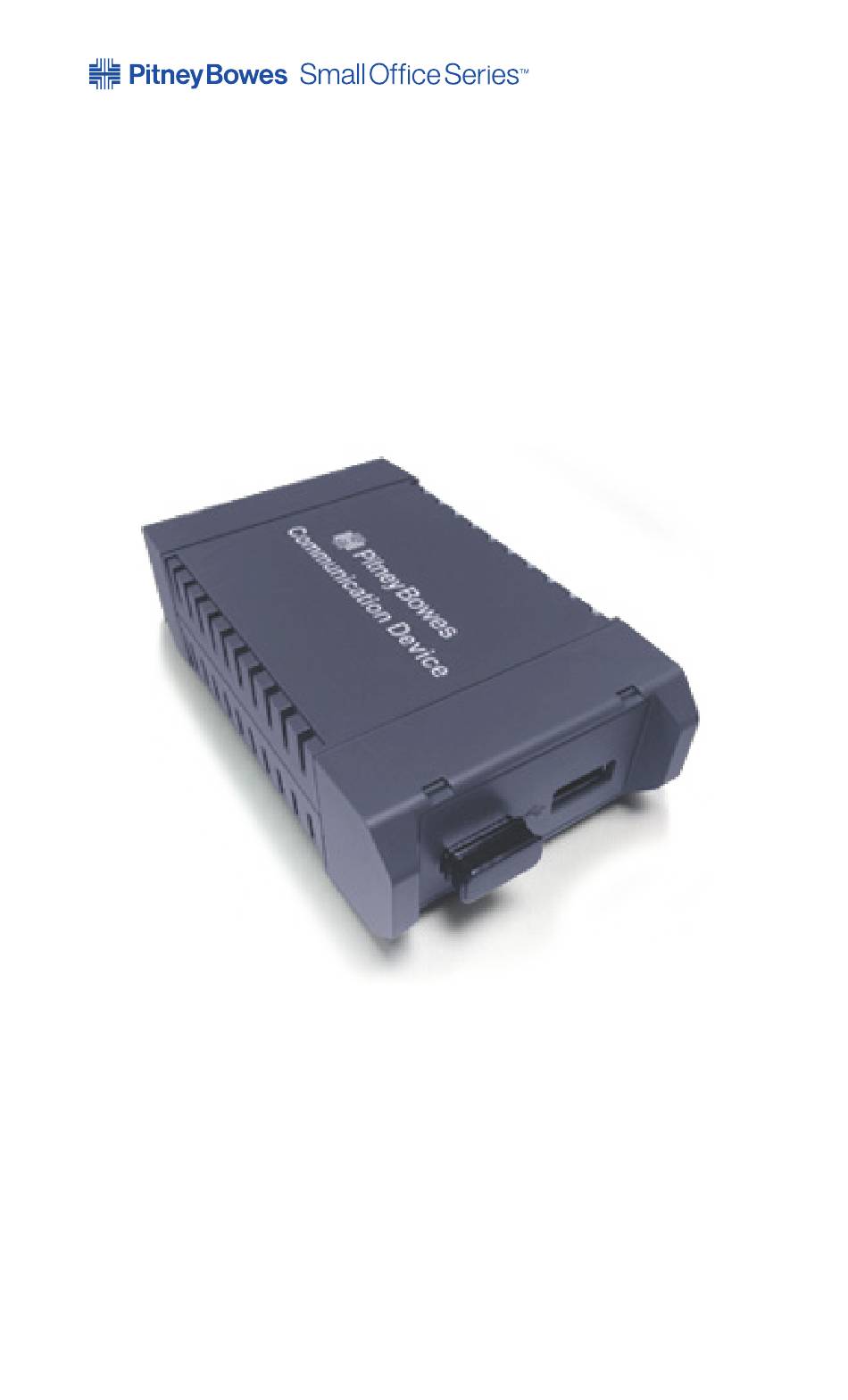

  • Page 1 pbWebConnect ™ Internet Access Communication Device Install Guide US English Version...
  • Page 2 Code below with your smartphone • By entering the following URL at your computer: www.pb.com/support/upgrade/K7 • Follow this printed installation guide, starting on page 1 Contents Network Cable Communication Device Communication Device For Pitney Bowes Digital Mailing System USB Cable Install Guide...
  • Page 3 Install Communication Device Update meter software If you have not already done so, you must update your meter to the current software version. The Communication Device will not work with your meter unless you update your meter with the latest software. a.
  • Page 4: Preparing For Installation

    Install Communication Device Preparing for Installation To connect your meter to the Internet, you will need the following: • One power outlet • An Internet source, such as a router, hub or network wall jack. Note: DO NOT use a port in a computer to connect to your network. •...
  • Page 5 It’s packaged in its own cardboard box. Communication Device For Pitney Bowes Digital Mailing System Communication Device Network Cable Connect the Communication Device to your network Be sure to connect to an active network port.
  • Page 6: Check Led

    Install Communication Device Apply Power to Communication Device Plug the AC adapter ( ) into the Communication Device and a power outlet. The left LED is lit yellow when it is on. LEDs Communication Device AC Adapter Check LED After 45 seconds, the right LED will blink orange, go to Step 7. LEDs If the right LED is solid orange...
  • Page 7 Install Communication Device Connect the meter to the Communication Device with the USB Cable ( This replaces the phone line or USB cables that may already be connected to the meter. USB Cable Ensure that the meter is powered and at the Ready screen. Confirm connection to the Internet After a few seconds the right LED changes from blinking orange to blinking green.
  • Page 8: Wireless Connection (Optional)

    Install Communication Device Confirm Connection to the Internet (continued) b. Check your balances to confirm the installation is complete: Press the Funds button Check amt available to download?" c. Use a Review key (st) to scroll to the option: “Check amt available to download?”, then press Enter/yes. If the meter displays your balances, your Prepaid: $1150...
  • Page 9 Troubleshooting 2 If the right LED on the Communication Device alternates orange and green or the meter message reads: “Dialing, Please wait...” you will need to contact Pitney Bowes for setup support. Before calling, access and record your meter’s software version (UIC version) by following these steps: •...
  • Page 10: Special Network Settings

    Special Network Settings This section is needed only if your network requires special settings to operate properly, such as static IPs and proxy server IDs, the settings will need to be added to the Communication Device. Consult your IT specialist to determine if this is necessary. To enter special settings a.
  • Page 11: Contact List

    • For Setup or Getting Started questions go to: www.pb.com/support/LAN or call 1-800-522-0020 • For Product support go to: www.pb.com/support/mailstation2-pbwc www.pb.com/support/mailstation-pbwc • To order Pitney Bowes supplies and accessories, call 1-800-243-7824 or go to: www.pb.com and click on Online Store.
  • Page 12 For Service or Supplies For Service or Supplies Support Web Site: www.pb.com/support/LAN General Questions: 1(800) 522-0020 Product Name: Communication Device with pbWebConnect AW31215 Rev. G 09/21 © 2012 Pitney Bowes Inc. All Rights Reserved Printed in the USA *AW31215REVG*...
