Manual
WAGO WINSTA® 770
WINSTA® Sunblind Box 4 Channel
770-629/130-000
Version 1.1.1, valid from HW/FW version XXXX0201XX
Pos: 3 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Impressum - allgemeine Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.doc @ 21060 @ @ 1
Advertisement
Chapters
Table of Contents
Related Manuals for WAGO WINSTA Sunblind Box
Summary of Contents for WAGO WINSTA Sunblind Box
- Page 1 Pos: 2 /Dokumentation allgemein/Einband/Einband Deckblatt @ 9\mod_1285229289866_0.doc @ 64941 @ @ 1 Manual WAGO WINSTA® 770 WINSTA® Sunblind Box 4 Channel 770-629/130-000 Version 1.1.1, valid from HW/FW version XXXX0201XX Pos: 3 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Impressum - allgemeine Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.doc @ 21060 @ @ 1...
- Page 2 WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel © 2011 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: info@wago.com...
-
Page 3: Table Of Contents
WAGO WINSTA® 770 Table of Contents 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 5 /Dokumentation allgemein/Verzeichnisse/Inhaltsverzeichnis - Überschrift 1 und Verzeichnis @ 3\mod_1219151230875_21.doc @ 21063 @ @ 1 Table of Contents Notes about this Documentation..............5 Scope of Validity..................5 Copyright.................... - Page 4 Table of Contents WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Connect Devices ..................28 Connection Examples................29 6.1.1 Central Connection with 24V Signals (Central Operation)....29 6.1.1.1 Central Operation without Voltage Monitoring ......29 6.1.1.2 Central Operation with Voltage Monitoring........30 6.1.2...
-
Page 5: Notes About This Documentation
Reproduction, translation, electronic and phototechnical filing/archiving (e.g., photocopying) as well as any amendments require the written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany. Non-observance will involve the right to assert damage claims. Pos: 11.2 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1 Manual Version 1.1.1, valid from HW/FW version XXXX0201XX... -
Page 6: Symbols
Notes about this Documentation WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 11.3 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Symbole @ 3\mod_1217394197593_21.doc @ 21010 @ 2 @ 1 Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. - Page 7 WAGO WINSTA® 770 Notes about this Documentation 770-629/130-000 WINSTA® Sunblind Box 4 Channel Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Pos: 11.4 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1 Manual Version 1.1.1, valid from HW/FW version XXXX0201XX...
-
Page 8: Number Notation
Notes about this Documentation WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 11.5 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Zahlensysteme @ 3\mod_1221059454015_21.doc @ 21711 @ 2 @ 1 Number Notation Table 1: Number Notation Number code Example Note Decimal... -
Page 9: Important Notes
2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications that serve to increase the efficiency of technical progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents. -
Page 10: Safety Advice (Precautions)
Important Notes WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 14.6 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Sicherheitshinweise - Überschrift 2 @ 6\mod_1260180299987_21.doc @ 46724 @ 2 @ 1 Safety Advice (Precautions) Pos: 14.7 /Alle Serien (Allgemeine Module)/Wichtige Erläuterungen/Sicherheitshinweise/Einleitung Sicherheitshinweise Hardware @ 6\mod_1260180170493_21.doc @ 46720 @ @ 1... - Page 11 WAGO WINSTA® 770 Important Notes 770-629/130-000 WINSTA® Sunblind Box 4 Channel Avoid electrostatic discharge! The devices are equipped with electronic components that you may destroy by electrostatic discharge when you touch. Pay attention while handling the devices to good grounding of the environment (persons, job and packing).
-
Page 12: Device Description

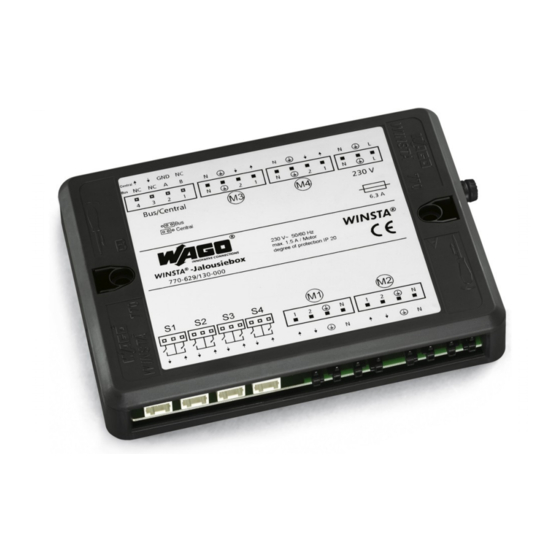

Device Description WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 16 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Gerätebeschreibung - Überschrift 1 @ 3\mod_1233756084656_21.doc @ 27096 @ 1 @ 1 Device Description Pos: 17 /Serie 770 (Winsta-Boxen)/Gerätebeschreibung/Beschreibung/Gerätebeschreibung 0770-0629/0130-0000 @ 6\mod_1256821013658_21.doc @ 43960 @ @ 1 ®... -
Page 13: View
WAGO WINSTA® 770 Device Description 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 19 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Ansicht - Überschrift 2 @ 4\mod_1240984217343_21.doc @ 31958 @ 2 @ 1 View Pos: 20 /Serie 770 (Winsta-Boxen)/Gerätebeschreibung/Ansicht/Ansicht 0770-0629/0130-0000 @ 6\mod_1256821360033_21.doc @ 43963 @ @ 1... -
Page 14: Labeling
Device Description WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 22 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Bedruckung - Überschrift 2 @ 4\mod_1241082409515_21.doc @ 32035 @ 2 @ 1 Labeling Pos: 23 /Serie 770 (Winsta-Boxen)/Gerätebeschreibung/Bedruckung/Bedruckung 0770-0629/0130-0000 @ 7\mod_1267782981730_21.doc @ 51787 @ @ 1... -
Page 15: Connectors
WAGO WINSTA® 770 Device Description 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 25 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Anschlüsse - Überschrift 2 @ 4\mod_1240984262656_21.doc @ 31961 @ 2 @ 1 Connectors Pos: 26 /Serie 770 (Winsta-Boxen)/Gerätebeschreibung/Anschlüsse/Anschlüsse 0770-0629/0130-0000 @ 6\mod_1255677975461_21.doc @ 42970 @ 333333 @ 1 3.3.1... -
Page 16: 230V Supply
Device Description WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel 3.3.2 230V Supply As a system supply (electrical supply for both the motors as well as the control electronics), the sunblind box needs 230 V alternating voltage. The power supply is handled by the three-pole plug connector with the designation "230 V."... -
Page 17: Local Push-Buttons
"Putting into operation > Setting bus or central operation." In bus operation, a WAGO-I/O controller can be used on a bus segment to connect up to 16 participants. These can be grouped and activated at will. The bus connection is made using the four-pole plug ("Bus/central") and the plug... -
Page 18: Figure 8: Bus/Central Connection
N.C. Down N.C. Figure 8: Bus/central connection Activation via the WAGO-I/O-SYSTEM 750 The following module is required to activate via bus signal/RS485 and WAGO- I/O-SYSTEM: RS-485 serial interface, adjustable; item number 750-653/003-000. Manual Version 1.1.1, valid from HW/FW version XXXX0201XX... -
Page 19: Screening
The WAGO-I/O-SYSTEM is suitable for the screening connection system. Pos: 27 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1 Manual Version 1.1.1, valid from HW/FW version XXXX0201XX... -
Page 20: Display Elements
Device Description WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 28 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Anzeigeelemente - Überschrift 2 @ 4\mod_1240984390875_21.doc @ 31964 @ 2 @ 1 Display Elements Pos: 29 /Serie 770 (Winsta-Boxen)/Gerätebeschreibung/Anzeigeelemente/Anzeigeelemente 0770-xxxx nicht vorhanden @ 6\mod_1256826265331_21.doc @ 43978 @ @ 1 The WINSTA®... -
Page 21: Idc Connectors For Jumper
WAGO WINSTA® 770 Device Description 770-629/130-000 WINSTA® Sunblind Box 4 Channel 3.5.2 IDC Connectors for Jumper The sunblind box has an IDC connector for a jumper bridge, with which it is possible to select whether the box should be activated via a bus signal (RS485) or via a 24V signal (central operation). -
Page 22: Technical Data
Device Description WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 33 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Technische Daten - Überschrift 2 @ 3\mod_1232967587687_21.doc @ 26924 @ 2 @ 1 Technical Data Pos: 34 /Serie 770 (Winsta-Boxen)/Gerätebeschreibung/Technische Daten/Technische Daten 0770-0629/0130-0000 @ 6\mod_1256804715155_21.doc @ 43794 @ 3333333 @ 1 3.6.1... -
Page 23: Inputs
WAGO WINSTA® 770 Device Description 770-629/130-000 WINSTA® Sunblind Box 4 Channel 3.6.4 Inputs Table 12: Technical data: Inputs Number of inputs 4 switch inputs for local buttons Signal voltage 12 V DC Transmission medium Control line: J-Y (St) Y 2 x 2 x 0.6 mm max. -
Page 24: Control
Device Description WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel 3.6.6 Control Table 14: Technical data: Control Mode Bus control or central control via 24VDC signal Connection type Socket without strain relief housing, 4-pole (Item No. 770-244) Strain relief housing, 4-pole (Item No. -
Page 25: Approvals
WAGO WINSTA® 770 Device Description 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 36 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Zulassungen - Überschrift 2 @ 3\mod_1224055364109_21.doc @ 24030 @ 2 @ 1 Approvals Pos: 37 /Serie 770 (Winsta-Boxen)/Gerätebeschreibung/Zulassungen/Zulassungen 0770-0629 @ 7\mod_1268229441680_21.doc @ 52234 @ @ 1 ®... -
Page 26: Function Description
The WINSTA sunblind boxes are connected to a serial bus (serial interface RS485, 750-653/003-000) via which the WAGO-I/O-SYSTEM as the superior controller can access up to 16 boxes per bus segment. This operating mode addresses both individual channels and groups of boxes. -
Page 27: Operating Functions
WAGO WINSTA® 770 Function Description 770-629/130-000 WINSTA® Sunblind Box 4 Channel Operating Functions The sunblind box is equipped at the factory with various operating functions. The description of the necessary settings is found in Chapter "Putting into operation > Setting bus address and operating mode."... -
Page 28: Assembly
Assembly WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 48 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Montieren - Überschrift 1 @ 3\mod_1225446744750_21.doc @ 24900 @ 1 @ 1 Assembly Pos: 49 /Serie 770 (Winsta-Boxen)/Montieren/Montage 0770-0629 @ 7\mod_1271851126732_21.doc @ 55500 @ @ 1 In addition to horizontal and vertical mounting, all other fitting positions are allowed. -
Page 29: Connection Examples
WAGO WINSTA® 770 Connect Devices 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 53 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Anschlussbeispiele - Überschrift 2 @ 4\mod_1240996036328_21.doc @ 32010 @ 2 @ 1 Connection Examples Pos: 54 /Serie 770 (Winsta-Boxen)/Anschließen/Anschlussbeispiele/Anschlussbeispiele 0770-0629/0130-0000 @ 6\mod_1260444240884_21.doc @ 46973 @ 3443 @ 1 6.1.1... -
Page 30: Central Operation With Voltage Monitoring
Connect Devices WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel 6.1.1.2 Central Operation with Voltage Monitoring On principle, the configuration of a central operation (e.g. central switch, timer) should take place according to the following scheme. Central Connection with Monitoring... -
Page 31: Bus Connection (Bus Operation)
The bus must be connected at the beginning and end to a 120 Ω resistor! Operation via bus signal/RS485 The following module is required to operate via bus signal/RS 485 and WAGO I/O-System: WAGO I/O adjustable RS485 module 750-653/003-000 Pos: 55 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1 Manual Version 1.1.1, valid from HW/FW version XXXX0201XX... -
Page 32: Commissioning
Commissioning WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 56 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/In Betrieb nehmen - Überschrift 1 @ 4\mod_1240901452750_21.doc @ 31570 @ 1 @ 1 Commissioning Pos: 57 /Serie 770 (Winsta-Boxen)/In Betrieb nehmen/In Betrieb nehmen 0770-0629/0130-0000 @ 6\mod_1256801098019_21.doc @ 43791 @ 222332333444443443443442 @ 1... -
Page 33: Setting Bus Or Central Operation
WAGO WINSTA® 770 Commissioning 770-629/130-000 WINSTA® Sunblind Box 4 Channel Setting Bus or Central Operation The sunblind box has an IDC connector for a jumper bridge, with which it is possible to select whether the box should be activated via a bus signal (RS485) or via a 24V signal (central operation). -
Page 34: Central Operation
Commissioning WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel 7.3.2 Central Operation If the jumper bridge is plugged in the viewing direction of the figure above into the two upper pins, 24V activation is selected. Figure 16: Jumper setting for central operation... -
Page 35: Setting Bus Address And Operating Mode
WAGO WINSTA® 770 Commissioning 770-629/130-000 WINSTA® Sunblind Box 4 Channel Setting Bus Address and Operating Mode The sunblind box has two DIP switch modules with which you can set the bus address, the grouping of the motors, the moving time, and the moving logic. -
Page 36: Setting Bus Address
Commissioning WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel 7.4.2 Setting Bus Address Setting of bus addresses only for bus operation Please note that the setting of bus addresses is only possible in bus operation. For Central operation, de-activate switches 1 to 5 of DIP Module 1 (address 0). -
Page 37: Grouping
WAGO WINSTA® 770 Commissioning 770-629/130-000 WINSTA® Sunblind Box 4 Channel 7.4.3 Grouping Set the grouping with the switches 1, 2, and 3 of the DIP module 2. The drives are thus assigned via the plug connectors to the selected groups and local push buttons. -
Page 38: Move Simultaneously
Commissioning WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel 7.4.3.4 Three Groups: Motors 1 and 2 Move Individually, Motors 3 and 4 Move Simultaneously To form three groups, Group A in which motor 1, Group B in which motor 2, and... -
Page 39: Setting Of Bus Failure Monitoring / Voltage Monitoring
WAGO WINSTA® 770 Commissioning 770-629/130-000 WINSTA® Sunblind Box 4 Channel 7.4.4 Setting of Bus Failure Monitoring / Voltage Monitoring Activate/De-activate bus failure monitoring / voltage monitoring using switch 4 of DIP Module 2. 7.4.4.1 Standard Mode Make the following settings to de-activate bus failure monitoring / voltage... -
Page 40: Setting The Operating Time
Commissioning WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel 7.4.5 Setting the Operating Time Set the operating time with switch 5 of the DIP module 2 to 1 minute or 4 minutes. 7.4.5.1 Operating Time 1 Minute In order to set an operating time of 1 minute, make the following settings:... -
Page 41: Setting The Operating Function (Sunblind/Slat Function)
WAGO WINSTA® 770 Commissioning 770-629/130-000 WINSTA® Sunblind Box 4 Channel 7.4.6 Setting the Operating Function (Sunblind/Slat Function) Set the operating function with switch 6 of the DIP module 2 to sunblind or slat function. 7.4.6.1 Sunblind Function To select sunblind operation, make the following settings:... -
Page 42: Initialization
Behavior after power failure in bus operation After a power failure, it can take up to 1 minute until the WAGO-I/O-SYSTEM has recorded the box again and it reacts to control commands. Pos: 58 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1 Manual Version 1.1.1, valid from HW/FW version XXXX0201XX... -
Page 43: Diagnostics
WAGO WINSTA® 770 Diagnostics 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 59 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Diagnose - Überschrift 1 @ 4\mod_1240831069471_21.doc @ 31372 @ 1 @ 1 Diagnostics Pos: 60 /Serie 770 (Winsta-Boxen)/Diagnose/Diagnose 0770-0629/0130-0000 @ 7\mod_1268228638180_21.doc @ 52231 @ @ 1 Diagnosis can be undertaken with the function module "FbWinsta_BC_Box."... -
Page 44: Accessories
Pos: 63 /Serie 770 (Winsta-Boxen)/Zubehör/Zubehör 0770-0629/0130-0000 @ 7\mod_1268232006524_21.doc @ 52253 @ @ 1 ® The following accessories are available for the WINSTA sunblind box 770- 629/130-000: Table 22: Accessories Description Item No. RS-485 serial interface for modular WAGO-I/O- 750-653/003-000 SYSTEM 750, freely-configurable ® Plug set for WINSTA sunblind box 770-5001/100-000 Includes: 1 x socket with strain relief housing, 3-pole (Item No. -
Page 45: List Of Figures
WAGO WINSTA® 770 List of Figures 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 65 /Dokumentation allgemein/Verzeichnisse/Abbildungsverzeichnis - Überschrift 1 und Verzeichnis @ 3\mod_1219222916765_21.doc @ 21080 @ @ 1 List of Figures Figure 1: View....................... 13 Figure 2: Marking....................14 Figure 3: Example of a serial number ..............14 Figure 4: Connection Overview ................ -
Page 46: List Of Tables
List of Tables WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 67 /Dokumentation allgemein/Verzeichnisse/Tabellenverzeichnis - Überschrift 1 und Verzeichnis @ 3\mod_1219222958703_21.doc @ 21084 @ @ 1 List of Tables Table 1: Number Notation..................8 Table 2: Font Conventions ..................8 Table 3: Legend for "View"... - Page 47 WAGO WINSTA® 770 770-629/130-000 WINSTA® Sunblind Box 4 Channel Pos: 69 /Dokumentation allgemein/Gliederungselemente/===Leerseite=== @ 3\mod_1219230851078_0.doc @ 21123 @ @ 1 Manual Version 1.1.1, valid from HW/FW version XXXX0201XX...
