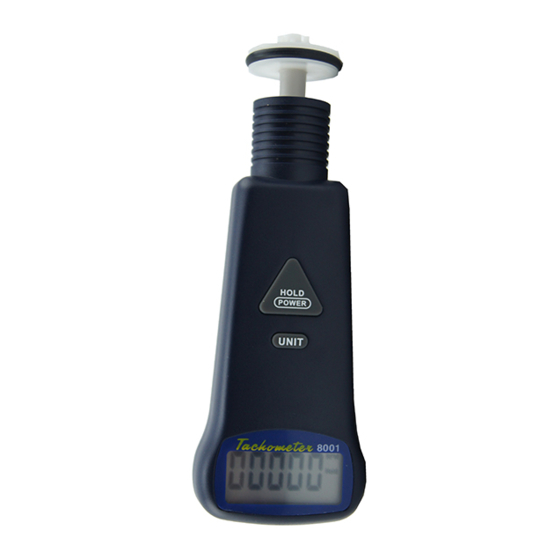

OPERATION MANUAL
ECONOMY DIGITAL
CONTACT/NON-CONTACT
TACHOMETER
Model:
8001
8000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8000 and is the answer not in the manual?

Questions and answers

Related Manuals for az-instrument 8000

Summary of Contents for az-instrument 8000

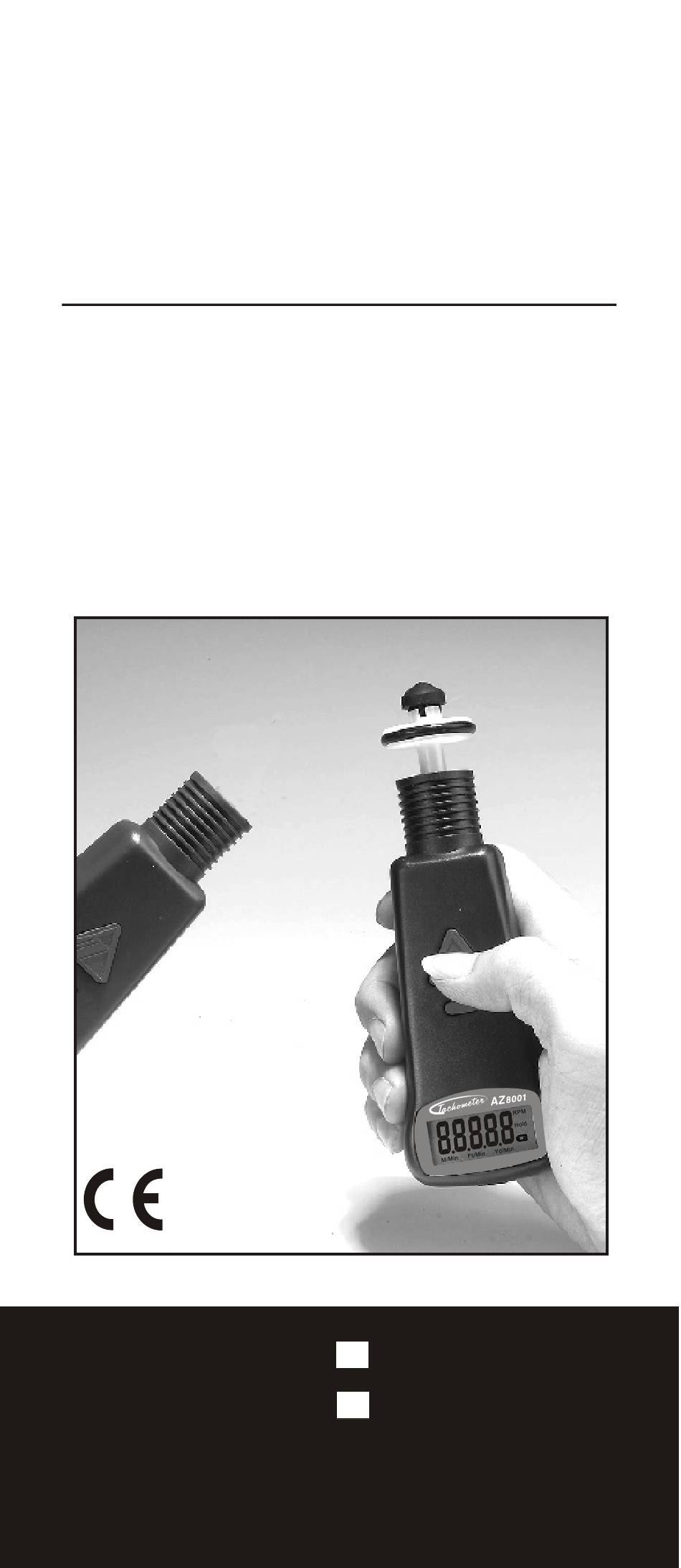

  • Page 1 OPERATION MANUAL ECONOMY DIGITAL CONTACT/NON-CONTACT TACHOMETER Model: 8001 8000...

  • Page 2: Lcd Display / Indicator

    Precise speed Measurements Switchable units:(Model 8001) RPM (Rotate Per Minute Model 8000) M/Min ( Meter Per Minute ) Ft/Min ( Feet Per Minute ) Yd/Min (Yard Per Minute )

  • Page 3: Front Panel Description

    2. Funnel (Concave) adaptor 3. Wheel for linear surface 4. Contact adaptor Unit select key (Non-Contact model HOLD POWER 8000 #1~5 are UNIT excluded. ) Power on/off & Hold key 7. Battery cover Hold M/Min Ft /Min Yd /M in (rear) 8.

  • Page 4: Measurement Operation

    TEST RANGE RESOLUTION 10.000 ~ 99999 RPM 0.001 /0.01 /0.1 /1 1.0000 ~ 9999.9 M/Min 0.0001/0.001/0.01/0.1 30000 Ft/Min 0.0001/0.001/0.01/0.1 3.0000 ~ 1.0000 10000 Yd/Min 0.0001/0.001/0.01/0.1 Meter per Second (M/Sec.) = Ft/Min x 0.00508 = M/Min / 60 = Yd/Min x 0.01524 MEASUREMENT OPERATION A.

  • Page 5: Disable Sleep Mode

    B. DATA HOLD This meter automatically holds the last reading on the LCD after the POWER/ HOLD key is released. No extra key presses are necessary to freeze the displayed reading. Hold DISABLE SLEEP MODE To disable Sleep mode , make sure the meter is off , press and hold UNIT key &...

  • Page 6: Reflective Tape

    Install Convex adaptor or Concave tip on the shaft of the adaptor. REFLECTIVE TAPE The non- contact Tachometer model 8000 contains a reflective tape to the surface of the unit to be measured. Recommend that the reflective surface is perpendicular to the receiv- ing unit for best measurement.
  • Page 7 The contact Tachometer model 8001 for measuring speeds of rotating objects in RPM , M/Min , Ft/Min , Yd/Min for different purposes . Press UNIT key once from preset RPM (right corner indicator) to left bottom corner M/Min , press UNIT key again , Ft/Min appears in the middle Press UNIT key once more , Yd/Min appears at the right corner , press...

  • Page 8: Case Cleaning

    1. The meter x 1 2. Battery x 1 (9.0 volt) 3. Operation manual x 1 4. Cone / Funnel adaptor x 1 (8001 contact model.) 5. Reflective tape x 1 (8000 non-contact model.) Optional accessory:: 1. Black Pouch Hol d Power UNIT...

  • Page 9: Battery Replacement

    BATTERY REPLACEMENT A battery icon appeared is the indication that the battery voltage has fallen into the critical region (6.5 to 7.5 V). Open the Battery Compartment and remove the battery, then install a new battery and replace the cover. WARRANTY The meter is warranted to be free from defects in material and workmanship...
  • Page 10 When requiring a RA (Return Authorization) , please include data regarding the defective reason, the meters are to be returned along with good packing to prevent any damage in shipment and insured against possible damage or loss. CE CERTIFICATION The meter conforms to the following standards: * EN 50081-1/1992 : EN 55022 * EN 50082-1/1997 : EN 55024...
