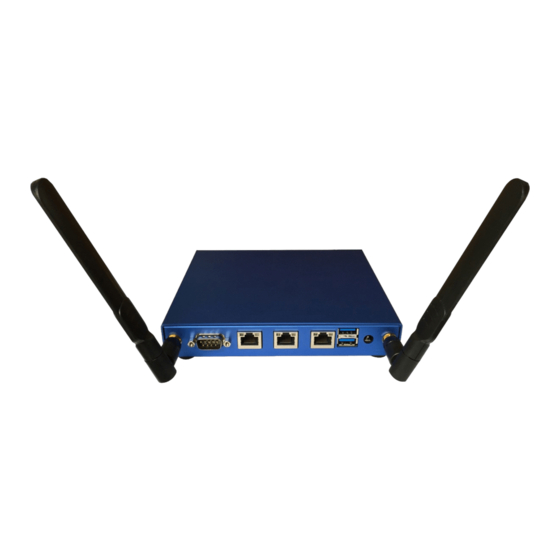

- Page 1 LL-BST-8 G ATEWAYS...
-
Page 2: Table Of Contents
Step 2: Access the gateway's local webpage ............6 Step 3: Connect the gateway to the Internet ............8 Step 4: Register the gateway with Conductor............11 How do I insert a SIM card into a cellular-enabled LL-BST-8? ......14... -
Page 3: Symphony Link Gateway Quick Start Guide - Indoor Models
LL-BST-8 Gateways Symphony Link Gateway Quick Start Guide - Indoor Models LL-BST-8 Gateways Page 3... -
Page 4: Step 1: Turn On The Gateway
LL-BST-8 Gateways Step 1: Turn on the gateway Connect the antennas. Connect the 915-MHz antenna to the gateway's UHF antenna jack. Connect the Wifi or cellular antenna to the Wifi or Cell jack (for Wifi / cell enabled models only). - Page 5 LL-BST-8 Gateways Apply power. Connect one end of the wall-plug adapter to the gateway's Power port and the other end to an electrical outlet. LL-BST-8 Gateways Page 5...
-
Page 6: Step 2: Access The Gateway's Local Webpage
LL-BST-8 Gateways Step 2: Access the gateway's local webpage Connect a PC. Wait a minute for the gateway to bootstrap, then connect a PC to the local Ethernet jack (the middle one) using the provided Ethernet cable. Navigate to the local webpage. - Page 7 LL-BST-8 Gateways The gateway's local webpage appears. The local webpage provides an interface to view the status of the gateway, to connect it to the Internet, and to register the gateway with a Conductor account. LL-BST-8 Gateways Page 7...
-
Page 8: Step 3: Connect The Gateway To The Internet
LL-BST-8 Gateways Step 3: Connect the gateway to the Internet To connect via wired Ethernet... Connect a DHCP-enabled network to the gateway's LAN Ethernet jack (the one closest to the serial connector). In the Wired Network tab, select the Enabled checkbox. Click Submit. - Page 9 LL-BST-8 Gateways To connect using WiFi (WiFi-enabled models only) ... In the Wireless tab of the local webpage, select the Enabled checkbox. Select a Wifi network from the SSID dropdown listbox and enter the password in the SHARED KEY editbox. Click Submit.
- Page 10 After a few moments, the Wireless tab updates with the connection information. To connect using Cellular (cellular-enabled models only) ... The cellular-enabled model of the indoor gateway (LL-BST-8-915-SYM-G-I-US) includes a GSM modem. To use cellular option, first insert a SIM card in the gateway.
-
Page 11: Step 4: Register The Gateway With Conductor
LL-BST-8 Gateways Step 4: Register the gateway with Conductor This step connects your gateway to your web-based Conductor account. Register the gateway. Once the gateway is connected to the Internet, click the Register Gateway button in the Symphony Registration section of the local webpage. - Page 12 LL-BST-8 Gateways The Register Gateway prompt appears. In this example, we're going to register the gateway with a new Symphony Link Network. (But if you want, you can simply register the gateway with the Open Gateway network.) Click the Create Network button.
- Page 13 LL-BST-8 Gateways Conductor populates a new, unique network to the list. In this example, it is Network xB36E. Click the Register button. The prompt disappears and the Symphony Registration section of the local webpage updates. It shows the gateway is registered with the newly created network. (You may need to refresh your browser.)
-
Page 14: How Do I Insert A Sim Card Into A Cellular-Enabled Ll-Bst-8
LL-BST-8 Gateways How do I insert a SIM card into a cellular- enabled LL-BST-8? The cellular-enabled gateway requires a GSM mini-SIM to connect to a cellular network. Remove power. Remove power to the gateway by unplugging the wall-plug adapter. Remove the lid.
