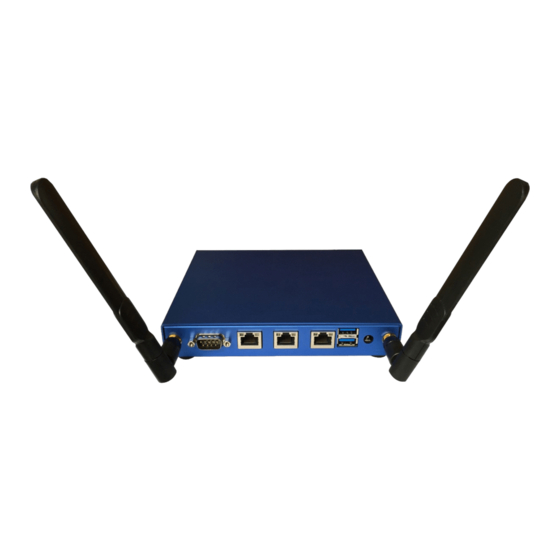

- Page 1 LL-BST-8 G ATEWAYS...
-
Page 2: Table Of Contents
Step 3: Connect the gateway to the Internet .................. 7 Step 4: Register the gateway with Conductor................. 9 How do I update my gateway's software? ..................11 How do I insert a SIM card into a cellular-enabled LL-BST-8? ............ 13... -
Page 3: Symphony Link Gateway Quick Start Guide - Indoor Models
Symphony Link Gateway Quick Start Guide - Indoor Models Symphony Link Gateway Quick Start Guide - Indoor Models... -
Page 4: Step 1: Turn On The Gateway
Step 1: Turn on the gateway Step 1: Turn on the gateway Connect the antennas. Connect the antennas. Connect the 915-MHz antenna to the gateway's UHF UHF antenna jack. Connect the Wifi or cellular antenna to the Wifi Wifi or Cell Cell jack (for Wifi / cell enabled models only). -
Page 5: Step 2: Access The Gateway's Local Webpage
Step 2: Access the gateway's local webpage Step 2: Access the gateway's local webpage Connect a PC. Connect a PC. Wait a minute for the gateway to bootstrap, then connect a PC to the local Ethernet jack (the middle one) using the provided Ethernet cable. -
Page 7: Step 3: Connect The Gateway To The Internet
Step 3: Connect the gateway to the Internet Step 3: Connect the gateway to the Internet To connect via wired Ethernet... To connect via wired Ethernet... Connect a DHCP-enabled network to the gateway's LAN LAN Ethernet jack (the one closest to the serial connector). In the Wired Network Wired Network tab, select the Enabled Enabled checkbox. - Page 8 Wireless tab updates with the connection information. To connect using Cellular (cellular-enabled models only) ... To connect using Cellular (cellular-enabled models only) ... The cellular-enabled model of the indoor gateway (LL-BST-8-915-SYM-G-I-US) includes a GSM modem. To use cellular option, first insert a SIM card...
-
Page 9: Step 4: Register The Gateway With Conductor
Step 4: Register the gateway with Conductor Step 4: Register the gateway with Conductor This step connects your gateway to your web-based Conductor account. Register the gateway. Register the gateway. Once the gateway is connected to the Internet, click the Register Gateway Register Gateway button in the Symphony Registration Symphony Registration section of the local webpage. - Page 10 Conductor populates a new, unique network to the list. In this example, it is Network xB36E Network xB36E. Click the Register Register button. The prompt disappears and the Symphony Registration Symphony Registration section of the local webpage updates. It shows the gateway is registered with the newly created network.
-
Page 11: How Do I Update My Gateway's Software
How do I update my gateway's software? How do I update my gateway's software? Step 1: Access the gateway's local webpage Step 1: Access the gateway's local webpage For detailed instructions to access the gateway's local webpage, visit this article. - Page 12 Step 2: Click the "Advanced" dropdown menu Step 2: Click the "Advanced" dropdown menu Step 3: Click the "Check for Updates" button. Step 3: Click the "Check for Updates" button.
-
Page 13: How Do I Insert A Sim Card Into A Cellular-Enabled Ll-Bst-8
How do I insert a SIM card into a cellular-enabled LL-BST-8? How do I insert a SIM card into a cellular-enabled LL-BST-8? The cellular-enabled gateway requires a GSM mini-SIM to connect to a cellular network. Remove power. Remove power. Remove power to the gateway by unplugging the wall-plug adapter. - Page 14 Re-install cellular modem Re-install cellular modem Plug the cellular modem module back into it's socket at a downward angle. Then press the module down into the spring tabs until they hold the module down. Replace the lid. Replace the lid. Replace the lid and screws.
- Page 15 For older units without a SIM card slot on the cellular modem module. For older units without a SIM card slot on the cellular modem module. If there is a SIM card slot on the cellular modem module, that SIM card slot must be used. If there is no SIM card slot on the cellular modem module, the SIM card will need to be installed on the underside of the motherboard.
