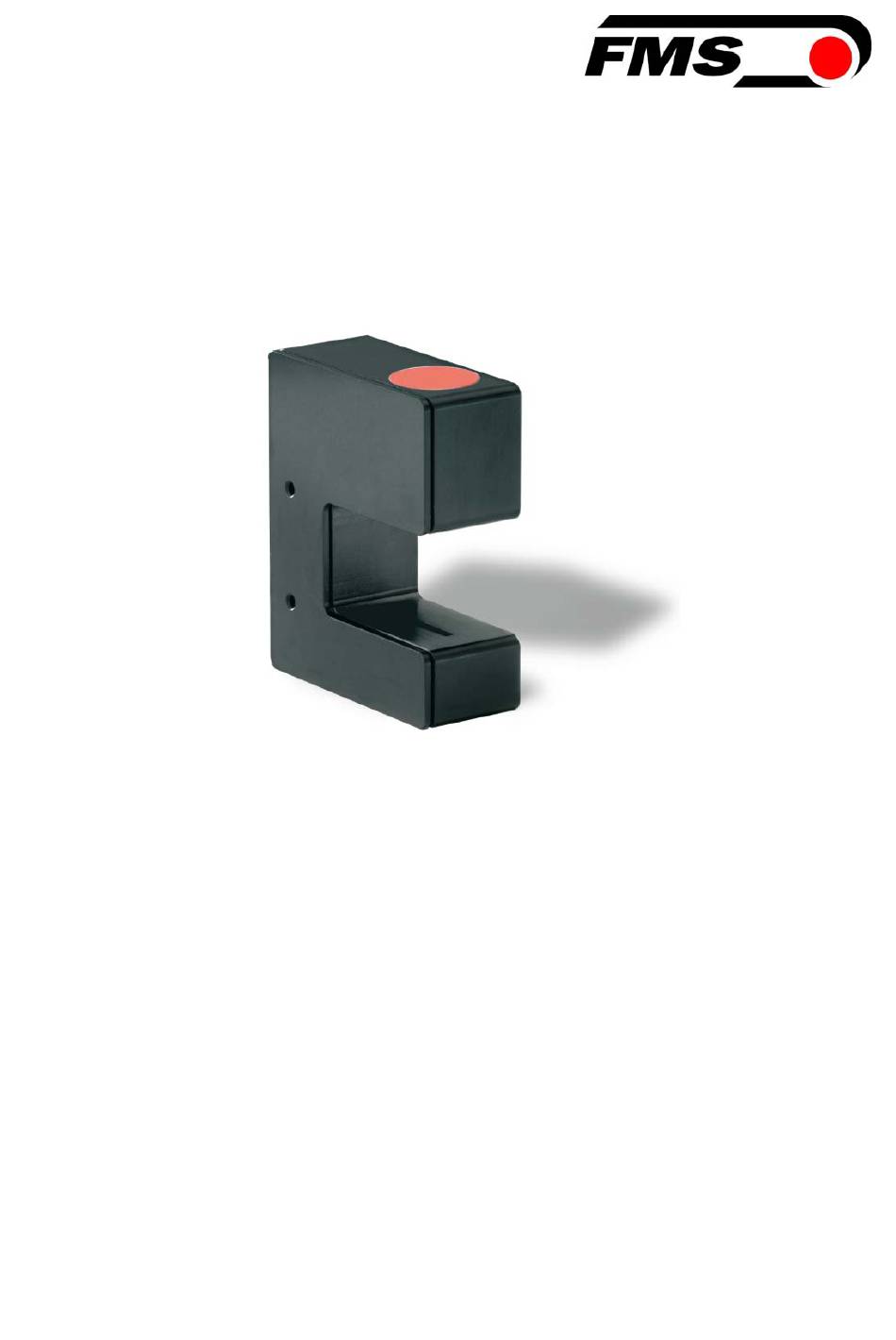

Operating Manual AZS01B and AZS04B Table of Contents Safety Instructions ..................3 1.1 Description Conditions Functional Description ................4 Dimensions ....................5 Assembly Preparations ................6 4.1 Assembly Conditions Installation ....................7 5.1 Mounting the Sensor 5.2 Wiring Operation ....................8 6.1 Right or Left Hand Position of the Sensor 6.2 Adjustment of the Sensors Trouble Shooting ..................
Operating Manual AZS01B and AZS04B 1 Safety Instructions All safety related regulations, local codes and instructions that appear in the man- ual or on equipment must be observed to ensure personal safety and to prevent damage to the equipment connected to it. If equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
BlueFlash clear advantages compared to ultrasonic sensors. They are fac- tory set and don’t need any calibration. Two standard sizes cover a large material bandwidth. BlueFlash sensors are compatible with the full line of FMS web guide controllers and steering frames.
Operating Manual AZS01B and AZS04B 4 Assembly Preparations 4.1 Assembly Conditions The AZS material sensors are defined as “partly completed machinery” according to the Directives 2006/42/EC, article 2. In order to assure a proper functionality of the parts and guarantee the essential health and safety requirements of opera- tors working with it, the following conditions for the installations must be met: Caution The Material Sensors may not be stressed over the specification limits neither...
Pin_Assignment.ai Electrical Connections: If the sensor is used with a built-in web guide controller in the steering frame FMS- webMASTER series, the sensor is connected with a cable 4x0.14mm of the re- spective length. Fig. 2 shows the sensor connector in front view with its pin as- signment.
Operating Manual AZS01B and AZS04B 6 Operation 6.1 Right or Left Hand Position of the Sensor Definition of Left and Right: Seen in direction of the running web. Fig. 3: Position of the sensors according to the web BKS309 Web entry side Web exit side Direction of moving web Material sensor(s)
Operating Manual AZS01B and AZS04B 6.2 Adjustment of the Sensors Fig. 4: Position of the sensors according to the web Material edge Centre axis of detection range Material offset Detection range Positioning reference marks 1. Loosen the fixation nut on the bracket and slide the sensor into position. 2.
No signal; cable interrup- Replace cable or send sensor to tion No signal; sensor defect Send sensor to FMS; use other sensor Sensor supply not pre- Check 24V supply sent Sensor signal is 0V. The...
Operating Manual AZS01B and AZS04B 8 Technical Data Parameter AZS01B.M8 / AZS04B.M8 Detection range 16 mm [0.63“] Resolution 0.06 mm [0.002“] Measuring rate 2 ms Linearity ±0.05% @ -10 to 50°C [@ 14 to 122°F] Output Signal to 10 VDC Power Supply 24VDC (18 to 30VDC) Connector...
Page 12
Operating Manual AZS01B and AZS04B FMS Force Measuring Sys- FMS USA, Inc. FMS (UK) FMS (Italy) tems AG 2155 Stonington Avenue Aspstrasse 6 Aspstrasse 6 Aspstrasse 6 Suite 119 8154 Oberglatt (Switzer- 8154 Oberglatt (Switzerland) 8154 Oberglatt (Switzerland) Hoffman Estates,, IL 60169 land) Tel.
