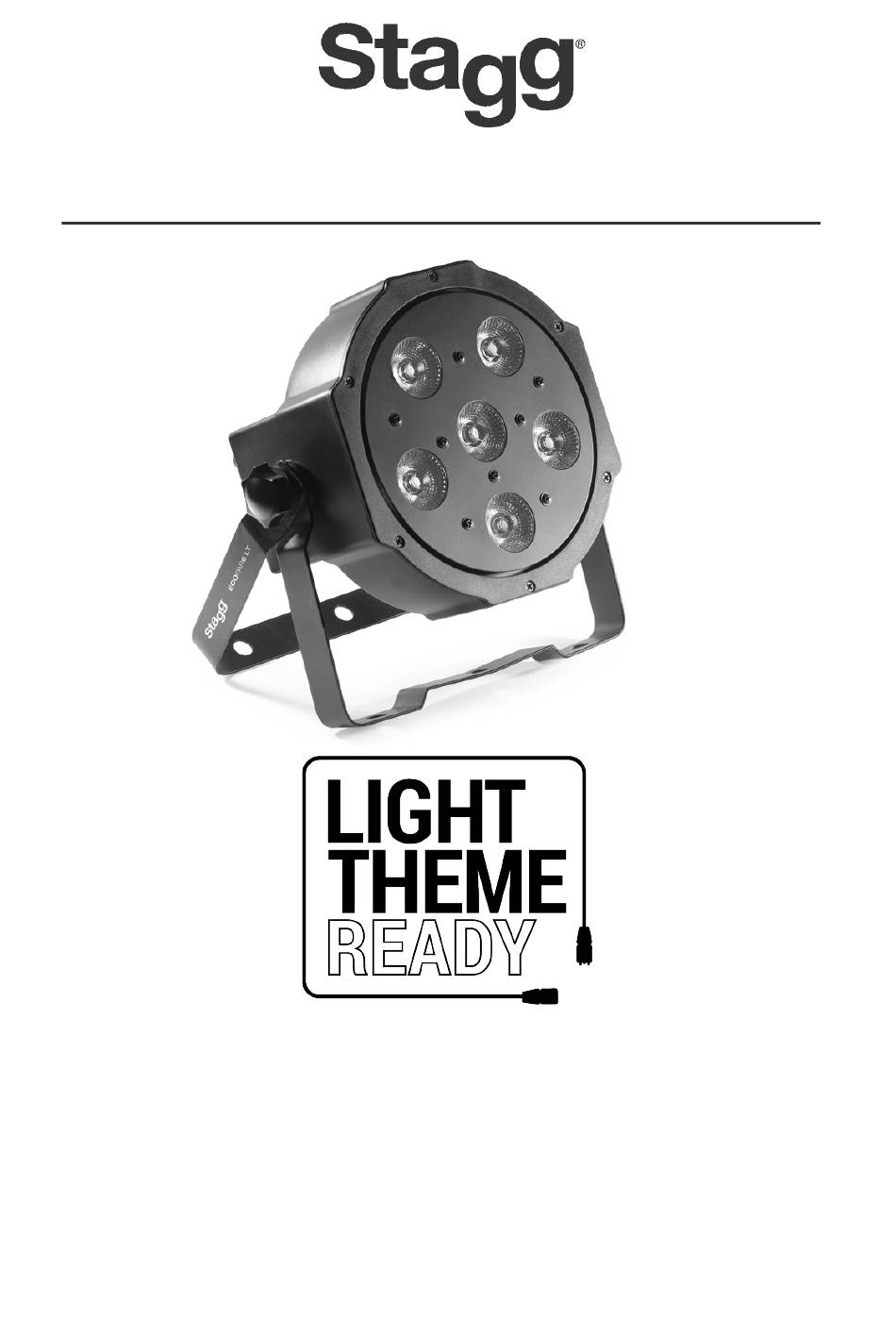

- Page 1 USER MANUAL Ecopar6 SLT-ECOPAR6 Please read the instructions carefully before use...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Please read the instructions carefully as they include important information about the installation, operation and maintenance. • Please keep this user’s guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •... -
Page 3: Installation
• Do not allow children unsupervised to operate the fixture. • Do not touch any wire during operation as there might be a hazard of electric shock. • Avoid placing power wires next to other cables. • Disconnect the mains power before replacing or servicing the fuses. •... -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS - 5 in 1 6x10W LED - Beam angle: 25° - Protocol: DMX-512. 2, 4, 7, 8 channels - Functions: DMX, Auto, Sound, LightTheme™ - Display: 4-digit - Housing: Plastic - Fixation: 2 brackets (to hang or lay the spotlight) - Input and output: 3-pin DMX and IEC in and out - Use: Indoor - Power consumption: 65 watts... - Page 5 SETTING UP THE DEVICE DMX mode (1 to 512) Addr A512 Channel selection mode cH02 cH05 cH07 chan cH08 LightTheme™mode Th-1 Se-1 Auto Se-9 Th-13 Menu Sn-1 Sou1 Sn-9 Sound mode Sn-1 Soun Sou2 Sn-9 Sn-1 Sou3 Sn-9 Co01 Manual colour mode R001~255 Co29 Colo...
- Page 6 DMX Mode With the menu button, select the DMX mode (Addr) and press the enter key to confirm. Then use the up and down buttons to choose the desired DMX channel (1 – 512) and press the enter key to confirm. Press the menu button to return to the main menu. Sound mode With the menu button, select the sound mode (Soun) and press the enter key to confirm.
- Page 7 LightTheme™ Mode Create a professional light show in just a few minutes – no programming time, plug-and- play, suitable for any moment of your event! Imagine a remote with buttons corresponding to different moods, dance styles, events, and more. Press a button and all LightTheme™ compatible lights connected by a DMX cable start their show, creating a complex and complete lighting presentation.
- Page 8 Using one LightTheme™ fixture Press the menu button, use the up and down buttons to select the Auto mode and press the enter key to confirm. Then, use the up and down buttons to choose the theme that best fit your mood (Th-1 to 13). Press enter again to control the sensibility to the music thanks to the up and down buttons (se-1 to 9).
- Page 9 Themes list 1. Wedding Dinner: A smooth blend of blue and purple illuminates the dining room like a fairy tale castle. 2. Ballad: A slow mix of colours brings love to the dancefloor. 3. Pop: Everybody dances when blue and red are your party colours. 4.
- Page 10 Channel selection mode With the menu button, select the channel selection mode (Chnd) and press the enter key to confirm. Then use the up and down buttons to choose the desired mode, that is 2- channel mode (2ch), 5-channel mode (5ch), 7-channel mode (7ch) or 8-channel mode (8ch).
- Page 11 DMX channels & Values: 7 channels mode Channel Value Function 0-255 Master Dimmer (0-100%) 0-255 Red(0%-100%) 0-255 Green(0%-100%) 0-255 Blue(0%-100%) 0-255 White(0%-100%) 0-255 Amber(0%-100%) 0-255 Strobe (0-100%) DMX channels & Values:8 channels mode When Channel 8 value is 0, Channels 1-7 will be assigned like 7channels mode. Channel Value Function...
- Page 12 When Channel 8 value is between 1-134, Channel Value Function 0-255 No Function 0-255 No Function 0-255 No Function 0-255 No Function 0-255 No Function 0-255 No Function 0-255 Strobe (0-100%) 1-134 Color Macros When Channel 8 value is between 135-215 Channel Value Function...
-
Page 13: Dmx512 Connections
Warning To avoid signal transmission problems and interferences when using fixtures in chain, use a Stagg N-series professional 3-pin DMX terminator (resistance: 120 ohms; pin2: DMX-; pin3:DMX+). FIXTURE CLEANING An internal cleaning must be carried out periodically to optimize the light output. The... - Page 14 For more info and last updates: staggmusic.com 12/2017...
