Summary of Contents for Stagg SLI FLATSET1
- Page 1 User Manual FLATSET SLI-FLATSET1...

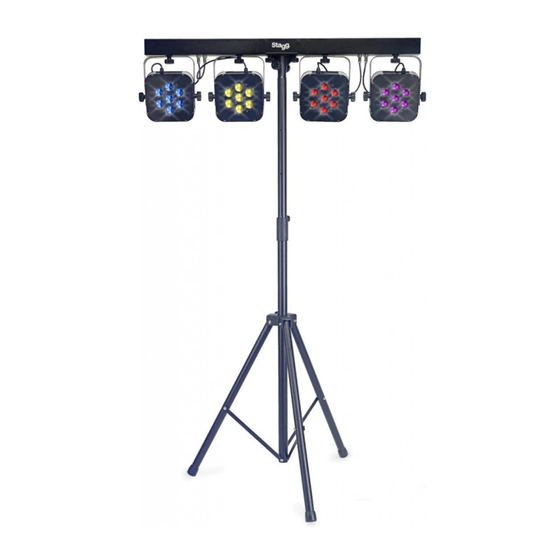

- Page 2 Introduction: The SLI FLATSET1 is a five or fourteen-channel set. It can be operated in three different modes; DMX control, sound activation or master/slave. The SLI FLATSET1 comes with several built-in programs.
- Page 3 On Board System Menu The SLI FLATSET1 comes with an easy to navigate system menu. This section will detail the functions of each command in the system menu. Please read this section thoroughly! To access the main menu press the ESC button. Press the UP or DOWN button until you reach the function you wish to change.
- Page 4 ChAS - This menu will let you select your desired chase mode 1. Press the ESC button and UP button or DOWN button until “ChAS” is displayed, then press ENTER. 2. “C x” will now be displayed. You can confirm chase modes by pressing UP or DOWN.
- Page 5 A DMX controller allows you to create unique programs tailored to your individual needs. 1. The SLI FLATSET1 uses two DMX channel modes. See below for detailed description of the DMX traits. 2. This will allow you to create your own programs.
- Page 6 DMX value and function (five-channel mode) value channel function 0 …… 255 (0%--100%) 0 …… 255 green (0%--100%) 0 …… 255 blue (0%--100%) 0 …… 255 speed (slow to fast) 0 …… 11 12 …… 23 chase1 24 …… 35 chase2 36 ……...
- Page 7 Note: The LED may flash when the 252 …… 255 sound 2 function speed value is between 8 and 255. Model: SLI FLATSET1 Voltage: 100~240V/ 50~60Hz Power Consumption: 176W LED Qty : 4 X 7 3W (3 in 1) LEDs Weight : 13.5kg...
- Page 8 IMPORTANT SAFETY INSTRUCTIONS READ AND KEEP THESE INSTRUCTIONS. HEED ALL WARNINGS. • If, after you have followed the instructions outlined above, this device fails to function, please contact your dealer. Under no circumstances should this device be opened. Leave all servicing to qualified personnel.
