Summary of Contents for DigitalZone Sound Switcher

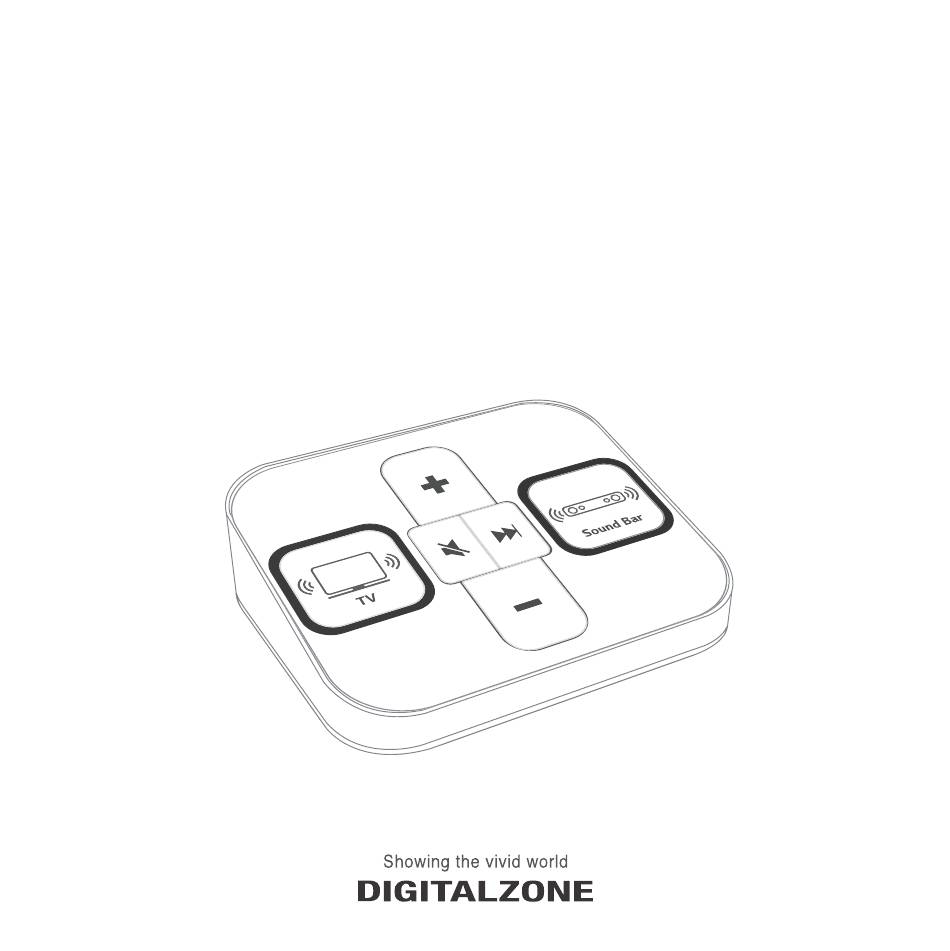

  • Page 1 Sound Switcher Installation Guide Installation Guide Please read carefully this Installation Guide before use.
  • Page 2 Sound Switcher...
  • Page 3: Table Of Contents

    Contents Included items TV Setting Sound Bar Setting How to Connect How to Use H/W Specification How to Update Contents Important Safety Instructions - 3 -...
  • Page 4: Included Items

    Included items 1) Package Contents Kensington lock Sound Switcher Installation Guide ‘Try Me’ POP (anti-theft) 2) Guide to Each Parts Volume Up Switch Input Mute (Complex Cable Connection) Play the next file (Skip function) TV Sound Sound Bar Built-in USB Memory...
  • Page 5: Tv Setting

    HDMI(ARC) Device # Make sure the sound comes out correctly when the TV speaker and sound bar button on Sound Switcher are pushed by turns. # If the sound does not come out normally even TV Speaker and Sound Bar button are switched well, check the connection status between products again.
  • Page 6 TV Setting (’2020) 1) Setting Store Mode TV can be set “Store Mode” up manually as follow. Setting → General → Additional Settings → Home/Store Mode (Store Mode) → Store Mode Settings 2) Built-in Video Deactivation. Select “Demo Options” in Setting menu There’s pop up menu in left or right bottom of screen if pressing “wheel button ( )”...
  • Page 7: Sound Bar Setting

    Sound Bar Setting 1) Check how to enter demo mode of sound bar Sound bar (Shop mode) Item SOUND SOUND Function Sound Effect Entering EFFECT EFFECT (*QP5 Only) demo mode Function Remote control Function Remote control Function AI Sound Pro Long press(5sec) Long press(5sec) Long press(5sec)
  • Page 8 If you don’t set up Sound bar Demo Mode, sound bar will be turned off automatically after certain time. Then, Sound Switcher is not working well. Select “OPT/HDMI ARC” function by pressing “F” button on remote controller or Sound bar.
  • Page 9: How To Connect

    How to connect 1) Connect Sound Switcher and TV Connect USB port and HDMI port of TV by using Sound Switcher Complex Cable. 2) Connect TV and Sound Bar Connect HDMI 2(ARC) of TV and HDMI output(TV ARC) of Sound Bar by using HDMI cable.
  • Page 10: How To Use

    How to Use 1) Initial TV connection IDLE Status - Playing Picture Quality contents / Volume : 0 Volume ‘+’ selected - TV sound output (Default Volume 30) 2) Select speakers to sound Select TV(①) Select Sound Bar(⑥) - TV button selected : Play Switcher Mode - Sound Bar button selected : Play Switcher Mode - Sound output : TV Speaker (Keep lighting LED ON ) - Sound output : Sound Bar (Keep lighting LED ON )
  • Page 11 How to Use 3-1) Default volume setting TV Default volume setting - Select TV(①) and set preferred volume. - Long pressing TV(①) button over 5 seconds. (until TV button LED blinking) SB Default volume setting (2019 model and above applied only) - Long pressing Sound Bar(⑥) button over 5 seconds.
  • Page 12 How to Use 5) IDLE state In IDLE state, Sound Switcher button LED turns on sequentially. LED lighting sequence ⑥ ① ②③④⑤ … ① ②③④⑤ Return to IDLE - Return idle state after 2 and a half minutes unless user input.
  • Page 13: H/W Specification

    H/W Specification Details & Usage Item Type Input Switch Input, USB Memory USB HID Value, CEC Command Output Firmware Upgrade POWER DC : 5V 0.5A (Using USB 2.0 power) WEIGHT 240g (Approximately) GENERAL 120 x 100 x 35(mm) DIMENSION OPERATING Ambient 0°C ~ 45°C TEMPERATURE - 13 -...
  • Page 14: How To Update Contents

    How to Update Contents (USB Updater) Update method : Download the app on smartphone and update the Sound Switcher APP installation Cable connection Update Install “LG Demo System Updater” Connect Master USB and Sound Update Master USB (new App in Google Play Store...
  • Page 15 How to Update Contents (USB Updater) 2. Connecting the Cable (Smartphone + Master USB + Sound Switcher) HDMI 1 1) Remove sound switcher’s complex cable from TV. 2) Connect the “Update Tool” cable to the phone micro USB port. Connect the “Update Tool” USB Cable to the TV USB Terminal.
  • Page 16 31_On Top xxxxxxxxx.mp4 Complet 4) (Option) Select Demo Kit Type 5) Press the "USB UPDATE" button 6) Close pop-up when update is - Type : Sound Switcher to update the video. complete. Update completed. - Region : Global - 16 -...
  • Page 17 7) Re-connect Sound Switcher to TV HDMI 1 with Complex Cable. # Do not remove the USB during the update. The sound switcher may not work properly if the update is not completed. # Formatting Formatting USB drive... Use as portable storage...
  • Page 18 How to Update Contents (Manual operation) How to update contents : Replace the mounted USB of Sound Switcher HDMI 1 1. Remove complex cable. 2. Unscrew to open top case. Remove USB USB insert 3. Replace the mounted USB. 4. Assemble top case.
  • Page 19: Important Safety Instructions

    Important Safety Instructions WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. NOTE ON RECYCLING (for EUROPE) This product’s packaging materials are recyclable and can be reused.
  • Page 20 Sound Switcher Rev 3.0 (Guro-dong, E&C VENTURE DREAM TOWER2), #1001, 55, Digital-ro33-gil, Guro-gu, Seoul, KOREA, 08367 TEL : +82-2-6330-2358 FAX : +82-2-6330-2345 http://www.dzonei.com / sales@digitalzone.co.kr...
