DigitalZone Sound Switcher Installation Manual

Hide thumbs Also See for Sound Switcher:

Advertisement

Quick Links

Download this manual
Sound Switcher
Installation Guide
Installation Guide
Please read carefully this Installation Guide before use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sound Switcher and is the answer not in the manual?

Questions and answers

Related Manuals for DigitalZone Sound Switcher

Summary of Contents for DigitalZone Sound Switcher

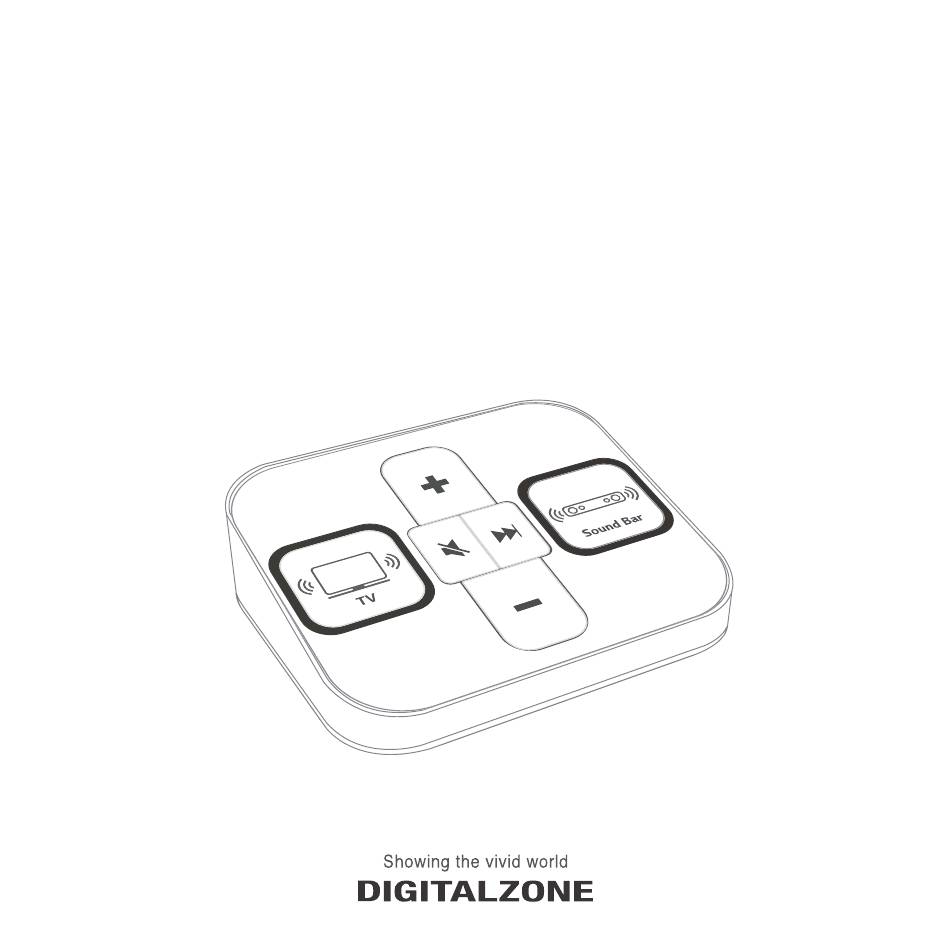

  • Page 1 Sound Switcher Installation Guide Installation Guide Please read carefully this Installation Guide before use.
  • Page 2 Sound Switcher...

  • Page 3: Table Of Contents

    Contents Included items TV Setting Sound Bar Setting How to Connect How to Use H/W Specification How to Update Contents Important Safety Instructions - 3 -...

  • Page 4: Included Items

    Included items 1) Package Contents Sound Switcher Installation Guide 2) Guide to Each Parts Volume Up Switch Input Mute (Complex Cable Connection) Play the next file (Skip function) TV Sound Sound Bar Built-in USB Memory Output Sound Output (APP + Content)

  • Page 5: Tv Setting

    TV Setting 1) Setting Store Mode. TTV will be “Store Mode” set it up manually as follow. Setting → General → Additional Settings → Home/Store Mode (Store Mode) → Store Mode Settings 2) Built-in Video Dactivation. Select “Demo Options” in Setting menu There’s pop up menu in left or right bottom of screen if pressing “wheel button ( )”...

  • Page 6: Sound Bar Setting

    Volume Mode # Make sure if corrected sound is output when you switch the TV Speaker and Sound bar button on Sound Switcher. # If you can switch TV Speaker and Sound Bar but output is not normal, check. connecting products again.
  • Page 7 Sound Bar Setting 2) Check how to enter demo mode of sound bar. Sound bar Sound bar (Internal source play mode) (Shop mode) Item ‘18 ‘19 `18 (SK5 Only) Power On Power On Power On Entering Remote Remote SOUND control control EFFECT demo mode...
  • Page 8 If you don’t set up Sound bar Demo Mode, sound bar will be turned off automatically after certain time. Then, Sound Switcher is not working well. Select “OPT/HDMI ARC” function by pressing “F” button on remote controller or Sound bar.

  • Page 9: How To Connect

    How to connect 1) Connect Sound Switcher and TV. Connect USB port and HDMI port of TV by using Sound Switcher Complex Cable. 2) Connect TV and Sound Bar. Connect HDMI 2(ARC) of TV and HDMI output(TV ARC) of Sound Bar by using HDMI cable.

  • Page 10: How To Use

    How to Use 1) Select speakers to sound Select TV(①) - Sound output : TV Speaker (Keep lighting LED ON ) - Default Volume : 30 (User changeable) Select Sound Bar(⑥) - Sound output : Sound Bar (Keep lighting LED ON ) - Default Volume : 30 (SL model only, User changeable) - TV Volume : Mute 2) Volume Control...
  • Page 11 How to Use 2-1) Default volume setting SB Default volume setting (SL model only) - Long pressing Sound Bar(⑥) button over 5 seconds. (until SB button LED blinking) - Set preferred Sound Bar volume. - Long pressing Sound Bar(⑥) button over 5 seconds to complete setting. (until SB button LED blinking) 3) Mute Select TV(①) and press Mute button(③) - TV Mute...
  • Page 12 How to Use 5) IDLE state In IDLE state, Sound Switcher button LED turns on sequentially. LED lighting sequence ⑥ ① ②③④⑤ … ① ②③④⑤ Return to IDLE - Return idle state after4 min 30 sminute unless user input. - LED turns on sequentially. (① ②③④⑤ ⑥ ① ②③④⑤ …) - TV Volume is changed to ‘0’.

  • Page 13: H/W Specification

    H/W Specification Details & Usage Item Type Input Switch Input, USB Memory USB HID Value, CEC Command Output Firmware Upgrade POWER DC : 5V 0.5A (USB2.0) WEIGHT 240g GENERAL 120 x 100 x 35(mm) DIMENSION OPERATING Ambient 0°C ~ 45°C TEMPERATURE - 13 -...

  • Page 14: How To Update Contents

    How to Update Contents How to update contents : Replace the mounted USB of Sound Switcher HDMI 1 1. Remove complex cable. 2. Unscrew to open top case. Remove USB USB insert 3. Replace the mounted USB. 4. Assemble top case.

  • Page 15: Important Safety Instructions

    Important Safety Instructions WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. NOTE ON RECYCLING (for EUROPE) This product’s packaging materials are recyclable and can be reused.
  • Page 16 Sound Switcher (Guro-dong, E&C VENTURE DREAM TOWER2), #1001, 55, Digital-ro33-gil, Guro-gu, Seoul, KOREA, 08367 TEL : +82-2-6330-2358 FAX : +82-2-6330-2345 http://www.dzonei.com / sales@digitalzone.co.kr...
