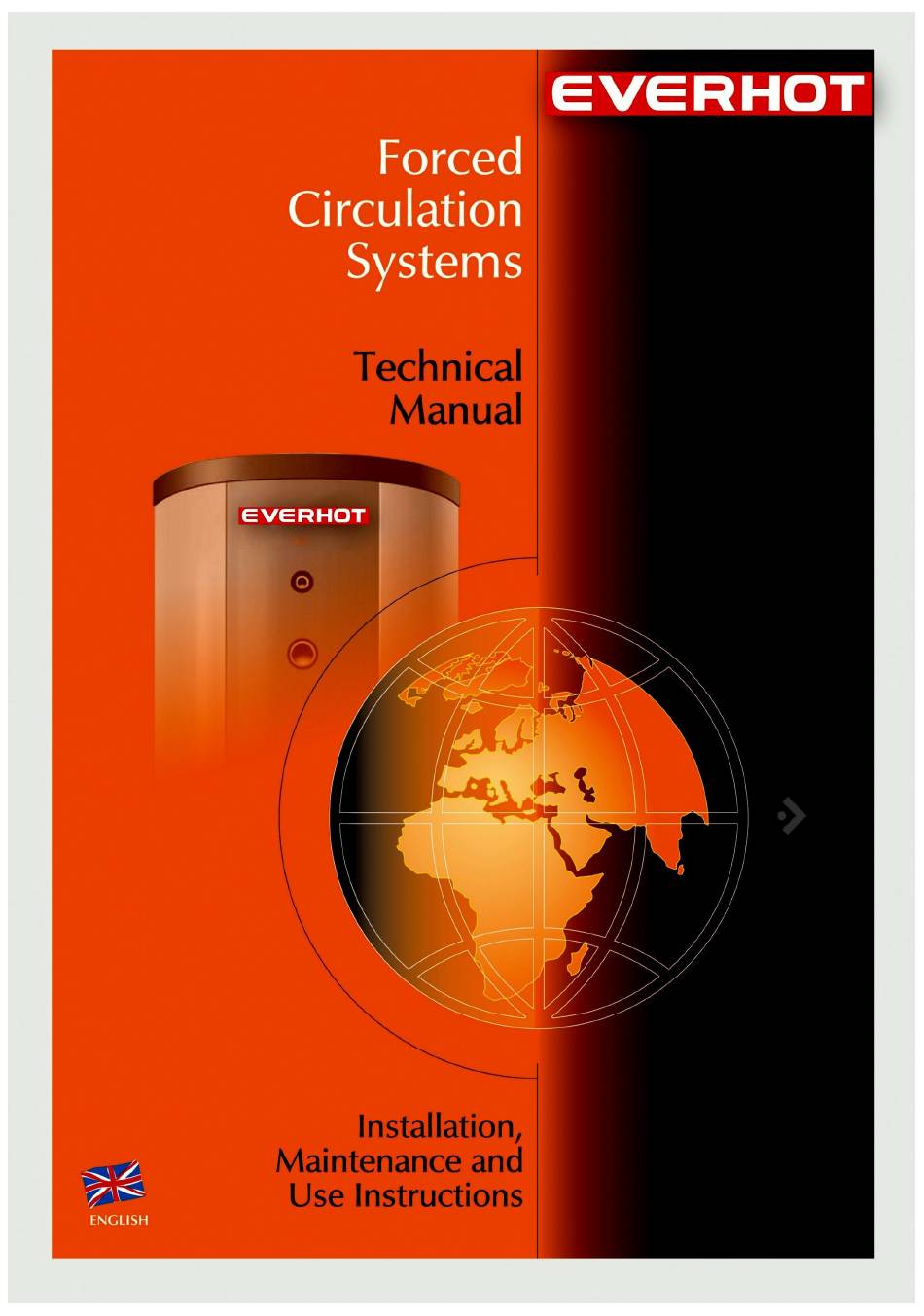

EverHot BL1 Series Technical Manual

Forced circulation systems

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the BL1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for EverHot BL1 Series

Page 2 A company that proposes sunny solutions, working with passion and devotion, for three decades now, to always offer the best. A philosophy that leads our steps, and makes us, as professionals, feel the weight of responsibility and obligation to offer products and services that are in harmony with the environment and man.
Page 3: Table Of Contents
• Solar collectors ..........Page 9 • Boiler EVERHOT type BL1, with one tube heat exchanger ..Page 16 •...
Page 4: Why Should We Use A Solar System
Is Ecologically friendly. Economical, Simple, aesthetic, Effective and autonomous: • Ecologically friendly: With a Everhot 500E system, the emissions of C0 Avoided Annually are equivalent to the fuel emissions of a car having run for 10.000 km.
Page 5 The forced circulation system EVERHOT consists of Thank you for choosing to buy a solar system EVERHOT Bl1 or Bl2. Every system which you acquire consists of: 1. Boiler with one tube heat exchanger (type BL1) or with two tube heat exchangers (type BL2) on a wooden palette and wrapped with stretch film.
Page 6 General Information on needs of hot water General Information When choosing a solar system for hot water we must first determine our needs for hot water, in quantity as well as in preferred temperature of consumption. The typical calculation for the temperature for consumption is 45ºC, but for the calculation of required quantity you must take into account the daily needs.
Page 7 General Information on needs of hot water Example: An installation of agro tourism is maintained by a family of 4 persons that live in the residence. During the period between May and August the average occupancy is 15 clients per day. For the occupants 2 meals are prepared per day and the dishwasher washes 5 times per day.
Page 8: Forced Circulation Kit - Function
Forced circulation kit Function When the difference in temperature between the sensor located in the solar collectors and the sensor located in the storage tank is greater than the ‘Differential Temperature’, adjusted on the differential thermostat, the circulator of the closed circuit starts up. This is located in the hydraulic kit.
Page 9 Models The solar collectors EVERHOT are produced in two types, ST-2000 (2,10 m ) and ST-2500 (2,61 m ), with blue titanium selective absorber...
Page 10 SOLAR COLLECTORS MODELS ST-2000 AND ST-2500 SELECTIVES Technical C h a r a c t e r i s t i c s : Absorber: a unique sheet Thermal Absorption: Thermal loss: Thickness: 0,2mm Coating: selective titanium Characteristics of the tubes: Diameter of the horizontal tubes: (22mm) (10mm ou 8mm)
Page 11 Efficiency curves of MEGASUN solar collectors , 24 C) ST 2000 Selective (2,10m ST 2500 Selective SUN-POWER Selective a. Test Nr: 1021 b. Test Nr: 30.0012.0-3 c. Test Nr 28601068 • Curve a: Test by DEMOKRITOS (Greece) n= 0,85 - 5,44 T* •...
Page 12 CLIMATIC DATA OF SELECTED WORLD CITIES...
Page 13 Energy output of the collector in several cities of the world (in kWh/m...
Page 14 GRAPHICAL REPRESENTATION OF ENERGY OUTPUT OF COLLECTORS IN SELECTED CITIES OF THE WORLD (in KWh/m ), in temperature 40°C Collector: ST 2000 selective- Base of results: Test of DEMOKRITOS, GREECE Collector: ST 2000 selective- Base of results: Test of DEMOKRITOS, GREECE Collector: ST 2000 selective (SUN-POWER) - Base of results: Test of TÜV BAYERN, GERMANY...
Page 15 Pressure drop in collectors – Calculations of Demokritos Institute ,26 C) , 24 C) Collector: ST 2000 selective (2,10 m Collector: ST 2500 selective (2,61 m Mass flowrate (Kg/s) Mass flowrate (Kg/s) For the systems 150 – 500, BL1 or BL2, the parallel connection of the solar Collectors is recommended water water...
Page 16 Technical C h a r a c t e r i s t i c s Description The EVERHOT boilers are manufactured according to European and German standards in the new state of the art solar boilers manufacturing facility and offer absolute safety in operation, great savings and a long lifespan.
Page 17 DESCRIPTION OF STORAGE TANKS 1. Top lange Φ115 2. Magnesium rod 3. Hot water outlet 1. Hot water outlet 4. Back-up heat exchanger inlet 2. Magnesium rod 5. Sensor inlet 3. Top flange Φ115 6. Recirculation connexion 4. Sensor inlet 7.
Page 18 Technical Specifications model Bl 150 Bl 200 Heat Exchangers Solar (lower) Heat Exchanger Back-up Heat Exchanger Solar (lower) Heat Exchanger Back-up Heat Exchanger (Bl1 models) (Bl2 models) (Bl1 models) (Bl2 models) Heat Exchanger Capacity 3.45 Heat Exchanger surface area lower Heat Exch. Flow Rate Pressure drop mbar Inlet temperature...
Page 19: Hydraulic Kit
Hydraulic kit Application As a pump, regulator and air venting valve in solar heating systems. With the hydraulic kit, hydraulic balancing, flow measurement and venting can be performed directly in the station. The built-in SETTER Inline UN allows the required quantity of fluid in the primary circuit to be exactly and simply set and checked.
Page 20 Hydraulic kit HYDRAULIC KIT 1) Circulation pump 6) Thermometer 10) Connector ADG for the 2) SETTER Inline UN 7) Stop ball valve with expansion vessel balancing valve Safety valve 11) Wall fixing 3) Venting tank with 8) Stop ball valve with fill 12) Packaging box bleeder valve and drain cock and...
Page 21 Hydraulic kit Specification text Includes: flow phase (venting side) and return phase (pump side) Is a ready-to-connect solar station for Measurement range Circulation pump circulation and venting of solar circuit 4,0 -16,0 l/min WILO ST 20/6-3 medium with mounting attachments. 1) k [m /h] with U=1 mm /s in the return phase (pump side)
Page 22: Differential Thermostat
Differential Thermostat TCD1 Description The programmable electronic thermostat secures the smooth transfer of thermal energy from solar collectors to the boilers via an electronic command to the circulator of the solar system. Differential Temperature Controller for solar systems, type TDC-1 by SOREL-Germany. The controller is user friendly through its digital screen, the information given (sensor’s temperature, operation status etc.) and could easily adapt to many different types of application.
Page 23 Basic Accessories (included in package) Connection Accessories All of the necessary connection accessories of each unit are located in an incorporated packaging which consists of the following: • Screws, bolts, nuts, moly plugs, etc. • Bronze cross • Connection raccords of collectors and plugs •...
Page 24 Optional Accessories (not included in kit) Electric Resistance On all BL1 & BL2 boilers, an electric resistance can be installed which is delivered upon a special order. The electric resistance 2 or 4 kW / 1~230V is delivered with the thermostat and a plastic cover.
Page 25: Forced Circulation Systems - Models
Forced Circulation Systems Models The systems are delivered with 1 tube heat exchanger on the boiler (BL1) for connection to solar collectors or with 2 tube heat exchangers on the boiler (BL2) for connection to solar col-lectors and central heating system. Every system can be delivered with an electric resistance 2kW or 4kW (upon request).
Page 26 Forced circulation solar systems Model BL 1 (without a helping source of energy - central heating boiler) 1. Solar collectors 2. Storage tank (boiler) 3. Hydraulic kit 4. Expansion vessel 5. Differential Thermostat 6. Circulator for recirculation of hot water (optional) 7.
Page 27: Installation Instructions
Installation Instructions 1. Before you start installing the solar water heater, please read be used. The installer has to choose, propose and install this carefully all the installation instructions stated and illustrated alternate equipment, always under the concurrent opinion of in this manual.
Page 28 Installation Instructions Screw the plates (B) onto the rectangular frame (A) ASSEMBLY INSTRUCTIONS + (C) or (E). Ensure that the plates (B) are tightly screwed on the holes of the plate (A). Loosely screw The same support base is used for both flat and the bottom plate (E) or (C) onto the plates (B).
Page 29 Installation Instructions Support base for 1 collector Support base for 2 collectors Support base for 3 collectors ST 2000 or ST 2500 (p. 30-31) ST 2000 or ST 2500 (p. 32-33) ST 2000 or ST 2500 (p. 34-35)
Page 30 Assembly diagram of the support base for one...
Page 31 collector ST 2500 on a flat or inclined surface attention: the plate (a) is connected plate (B) exactly as shown in the detailed.
Page 32 Assemply diagram of the support base for two attention: for the installation of two collectors on a tiled roof, the plates C are installed in the middle hole of the plates a.
Page 33 collectors ST 2500 on a flat or inclined surface attention: the plate a is con- nected to the plate B exactly as shown in the detailed diagram...
Page 34 Assembly diagram of the support base for three...
Page 35 Collectors ST 2500 on a flat or inclined surface Attention: In the installation of the support base with three collectors on a tiled roof the three plates C are not used.
Page 36: Connection Of Collectors And Accessories
Connection of collectors and accessories For the connection of two and three collectors to each other you must use the bronze connecting records as shown / ” are in diagrams. The bronze plugs connected diagonally on the collector(s). The bronze cross, the degasser and the sensor socket are connected to the outlet on the highest point of the collector(s) as shown in the photo.
Page 37 Connection of collectors and accessories...
Page 38 HYDRAULIC KIT Hydraulic KIT • For the connection of the hydraulic kit with the Attention: the expansion vessel must be closed circuit (collectors, tube heat exchanger isolated so as to minimize the overload of the which is located at the bottom part of the maximum functioning pressure.
Page 39 HYDRAULIC KIT...
Page 40: Electric Connections
ELECTRIC CONNECTIONS • • During the transport of the thermostats and during the For the installation of the differential thermostat, refer the process of installation avoid the hitting / banging, dropping of producer’s manual which is included in the package. the thermostats, because they can cause serious damage to •...
Page 41 The solar system can operate at extremely high temperatures. Please do not attempt to decommission the system yourself, as there is a risk of serious injury. There is also a risk of electrocution from 240VaC electricity. 1. Always wear appropriate Personal remove the fuse.
Page 42: Instructions To The End User And Installer
Instructions to the end user and installer INSTRUCTIONS TO THE END USER aND Material for their cover. not covered under warranty. Installer • The system does not use any electrical device • The tank must be full of water before filling the •...
Page 43: Installation Sheet
INSTALLATION SHEET (Filled out by installer, kept by client) Full name of client ............. Address / Telephone .
Page 44: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER (Filled out by installer, sent to manufacturer) After the installation is complete, the installer with the help of the check list below has to check all of the points which are noted and mark in the relevant column if it has been correctly done with YES or NO. lIST yES NO COLLECTORS AND EXTERNAL PIPING...
Page 45 WORLD WIDE RECOGNITION From the extensive research & the design… … to the final product The MEGASUN products are manufactured under the strictest International specifica- tions and their production is inspected at each productin stage. Each MEGASUN prod- uct has a SPECIAL QUALITY & INSPECTION IDENTIFICATION BADGE that certifies: •...
Page 46 World leader in Solar Water Heaters, 35 years before the others discovered the power of the sun Thirty five years of manufacturing Solar water Heaters means thirty years of innovating in the field, and introducing new technologies. Three decades of continuous development, combined with vast experience and extensive research have established mEGaSUN products as leaders in most world markets.
