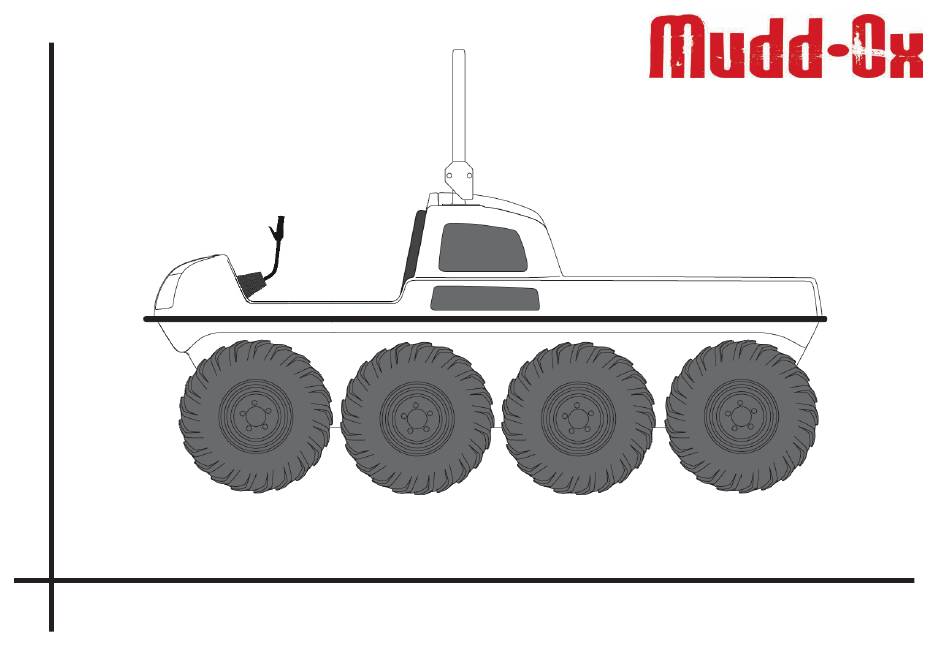

GT/XL 45 HP OWNER'S MANUAL
MUDD-OX, INC.
8525 W 750 N
260-768-7221
WWW.MUDDOX.NET
SHIPSHEWANA, IN 46565
MADE IN THE USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT 45 HP and is the answer not in the manual?

Questions and answers

Related Manuals for Mudd-Ox GT 45 HP

Summary of Contents for Mudd-Ox GT 45 HP

  • Page 1 GT/XL 45 HP OWNER’S MANUAL MUDD-OX, INC. 8525 W 750 N 260-768-7221 WWW.MUDDOX.NET SHIPSHEWANA, IN 46565 MADE IN THE USA...
  • Page 3 Mudd-Ox GT, XL, Fort Mac, and Vengeance to suit all your outdoor needs. Our journey has continued to be full of adventure. Safety is the number one concern at Mudd-Ox Inc. Please be sure to read and follow the operation manual to ensure the safety of yourself and others around the Mudd-Ox.

  • Page 5: Table Of Contents

    Table of Contents Identify Your Mudd-Ox................................1 Specifications....................................3 Warranty......................................7 Safety......................................9 Instrument Panel...................................13 Drive the Mudd-Ox................................17 Operation....................................19 Accessing the Mudd-Ox ..............................25 General Maintenance................................34 Track Installation ..................................35 Towing .......................................36 Maintenance ...................................37 Transportation..................................55 Jack Points....................................57 Storage ......................................58 Parts Manual ..................................60 Dimensions .....................................83 Contact Us ....................................68...

  • Page 6: Identify Your Mudd-Ox

    Mudd-Ox and obtaining a state-issued title. Do not remove the PIN plate from the Mudd-Ox. Locating the PIN On the interior of the Mudd-Ox in front of the parking brake handle locates the PIN plate. It is visible without removing any compo- nents, however removing the lower seat is recommended for best visibility.
  • Page 7 Identify Your Mudd-Ox Cont. Document the Information Write down the Model and PIN information just as it displays on the PIN plate to document your individual Mudd-Ox. Model: _______________________________________________________________ PIN: _______________________________________________________________...

  • Page 12: Warranty

    Limited Warranty: Mudd-Ox Inc. (“Mudd-Ox”) hereby warrants to the original purchaser that any components of your new Mudd-Ox vehicle manufactured by Mudd-Ox will be free from defects in material and workmanship for a period of (1) year from date of purchase or 500 hours, whichever comes first, exempt as otherwise noted.
  • Page 13 No Implied Warranty of Fitness or Merchantability: There are no warranties that extend beyond the description on the face hereof. Specif- ically, Mudd-Ox makes no other warranty of any kind, express or implied. All warranties of fitness or merchantability for a particular purpose that exceed the obligations and time limitations specified in this warrant are hereby disclaimed by Mudd-Ox and excluded from this warranty.
  • Page 14 Every operator MUST review and understand the basic operation manual and all warning labels displayed on this page and on the vehicle before operation. Please keep a copy in the glove box for operators to review as needed. *Note: Vehicle load capacities vary throughout models. Always review the labels on your specific Mudd-Ox.

  • Page 15: Safety

    Do not operate on public roads. Do not operate in waters with current or open water such as large lakes and oceans. Do not refuel the machine with the engine running. Do not operate the Mudd-Ox on angles greater than 25 degrees. Do not drive faster than conditions or your ability allows.
  • Page 16 The Mudd-Ox is capable of traveling to remote locations where emergency services are not readily available. These locations can range from desert to tundra climates. When traveling in the Mudd-Ox, always pack a survival kit suitable for all occupants in the vehicle. This includes but is not limited to: food, water, extra clothing, fuel, flashlight, portable heater, tent, flares, tools, spare parts, and spare tires mounted on rims.
  • Page 17 All Mudd-Ox operators and passengers must be aware of the wind chill factor. Always dress properly for the weather and cover exposed skin. Ensure young children are adequately dressed for cold temperatures. It is best to bring candles and blankets in case of emergency.
  • Page 18 8 9 10...

  • Page 19: Instrument Panel

    Using this switch without care could cause the vehicle start and immediately move depending on operator lever location. 10. Bilge Pump Switch: When in an emergency, if the Mudd-Ox has water in the lower body, quickly flip on the bilge pump switch. This will im- mediately begin to pump water out of the vehicle.
  • Page 20 8 9 10...
  • Page 21 Instrument Panel Mudd-Ox GT/XL Cont. 11. Windshield Wiper Switch: Only applicable on Mudd-Ox’s equipped with a windshield wiper. There is both a High and Low setting. High moves the blade quickly, while Low moves it slower. Select setting based on weather conditions and visibility.

  • Page 22: Drive The Mudd-Ox

    RPM, and the turtle for lower RPM. Full throttle will give you full power and torque. Half throttle will give you half power and torque, etc. The more you apply the throttle, the more power and speed you will be able to achieve. Note: It is not recommended to drive the Mudd-Ox...
  • Page 23 Control Levers You will use the control levers to change direction of the machine. There are two control levers on the Mudd-Ox. The left lever operates the left side wheels/track and the right lever operates the right side wheels/track. When you move the levers forward, the wheels/track will turn forward.
  • Page 24 Land Operation Land Load Capacity of the Mudd-Ox Make sure to observe the vehicle load limits on land (2,000 lbs.) less the weight of accessories, and distributed evenly. If the Mudd-Ox is overloaded, remove cargo as necessary. Vehicle Preparation Before operating the Mudd-Ox, complete the following vehicle preparation: •...
  • Page 25 Mud and Snow Always survey an area before driving the Mudd-Ox into unusual terrain. On soft grounds including but not limited to mud and snow, remain cautious about bottoming out the vehicle. This occurs when the Mudd-Ox tires or tracks are no longer touching the ground, and rather the machine is resting on the lower body.
  • Page 26 All occupants must unlatch their safety belts before entering water, remove DOT-certified helmets, and wear flotation devices. If the Mudd- Ox is equipped with an aluminum top, locate the exit hatch above the front seat and the side door handles. If the Mudd-Ox is equipped with a canvas top, unzip the doors and roll them up.
  • Page 27 Exiting Water Locate hard-packed shoreline at a 10 degree angle or less. Point the Mudd-Ox straight. Slowly and gently drive the vehicle out of the water. Too much throttle will cause the tires to dig into the shore, and not drive the vehicle out. If the vehicle begins to exit at an angle, reverse and point it straight again.

  • Page 28: Operation

    Winch Operation All Mudd-Ox’s come standard with a front winch and optional rear. It is important to understand the abilities and limits of your winch. For information of your exact winch and proper use of snatch block, refer to the manufacturer’s specifications and owner’s manual.
  • Page 29 8. It’s time to reel in the winch line. One person must grab onto the winch hook and gently pull it away from the Mudd-Ox. This keeps ten- sion on the line to wind it back in tight. Another person must operate the winch switch. As the winch begins to reel the line in, the person holding the hook must slowly “aim”...

  • Page 30: Accessing The Mudd-Ox

    Accessing the Mudd-Ox GT/XL The Mudd-Ox was designed with ease of maintenance in mind. We understand the need for quick and painless access to all compo- nents of the machine. Listed on the next few pages are detailed photographs displaying the key components to removing large parts.
  • Page 31 Open engine compartment. Quickly removed parts without tools. Overview of the rear chassis. Hydraulic drivetrain under the operator’s seat.
  • Page 32 Before removing the engine cover, you must remove the two bottom seats locat- ed at the rear of the Mudd-Ox. Next, locate the two latches on top of the engine cover and remove them. Carefully lift the engine cover out of its track and pull...
  • Page 33 Drain Plugs Access Located at the rear of the Mudd-Ox, near the bottom of the lower body, are two drain plugs. One is installed per side of the machine. Twist the plugs to the left to loosen, right to tighten. Each plug is designed to unscrew from the lower body, and will dangle rather than pull completely out.
  • Page 34 Relay Pictured is a relay removed from its mount. Each relay has terminals extending from the bottom which dictate the direction it is installed on the Mudd-Ox. It will only install facing a certain direction. Fuse All individual fuses on the Mudd-Ox are place inside weatherproof caps. Remove the cap to gain access to the fuse.
  • Page 35 Fuse and Relay Location 1 Located directly behind the Mudd-Ox instrument panel are 2 fuses. One of these powers the USB ports, and the other a cigarette lighter. Alongside this are 3 re- lays. There are 2 relays in line with one another, these are for the neutral safety system.
  • Page 36 Located on the driver side engine right above the battery is a fuel shutoff valve (X). To use this feature, an individual must either rotate the valve towards the front of the Mudd-Ox and hold it, or use a zip-tie to secure the valve forward. When finished, return valve back to its normal position.
  • Page 37 Fuel Water Separator Located on the driver side engine, behind the battery, is a fuel water separator. This filter is used to prevent contaminated fuel from injecting into the engine. To remove water from the separator, loosen the nut at the bottom of the filter. Water will drain out.
  • Page 38 Coolant Fill Located on the driver side engine compartment near the exhaust is the cool- ant reservoir and overflow tank. The overflow tank has decals which show when coolant is either full or low, and needs to be filled. Also fill the coolant reservoir. See page 39.

  • Page 39: General Maintenance

    12 psi with tracks All tires on the Mudd-Ox must have equal tire pressure to prevent the vehicle from pulling to one side. Before inflating tires, verify the valve stem, tire, and rim do not have any cracks or stress marks. Damaged components may be dangerous to occupants.

  • Page 40: Track Installation

    2. Set (2) long, heavy duty ratchet straps down in front of the Mudd-Ox. Spread them across the ground parallel to the vehicle. These will later be used to pull the ends of the tracks together.

  • Page 41: Towing

    3. If the master links are easily visible and the chains can be removed, move to step #7. If not, continue to step #4. 4. In order to freely move the Mudd-Ox, you must relieve the brakes on the (2) inline hydraulic pumps. This is a simple task. On the bottom of each pump there is (1) towing bolt, thus (2) total.
  • Page 42 Identifying a Blown Fuse In the event an electrical component on the Mudd-Ox is no longer working, it may be the result of a blown fuse or bad relay. As seen on the next page, locate the specific fuse controlling the component that is non-operational. On most occasions, it is possible to simply remove the fuse and identify if it is blown.
  • Page 43 If this is the case, fix immediately. Replace the corre- sponding fuse and reinstall battery. Note: When replacing wire, always maintain Mudd-Ox specifications. Do not change gauge of wire, install additional connectors, or change routing of wire.
  • Page 44 Engine Coolant Bleeding the System A brand new Mudd-Ox will not have a fully bleed cooling system. Meaning, there may be air bubbles that must be “driven” out of the system. 1. Drive the Mudd-Ox at operating temperature. 2. Let the engine completely cool down.
  • Page 45 This example will utilize the driver side front. 3. Safely raise the driver front side of the Mudd-Ox. You may raise just enough to lift the first axle off the ground, or both. It does not matter. 4. Now you can manually rotate the raised tires. They will not rotate more than a few degrees as the parking brake is engaged. Carefully look inside the Mudd-Ox as you manually rotate the tires.
  • Page 46 Chain Tensioning Chain Adjustment Steps 1. Complete steps #1-6 on page 40. 2. Locate all the chain tensioners as shown in the diagram on the next page. Although the rear tensioners (A) look different than the fronts (B) they adjust in a similar manner. For the (A) tensioners you will need a 3/4” wrench and (B) a 1-1/8 wrench. It is preferred to also have these re- spected sizes on a ratcheting socket for quick adjustment, although not necessary.
  • Page 47 Chain Tensioner Locations...
  • Page 48 “clunking” or “clicking” sound. These noises are a result of a worn chain. If the sprocket is also worn, see pages 61-63 for replacement. 1. First, park the Mudd-Ox on flat ground. Remove the floor board over the respected chain that needs replaced. Shown as “A” in Figure-1, there is a master link that holds the chain together.
  • Page 49 Chain Locations Below is a passenger side view of a Mudd-Ox chassis with yellow arrows. These display the chain’s direction of travel when the Mudd-Ox is driving forward. The top section of the chain moves towards the front of the vehicle, while the bottom section moves towards the back.

  • Page 50: Maintenance

    1. Safely raise the Mudd-Ox and remove all tires, floor boards, lower seats and engine cover. Next locate all bearings as shown in the diagram on the next page. Mudd-Ox GT/XL has 24 axle bearings. For each axle, there are 2 bearings outside the body and 1 inside. Total 3 bearings per axle (Figure-1).
  • Page 51 Mudd-Ox Axle Bearing Locations Inner Axle Bearings (8 total) Outer Axle Bearings (16 total)
  • Page 52 A. The control lever(s) have excessive slack in neutral position, and do not have linear engagement throughout the entire stroke. B. Ensure Mudd-Ox is shut off. Remove the lower operator seat and locate the z-bars (Figure-1). Move the right side control lever while looking at the front most z-bar.
  • Page 53 2. Remove operator lower seat. Locate the brake calipers. There are (2) per Mudd-Ox, one above each brake rotor (Figure-1). 3. Start with the driver side brake caliper. Towards the inside of the Mudd-Ox, there is a bolt with jam nut. Use an 11/16 wrench to loosen the jam nut.
  • Page 54 Follow the hose down and there will be a valve with a drain. 2. There are multiple ways to drain the engine oil. It is important to not remove the drain plug/open the drain valve and let oil into the Mudd-Ox body.
  • Page 55 At least (3) mechanics are recommended for these steps. Thoroughly read and understand the steps before attempting. 1. Remove lower operator seat and engine cover. Safely raise the Mudd-Ox with all tires off the ground. It must be high enough that the tires can drive forward and backwards without dragging the ground.
  • Page 56 Hydraulic Oil Change Cont. 9. Although the Mudd-Ox has new AW-46 oil in the tank and new oil filters, there is still old oil inside the hydraulic system past the tank. It’s time to run new oil through the system to push the old oil out via the return line. Locate the hydraulic oil return line. This is on top of the oil tank as shown in Figure-2, D.
  • Page 57 “tight” if the pumps have air. If there is air, do not attempt to drive against it. Work the control levers as in step #18. 20. Once the Mudd-Ox can be driven on flat ground in both directions without any air, attempt to drive on small grades both up and down. Also attempt to counter-rotate the Mudd-Ox by pushing the control levers in opposite directions.
  • Page 58 “Swamping” refers to the unfortunate event when a Mudd-Ox fills with water. This can be caused by improper use of the vehicle such as en- tering large bodies of water and water with current. If safely possible, shut off the Mudd-Ox before it fills with water. A running machine can be faced with fatal mechanical failure if submerged in water.
  • Page 59 Repairing a Swamped GT/XL Cont. 9. At this point the hydraulics, engine oil, engine coolant, and fuel system should be prepared. Now, complete steps #12-13 on page 51. Note: Water will most likely spray out of the injector holes. It is recommended to put cardboard next to the holes to prevent water from spraying inside the vehicle.

  • Page 60: Transportation

    A total of (4) tie down straps are needed to adequately transport the Mudd-Ox. You will install one strap per each side. There are (2) ends to a strap, and will be notated as A and B. Simply connect A to a tie down point on the trailer, loop B around the Mudd-Ox bearing box, then connect it to the same tie down point as A (Figure-1).
  • Page 61 Transportation Cont. Figure-3 Figure-1 Figure-2 Standard Setup Tie Down Accessory...

  • Page 62: Jack Points

    They’re molded around the inner frame, providing absolute strength and stability. 2. Use a floor jack and block of wood rated to hold the weight of the Mudd-Ox including all installed accessories and cargo. Place wood on top of jack, and begin to lift the vehicle as shown in Figure-1.
  • Page 63 5. Completely drain fuel or add fuel stabilizer (See page 53 #7-8). 6. The next step is to remove weight off the tires. Carefully raise the Mudd-Ox. Place large wooden blocks under each side of the lower body (See Figure-1). This is to support the Mudd-Ox by its frame.

  • Page 65: Parts Manual

    PARTS MANUAL...
  • Page 67 M-1002-XL XL Black Skid Plate M-1003-GT GT Black Lower Body M-1003-XL XL Black Lower Body M-1005 GT Front Upper Seat M-2949 XL Front Upper Seat M-3239 Mudd-Ox Roll Bar Sticker M-1006 GT Rollbar M-1448 XL Rollbar M-1006-R GT Rear Rollbar M-1857...
  • Page 69 Ref. Qty. Part # Description M-1030-G Passenger Headlight Cover - Green M-1034 Headlight Grommet M-1271 Headlight LED M-1354 5,000 lb. Winch M-1860 Roller Fairlead M-1559 Winch Plate M-3350 Remote Winch Plug M-1169 Brush Guard (Standard) M-1991 Brush Guard (XL) M-1035-G Driver Headlight Cover - Green M-1418 GT Windshield...
  • Page 71 XL Rear Supper Seat Back M-1022 GT Rear Seat Mount Hoop M-1447 XL Rear Seat Back Hoop M-1027 Tail Light Grommet M-1023 Tail Light M-1026 Rub Rail Clip M-1389 Mudd-Ox Drain plug M-1024 Rear Hitch M-1633 XL/GT Tie Down (Bearing Box)
  • Page 73 Ref. Qty. Part # Description M-3150 20" Ripsaw Track (XL) M-1020 Track Keeper M-2373 550 Track Lacing M-1413 Fender Kit M-1015 Mudd-Ox Badge M-1014 Grab Handle M-3169 Bilge Outlet M-1919 Screen-GT M-1691 Screen-XL M-1013 Grab Handle M-1920 Screen-GT M-1692 Screen-XL...
  • Page 74 11 10...
  • Page 75 Ref. Qty. Part # Description M-1039 45 HP Dash Panel M-1041 Rubber Handle Grip M-1925 "Driver" Safety Warning Label M-1419 Windshield Wiper Assembly M-2189 Wiper Blade M-1208 T-Bar Cover Plate M-1044 T-Bar Handle M-1043 "Weight Limit" Warning Label M-1926 "Floor Pan" Warning Label M-1049 Hitch pin M-1044-2...
  • Page 77 Ref. Qty. Part # Description M-1242-2 GT Kickboard (Alum.) M-1243-2 XL Kickboard (Alum.) M-1273 2" Velcro - Hook M-1385 Brake Caliper (Right) M-1221 Disc Brake M-1382 Brake Cable (84") M-1422-1 GT L Seat Panel M-1423-1 XL L Seat Panel M-1019 Seat Belt Latch M-1012 Parking Brake Handle...
  • Page 79 Ref. Qty. Part # Description M-2368 50cc Hydraulic Pump M-1070 Detent Spring M-1069 5/8" Dentent Ball M-1194 Neutral Detent Base M-1232 Lower Detent Plate M-2726 Neutral Safety Switch M-1206-F Front "Z" Bar M-1933 Dampener M-1077-2 Ball Stud M-1206-R Rear "Z" Bar M-3218 Steering Cable M-3513...
  • Page 81 Ref. Qty. Part # Description J-Hook (Battery Hold Down) M-1400 Battery M-1097 Battery Terminal M-1374 Hood Support (Pulley Guard) M-1125 Air Intake Hose Support M-1123 Diesel Intake Hose Assembly M-1098 Hydraulic Line 3396 Aluminum Coolant Fill Canister M-3219 Mounting Bracket M-1438 Coolant Hose M-3415...
  • Page 83 Ref. Qty. Part # Description 14" Radiator M-2188 Hydraulic Oil Cooler M-1898 13" Radiator Fan M-2180 Upper Radiator Clamp M-1081 RH Radiator w/Oil Cooler M-1082 Lower Radiator Clamp M-1083 LH Rear Seat M-1088 Fuel Sending Unit M-3260 M-1841 XL Fuel Tank (Standard) RH Rear Seat M-1092 Fuel Tank Cap (Non-Vented)
  • Page 85 Qty. Part # Description XL Axle Tube Spacer (3.650'') M-1427 Rear Chain Tensioner M-1051 M-1426 XL Axle Tube Spacer (1.900'') 18 Tooth Sprocket M-2202 94 Pitch 60-2 Chain M-3511 60-2 Master Link M-1386 Front Chain Tensioner M-1052 Front Tensioner Jam Nut M-1278 Front Tensioner Rod M-1057...
  • Page 87 Qty. Part # Description 400 Series Hydraulic Motor M-2368 XL Axle Tube Spaces (1.550'') M-1425 M-3598-14T 14T Drive Sprocket 24T D60 Sprocket M-1321 207 Flange (Inner) M-2459 207 Flange (Outer) M-2458 Inner Axle Bearing M-2455 XL Axle End Washer M-1441 Axle Nut M-2042 1/2-20 Lug Bolt...
  • Page 88 Mudd-Ox XL Dimensions on Vendetta 26x14x12 Tires...
  • Page 89 Mudd-Ox XL Dimensions on Vendetta 26x14x12 Tires w/ Chevron Tracks...

  • Page 91: Contact Us

    Feel free to send us pictures and stories about your Mudd-Ox. We enjoy the unique story of each individual machine; the satisfaction of our customers is very important. You may also share on our social media pages where latest Mudd-Ox news is posted.
  • Page 92 Address : 8525 W 750 N Shipshewana, IN 46565 Phone : +1 260 768 7221 Web : www.muddox.net © Mudd-Ox, Inc. Ver 200603 All specifications subject to change without notice.
