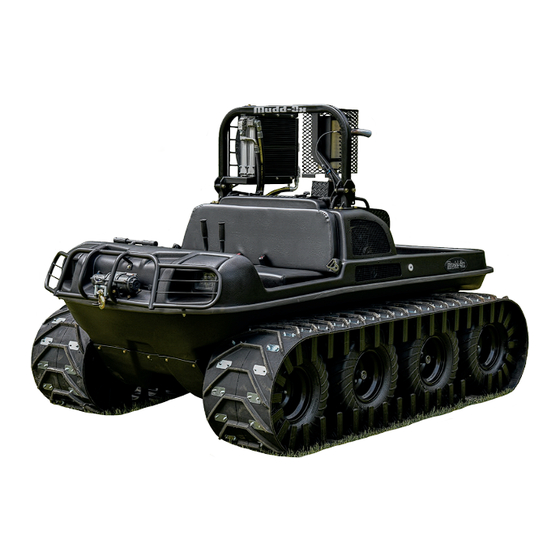

FORT MAC 85 HP OWNER'S MANUAL
MUDD-OX, INC.
8525 W 750 N
260-768-7221
WWW.MUDDOX.NET
SHIPSHEWANA, IN
MADE IN THE USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORT MAC 85 HP and is the answer not in the manual?

Questions and answers

Related Manuals for Mudd-Ox FORT MAC 85 HP

Summary of Contents for Mudd-Ox FORT MAC 85 HP

  • Page 1 FORT MAC 85 HP OWNER’S MANUAL MUDD-OX, INC. 8525 W 750 N 260-768-7221 WWW.MUDDOX.NET SHIPSHEWANA, IN MADE IN THE USA...
  • Page 3 Mudd-Ox XL, Fort Mac, and Vengeance to suit all your outdoor needs. Our journey has continued to be full of adventure. Safety is the number one concern at Mudd-Ox Inc. Please be sure to read and follow the operation manual to ensure the safety of yourself and others around the Mudd-Ox.

  • Page 5: Table Of Contents

    Table of Contents Identify Your Mudd-Ox................................1 Specifications....................................3 Warranty......................................5 Safety......................................8 Instrument Panel..................................11 Drive the Mudd-Ox................................15 Operation....................................17 Accessing the Mudd-Ox ..............................23 Track Installation ...................................31 Towing .......................................32 General Maintenance .................................33 Bolt Torque Specs ................................33 Storage ......................................47 Parts Manual ...................................48 Dimensions .....................................67 Contact Us ....................................68...

  • Page 6: Identify Your Mudd-Ox

    Mudd-Ox and obtaining a state-issued title. Do not remove the PIN plate from the Mudd-Ox. Locating the PIN On the interior of the Mudd-Ox in front of the parking brake handle locates the PIN plate. It is visible without removing any compo- nents, however removing the lower seat is recommended for best visibility.
  • Page 7 Identify Your Mudd-Ox Cont. Document the Information Write down the Model and PIN information just as it displays on the PIN plate to document your individual Mudd-Ox. Model: _______________________________________________________________ PIN: _______________________________________________________________...

  • Page 10: Warranty

    Limited Warranty: Mudd-Ox Inc. (“Mudd-Ox”) hereby warrants to the original purchaser that any components of your new Mudd-Ox vehicle manufactured by Mudd-Ox will be free from defects in material and workmanship for a period of (1) year from date of purchase or 500 hours, whichever comes first, exempt as otherwise noted.
  • Page 11 No Implied Warranty of Fitness or Merchantability: There are no warranties that extend beyond the description on the face hereof. Specif- ically, Mudd-Ox makes no other warranty of any kind, express or implied. All warranties of fitness or merchantability for a particular purpose that exceed the obligations and time limitations specified in this warrant are hereby disclaimed by Mudd-Ox and excluded from this warranty.
  • Page 12 Every operator MUST review and understand the basic operation manual and all warning labels displayed on this page and on the vehicle before operation. Please keep a copy in the glove box for operators to review as needed. AWARNING AWARNING VEHICLE LOAD CAPACITY ON LAND: 907 kg (2,000 lbs) TOWING CAPACITY:...

  • Page 13: Safety

    Do not operate on public roads. Do not operate in waters with current or open water such as large lakes and oceans. Do not refuel the machine with the engine running. Do not operate the Mudd-Ox on angles greater than 25 degrees. Do not drive faster than conditions or your ability allows.
  • Page 14 Make sure to observe the vehicle load limits on land (2,000 lbs.) and in the water (1,000 lbs.) less the weight of accessories, and distributed evenly. Only operate the Mudd-Ox in calm water. Under no circumstances should you operate a Mudd-Ox in open waters with a snow plow attached.*...
  • Page 15 All Mudd-Ox operators and passengers must be aware of the wind chill factor. Always dress properly for the weather and cover exposed skin. Ensure young children are adequately dressed for cold temperatures. It is best to bring candles and blankets in case of emergency.
  • Page 16 11 12 7 8 9 10 13 14 17 18...

  • Page 17: Instrument Panel

    Leave enough fuel to return back to your starting location. 7. Range Switch: This switch controls the High and Low range of the Mudd-Ox. High range is only to be used for travel. Any work or pulling of trailers must be done in low range.
  • Page 18 11 12 7 8 9 10 13 14 17 18...
  • Page 19 Instrument Panel Cont. 11. Windshield Wiper Switch: Only applicable on Mudd-Ox’s equipped with a windshield wiper. There is both a High and Low setting. High moves the blade quickly, while Low moves it slower. Select setting based on weather conditions and visibility.

  • Page 20: Drive The Mudd-Ox

    Range High range will allow the Mudd-Ox to reach its top speed, while Low range is limited. High range is only to be used for travel. Any work or pulling of trailers must be done in low range. Always come to a complete stop with the control levers in neutral position before changing range.
  • Page 21 Control Levers You will use the control levers to change direction of the machine. There are two control levers on the Mudd-Ox. The left lever operates the left side wheels/track and the right lever operates the right side wheels/track. When you move the levers forward, the wheels/track will turn forward.

  • Page 22: Operation

    Land Operation Land Load Capacity of the Mudd-Ox Make sure to observe the vehicle load limits on land (2,000 lbs.) less the weight of accessories, and distributed evenly. If the Mudd-Ox is overloaded, remove cargo as necessary. Vehicle Preparation Before operating the Mudd-Ox, complete the following vehicle preparation: •...
  • Page 23 Mud and Snow Always survey an area before driving the Mudd-Ox into unusual terrain. On soft grounds including but not limited to mud and snow, remain cautious about bottoming out the vehicle. This occurs when the Mudd-Ox tracks are no longer touching the ground, and rather the ma- chine is resting on the lower body.
  • Page 24 All occupants must unlatch their safety belts before entering water, and wear flotation devices. If the Mudd-Ox is equipped with an alumi- num top, locate the exit hatch above the front seat and the side door handles. If the Mudd-Ox is equipped with a canvas top, unzip the doors and roll them up.
  • Page 25 Exiting Water Locate hard-packed shoreline at a 25 degree angle or less. Point the Mudd-Ox straight. Slowly and gently drive the vehicle out of the water. Too much throttle will cause the tires to dig into the shore, and not drive the vehicle out. If the vehicle begins to exit at an angle, reverse and point it straight again.
  • Page 26 Winch Operation All Mudd-Ox’s come standard with a front winch and optional rear. It is important to understand the abilities and limits of your winch. For information of your exact winch and proper use of snatch block, refer to the manufacturer’s specifications and owner’s manual.
  • Page 27 7. After the Mudd-Ox has been recovered: Set parking brake, remove weighted object, remove hook from strap, and remove strap from tree. 8. It’s time to reel in the winch line. One person must grab onto the winch hook and gently pull it away from the Mudd-Ox. This keeps tension on the line to wind it back in tight.

  • Page 28: Accessing The Mudd-Ox

    Accessing the Mudd-Ox Fort Mac The Mudd-Ox was designed with ease of maintenance in mind. We understand the need for quick and painless access to all compo- nents of the machine. Listed on the next few pages are detailed photographs displaying the key components to removing large parts.
  • Page 29 Open engine compartment. Quickly removed parts without tools. Overview of a wheel motor. Hydraulic pumps under the operator’s seat.
  • Page 30 Bottom Seats Removal Three lower seats in the Mudd-Ox are held in by industrial Velcro. To remove these seats, simply pull up until the Velcro has separated, and remove them from the vehicle. Front Seat Back Removal Removing the operator seat back will provide access for maintenance on the Mudd-Ox.
  • Page 31 Drain Plugs Access Located at the rear of the Mudd-Ox, near the bottom of the lower body, are two drain plugs. One is installed per side of the machine. Twist the plugs to the left to loosen, right to tighten. Each plug is designed to unscrew from the lower body, and will dangle rather than pull completely out.
  • Page 32 On the passenger side of the Ford 85 HP engine is an oil filter (X). This is in front of the hydraulic oil tank inside the Mudd-Ox. See page 40 for oil change instructions. Ford Service Part Number: 1S7G-6714-DA Motorcraft: FL-910 Ford Air Filter The top of the engine has a large air K&N filter.
  • Page 33 Hydraulic Oil On both sides of the engine compartment is a large, silver cap for filling hydraulic oil. Verify the oil is full by looking at the clear sight glass mounted to the side of the tank. As noted on the warning label, hydraulic oil must be 1.5’’ from the top of the sight glass.
  • Page 34 Fuse All individual fuses on the Mudd-Ox are place inside weatherproof caps. Remove the cap to gain access to the fuse. At the top of each fuse is a number. This dic- tates the number of amps it is rated for. Always replace a fuse with the same...
  • Page 35 Relay Pictured is a relay removed from its mount. Each relay has terminals extending from the bottom which dictate the direction it is installed on the Mudd-Ox. It will only install facing a certain direction. Identifying a Blown Fuse Sometimes a blown fuse is visible to the human eye. Inside the fuse is a small, metal strand (X).

  • Page 36: Track Installation

    Track Installation 1. Set the tracks in front of the Mudd-Ox, completely flat with the tread pattern facing down. For Chevron tracks, set the “V” pattern crest pointing towards the back of the machine just as the tires do (Figure-2).

  • Page 37: Towing

    Towing 1. Remove lower operator seat. Locate the towing bolts underneath the pumps on the passenger side. They are in line with the main hydraulic drives on both pumps. There is (1) bolt per pump, thus (2) total (See Figure-1, 2). Loosen both towing bolts by turning 1 to 1-1/2 turns coun- terclockwise.

  • Page 38: General Maintenance

    General Maintenance To ensure longevity of the Mudd-Ox, always perform the required maintenance as written throughout this manual. Basic maintenance is quick and simple. Taking the time to care for your Mudd-Ox will gain positive returns on quality of operation.
  • Page 39 A. The control lever(s) have excessive slack in neutral position, and do not have linear engagement throughout the entire stroke. B. Ensure the Mudd-Ox is shut off. Remove the lower operator seat and locate the z-bars (Figure-1). Move the right side control lever while looking at the frontmost z-bar.
  • Page 40 Bearing Maintenance Axle bearings require basic maintenance to keep both the bearing healthy and prevent premature replacement. This is achieved by greasing each individual bearing through its grease fitting. Grease bearings every 25 hours or after each use in water/mud, whichever comes first. Steps 1.
  • Page 41 Axle Bearing Locations X: Center axle bearing location on Mudd-Ox Fort Mac.
  • Page 42 Identifying a Blown Fuse In the event an electrical component on the Mudd-Ox is no longer working, it may be the result of a blown fuse or bad relay. As seen on the next page, locate the specific fuse controlling the component that is non-operational. On most occasions, it is possible to simply remove the fuse and identify if it is blown.
  • Page 43 If this is the case, fix immediately. Replace the corre- sponding fuse and reinstall battery. Note: When replacing wire, always maintain Mudd-Ox specifications. Do not change gauge of wire, install additional connectors, or change routing of wire.
  • Page 44 • Figure-2 “C” and “D” represent the (2) different locations of the diagnosis grounding systems. As explained in the Ford Service Manual, the di- agnostic system must be grounded to display an engine fault. Depending on the date of manufacturer, the Mudd-Ox Fort Mac will either have a toggle switch or empty fuse holder in these locations.
  • Page 45 Steps 1. Locate the engine oil drain plug. Standard location is on the engine driver side, middle of the oil pan sidewall. If the Mudd-Ox is equipped with a remote drain setup, there will be a hose connected to the drain hole. Follow the hose down and there will be a valve with a drain.
  • Page 46 Engine Coolant Bleeding the System A brand new Mudd-Ox will not have a fully bleed cooling system. Meaning, there may be air bubbles that must be “driven” out of the system. 1. Drive the Mudd-Ox at operating temperature. 2. Let the engine completely cool down.
  • Page 47 At least (4) mechanics are recommended for these steps. Thoroughly read and understand the steps before attempting. 1. Remove lower operator seat and engine cover. Safely raise the Mudd-Ox with both tracks off the ground. It must be high enough that the tracks can drive forward and backwards without dragging the ground.
  • Page 48 Hydraulic Oil Change Cont. 9. Although the Mudd-Ox has new AW-46 oil in the tanks and new oil filters, there is still old oil inside the hydraulic system past the tanks. It’s time to run new oil through the system to push the old oil out via the return lines. Locate the hydraulic oil return lines. These are on top of both oil tanks as shown in Figure-2, C.
  • Page 49 “tight” if the pumps have air. If there is air, do not attempt to drive against it. Work the control levers as in step #18. 20. Once the Mudd-Ox can be driven on flat ground in both directions without any air, attempt to drive on small grades both up and down. Also attempt to counter-rotate the Mudd-Ox by pushing the control levers in opposite directions.
  • Page 50 “Swamping” refers to the unfortunate event when a Mudd-Ox fills with water. This can be caused by improper use of the vehicle such as en- tering large bodies of water and water with current. If safely possible, shut off the Mudd-Ox before it fills with water. A running machine can be faced with fatal mechanical failure if submerged in water.
  • Page 51 Repairing a Swamped Fort Mac Cont. 9. At this point the hydraulics, engine oil, engine coolant, and fuel system should be prepared. Now, complete steps #12-13 on page 43. Note: Water will most likely spray out of the spark plug holes. It is recommended to put cardboard next to the holes to prevent water from spraying inside the vehicle.

  • Page 52: Storage

    5. Completely drain fuel or add fuel stabilizer (See page 45 #7-8). 6. The next step is to remove weight off the tires. Carefully raise the Mudd-Ox. Place large wooden blocks under each side of the lower body (See Figure-1). This is to support the Mudd-Ox by its frame.

  • Page 53: Parts Manual

    PARTS MANUAL...
  • Page 55 Ref. Qty. Part # Description M-3618 Hydraulic Hose M-3617 Hydraulic Hose M-1771 Exhaust mount M-1856 XL Aluminum Exhaust Cage M-1855 85 HP Muffler M-1019 Seat Belt Latch M-1011 Seat Belt (Retractable) M-1004-XB XL Upper Body - Black M-1003-XL XL Lower Tub - Black M-2373 550 Track Lacing M-1020...
  • Page 57 Remote Winch Plug M-3103 All Hydraulic Front Motor (RH) M-3102 All Hydraulic Front Motor (LH) M-1777 Front Strengthening Plate M-1991 XL Brush Guard M-1035-B Driver Headlight Cover - Black M-3214-2 Exhaust Cover Plate M-1448 XL Rollbar M-3239 Mudd-Ox Rollbar Sticker...
  • Page 58 10 9...
  • Page 59 Ref. Qty. Part # Description M-1018 "Caution Hot" Warning Label M-1043 "Weight Limit" Warning Label M-3214-3 Engine cover handle M-2693 Oil Cooler M-2326 Oil Cooler Fan Guard M-3619 Hydraulic Hose M-3620 Hydraulic Hose M-1007 Rub Rail M-2229 Fuel Fill Door M-1929 "Gasoline"...
  • Page 61 Front Lower Seat (All Hydraulic) M-2660-1 Front Upper Seat (All Hydraulic) M-1692 20x11" Metal Screen M-1691 20x6" Metal Screen M-1376 Bilge Outlet M-1317 Mudd-Ox Badge 20/0 M-3276 Center Lug bolts (2018 and Older) M-2241 26x14x12" Vendetta Tire M-2325 12" Rim (All Hydraulic) M-2894...
  • Page 63 Ref. Qty. Part # Description M-1038 Cup Holder M-3215 85 HP Dash Panel M-1047 Steering Bellows M-3310 Heater Controls M-1041 Rubber Handle Grip M-3434 Heater Vent Box M-1044 T-Bar Handle M-1043 Load Capacities Label M-1208 T-Bar Cover Plate M-1925 "Driver" Safety Warning Label M-1662-R XL Steering Lever (RH) M-1662-L XL Steering Lever (LH) M-2301...
  • Page 65 Ref. Qty. Part # Description M-2812 Bilge Hose(All Hydraulic) M-1477L XL LH Oil Tank (Canadian) M-1397 Hydraulic Tank Cap M-1566 12 Position Fuse Block M-1642 All Hydraulic Heatshield M-3519 Upper Coolant Hose M-3229 85 HP Exhaust Header M-3382 Exhaust Pipe Assembly M-1099 Plastic Coolant Reservoir Canister M-3234...
  • Page 67 Ref. Qty. Part # Description M-3346 Aluminum Manifold Block M-3100 All Hydraulic Pump M-1992-2 XL/GT H Bracket Mounting Cap M-2726 Neutral Safety Switch M-3068 Ball Valve M-1933 Dampener M-1077-2 Ball Stud M-1206-R Rear "Z" Bar M-3215 Steering Cable M-1206-F Front "Z" Bar M-1097 Battery M-1400...
  • Page 69 Ref. Qty. Part # Description M-1082-L/R Upper Radiator Clamp M-3025 Ball Valve M-2188 Radiator M-1118 Lower Radiator Clamp Spacer M-1083-L/R Lower Radiator Clamp M-2180 13" Fan M-3086 Fuel Fill Hose M-3184 1-1/2" Steel Barb M-2005 Brass Fitting M-1304 Fuel Line M-1390 Electric Fuel Pump M-3260...
  • Page 71 Ref. Qty. Part # Description M-1269 Parking Brake Cover M-1375 Shield Retainer ("Plastic Tree") M-1150 Parking Brake Tube Assembly M-1012 Parking Brake Handle M-1804 Idler Spindle M-1787-H Idler Hub M-3616 Wheel Bearing Protector M-3150 Ripsaw Track Set XL M-1417 Sony Marine Stereo Kit M-3280 Cab Radio Box M-1857...

  • Page 72: Dimensions

    Mudd-Ox Dimensions...

  • Page 73: Contact Us

    Feel free to send us pictures and stories about your Mudd-Ox. We enjoy the unique story of each individual machine; the satisfaction of our customers is very important. You may also share on our social media pages where latest Mudd-Ox news is posted.
  • Page 76 Address : 8525 W 750 N Shipshewana, IN 46565 Phone : +1 260 768 7221 Web : www.muddox.net © Mudd-Ox, Inc. Ver 0919 All specifications subject to change without notice.
